| Part Number: |
SNW107A54525A |
| Quantity In Stock: |
2 |

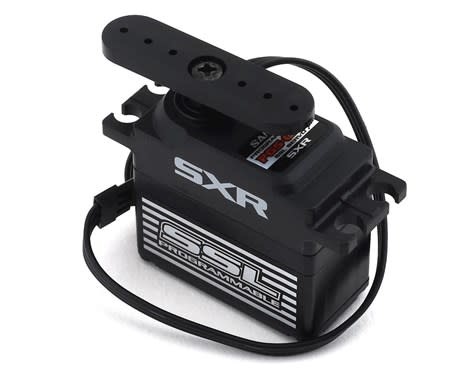

SNW107A54525A Sanwa/Airtronics PGS-CX II Hi-Torque Programmable Servo (HV)
- SSL Compatible *Compatible with CODE10 (M12S (RS), Exzes ZZ, MT-44). Not compatible with CODE5 (M12, Exzes Z, MT-4S, MT-4, MT-S)
- MULTI SETTING GEAR compatible *Not compatible with PGS SETTING GEAR
- SSR mode compatible
- SHR mode compatible
- Lipo 2 cell battery compatible
- High torque type
- Coreless motor
- Metal Gears
- AL Heat Sink
PGS-Servo Features:
- Programmable Servo to be compatible with SSL & Telemetry
- Setting Adjustment by wireless from Radio
- Setting Adjustment to connect Servo with Multi Setting Gear
- Regarding Temperature, Current, Voltage and Volume Position on Servo inside,Telemetry-transmission can be passed to Radio. *Initial Setting on Multi Setting Gear is necessary.
Programable Settings:
- SSL-CH (SSL Channel Setting)
- STRETC (Stretcher Adjustment)
- BOOST (BOOST Adjustment)
- D-Band (Dead Band Adjustment)
- MV-MID (Middle Torque Adjustment)
- MV-END (Later Torque Adjustment)
- BREAK (Break Adjustment)
- ?MV-HOLD (Power Adjustment at whole area) *Multi Setting Gear is required
- ?MV-FRQ (Feeling Adjustment at whole area) *Multi Setting Gear is required
- ?MAX-PW (MAX Duty Adjustment) *Multi Setting Gear is required
Specifications:
- Speed:
- @7.4V: 0.11 sec / 60°
- @6.0V: 0.13 sec / 60°
- Torque:
- @7.4V: 368.01 oz-in (26.5 kg-cm)
- @6.0V: 323.57 oz-in (23.3 kg-cm)
- Dimensions: 40.5 X 20.5 X 37.2 mm
- Weight: 59 g
