| Part Number: |
TRA90386-4-GRN |
| Quantity In Stock: |
1 |

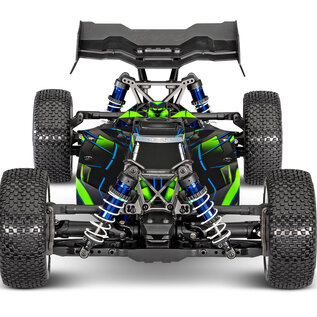

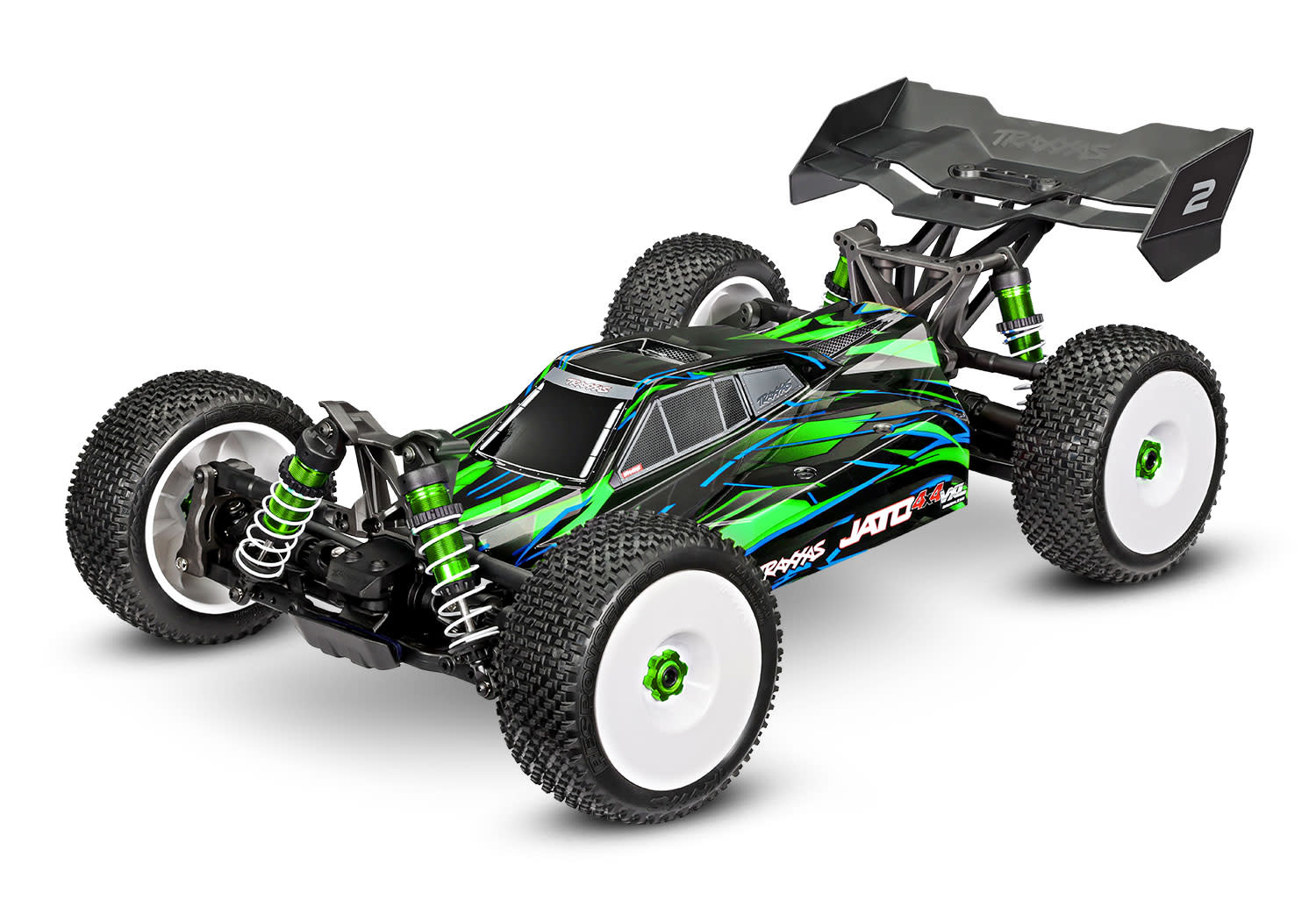

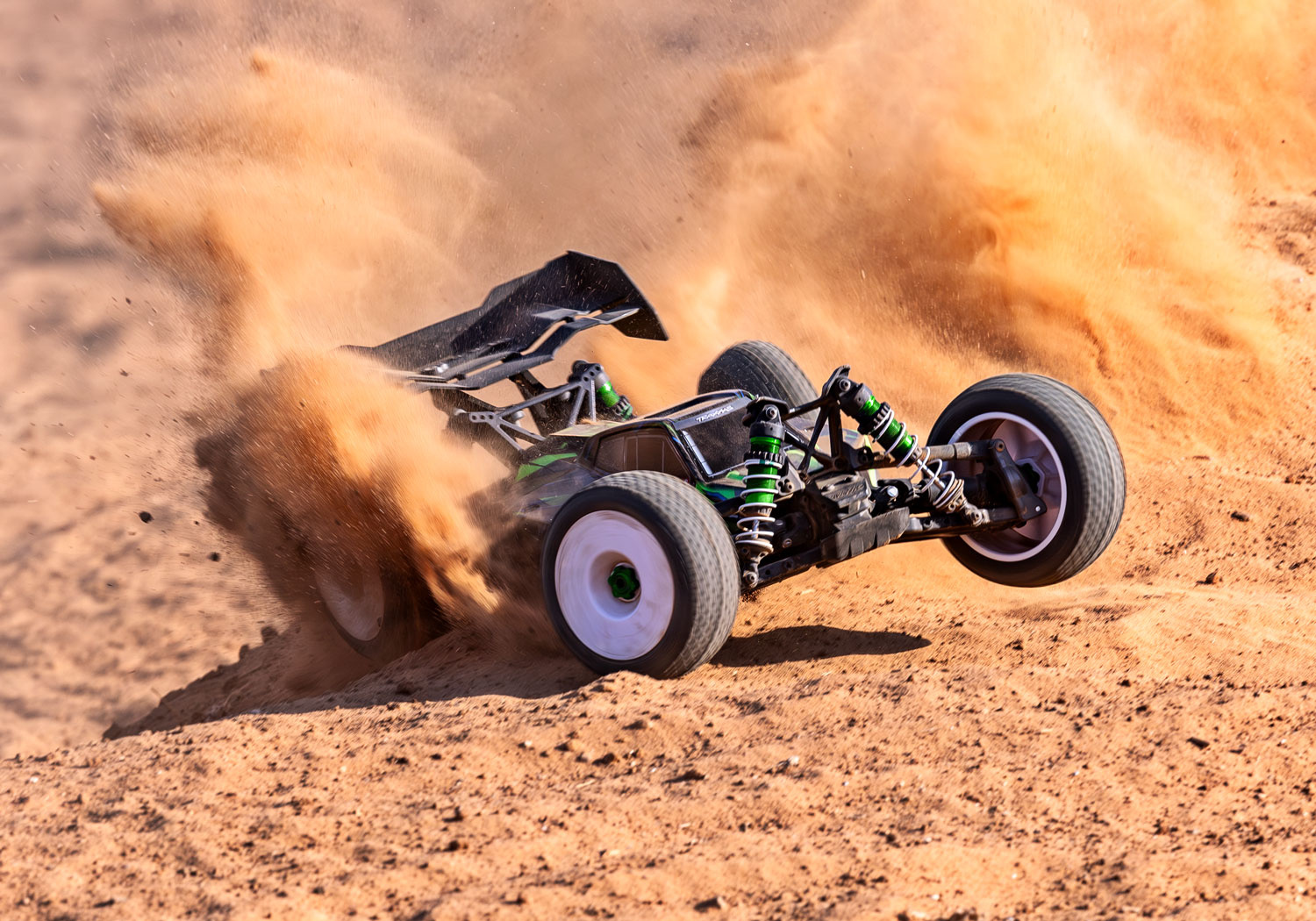

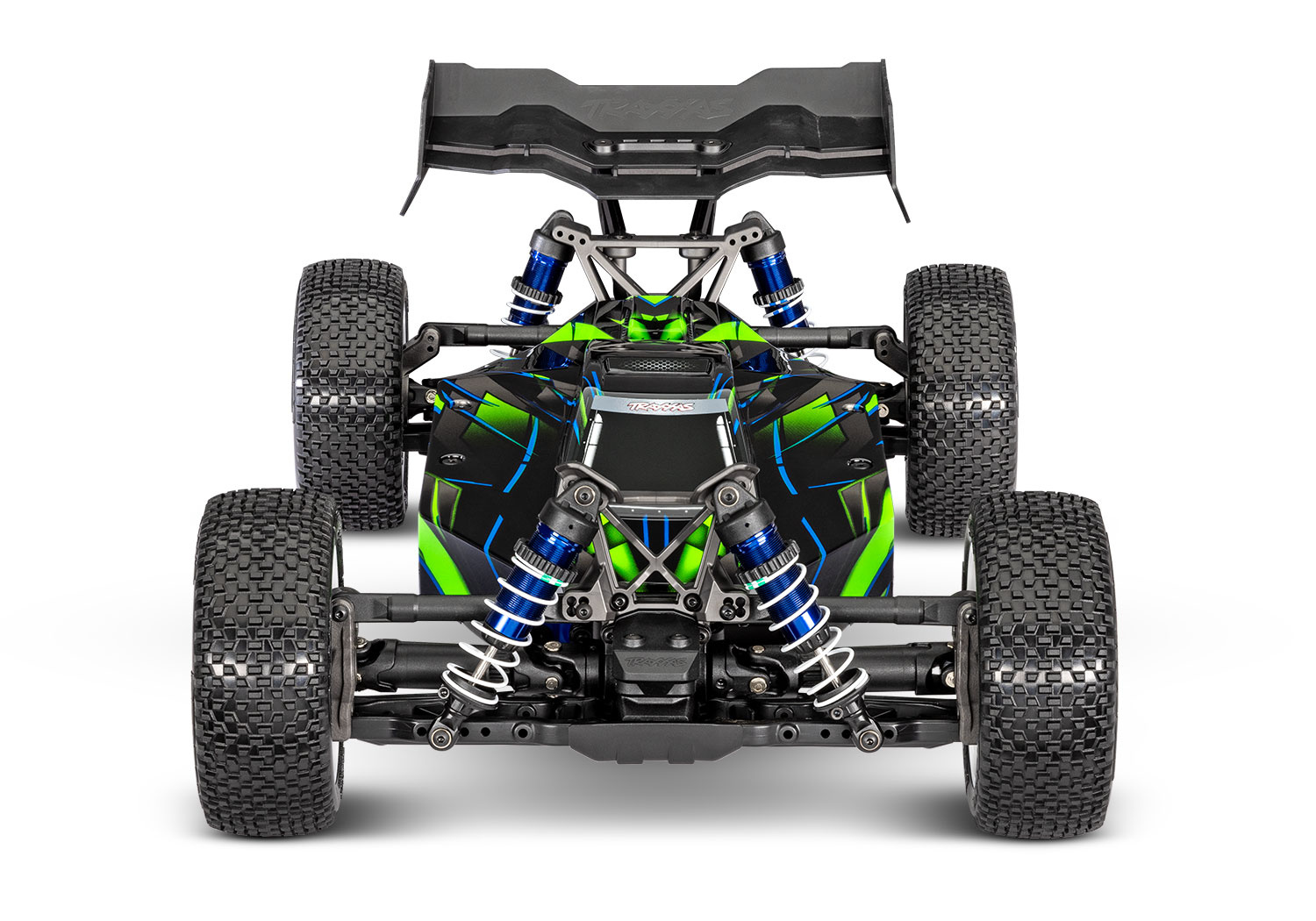

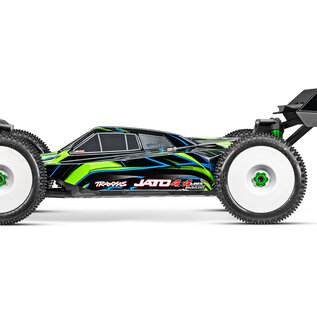

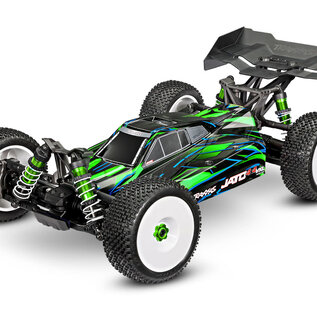

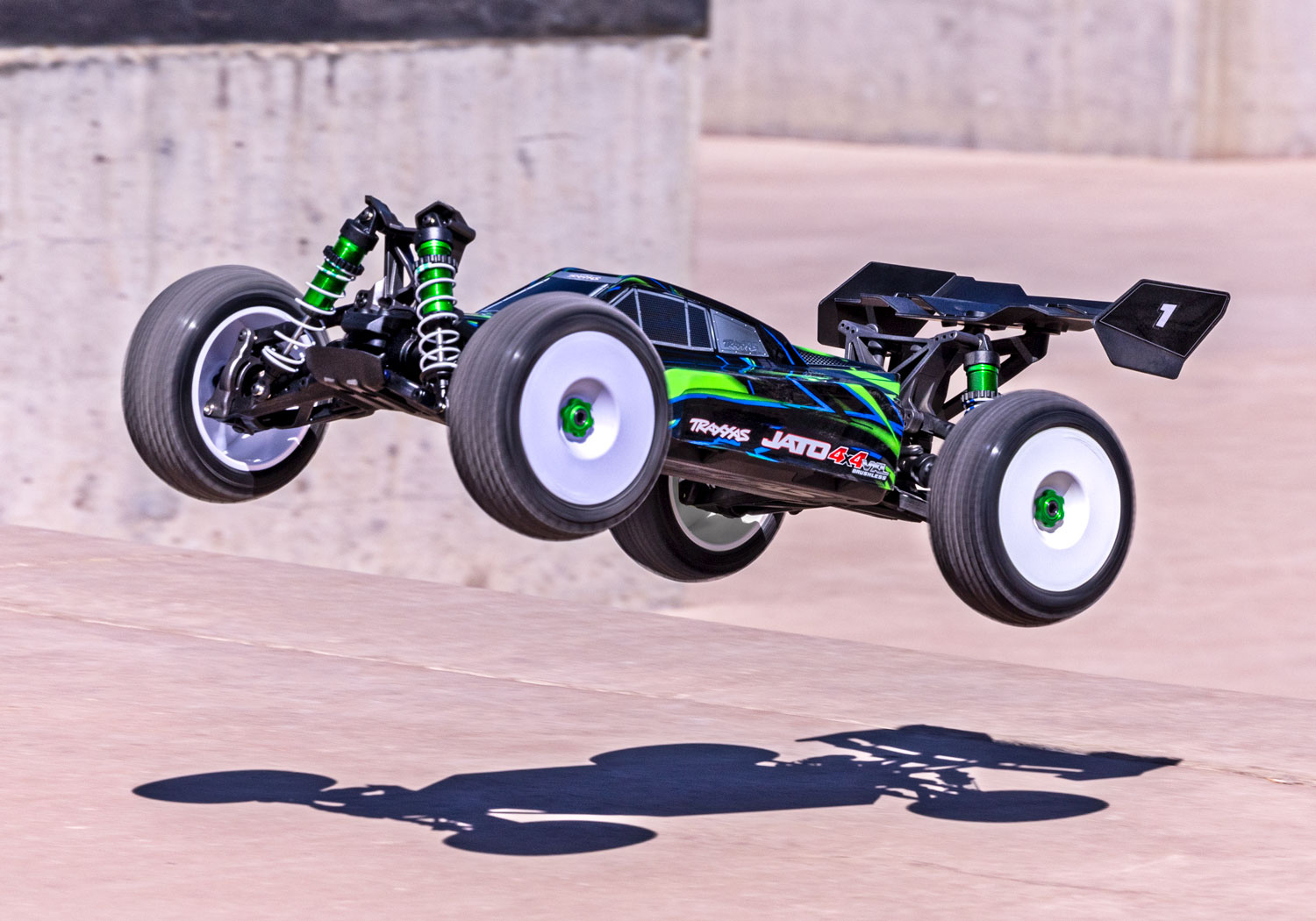

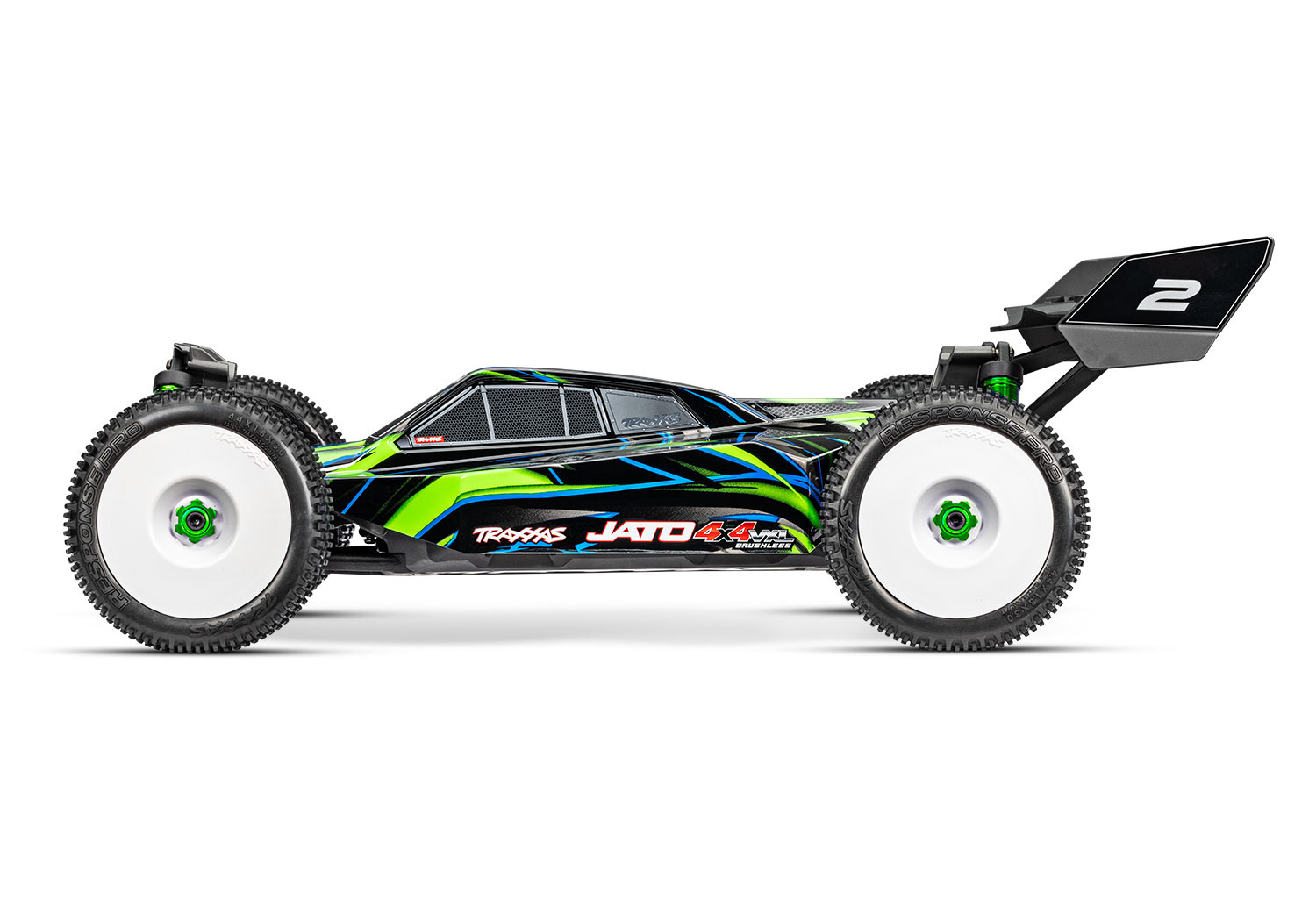

TRA90386-4-GREEN Jato 4X4 VXL RTR Green
MODEL SPECS
| Type: |
1/8 scale buggy |
| Skill Level: |
2 |
| Length: |
20.4 inches (517 mm) |
| Width: |
12 inches (305 mm) |
| Height: |
7 inches (179 mm) |
| Weight: |
5.6 pounds (2.54 kg) |
| Wheelbase: |
12.6 inches (320 mm) |
| Front Track: |
12 inches (305 mm) |
| Rear Track: |
12 inches (305 mm) |
| Shock Length (front): |
3.98 inches (101 mm) - XX-long |
| Shock Length (rear): |
3.98 inches (101 mm) - XX-long |

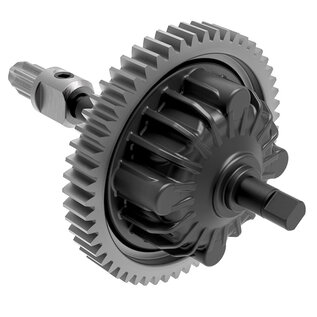

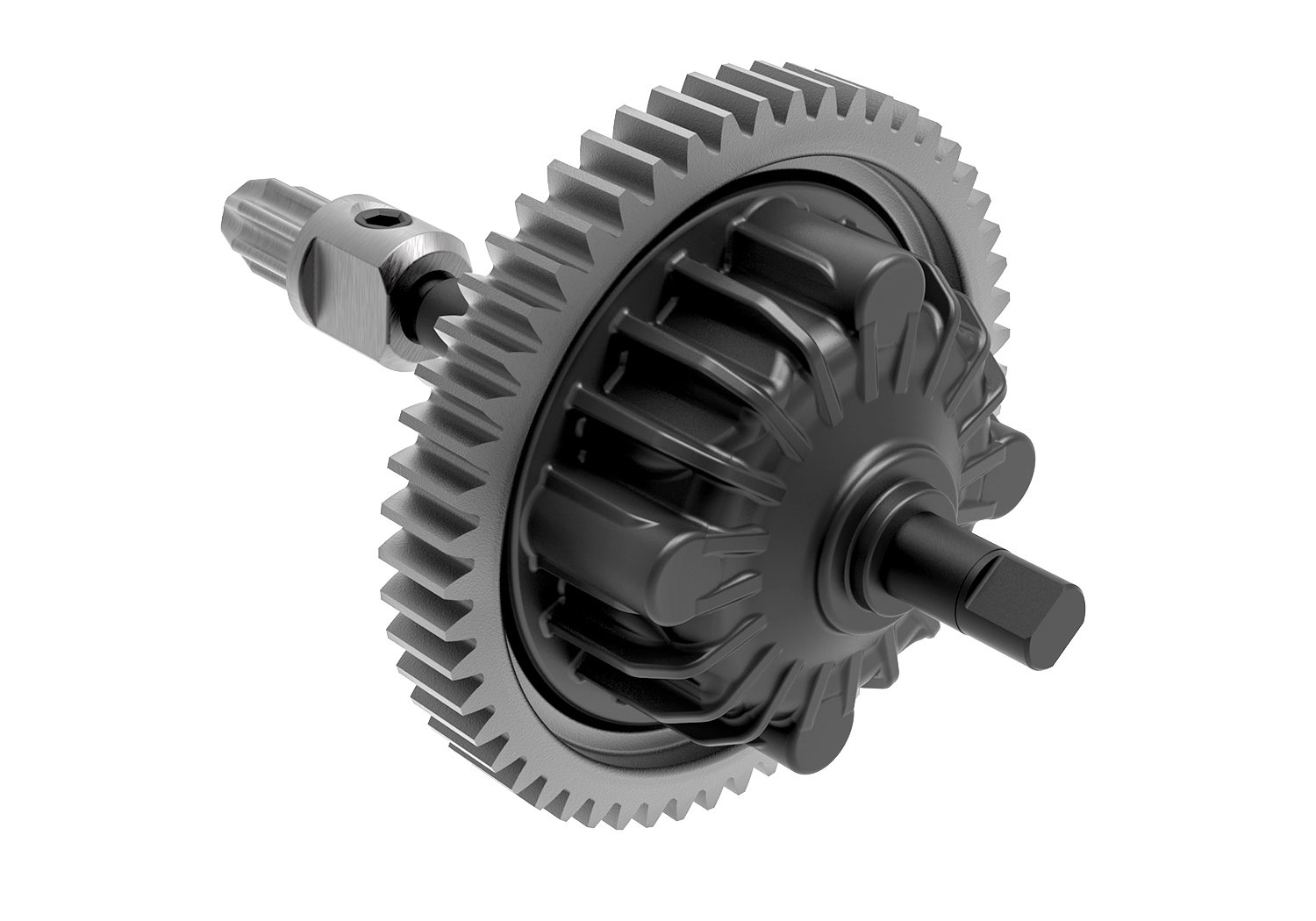

| Differential Type: |
Hardened steel bevel, sealed, limited slip |
| Gear Pitch: |
32 |
| Overall Drive Ratio: |
10.16:1 |
| Driveline: |
Shaft-driven 4WD with Torque-Biasing Center Drive |

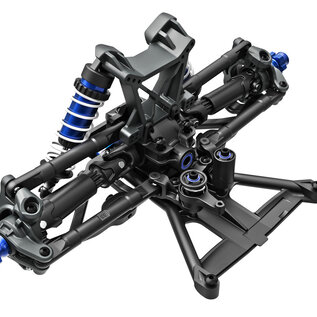

| Steering: |
Dual-bellcrank with integrated servo saver |

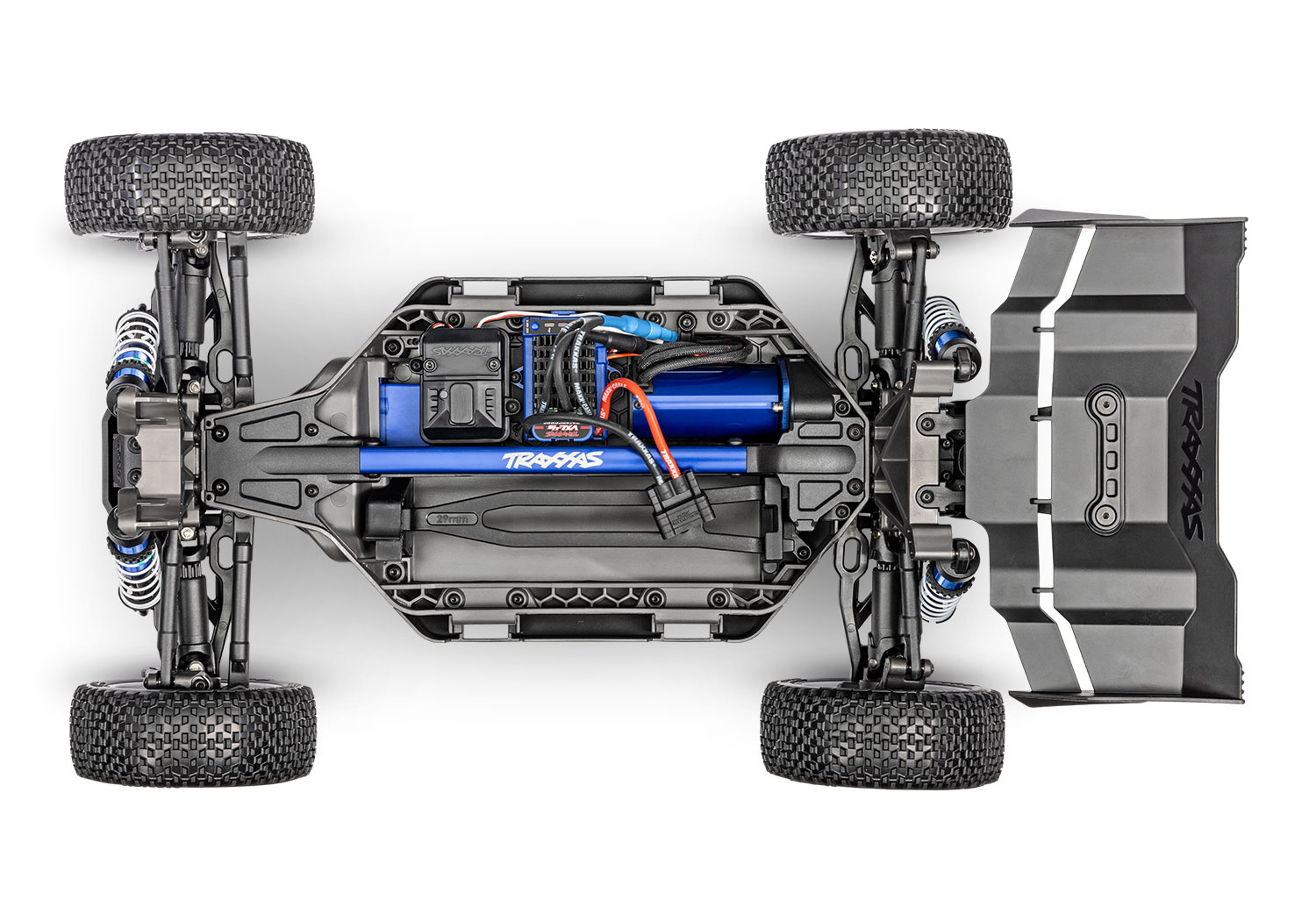

| Chassis Structure/Material: |
Composite tub |
| Tires: |
Response Pro S1-compound with foam inserts |
| Wheels (front/rear): |
3″ dished buggy wheels |
| Wheel Diameter: |
3″ inches (78 mm) |
| Radio System: |
TQi™ 2.4 GHz (2-channel) |
| Steering Servo: |
Waterproof digital 2075 servo (125 oz-in torque) |
| 165 mm x 50 mm x 35mm: |
Battery Compartment (L/W/H) |
MOTOR SPECS
| Motor Type: |
540XL 2400 Kv sensorless brushless |
| Weight: |
11.18 ounces (317 g) |
| Length: |
3.58 inches (91 mm) |
| Diameter: |
1.41 inches (36 mm) |
| Shaft Size: |
5 mm |
| Connector Type: |
Traxxas 6.5 mm bullet connectors |

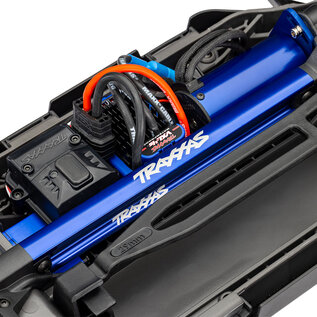

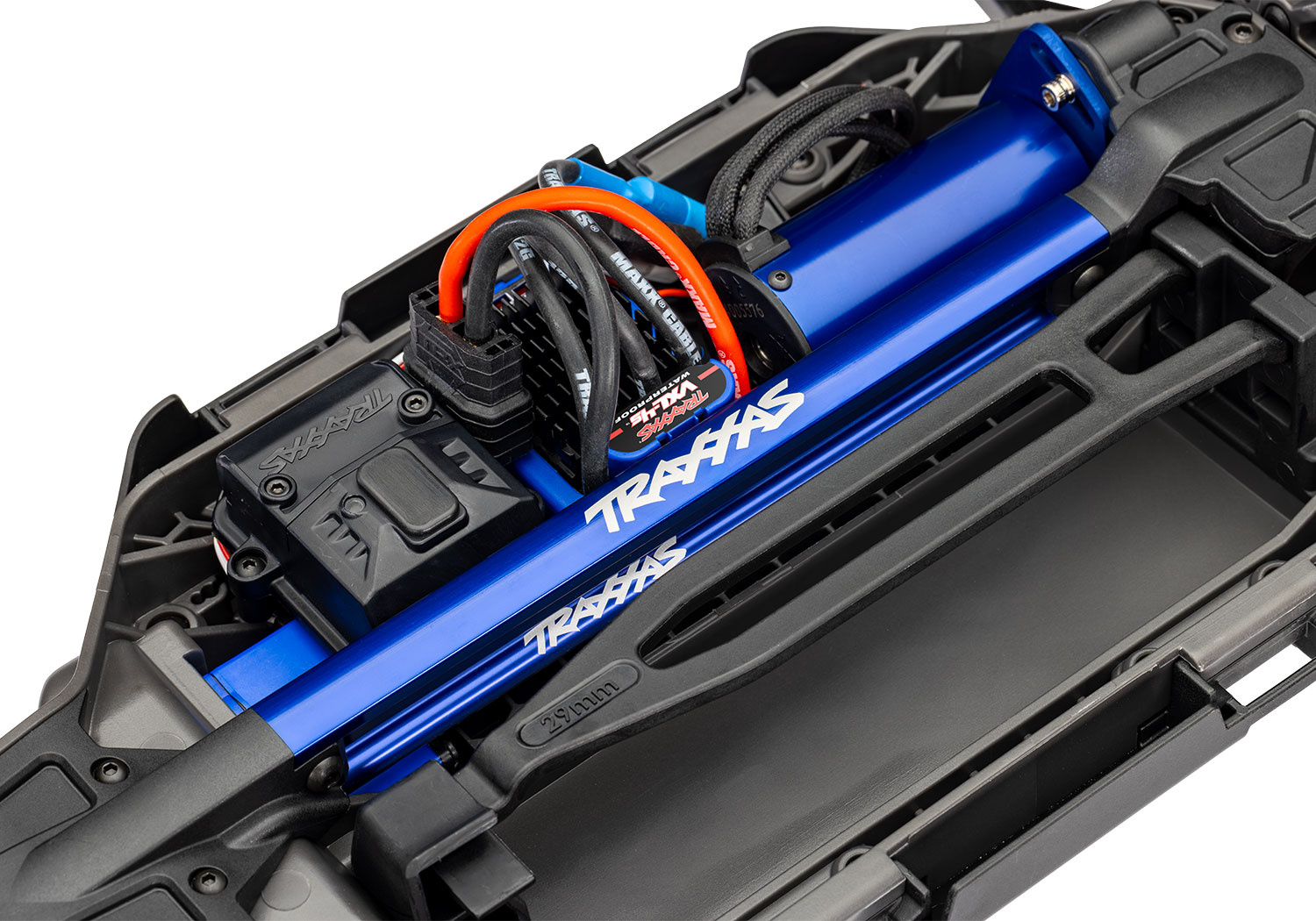

ESC SPECS
| Input Voltage (cells): |
2s-4s LiPo (7.4 V - 16.8 V) |
| Case Size: |
2.40″ (61 mm) x 2.09″ (53 mm) x 1.42″ (36 mm) |
| Weight: |
4.20 ounces (119 g) |
| BEC Voltage: |
Selectable 6.0 or 7.4 volts |
| Motor Connectors: |
Traxxas 6.5 mm bullet connectors |
| Battery Connectors: |
Traxxas High-Current Connectors |
| Thermal Protection: |
Two-stage thermal shutdown |
| Ports: |
RX input, auxiliary fan connector |
