| Part Number: |
TRA89086-4 Green |

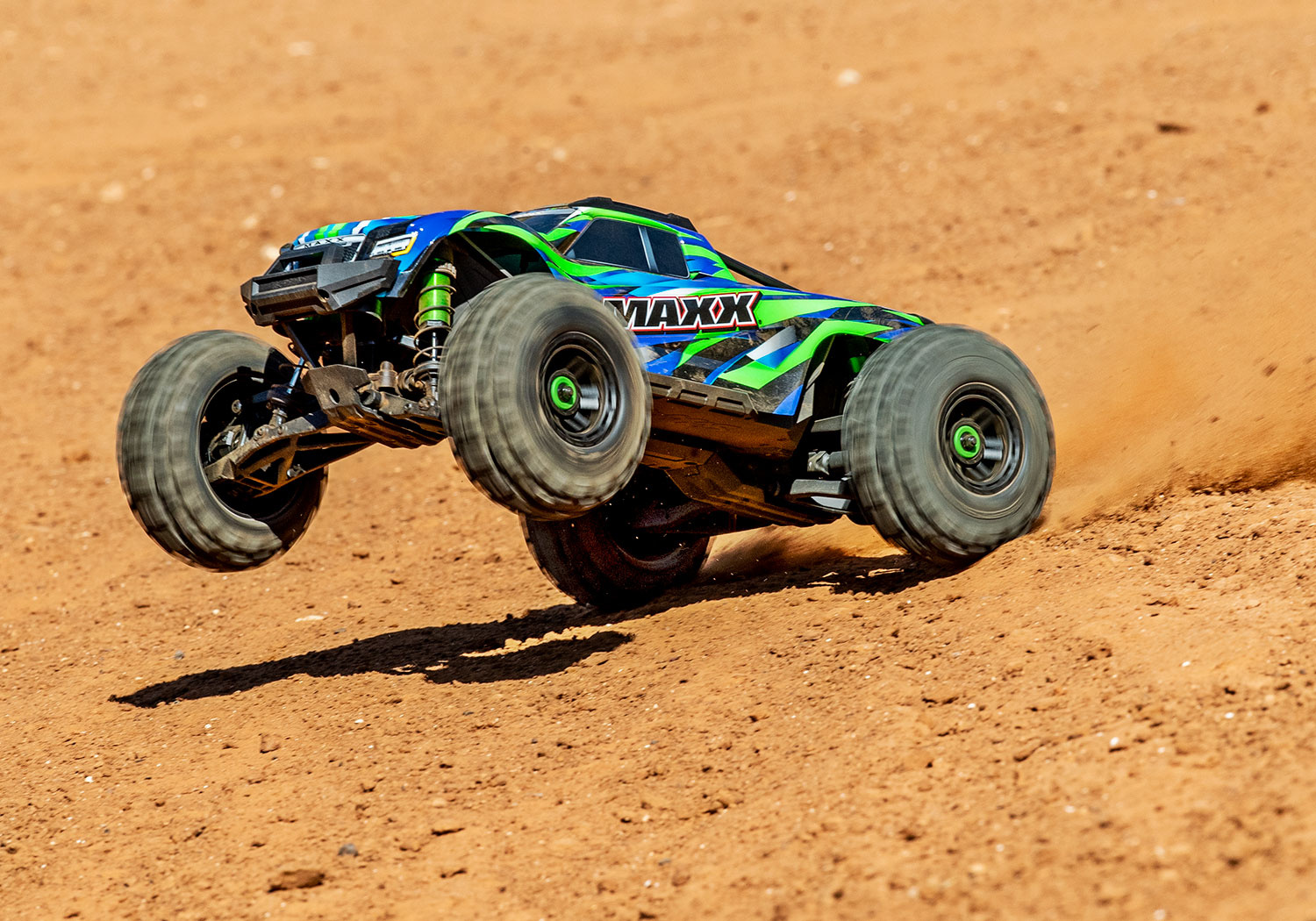

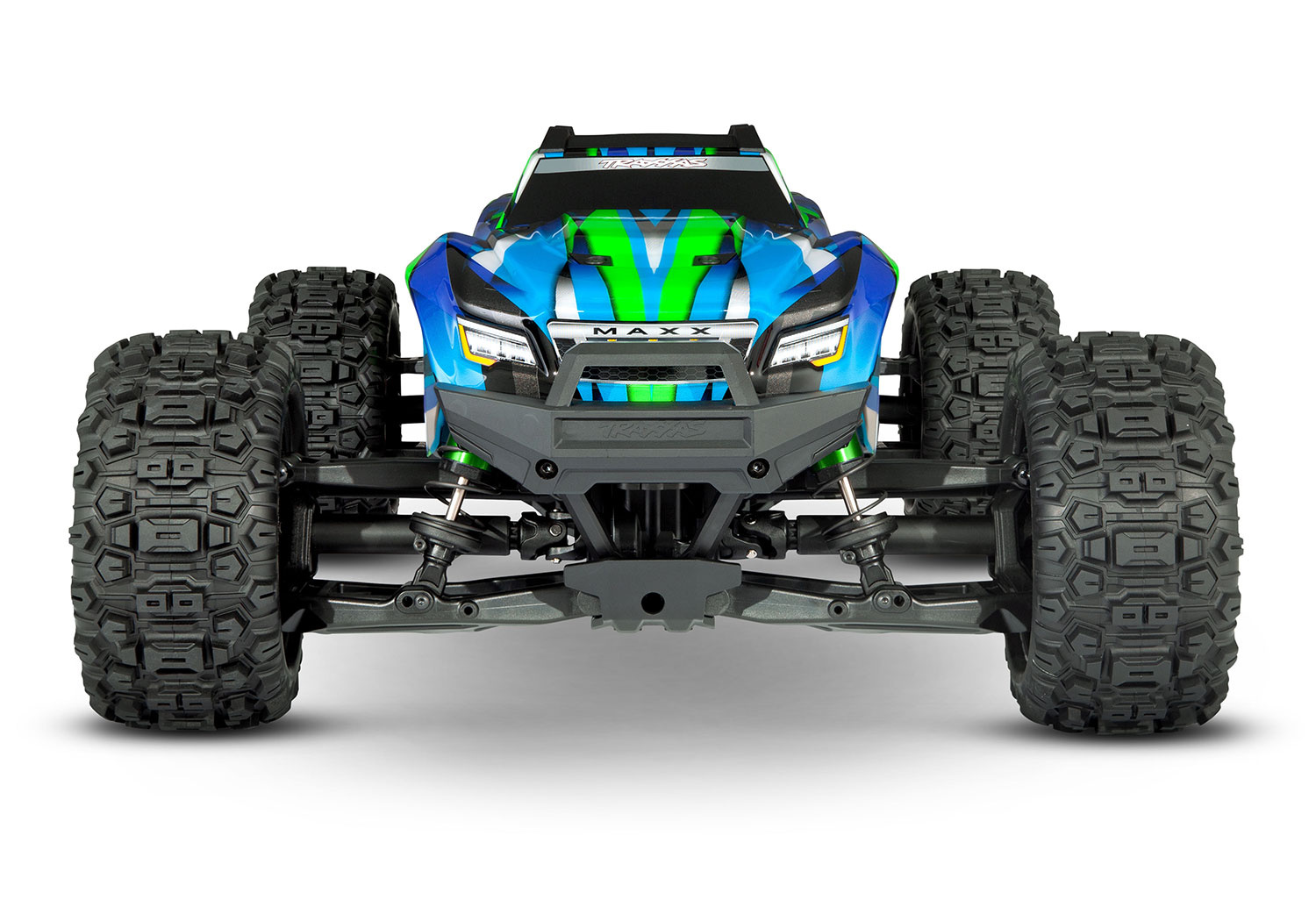

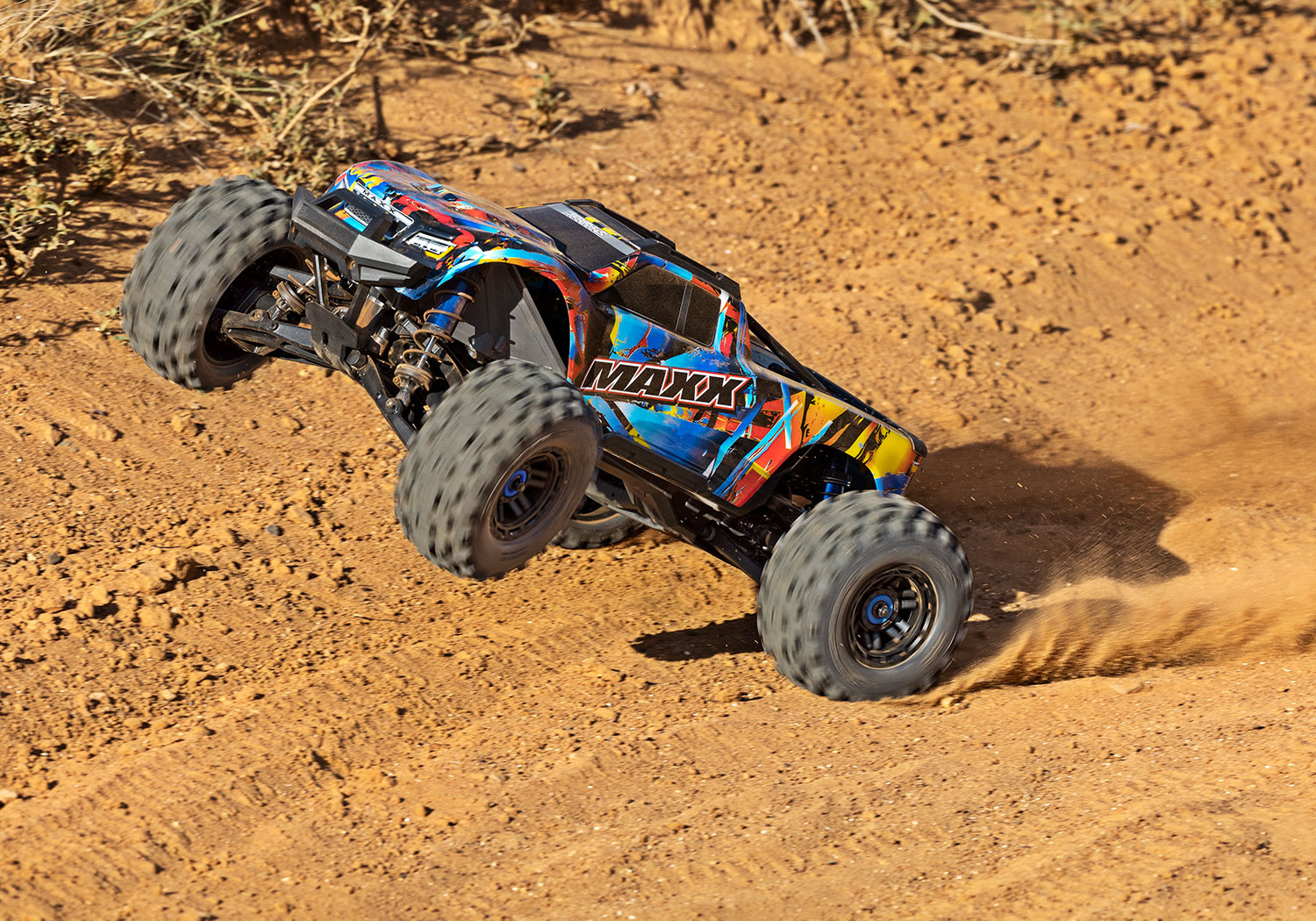

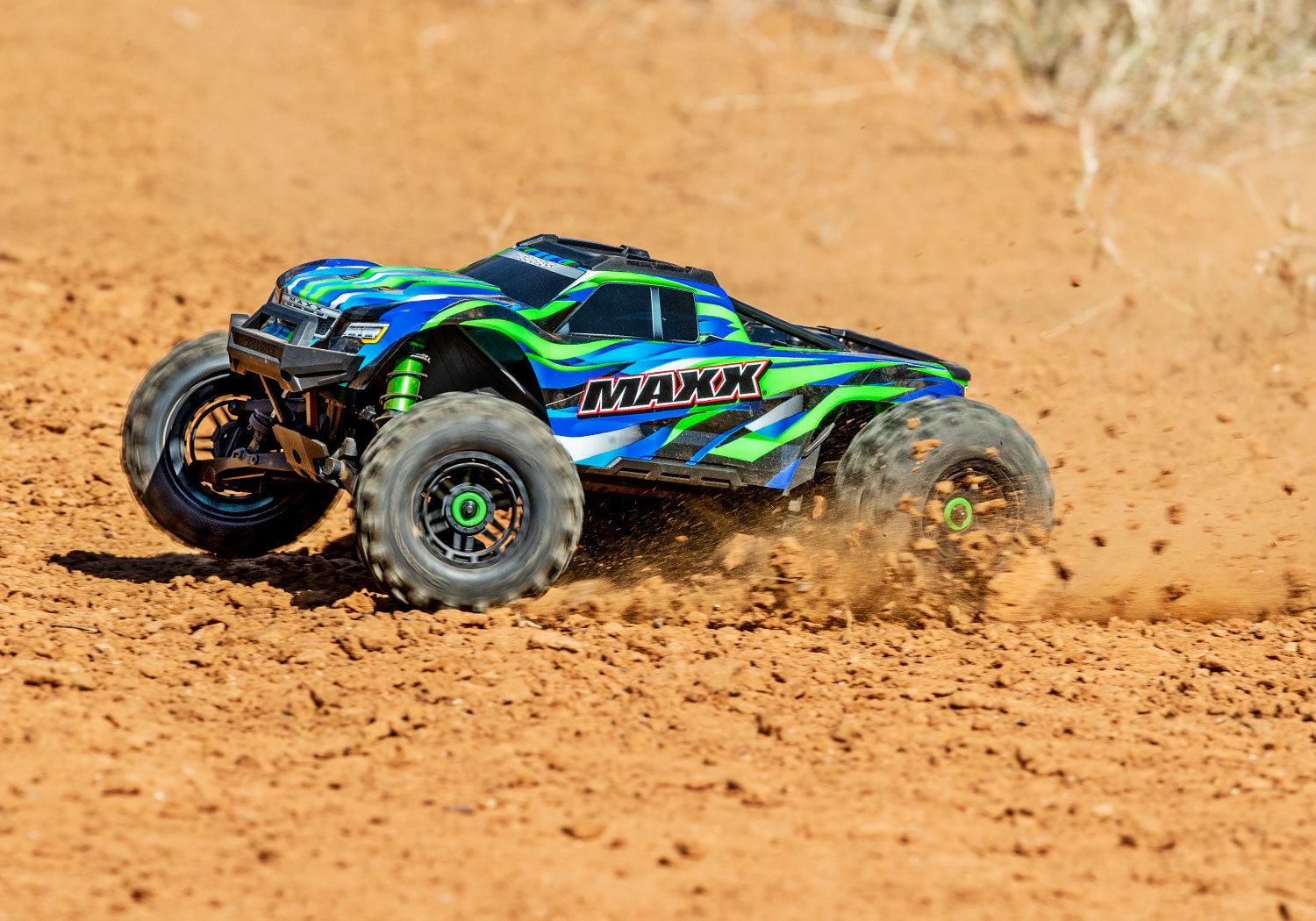

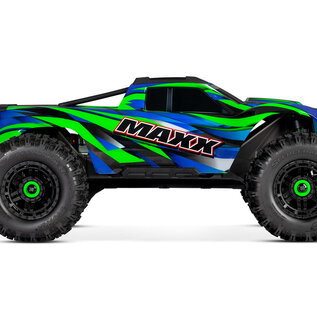

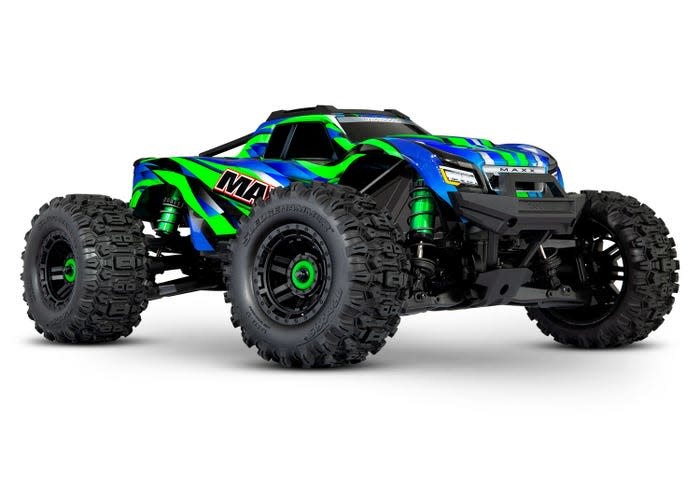

TRA89086-4 Green 1:10 Maxx Monster Truck w/ Widemaxx RTR without Battery & Charger
- New Features
- WideMaxx® from the Start
- Longer chassis accommodates 6700 mAh 4-cell LiPo used in the X-Maxx
- Sledgehammer® Tires
- Six new colors
- VXL-4s™ Waterproof Electronic Speed Control
- 3s–4s LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
- Velineon® 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 kV
- 5 mm output shaft
- Aluminum heat sink
- Cooling fan
- 55+ MPH out of the box using single 4s LiPo battery (sold separately)
- 60+ MPH with optional gearing and single 4s LiPo battery (sold separately)
- Traxxas Stability Management®
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio System
- Traxxas Link enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Telemetry-ready 5-channel micro receiver
- Clipless Body Mount System
- Quick one-hand installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips
- Reinforced for extra protection against tearing
- Drivetrain
- Full-time shaft-driven 4-wheel drive
- Torque-Biasing Center Drive™ absorbs shocks and distributes power
- 17 mm keyed wheel hex with 5 mm nut
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Splined outdrives attached with external thru-bolt method
- Heavy-duty Cush Drive™
- Extreme-duty telescoping driveshafts
- Splined aluminum center driveshaft
- Secure Motor Mounting System
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Full-length motor cradle

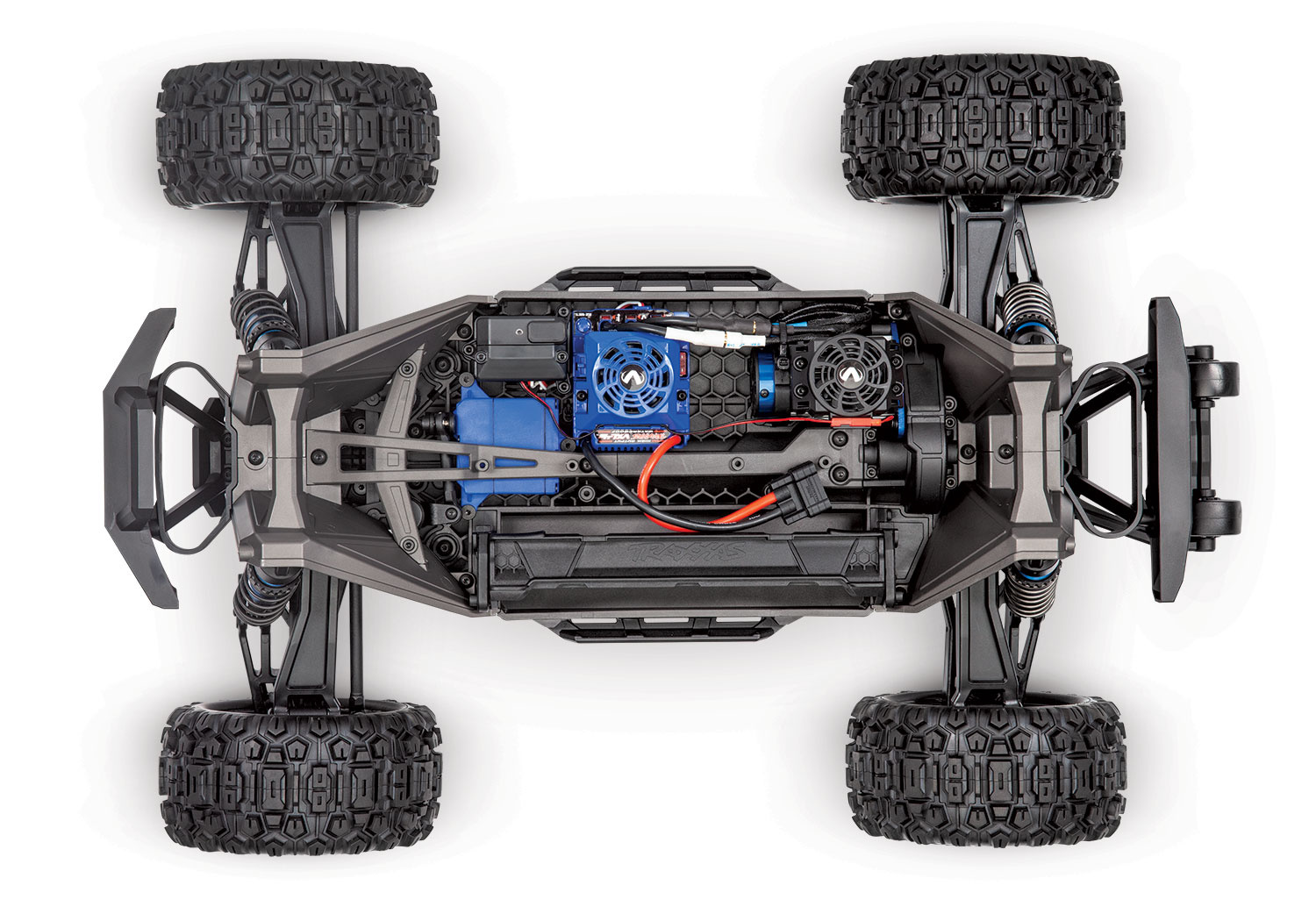

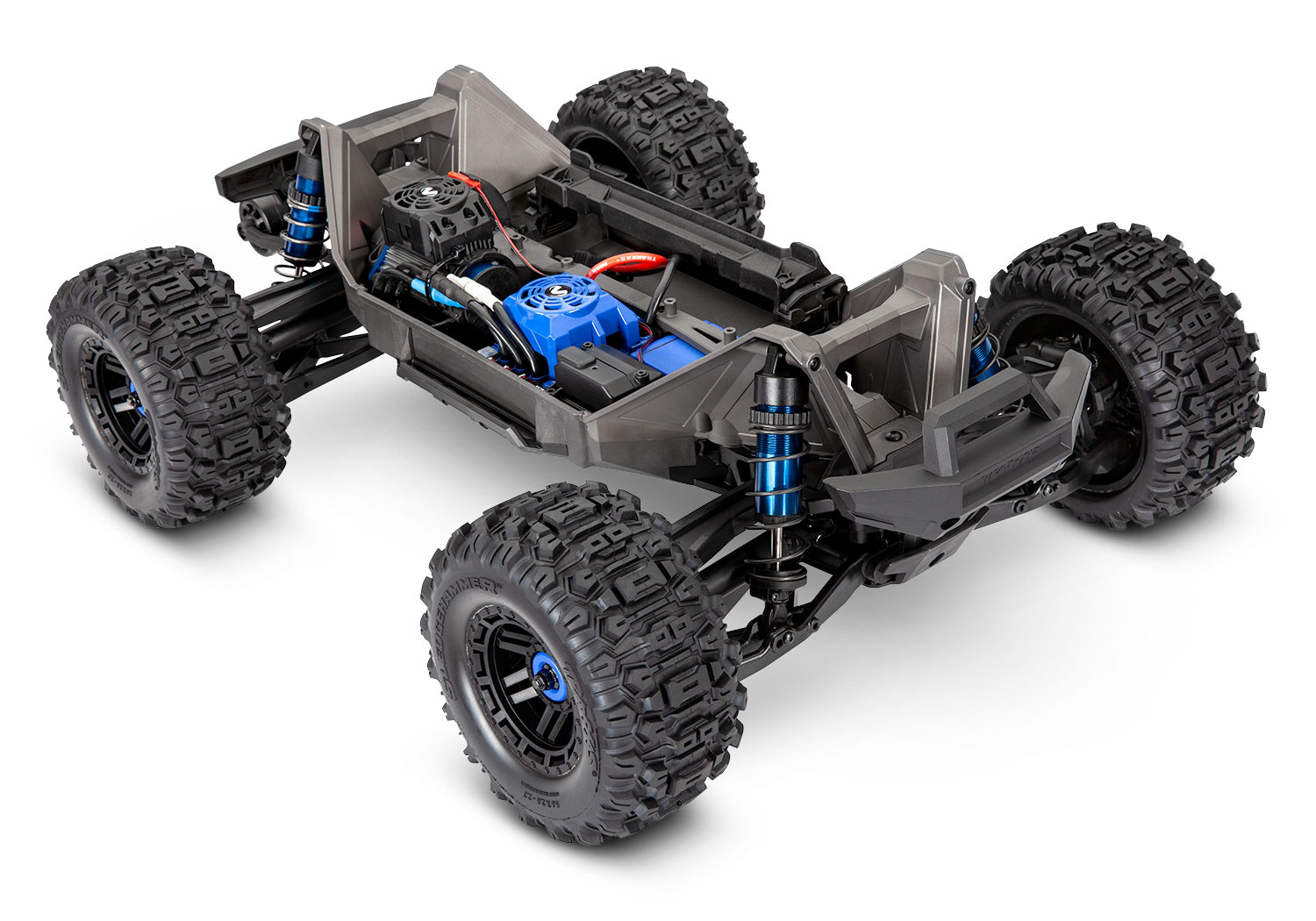

- New Modular Composite Chassis
- Extended modular chassis design interlocks with front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components

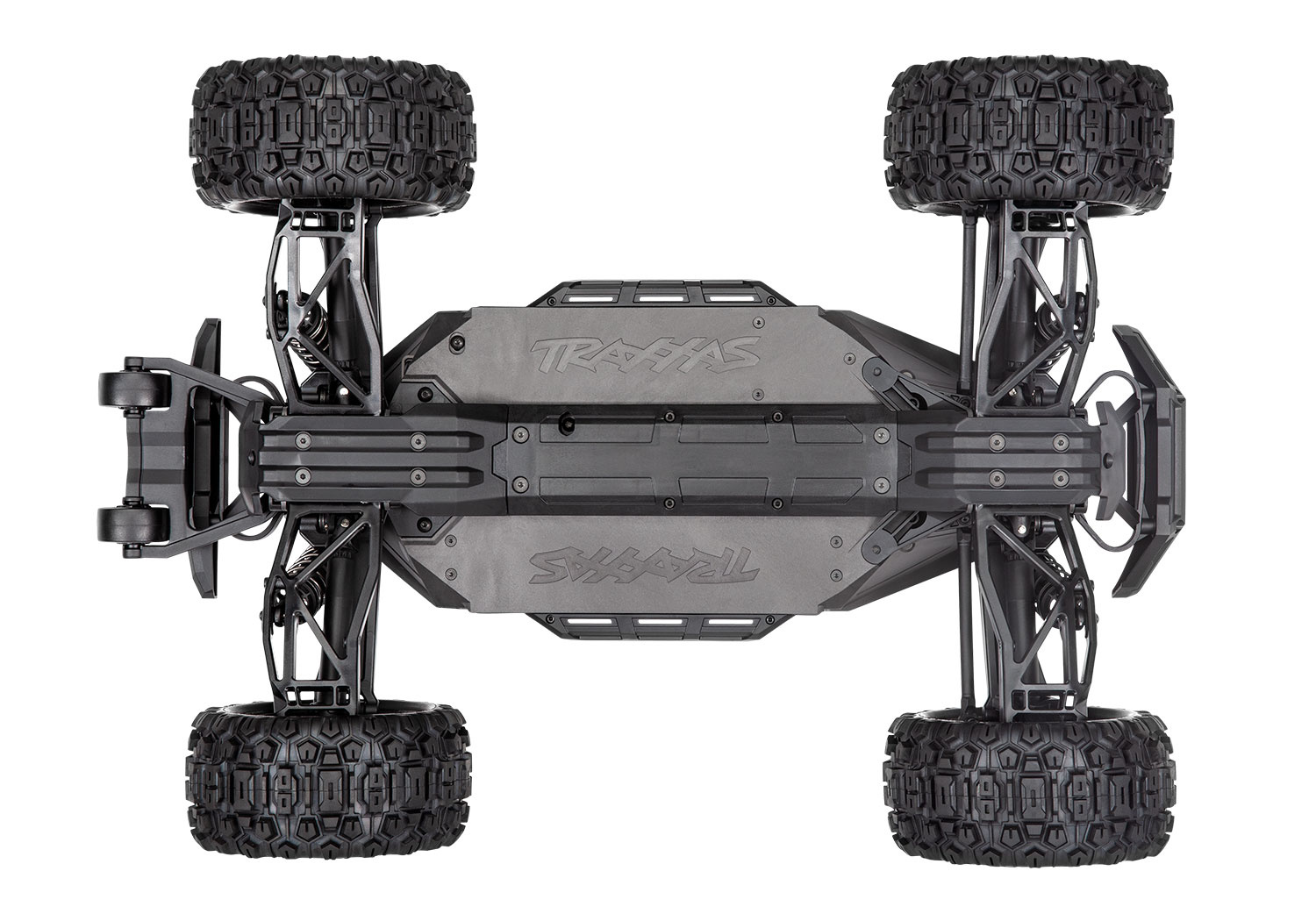

- Driveline is sealed in the chassis to keep out dirt and grit
- Easy Battery Access
- Extended battery tray accepts 6700 mAh 4-cell LiPo battery
- Battery is protected deep in the chassis
- Battery hold-downs pivot for easy access
- More secure than conventional retention systems
- Bumpers
- Tough energy absorbing front and rear bumpers
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance
- Wheelie bar with integrated carry handle
- Heavy-Duty Steering Bell Cranks and Servo Saver
- 285 oz-in of torque
- 0.18 sec transit speed
- Large-scale high-output steering servo
- Triangulated mounting system to fully support case
- Heavy-duty double-shear bellcranks
- Suspension

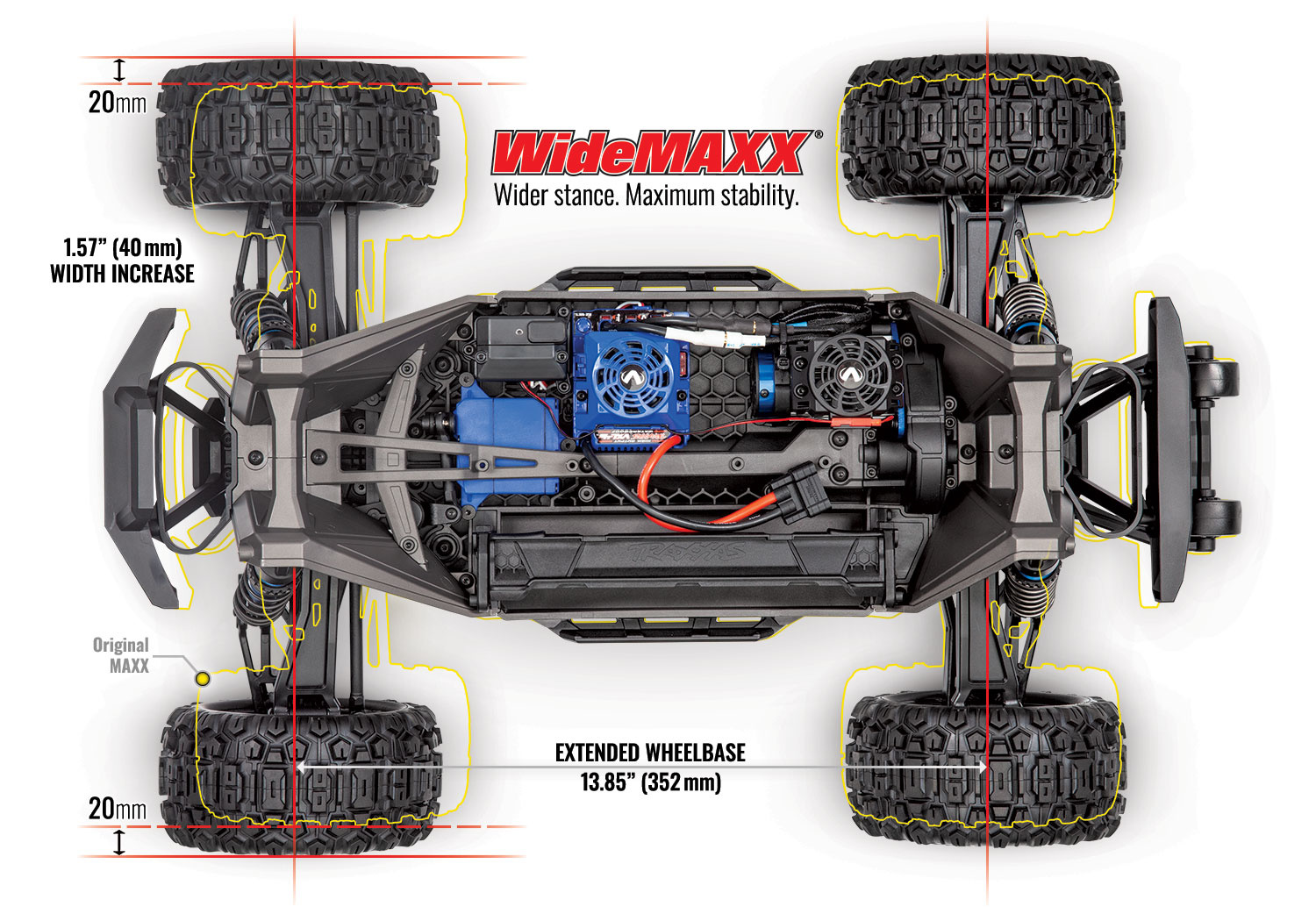

- WideMaxx® double-shear suspension arms

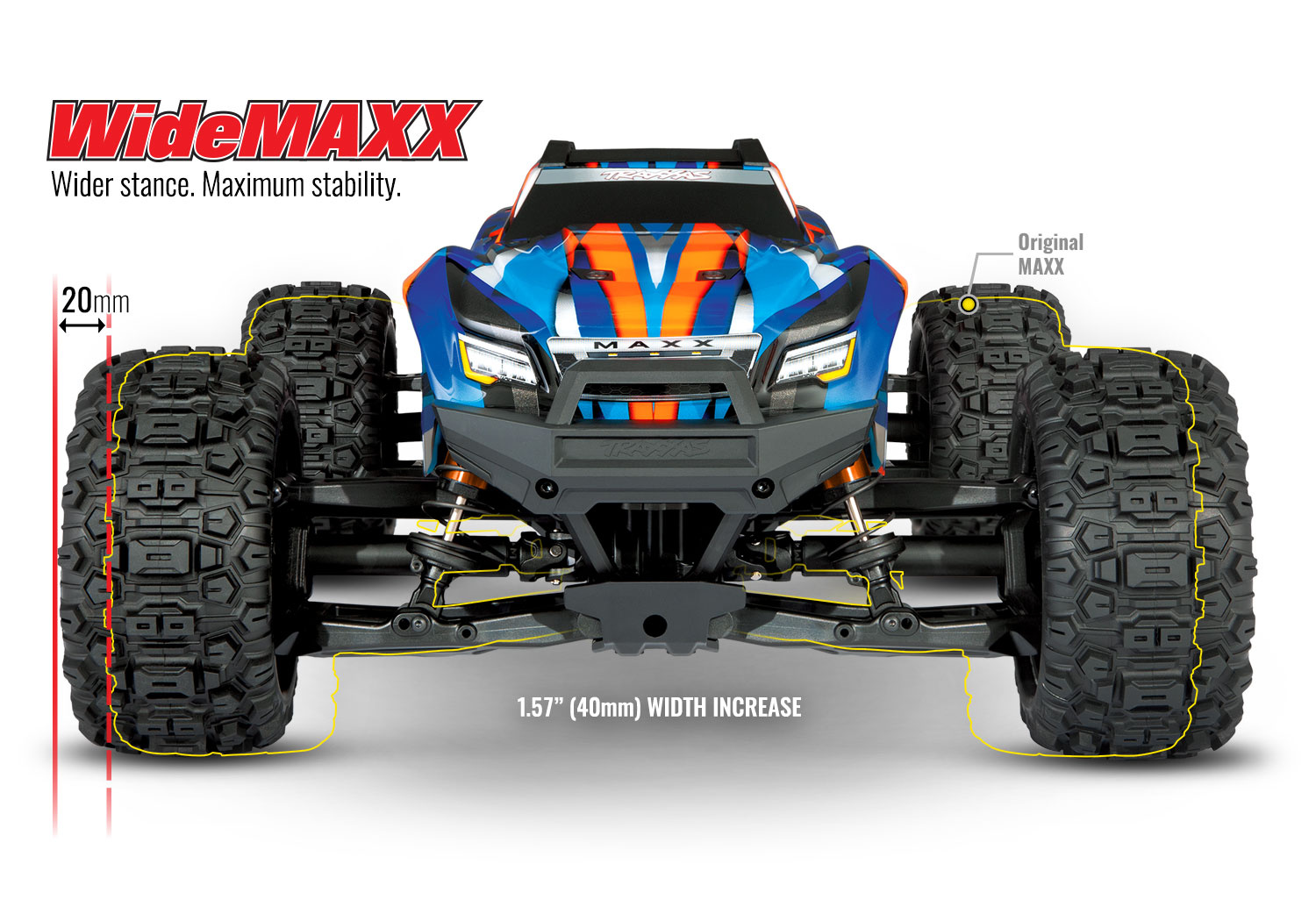

- 1.57″ (40 mm) wider for improved handling
- Tough new composite formula resists impact damage, even in cold weather
- Engineered to optimize suspension travel and steering angles
- All critical suspension points have double shear strength
- Steel pivot balls
- 4 mm machined pivot balls
- C-hub and steering block geometry maximizes steering angle
- Fixed, high-strength camber and toe links
- Steel upper and lower tie bars
- Full contact sealed bearings used in exposed locations
- GT-Maxx® Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Large-diameter damper shaft
- Lower seal cartridge with dual X-rings
- Adjustable upper spring retainer
- Plastic shock caps with pivot balls
- Lower spring perches bolted on
- Wheels/Tires
- Tough 2.8″ wheels with keyed 17 mm hex receptor
- Sledgehammer® extreme tires for sure-footed traction
- 1-piece foam inserts
- Pre-glued and ready for action
- TSM® rated
MODEL SPECS
| Model Name: |
Maxx with WideMAXX |
| Model Type: |
Monster Truck |
| Model Speed: |
60+ mph with 4s LiPo battery and optional gearing |
| Model Skill Level: |
4 |
| Scale: |
1/10 |
| Weight: |
10.40 pounds (4.7 kg) |
| Length: |
22.50 inches (572 mm) |
| Width: |
15.95 inches (405 mm) |
| Front Track: |
15.95 inches (405 mm) |
| Rear Track: |
15.95 inches (405 mm) |
| Height: |
9.12 inches (232 mm) |
| Wheelbase: |
13.85 inches (352 mm) |
| Center Ground Clearance: |
2.6 inches (67 mm) |
| Drivetrain: |
Shaft-driven 4WD |
| Transmission: |
Single speed |
| Differential Type: |
Sealed, hardened steel bevel, limited slip |
| Gear Ratio (Internal): |
12.37:1 |
| Gear Pitch: |
1.0 metric pitch |
| Servo(s): |
2090 digital high-torque waterproof (285 oz-in) |
| Radio System: |
TQi™ 2.4 GHz transmitter with TSM® receiver |
| Battery Compartment Specs: |
186 mm X 48 mm X 43 mm |
MOTOR SPECS
| Motor Name: |
540XL 2400 kV |
| Motor Type: |
2400 kV sensorless brushless |
| Motor Weight: |
317 g (11.1 8oz) |
| Motor Length: |
3.58 inches (91 mm) |
| Motor Diameter: |
1.41 inches (36 mm) |
| Motor Shaft Size: |
5 mm |
| Motor Connector Type: |
6.5 mm bullet connectors |
ESC SPECS
| ESC Name: |
Velineon® VXL-4s |
| ESC Type: |
Brushless |
| ESC Case Size: |
72 mm L x 59 mm W x 49 mm H |
| ESC Weight: |
7.09 ounces (201 grams) |
| Motor Connectors: |
6.5 mm bullet connectors |
| Battery Connectors: |
Traxxas High-Current Connectors |
What’s In The Box:
- Maxx, Ready-To-Race® model with Traxxas 540XL brushless motor
- VXL-4s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi™ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- LiPo Battery
Traxxas recommends a 4-cell 14.8 V Power Cell LiPo battery for maximum performance. A 3-cell 11.1 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- LiPo Balance Charger with iD®
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
