| Part Number: |
TRA82246-4 RED |
| Quantity In Stock: |
1 |

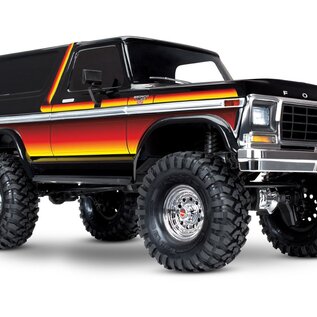

TRA82246-4 RED TRX-4 1979 Ford Bronco Clipless
| Model Name: |
TRX-4 Bronco |
| Model Type: |
Trail / Crawler |
| Model Skill Level: |
1 |
| Scale: |
1/10 |
| Weight: |
6.42 pounds (2.91 kg) |
| Length: |
20.57 inches (523 mm) |
| Width: |
9.78 inches (249 mm) |
| Front Track: |
9.78 inches (249 mm) |
| Rear Track: |
9.78 inches (249 mm) |
| Height: |
10.47 inches (266 mm) |
| Wheelbase: |
12.28 inches (312 mm) |
| Center Ground Clearance: |
3.14 inches (80 mm) |
| Drivetrain: |
Shaft-driven 4WD |
| Transmission: |
2-speed high/low, remote shifting |
| Differential Type: |
4 gear, remote locking |
| Gear Pitch: |
32 pitch |
| Servo(s): |
2075X metal gear, digital high-torque waterproof |
| Radio System: |
TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver |
| Battery Compartment Specs: |
159 mm X 47 mm X 23 mm |
MOTOR SPECS
| Motor Name: |
Titan® 21T Reverse Rotation |
| Motor Type: |
High-torque brushed motor |
| Motor Weight: |
8.47 ounces (240 g) |
| Motor Length: |
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Motor Diameter: |
1.53 inches (39 mm) |
| Motor Shaft Size: |
3 mm |
| Motor Connector Type: |
Bullet |
ESC SPECS
| ESC Name: |
XL-5™ HV |
| ESC Type: |
Brushed |
| ESC Case Size: |
1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| ESC Weight: |
2.60 ounces (74 g) |
| Motor Connectors: |
Bullet |
| Battery Connectors: |
Traxxas High-Current Connector |
| ESC Power Wire: |
14 gauge |
