| Part Number: |
TRA82034-4 ORNG |
| Quantity In Stock: |
1 |

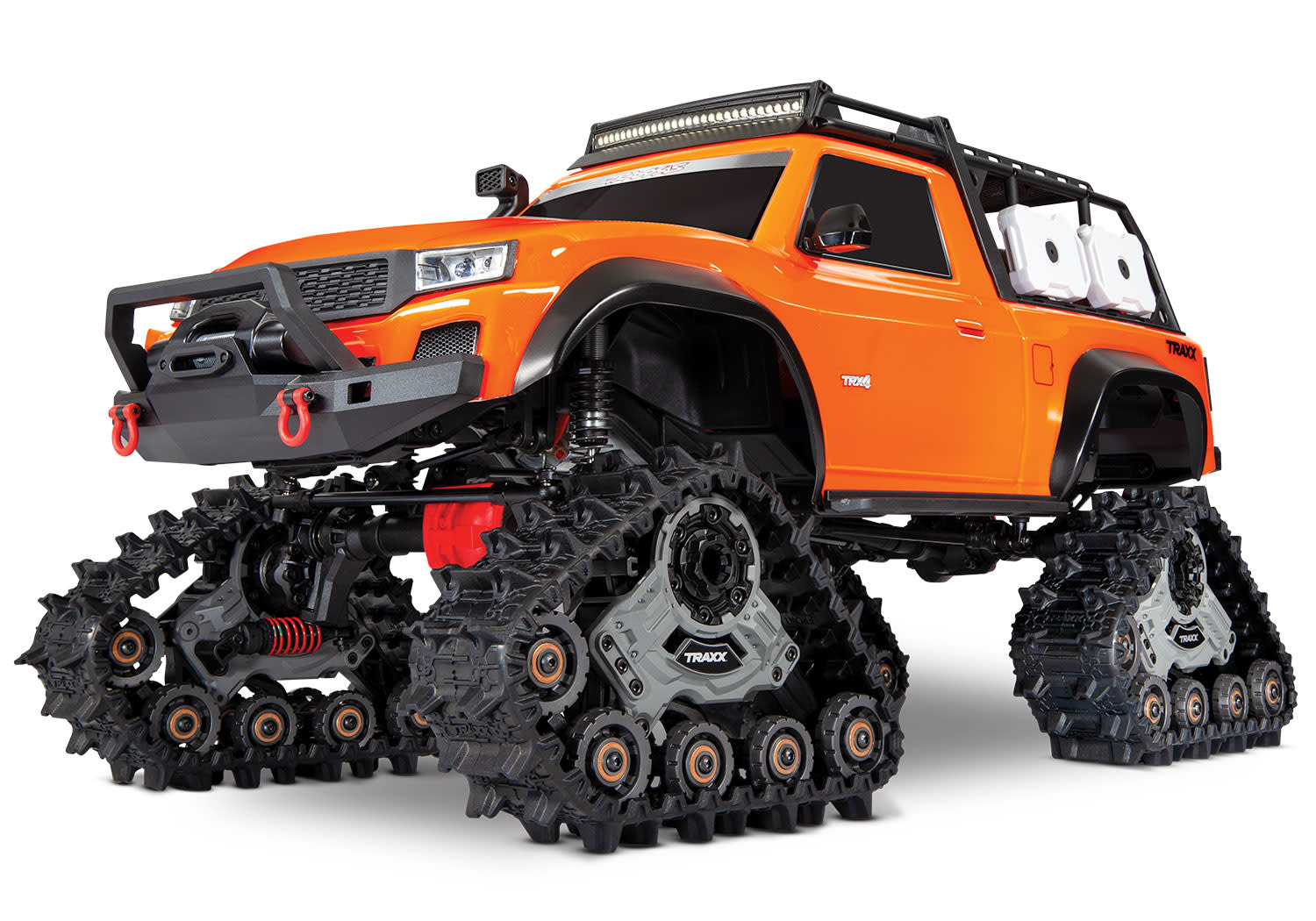

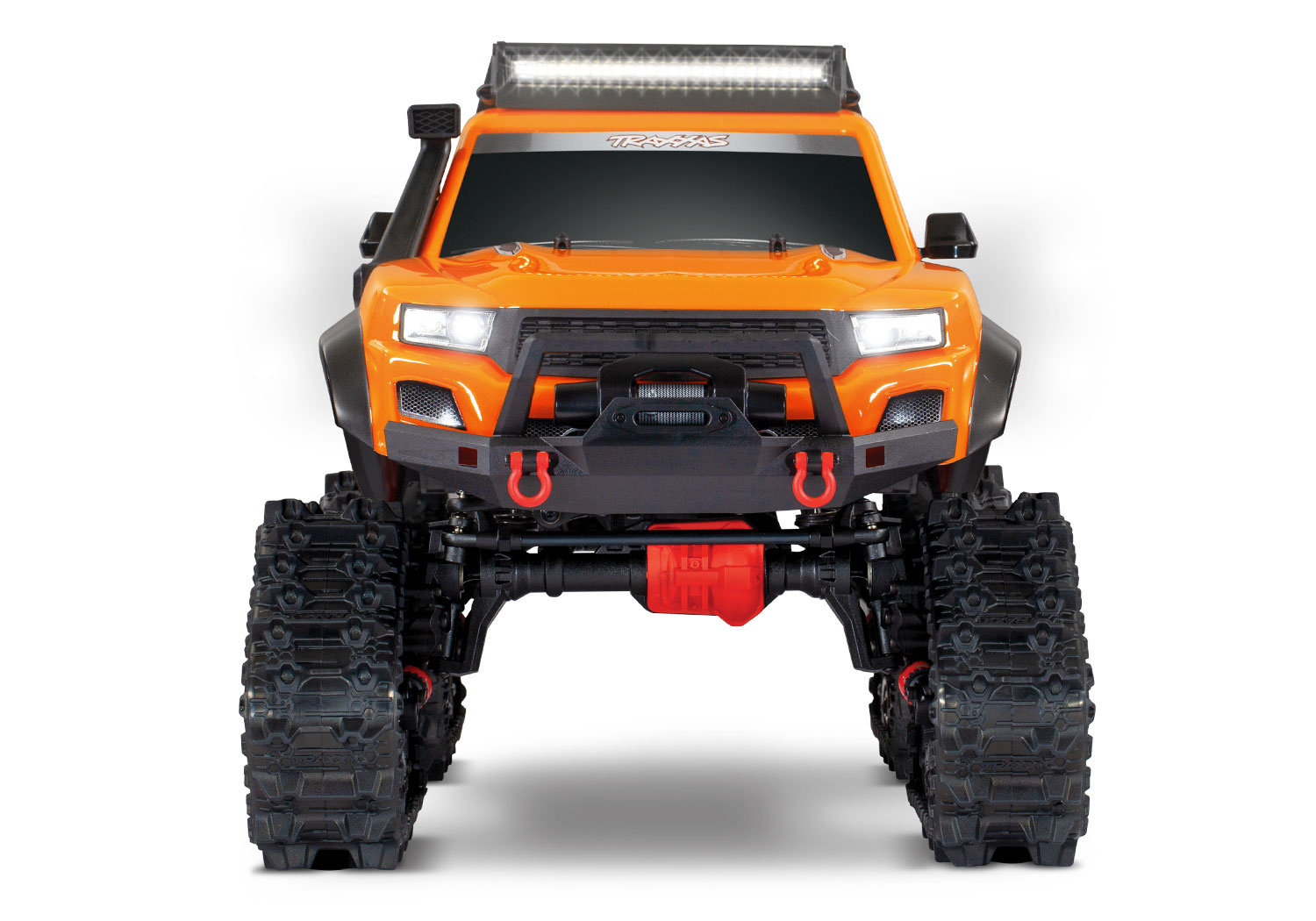

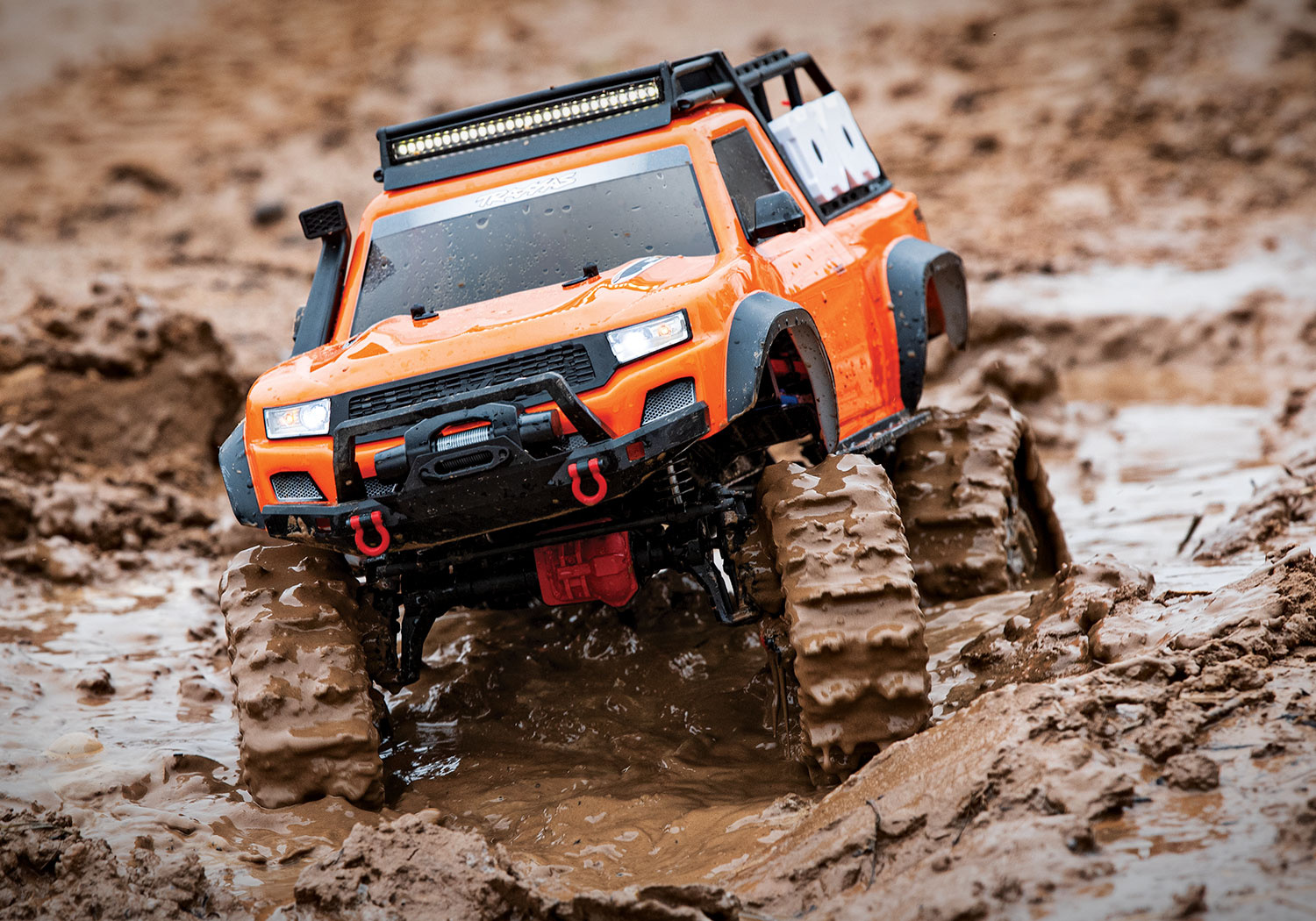

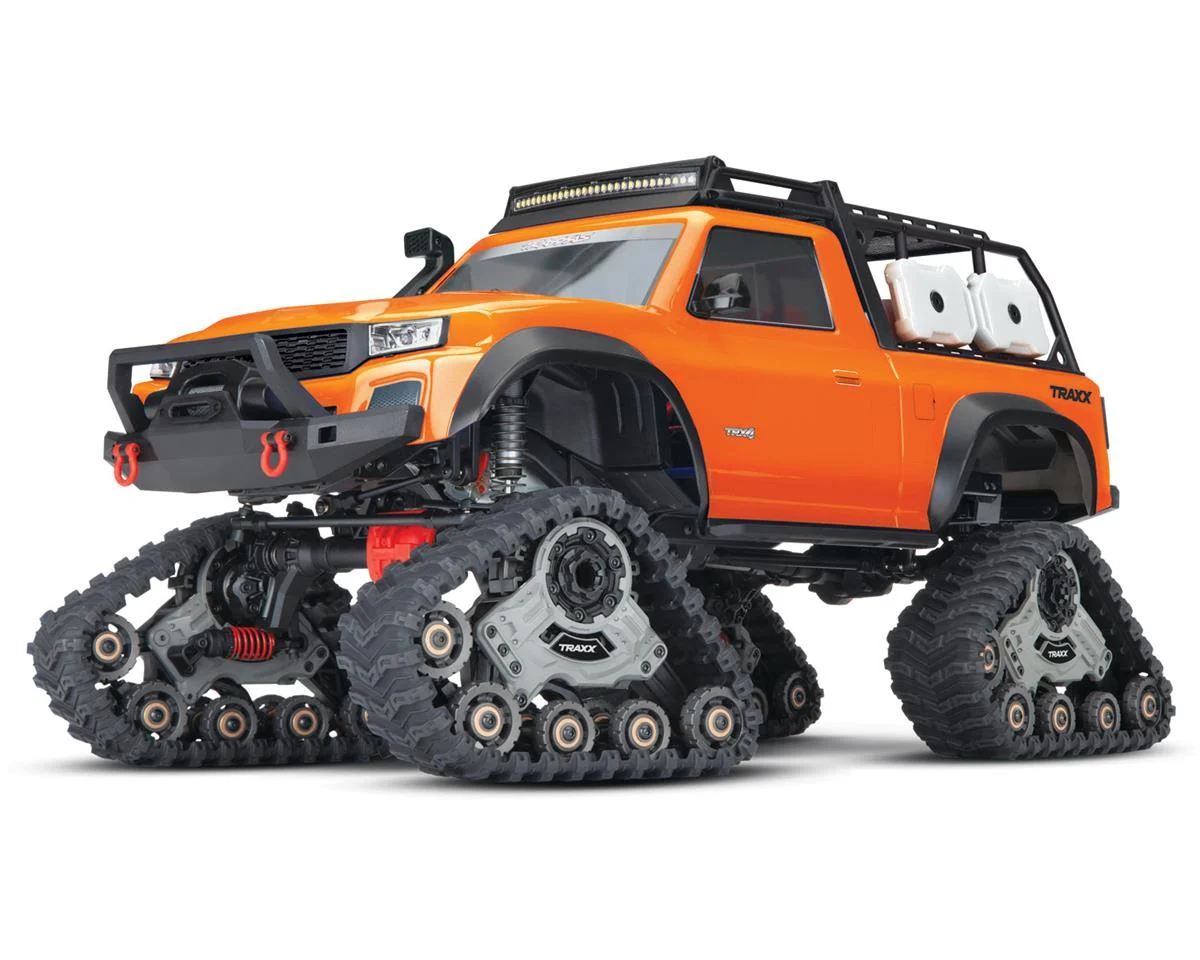

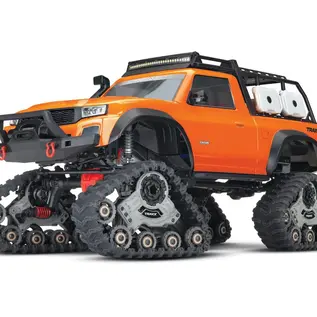

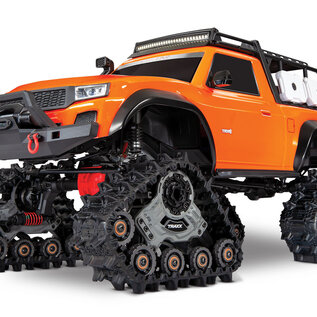

TRA82034-4 ORNG TRX-4 1/10 Crawler w/ TRAXX Pickup Truck Body
Orange Traxxas TRX-4 with All-Terrain Traxx, a 1/10 Scale 4WD Electric Truck that is Ready-to-Race with the TQ 2.4GHz Radio System, Waterproof Electronics, an XL-5 HV ESC (fwd/rev), and a Titan 550 motor. Hit the trail fully outfitted for fun and adventure!
Get ready to tackle any trail with this take on the TRX-4, equipped with the Traxx All Terrain Track Set. The Traxx Set provides the most significant upgrade to traction for the Traxxas TRX-4 Kits, and this model comes with the set conveniently pre-installed. These treaded tracks are a perfect addition to the TRX-4 and all it's trail-ready features, allowing the kit to be practically unstoppable on any terrain.
Engineered for grip everywhere and ultimate off-road capability, Traxxas elevates this truck higher and wider than any other TRX-4 model for unbeatable clearance and maneuverability. This kit also comes factory-equipped with powerful lighting, a full array of performance parts and scale detail accessories. A fully-painted body featuring clear windows to enhances the realism is included. The TRX-4 Traxx Edition is specially outfitted for an even higher level of fun and adventure, get out and explore today!
The Best TRX4 Yet? Traxxas TRX4 Sport RTR with TRAXXS
NEW: TRX-4 Equipped with Traxx | Traxxas
Features:
- Chassis:
- Heavy-Duty Steel Frame Rails
- Adjustable Wheelbase
- Molded Wire Retainers
- Dual-Fit Battery Tray
- Inner Fenders and Floor Pans
- Aluminum Scale Shocks
- Heavy-Duty Steel Links
- Precision Hex Hardware
- Driveline:
- Portal Axles
- Torque Twist Eliminated
- Locked Differentials
- Steel Gear Transmission
- Hardened Steel U-Joints
- Twin Friction Plate Slipper Clutch
- Sealed Ball Bearings
- Geometry:
- Raised Center Driveshafts and Suspension Links
- High Steering and Drag Links
- 45-Degree Steering Angle
- Extreme Approach Angles
- High Ground Clearance
- Front Motor Design
- Electronics:
- XL-5 HV ESC
- Titan 21T 550 Motor
- Waterproof Metal Gear Servo
- TQ™ 2-Channel Radio System
- Scale Details:
- Fully Painted Body with Clear Windows
- Expedition Rack and Scale Accessories
- Rugged Bumpers
- Injection-Molded Inserts
Specifications:Length: 21.93 inches (557mm)
Front Track: 10.48 inches (266 mm)
Rear Track: 10.48 inches (266 mm)
Ground Clearance: 3.54 inches (90 mm)
Weight: 8.71lbs (3.95 kg)
Height: 10.29 inches (261 mm)
Wheelbase: 12.28 inches (312mm)
Approach Angle: 76°
Departure Angle: 76°
Breakover Angle: 81°
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Battery Tray: 158.75 L x 47 W x 23/26mm H
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: Single Speed
Gear Pitch: 32P
Differential Type: Spool (no differential)
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQ™ 2.4GHz 2-Channel Transmitter
Receiver: 6519
Includes:
- TRX-4, Ready-To-Drive® model
- XL-5 HV waterproof electronic speed control
- Titan™ 21T reverse rotation motor
- TQ™ 2.4GHz radio system
- High quality maintenance tools
- Optional alternate tires and wheels
Needed to Complete:
- Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries w/TRX or iD connector
- Charger: Traxxas EZ-Peak charger is recommended for easy and fast charging performance
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
- Tough, Lightweight Pickup Truck Body
- Low profile bumpers for increased clearance
- Red differential covers and D-rings
- Clear windows
- Scale Accessories
- Rugged Expedition Rack with detailed accessories
- Tough inner fenders
- Injection-molded snorkel, side mirrors, and grilles

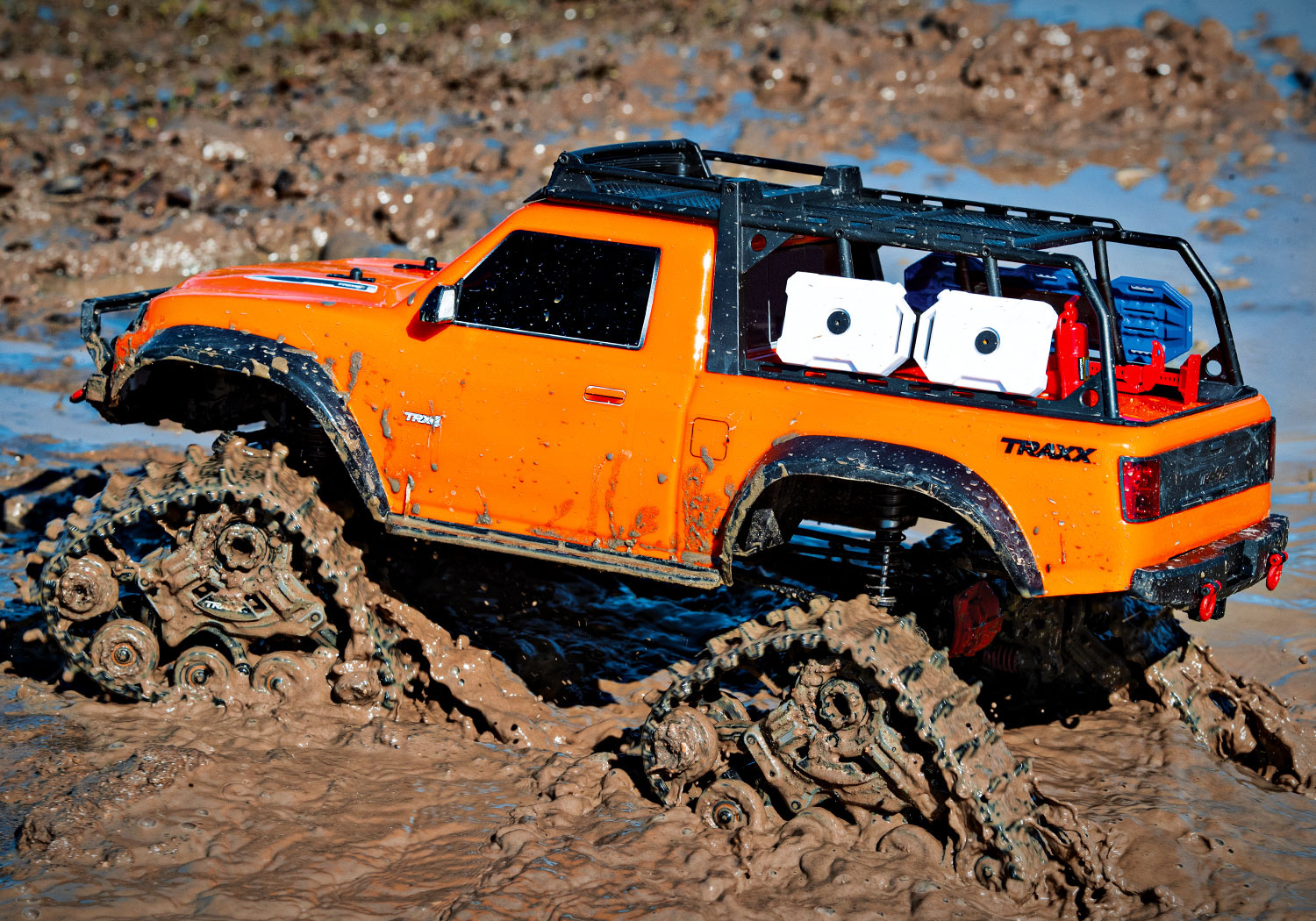

- All-Terrain Traxx®
- Virtually unstoppable traction on practically any terrain
- Oil-filled coilover dampers to control rotational movement
- Suspended road wheels allow treads to conform to irregular surfaces
- Specially designed one-piece rubber treads resist de-tracking
- Longer rear Traxx drive units for steep climbing stability

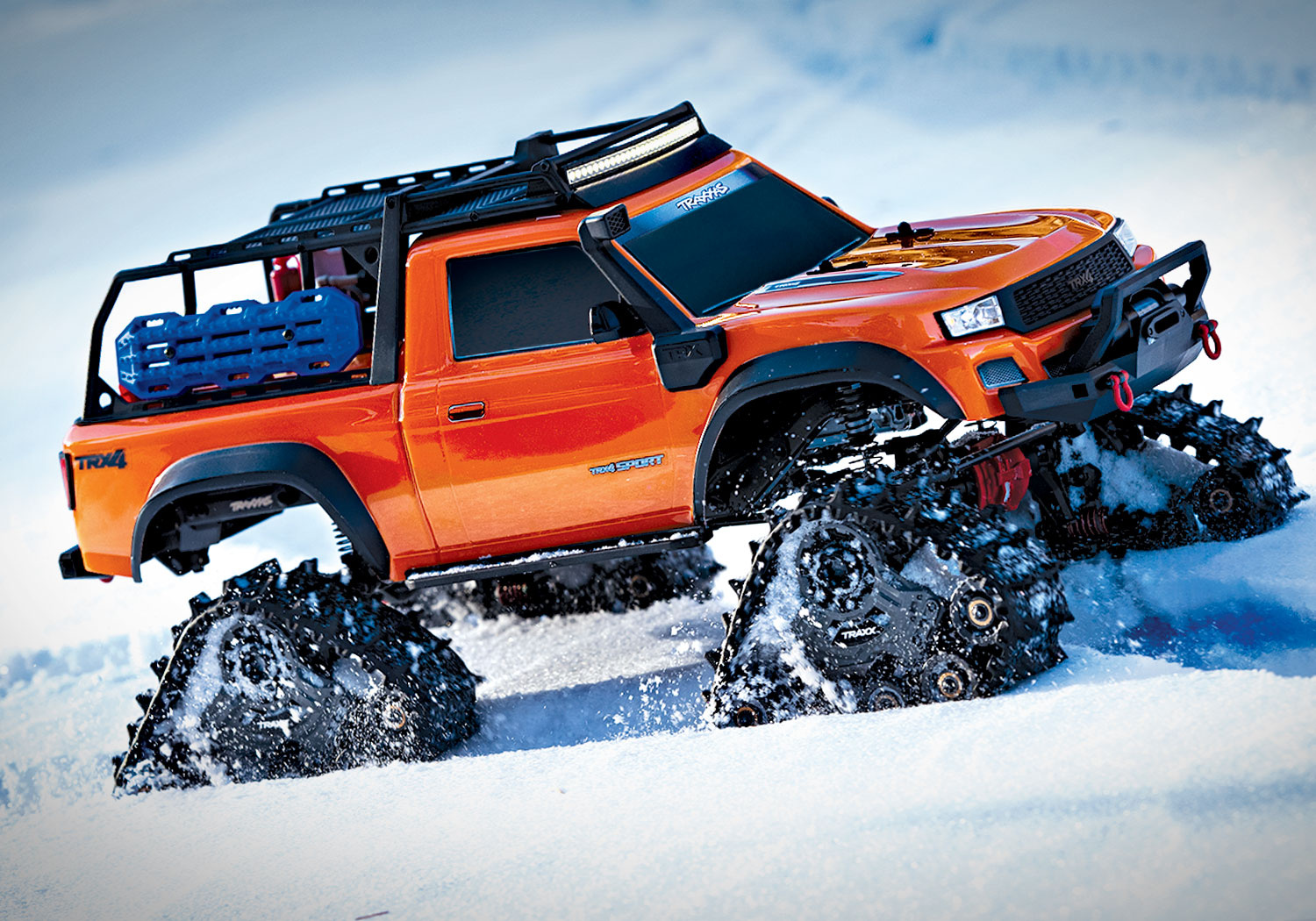

- Designed for all-weather fun
- Sealed bearings on drive wheels
- Low-maintenance self-lubricating bushings on guide wheels

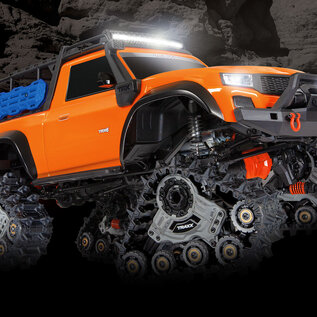

- LED Light Kit
- Sealed waterproof design
- Color-coded power distribution block for easy and secure connections
- Traxxas LED lighting module
- Regulated to provide consistent and reliable power output
- Eliminates overheating, glitching, and other electronics issues
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Motor
- Powerful Titan® 21-T reverse rotation motor with internal cooling fan
- Precise preset gear mesh adjustments
- Motor retention separate from gear mesh

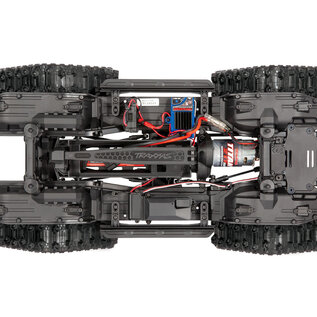

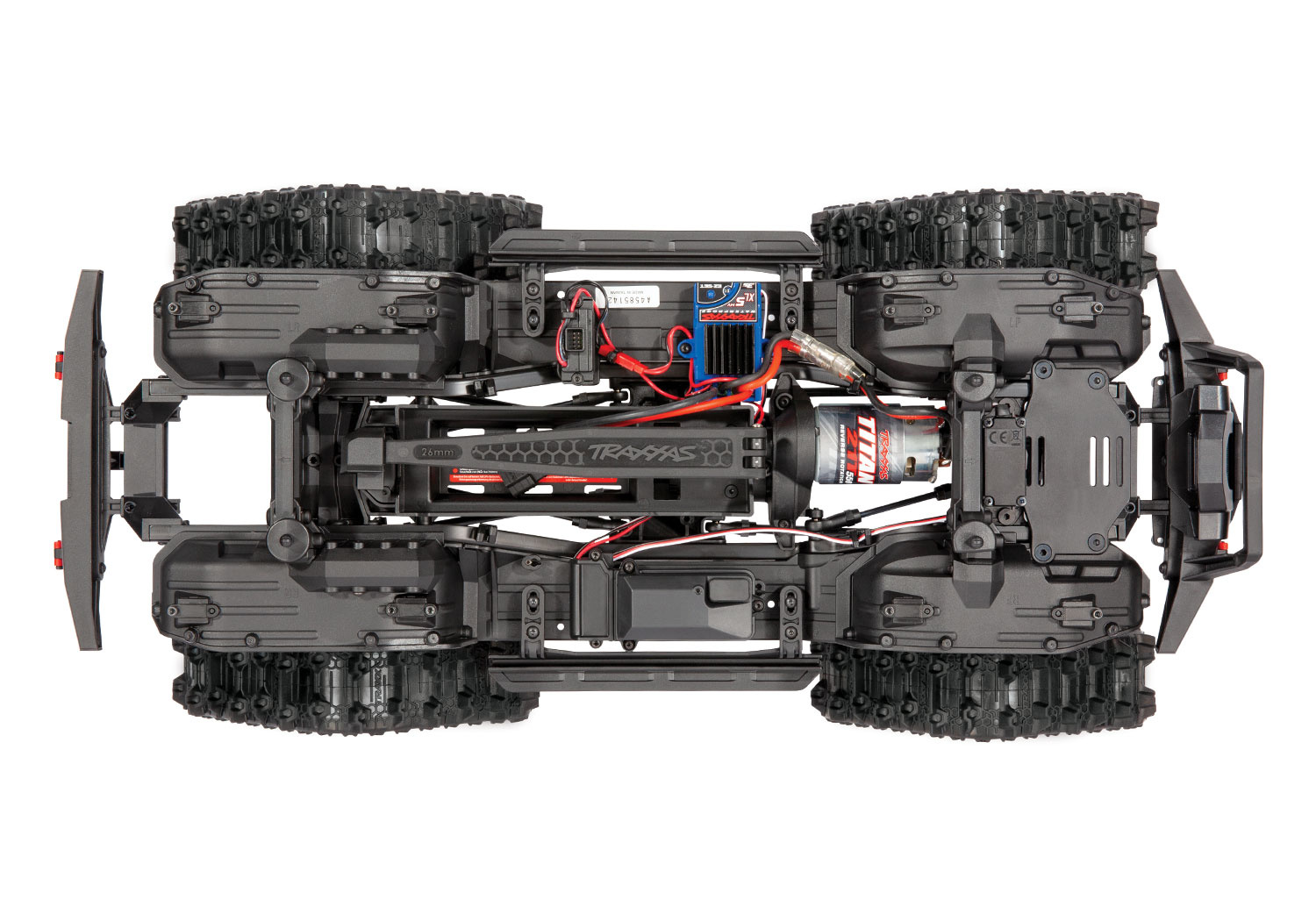

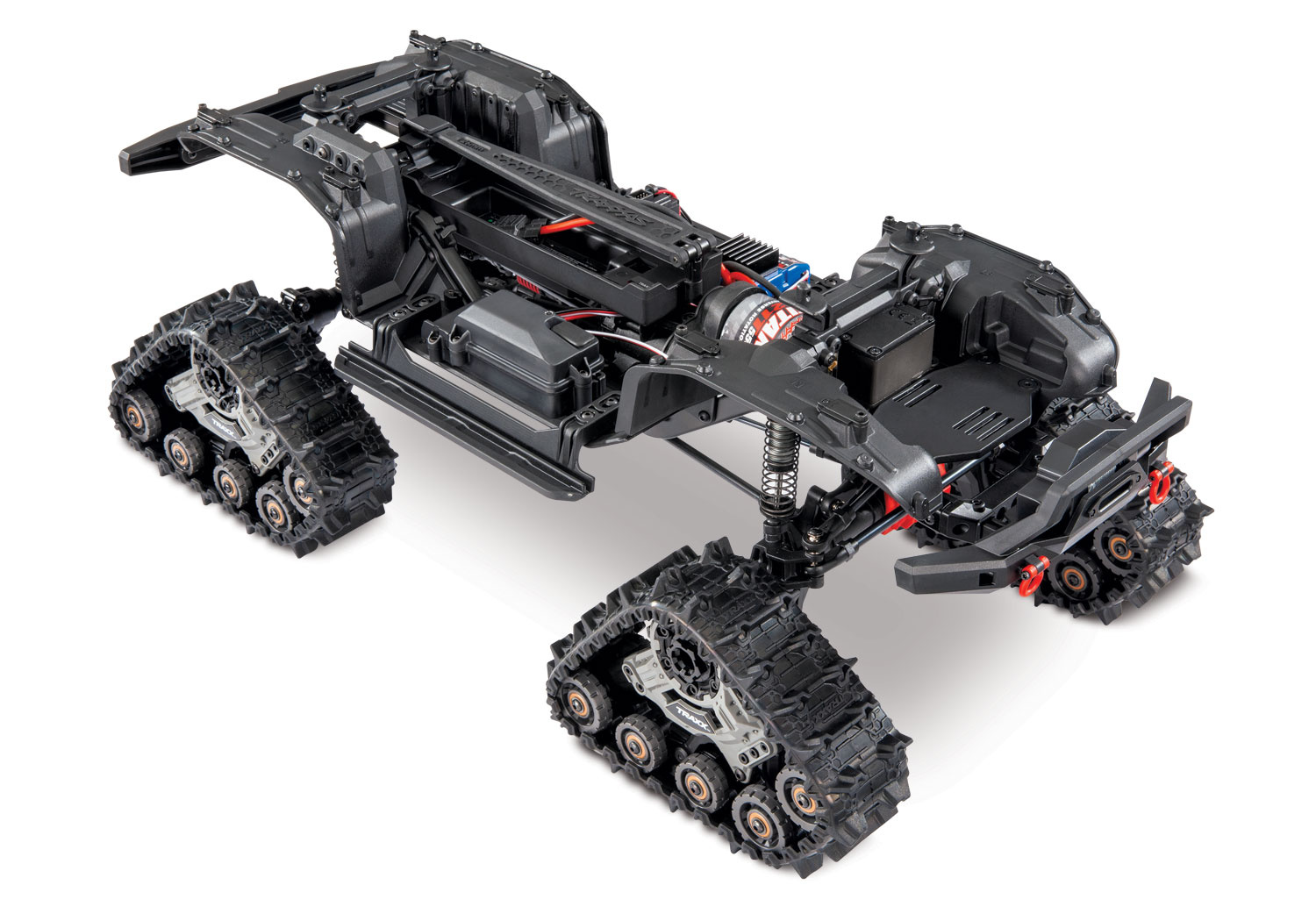

- Rigid Steel Frame
- 1.5 mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Spool-locked front and rear differentials
- Steel gear transfer case
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Secondary forward battery tray accepts smaller 1/16 scale batteries (with optional strap)
- Transmission
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2270 high torque digital servo
- 236 oz-in torque
- Waterproof case
- Full metal gears
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- TQ™ 2.4 GHz 2-channel transmitter
- Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
