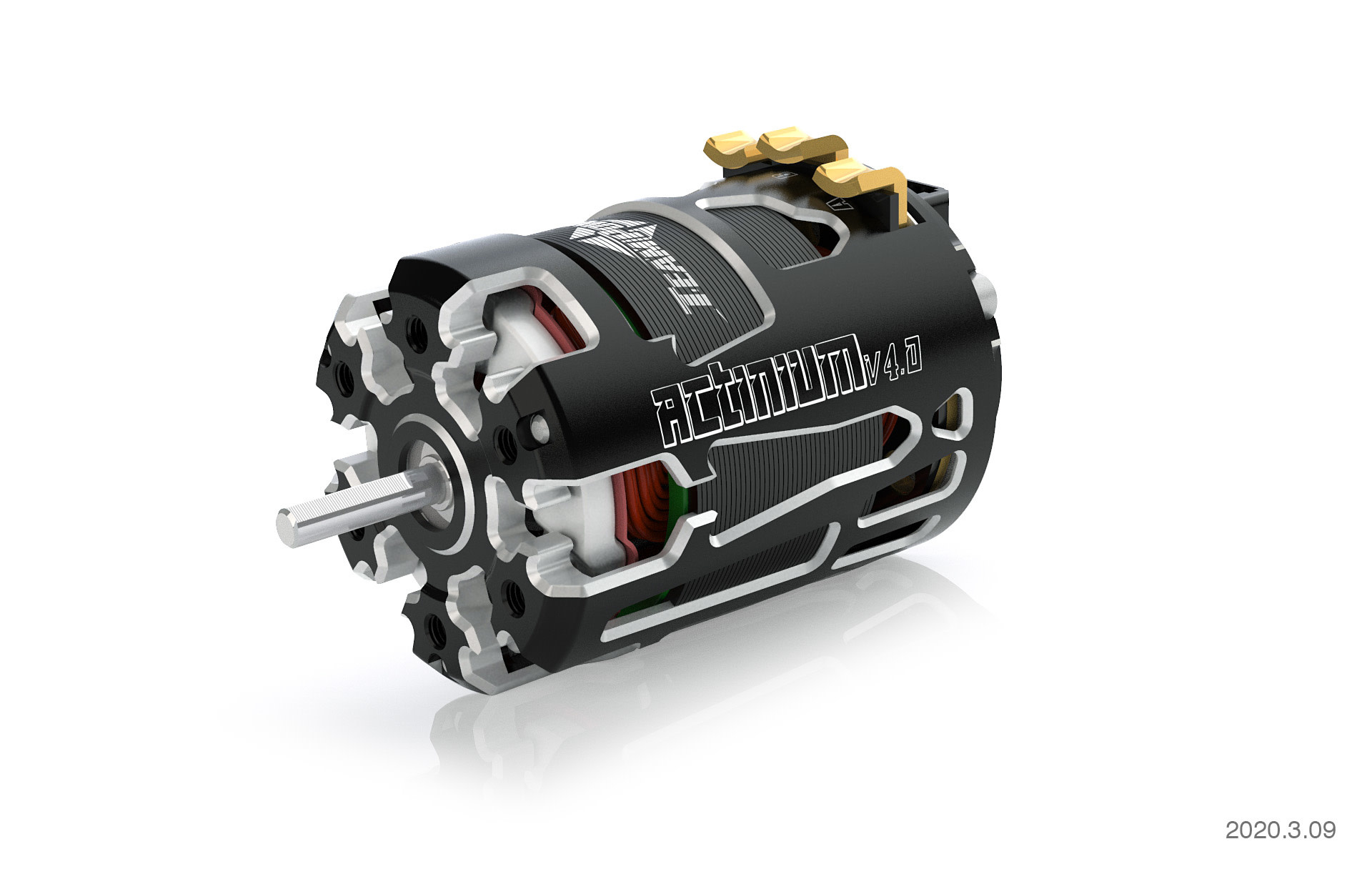

TPRBLM135100ACTV4 Team Powers Actinium V4 13.5T Brushless Motor (Sensored) (Team Powers)

TPRBLM135100ACTV4 Team Powers Actinium V4 13.5T Brushless Motor (Sensored)

Team Powers Actinium V4 Brushless Motor (4.5T-21.5T)

Introducing the all-new Actinium V4, with years of research and development, our engineers and race team have collaborated and designed a new, next-generation motor that can bring you the power you need! The new motor meets all the requirements of the best motor available with high rpm, torque, and power, as well as better cooling and lighter weight. It's time to go Team Powers! It's the power you need!

Improved features compare to Actinium V3.0 motors:

• New stator design paired with ultra-high grade copper wire improves bottom-end torque and lowers internal resistance.

• New precision CNC machined collector ring made of proprietary alloy blend combined with gold plated solder terminals results in improved conductivity, internal resistance, and appearance.

• New precision CNC machined aluminum case design includes more cooling vents and uses convection cooling to lower operating temperatures.

• New backplate for more accurate hall sensor measurement and less rotor magnetic field interference.

• New sensor board design for lighter weight and smoother adjustment

• 3-5 grams lighter than the V3 motor (depends on winding)

• Black stator coating for appearance

Other Features (carried over from V3 motor):

• Ball bearings made from precision steel for lower drag and higher rpm.

• Includes lightweight aluminum stator screws installed from the factory for non-magnetic, ultralight assembly (most other motors don't include this)

Specifications:

• Adjustable Timing Endbell: 0-60+ degrees

• ROAR Approved (not pending, approved!)

• Built according to IFMAR/ROAR/EFRA/BRCA

• Weight: ~150g

• Dimensions: 35.8mm x 51.5mm

• Shaft diameter: 3.175mm

• Available Turns:  4.5T, 5.5T, 6.5T, 7.5T, 8.5T, 9.5T, 10.5T, 13.5T, 17.5T, 21.5T
