R1900051 R1WURKS RC10 B7 Titanium Upper Screw Set, Button Head (R1wurks)

R1-900051 R1WURKS RC10 B7 Titanium Upper Screw Set, Button Head 900051

R1WURKS Premium Titanium B7 Upper Screw Kit, Button Head

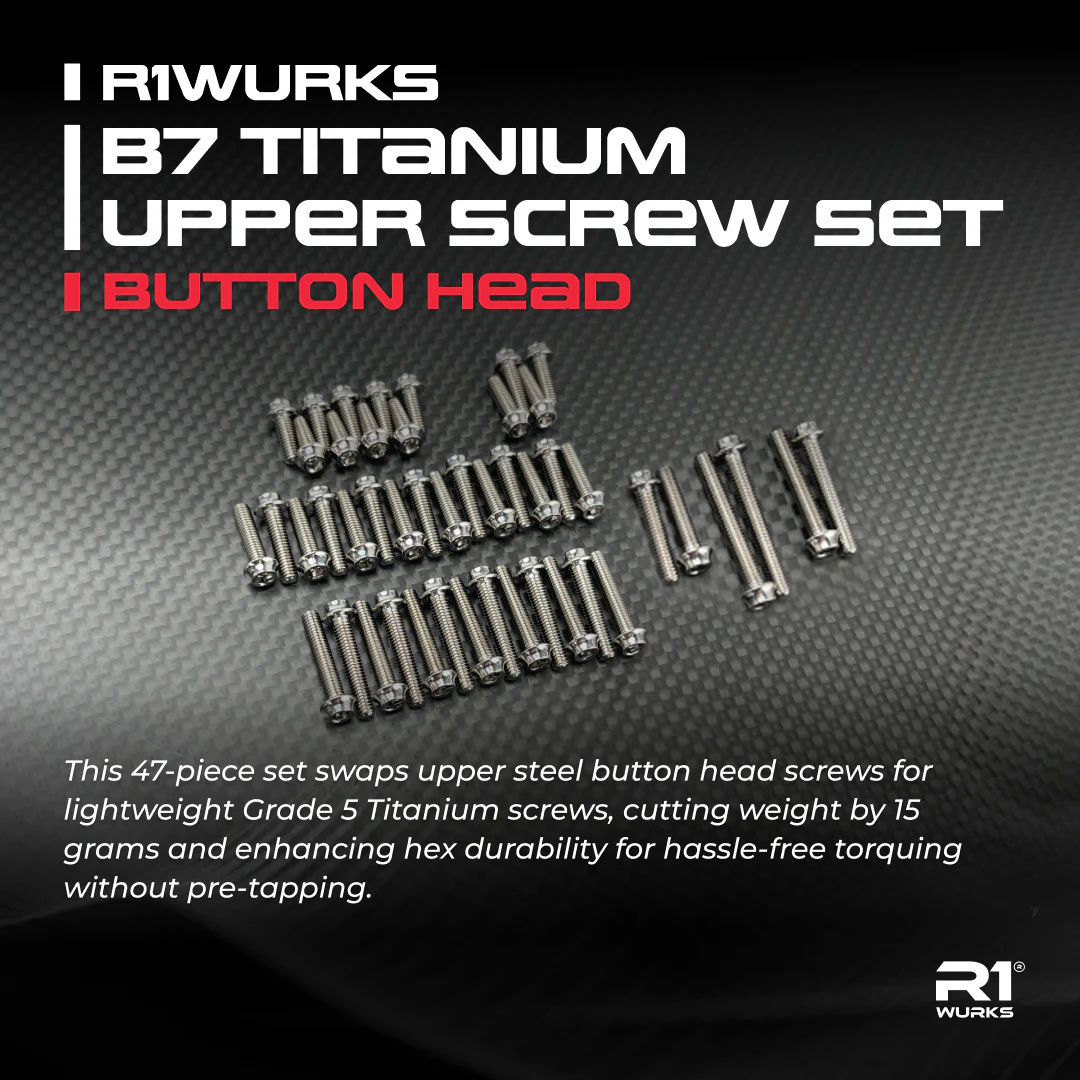

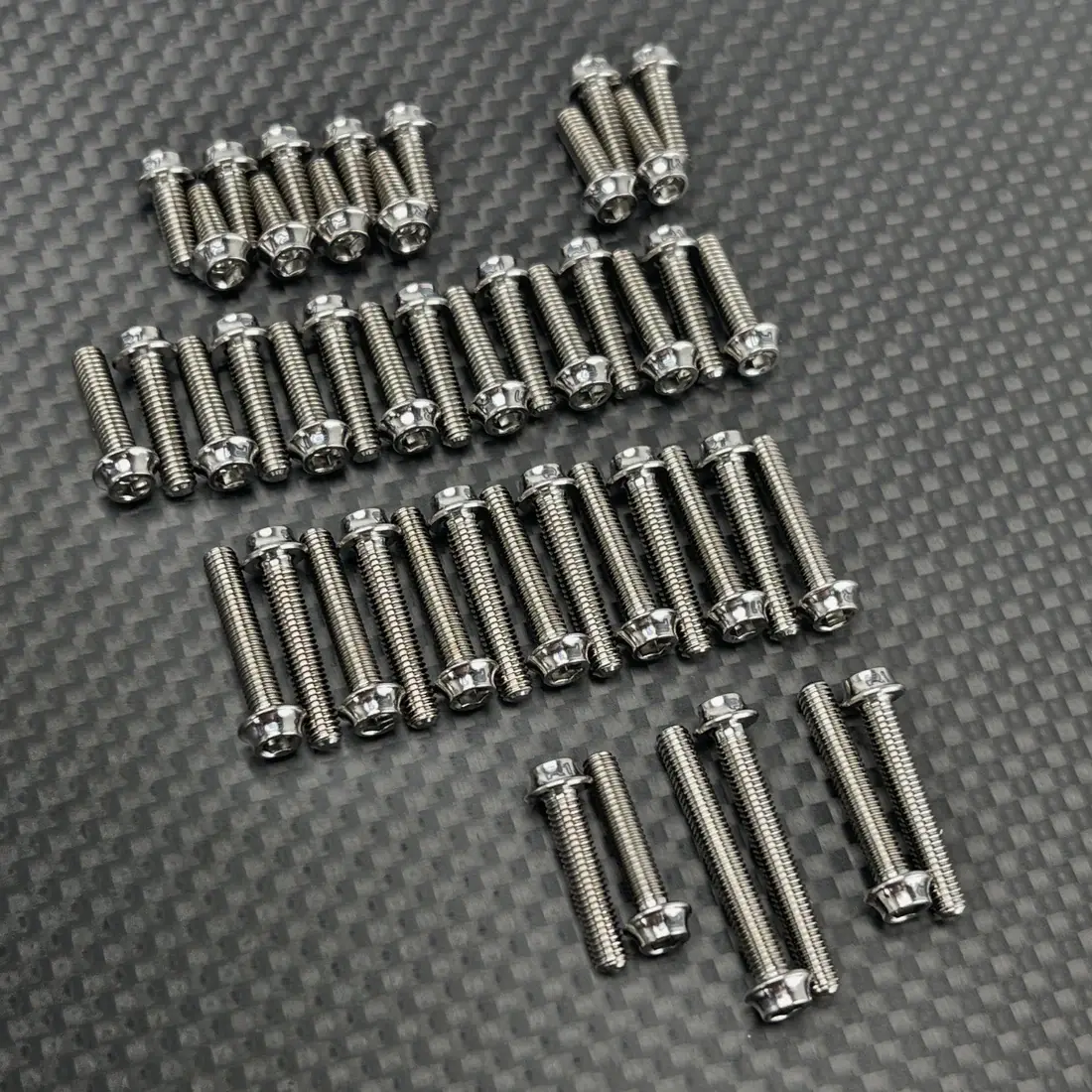

This 47-piece set replaces the upper steel button head screws with lightweight, ultra-high quality Grade 5 (6Al-4V) Titanium screws. Not only will this set lower the CG of your vehicle with a weight reduction of 15 grams, but you’ll also benefit from increased hex durability of the precision-broached 2.5 hex sockets, allowing you to torque the screws without the worry of stripping out the hex.  No need for pre tapping.

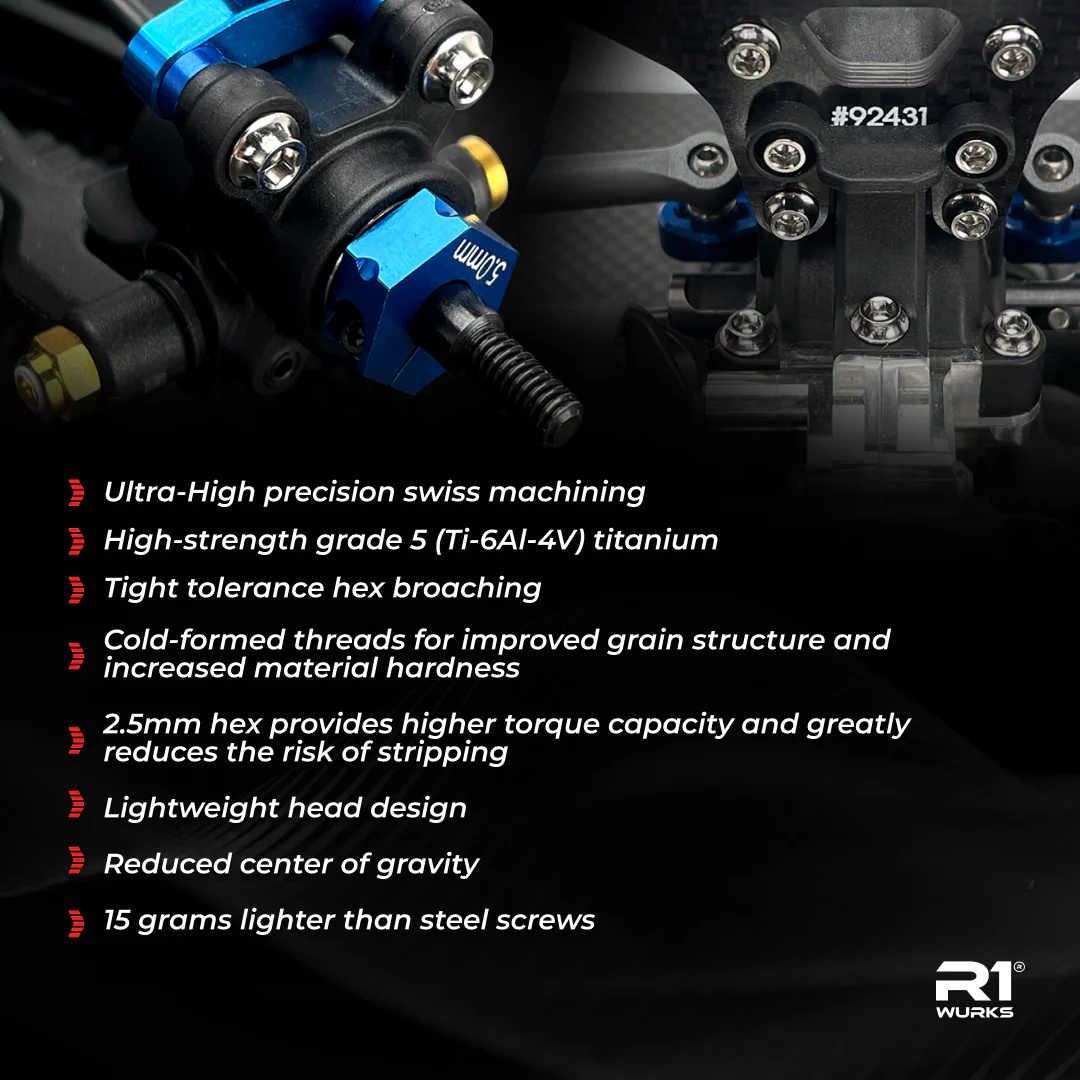

Features and Specifications:

• Ultra-High precision swiss machining
• High-strength grade 5 (Ti-6Al-4V) titanium
• Tight tolerance hex broaching
• Cold-formed threads for improved grain structure and increased material hardness

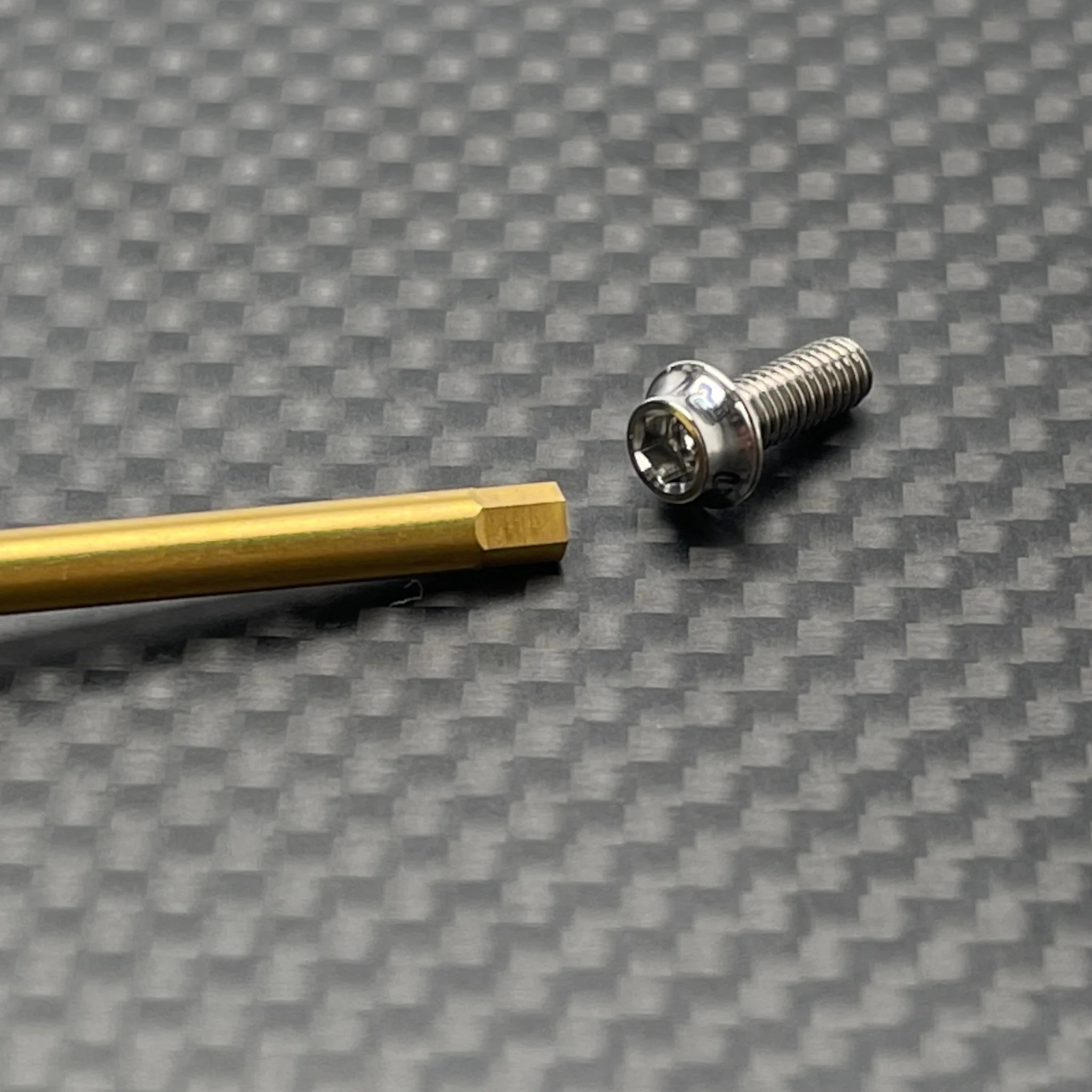

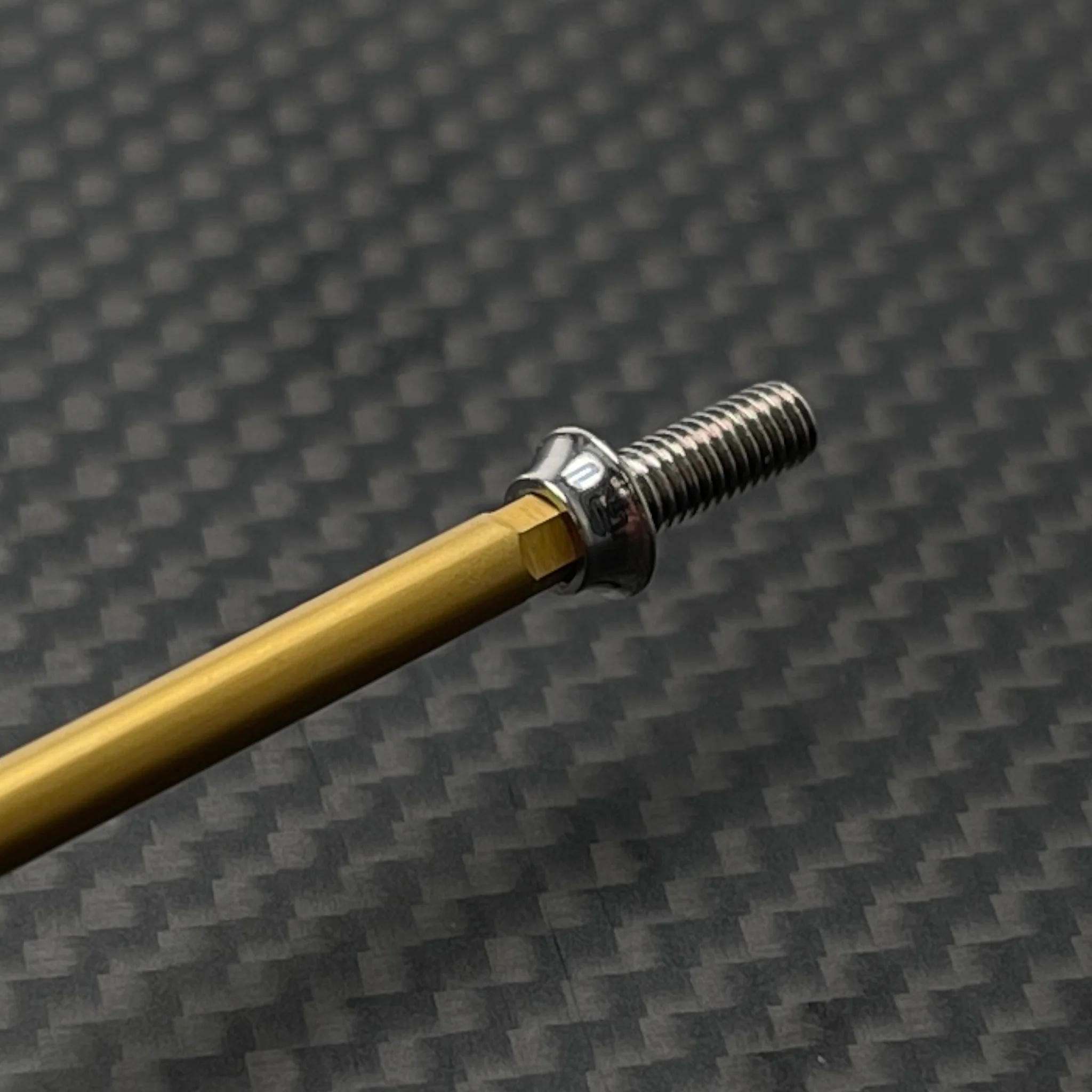

• 2.5mm hex provides higher torque capacity and greatly reduces the risk of stripping
• Lightweight head design
• Reduced center of gravity
• 15 grams lighter than steel screws

Kit Includes:

(Please refer to the manufacturer's manual for details on where each screw is used, with corresponding page numbers and steps provided below)

M3x8mm (9pcs)

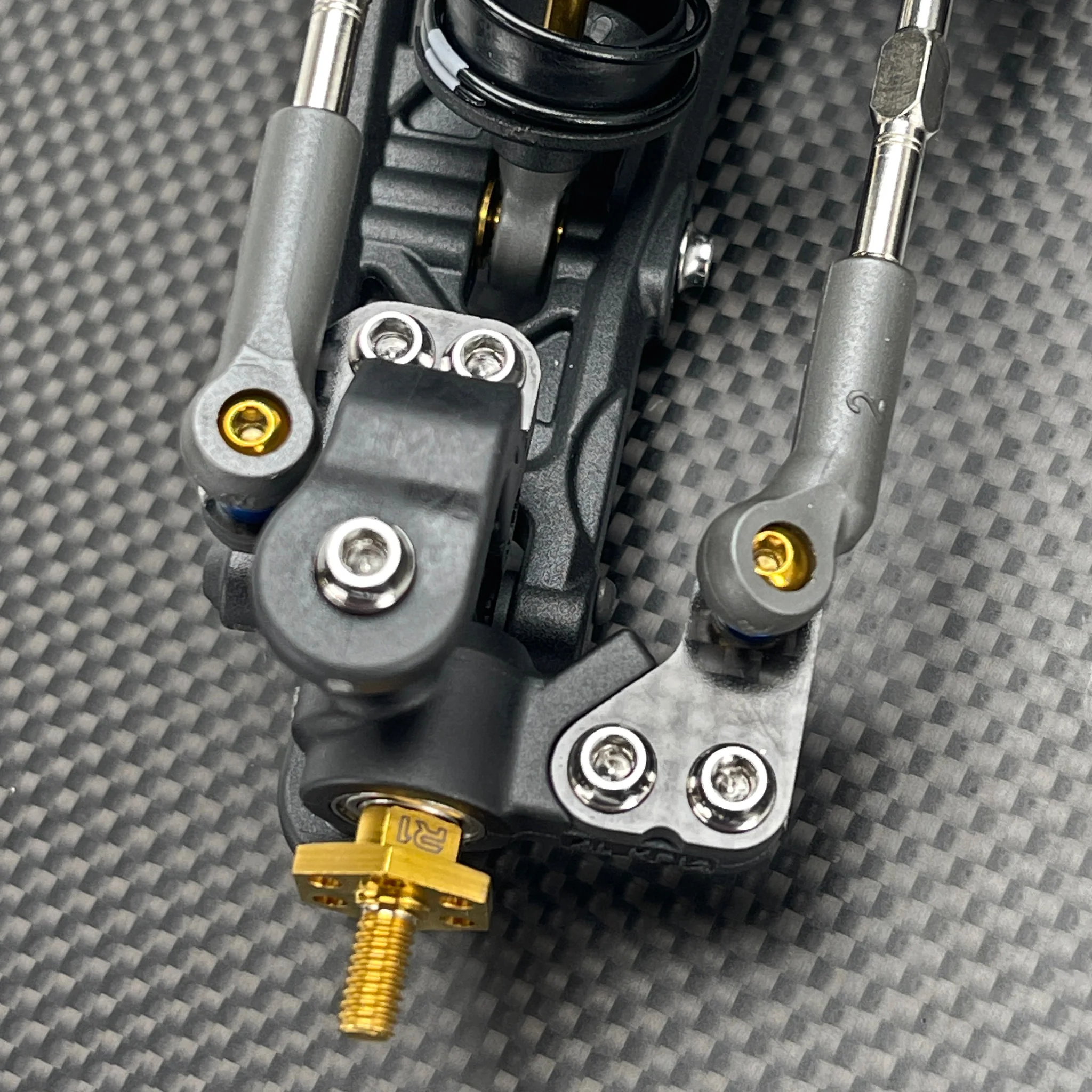

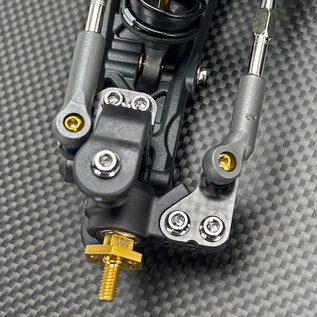

x8 Steering  and camber plates – Page 9, Step 2
x1 Rear Gearbox cap center top – Page 12, Step 3

M3x10mm (4pcs)
x4 Battery holder, left and right – Page 20, Step 3

M3x12mm (15pcs)
x4 Left and right rear hubs – Page 14, Step 1

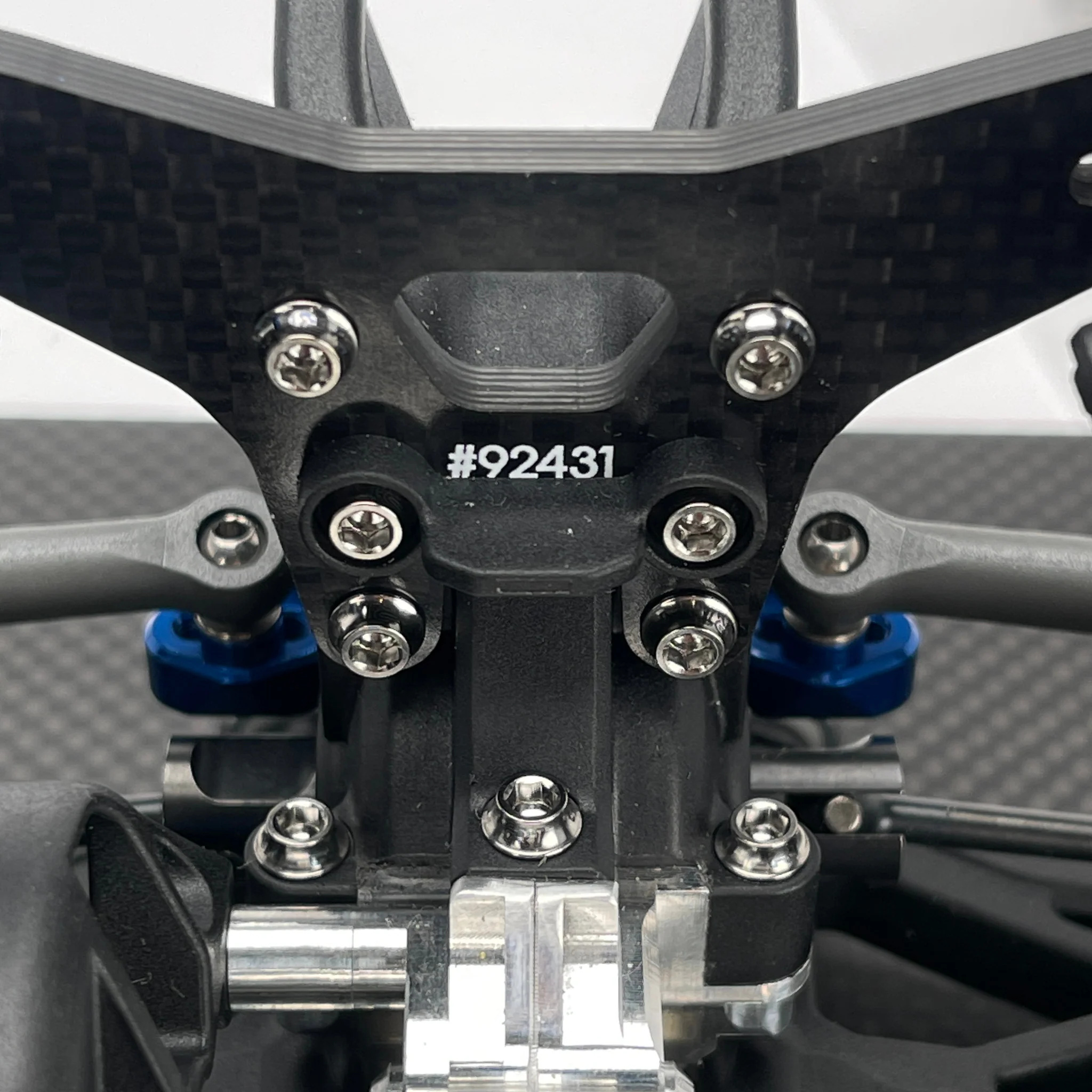

x7 Rear shock tower – Page 13, Step 6
x2 Steering rack – Page 5, Step 2

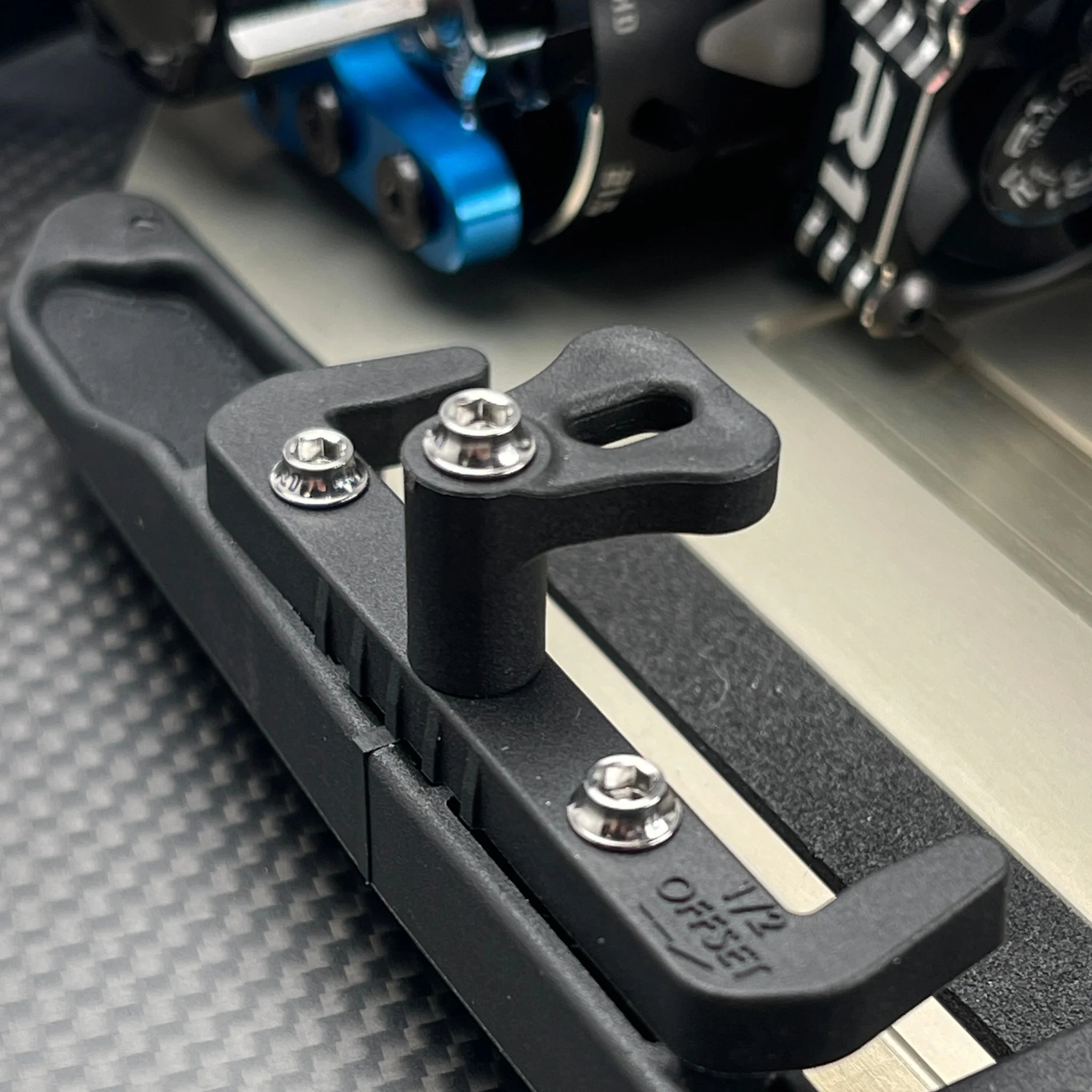

x2 Optional Low Profile Battery latches – Page 20, Step 3

M3x14mm (2pcs)

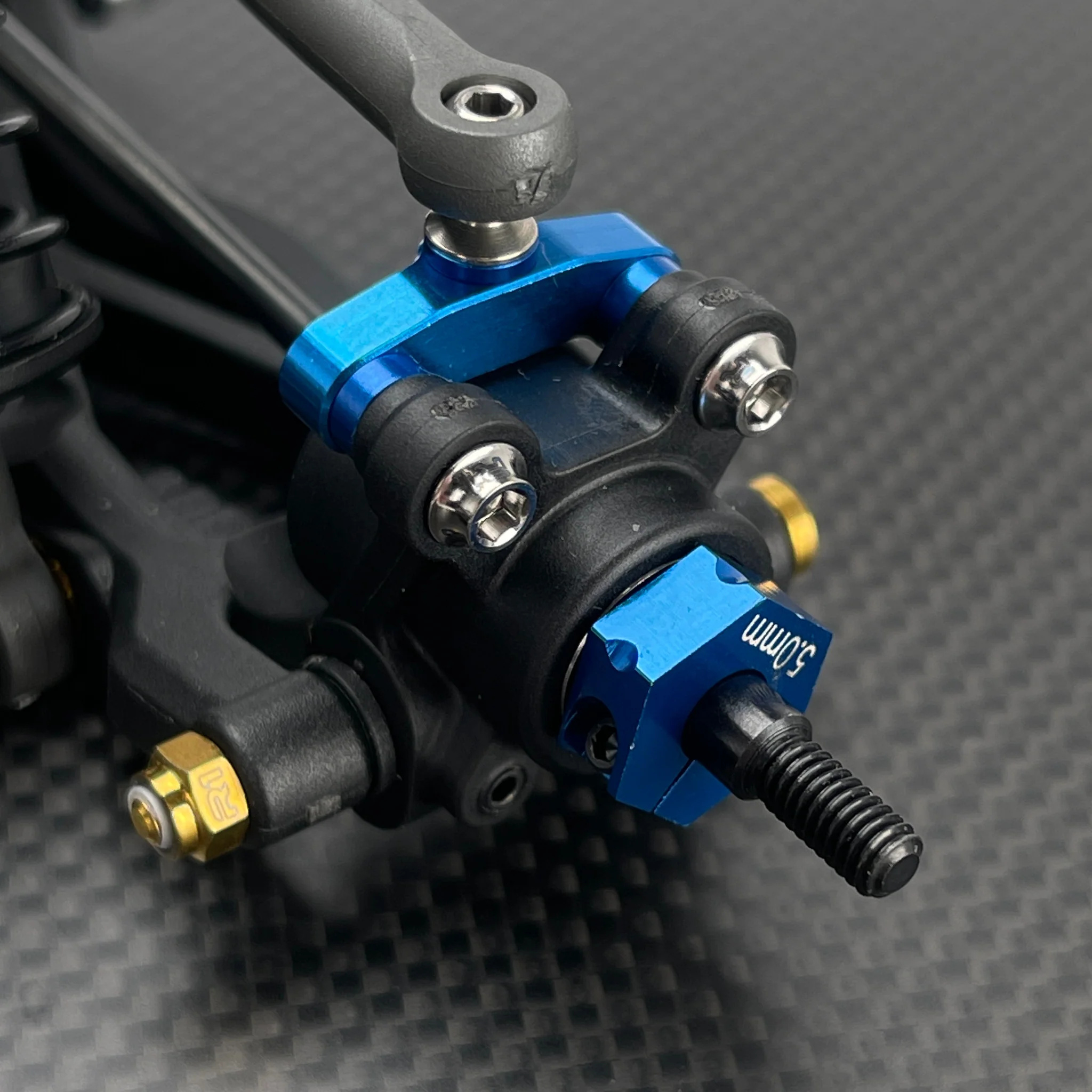

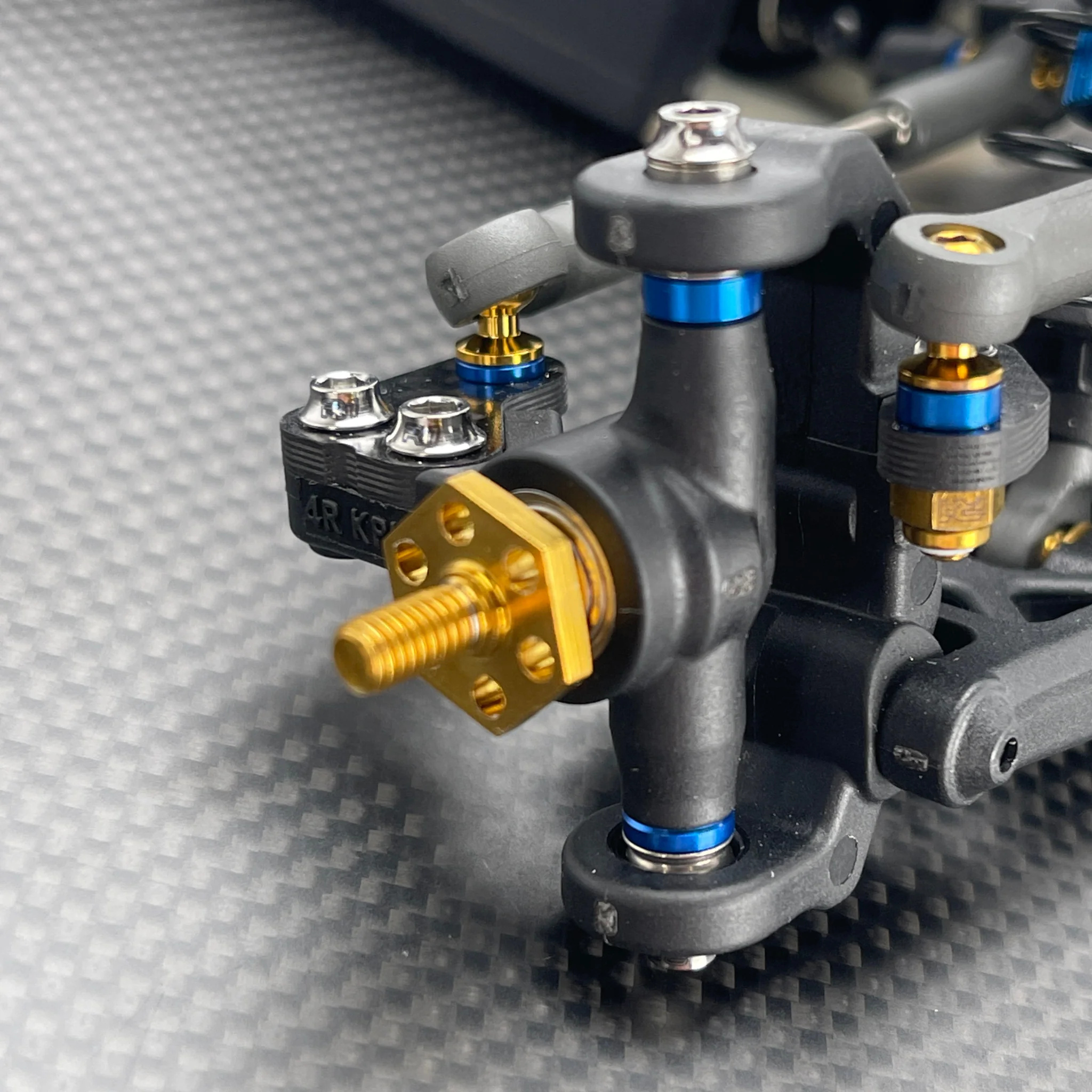

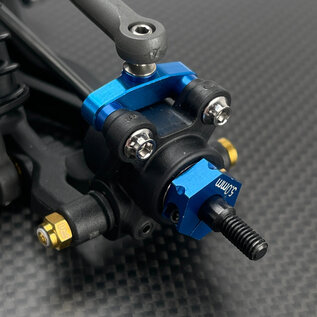

x2 Steering knuckle top – Page 9, Step 3

M3x16mm (13pcs)
x3 Front top plate – Page 7, Step 5
x4 Gearbox case – Page 11, Step 1
x4 Gearbox cap – Page 12, Step 3
x2 Steering knuckle bottom – Page 9, Step 3

M3x18 (2pcs)
x2 Standard profile battery latches - Page 20, Step 3

M3x22mm (2pcs)
x2 front lower shock mounting screws – Page 18, Step 7
