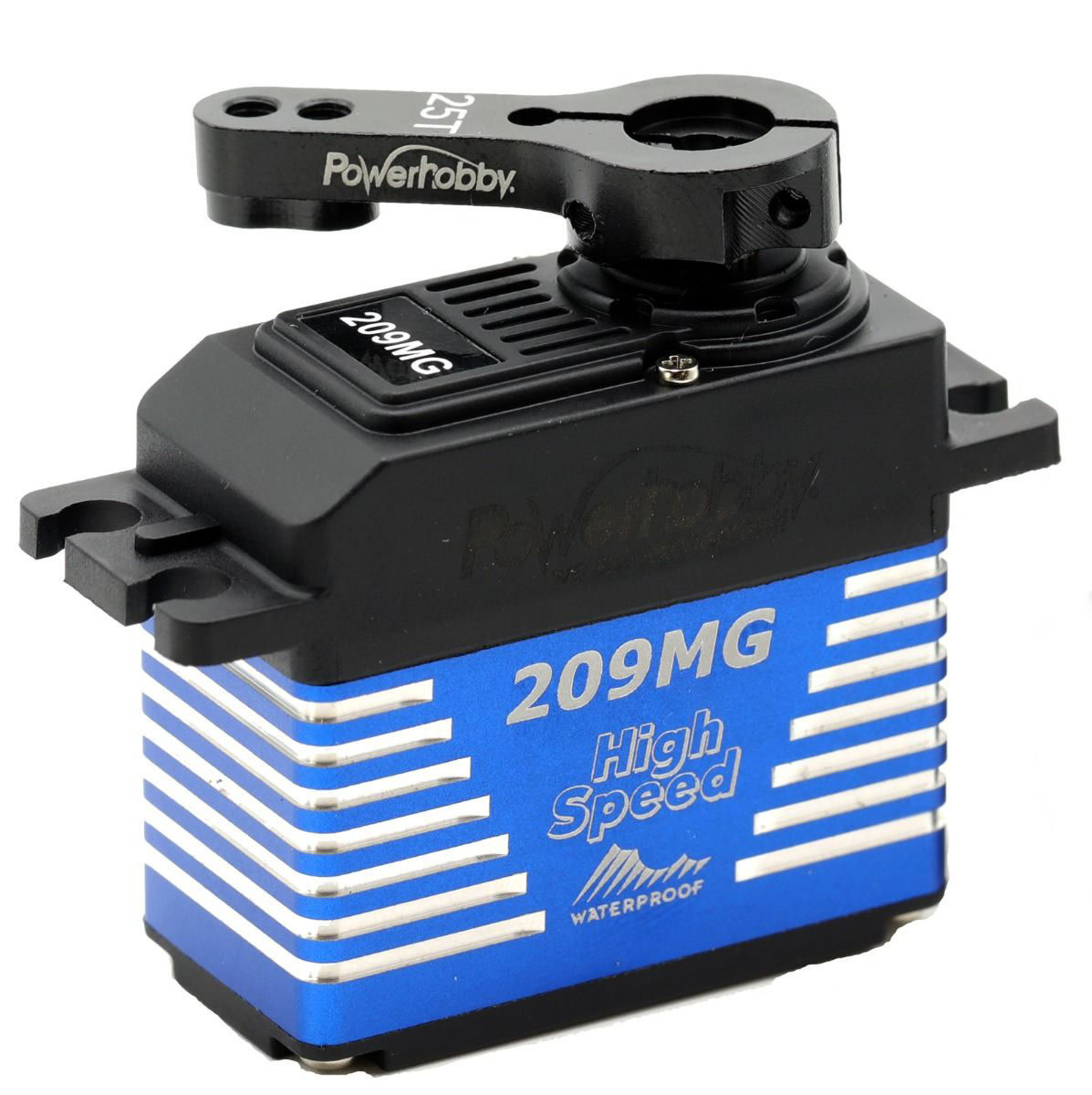

PHBPH209MG 209MG High Speed Waterproof Digital Servo w/Aluminum Case
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | PHBPH209MG |
| Quantity In Stock: | 2 |
PHBPH209MG 209MG High Speed Waterproof Digital Servo w/Aluminum Case
Perfect for scale crawlers, 1/8 1/10 monster truck, 1/8 1/10 2WD and 4WD buggies, as well as 1/8 scale buggies and trucks. In addition, this servo is a great choice for boats and other application which require high power, high voltage, and waterproof. Waterproof IP67 level up to 1 meter, which allows driving in rain, puddles, snow, and mud. Highly reliable and durable patented gear design. Aluminum middle case for fast heat disppation. High precision digital control circuitry.
High performance standard digital servo
Built-in magnetic sensor
Waterproof IP67
High precision steel gears
High efficiency brushless motor
High strength dual ball bearings
Middle Alumiunm case
Ideal for 1/10, 1/8 on road, off road, truck/cars
Operating Voltage: 4.8-8.4 V
Operating speed: 0.09 sec/60 @ 6.0V
Operating speed: 0.75 sec/60 @ 7.4V
Operating speed: 0.65 sec/60 @ 8.4V
Stall Torque: 15kg - 208 oz-in @ 6.0V
Stall Torque: 18kg - 250 oz-in @ 7.4V
Stall Torque: 22kg - 275 oz-in @ 8.4V
Gear: Steel
Motor: Coreless
Size: 40*20*37.2mm (1.57 x 0.78 x 1.46 in)
Weight: 53g
Connector Wire: JR 300 mm
Spline: 25T
