MAX-13-002 MXLR Mobile Soldering Station /w Carrying Bag (MXLR)

MAX-13-002 MXLR Mobile Soldering Station /w Carrying Bag

Every racer knows the situation: a broken balancer wire, a loose ESC solder joint or a battery lead that gives up right before the final. And the nearest solder station? Usually somewhere between "far away" and "already occupied".

The MXLR Mobile Soldering Station puts a full soldering setup right into your pitbag.

This is a next-generation, ultra-high frequency portable soldering system, specified for professional RC model applications. Compared to conventional soldering irons it delivers higher power, faster heat-up and a significantly more compact and lightweight design.

Ideal for maintenance work in the pit area during on-site racing events - and equally capable for all your general soldering tasks at home.

Usage couldn't be simpler: plug all in - turn it on - use it. No settings to dial in, no menus to work through on the display. Everything comes factory pre-set and ready to go. Simple huh?

The station runs on standard 2S LiPo batteries or any 5 - 12V DC source, heats up in approx. 10 seconds and delivers the power equivalent of a traditional 150W soldering iron.

The base unit carries integrated solder jigs for 2 - 3 - 4 - 5 - 6mm bullets, so you always have a clean and safe fixture for your connectors.

Detachable power and PD cables keep the whole package tidy for transport, and the interchangeable soldering tips let you adapt the station to whatever job is in front of you.

Built from aluminum and carbon fiber for a premium lightweight construction, the complete set comes in a premium hardcase bag in carbon optics with MXLR Logo. Because your tools deserve the same attention as your car!

Key features:

• - High power output - equivalent to a traditional 150W soldering iron
• - Rapid heat-up time - ready in approx. 10 seconds
• - Solder jigs on base included for 2 - 3 - 4 - 5 - 6mm bullets
• - Ultra-lightweight design - handle approx. 30g / base unit approx. 200g
• - Detachable power and PD cables for improved portability and safety
• - Powered by standard 2S LiPo batteries or 5 - 12V DC sources
• - Adjustable maximum temperature limit - factory setting approx. 420°C
• - Digital display for input / output voltage
• - Dual-color LED status indicator
• - Premium lightweight construction in aluminum and carbon fiber
• - Premium hardcase bag in carbon optics with MXLR Logo

Technical Data:

• - Base unit dimensions: approx. 125 (L) x 85 (W) x 22 (H) mm
• - Weight handle: approx. 30g
• - Weight base unit: approx. 200g
• - Operating voltage: 5 - 12V DC
• - Max. temperature: approx. 420°C (factory setting)

!!! SAFETY NOTICE !!!

WARNING: High temperature device! Risk of burns and fire! Read the instructions before use!

• - Do NOT connect any other device / unit / tool / phone etc. beside the iron with the USB-C from this set! The 24V output voltage will damage or completely destroy all other devices beside the iron!
• - Always check polarity before connecting power.
• - No reverse polarity protection is included.
• - Never touch the soldering tip during or immediately after use.
• - Allow the unit to cool down completely before handling or changing parts.
• - Use only within the specified voltage range (5 - 12V DC).
• - This device is intended for experienced users only.
• - Keep away from children.
• - Always use on a heat-resistant surface.
• - Never leave the unit unattended while in use.

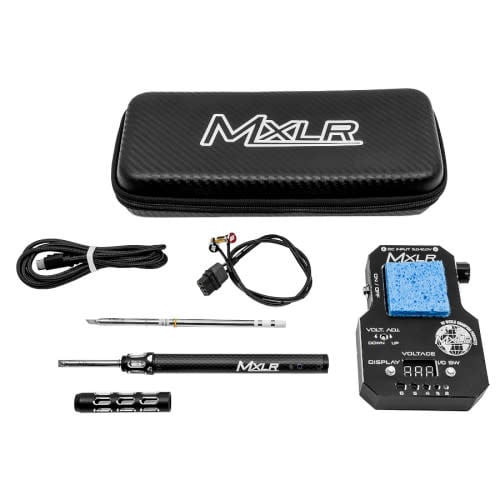

MAX-13-002 contains:

• 1x MXLR Mobile Soldering Station (base unit)
• 1x Soldering handle
• 2x soldering tip
• 1x Power cable (detachable)
• 1x PD cable (detachable)
• 1x Premium hardcase bag in carbon optics
