K209 Schumacher Cougar LD3D - Dirt Spec - Kit (Schumacher)

K209 Cougar LD3D - Dirt Spec - Kit

Schumacher Cougar LD3D Racing Buggy

The LD3 is Schumacher's enhanced 1/10th 2WD racing buggy, already a proven winner in numerous national and international races, even earning a World Championship Podium finish. This upgraded model excels in terms of durability, tuneability, weight reduction, and speed. With three distinct chassis specifications available, the LD3 conquers all types of tracks and conditions.

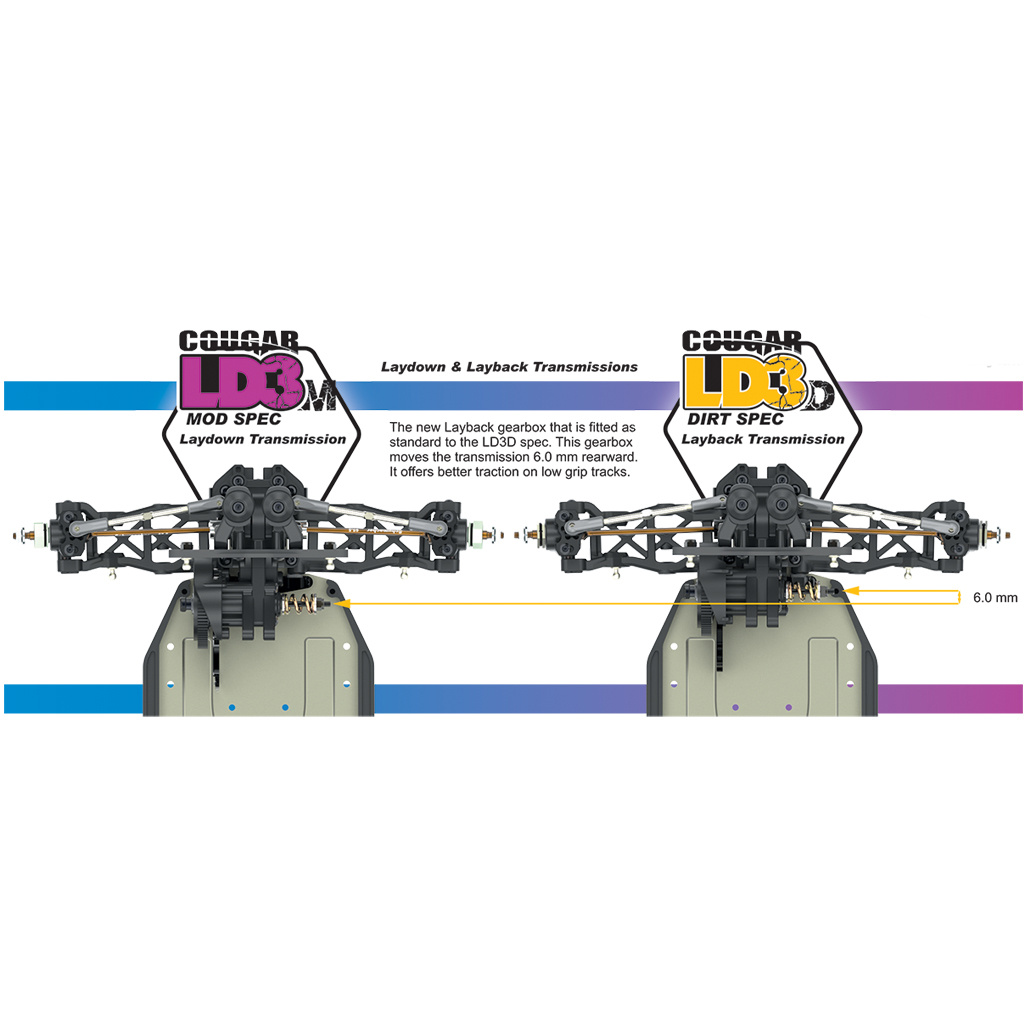

The LD3D is designed for dirt and low-grip racing environments, providing a competitive edge for racers seeking high performance. This LD3D variant of Schumacher's 1/10th 2WD racing buggy lineup incorporates a specialized 'Layback' transmission that moves the motor 6mm more rearward, optimizing it for low-grip dirt and wet astro tracks. Its features are meticulously tailored to excel under challenging conditions. The LD3D's updated motor mount, smaller idler gear, RF (Rear Front) alloy strap, gear shield, and rear hub with inserts all combine to greatly increase rear grip and allow the rear end to follow the front end effortlessly. Additionally, it includes longer rear CVD driveshafts measuring 69.5mm, -2.00mm rear hex, yellow wheels, and wide 2WD front wheels. These enhancements empower the LD3D to deliver superior control and performance, ensuring that racers are well-prepared for the unique demands of loose track competitions.

A combination of class-leading front suspension geometry, lightweight steel CVD driveshafts, an easy-access battery fitting system, updated shock tower geometry to lower CG and improve suspension feel, and meticulous attention to design details make the LD3Ds a standout choice for both experienced and novice racers. Whether you're striving for better lap times or aiming to dominate the competition, the LD3D is a top-notch 2WD buggy you can count on.

Note: Finished kit shown in photos is for illustrative purposes only. See the needed to complete list below for a list of items required to complete the model

LD3D Features:

• Rear layback gearbox
• Updated Motor mount
• Updated transmission housings
• Redesigned smaller idler gear
• Updated Rear Front alloy strap
• Updated Rear hub and inserts for improved rear grip
• Longer 69.5mm rear CVD driveshafts
• 2mm Rear Hexs

Shared Features:

• Front wishbone
• Front hub carrier with increased adjustability
• Front 5 deg caster block
• Improved pivot system for the king pin and outer hinge pin
• 4mm S2 lightened front and rear shock towers for a lower center of gravity and improved geometry
• 13mm Big Bore shocks
• 2.5mm reduced weight alloy chassis design, recessed radio tray, and redesigned rear end
• Internal transmission with redesigned twin pad through slipper for a more centralized assembly
• Moulded internal idler gear with improved Teflon-coated material
• Rear suspension wishbones and alloy rear strap with greater wheelbase adjustment and updated shock positions

Specifications:

• Scale: 1/10
• Length: 15.5in (395mm)
• Width: 9.6in (245mm)
• Wheelbase: 10.8-11.2in (275-285mm)
• Drive: 2WD
• Power Source: Electric
• Assembly Level: Kit

Includes:

• (1) LD3D 2WD Buggy

Needed to Complete:

• 1/10 scale electric motor and electronic speed control
• 7.4V-7.6V 2S LiPo with "shorty" battery dimensions
• Compatible Battery Charger
• 2-channel surface transmitter, 2-channel receiver, and steering servo
• Polycarbonate specific spray paint for body
• 1/10 scale off-road tires
• Tools & Silicone Fluids
