| Part Number: |
HWI30402903 |
| Quantity In Stock: |
1 |

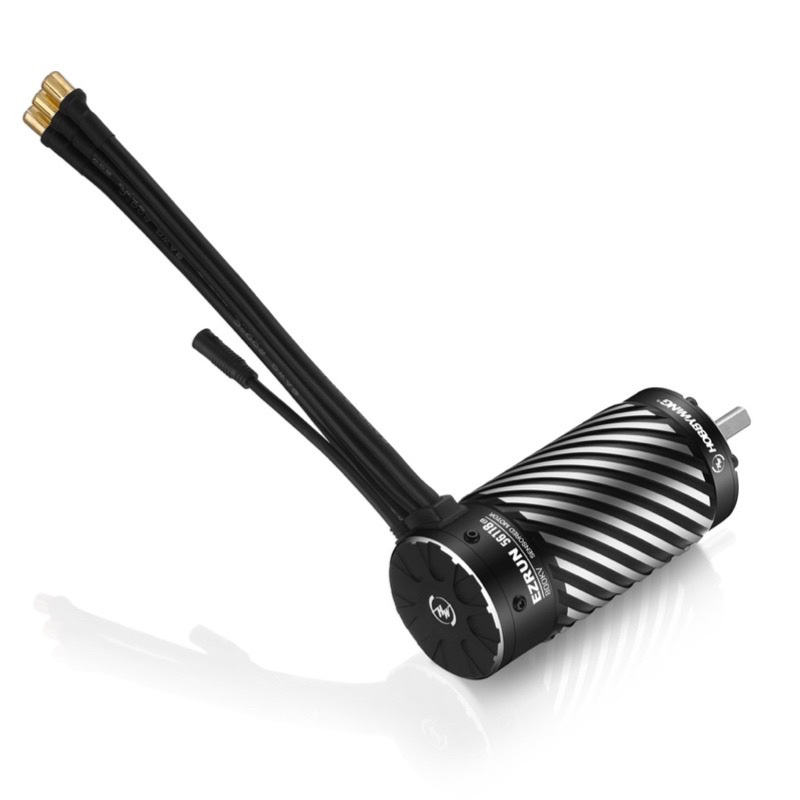

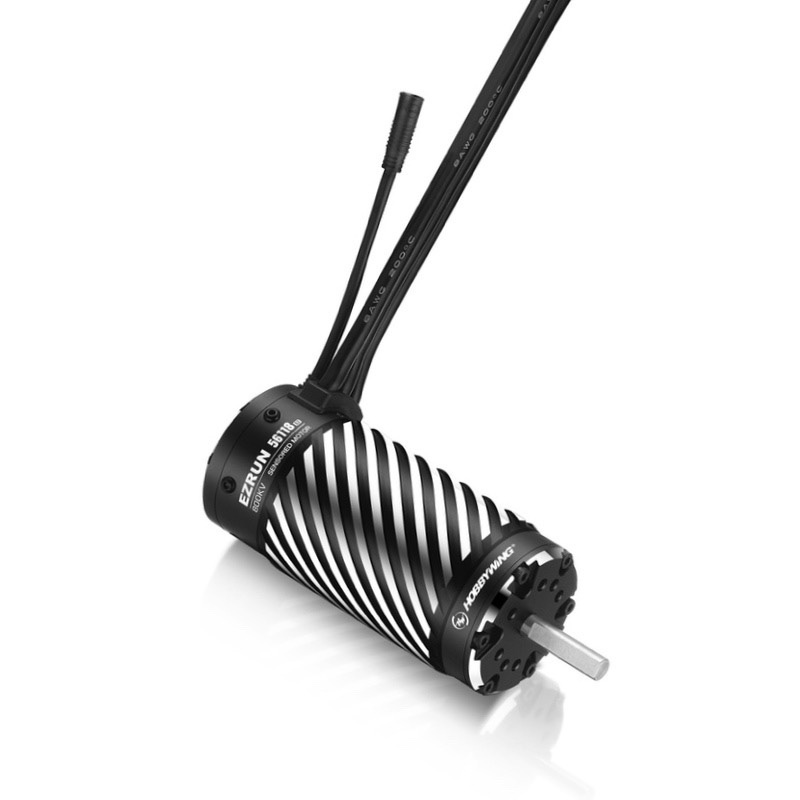

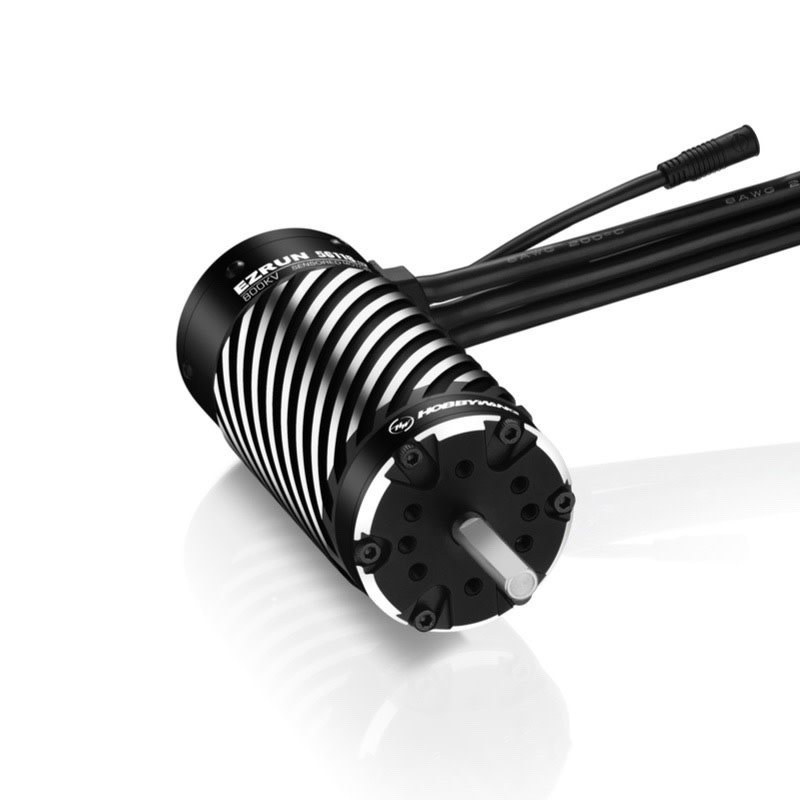

HWI30402903 EZRUN 56118SD G2 Motor; 1100KV
Features:
- Compared with the previous generation, it has added a waterproof sensor cable, upgraded to a sensored system, with better accelerate linearity and stronger explosive force.
- It has perfect compatibility when it is matched with Hobbywing EZRUN MAX5 G2 ESC, the esc can automatically recognize this motor, and build a power system with full sensor mode, providing better control performance and more delicate control feel, and also realizing the motor overheat protection function.
- The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.
- CNC machined aluminum housing, high purity copper windings, high strength explosion-proof rotor, ultrathin silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.
- The innovative sensor interface and rubber cover bearing have better waterproof and dustproof effect than the traditional sensor motor.
Specifications:
- LiPos: 6-8S
- No-Load Current: 8.0A
- Diameter/Length: 56mm (2.20") / L: 119.2mm (4.69")
- Shaft Diameter/Length: 8mm (0.31") / 30mm (1.18")
- Bearing Size (mm): Front: D22*D8*T7 / Rear: D19*D8*T6
- Poles: 4
- Weight: 1287g
- Applications: 1/5th Buggy, Truck
