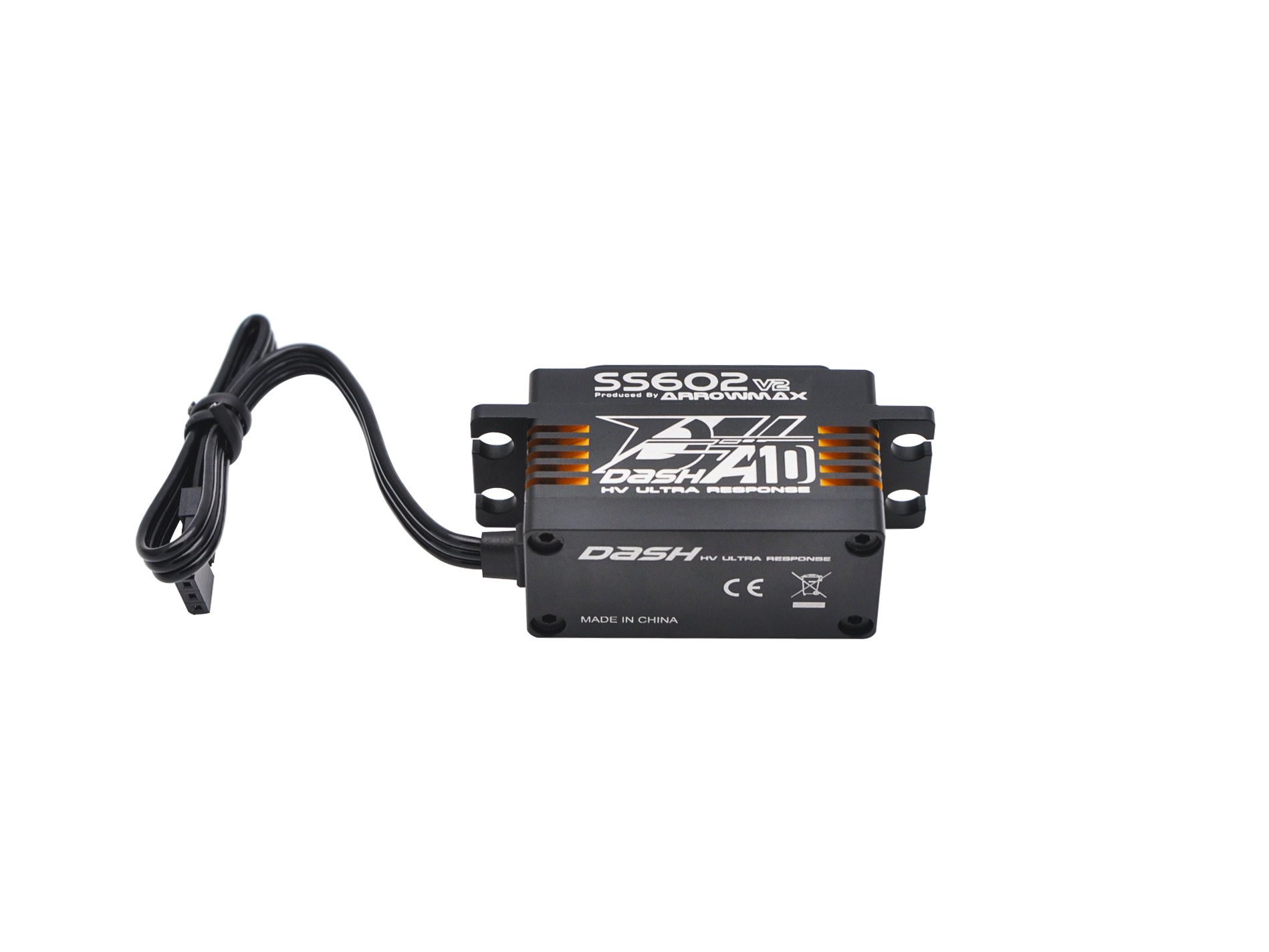

DA-720602 SS602 Super Speed Low Profile Servo A10 V2 (Arrowmax)

DA-720602 SS602 Super Speed Low Profile Servo A10 V2

Dash RC has introduced their all-new SS602 Super Speed Low Profile Servo A10 V2 brushless servo. The updated version of the well-known SS601 servo, sports a speed of 0.056sec (7.4v), a torque of 13.8kg-cm and is SSR mode compatible. It weighs only at 52g using 25t spline.

Specification:

Torque(6.0V): 11.5 kg-cm (159.7 oz/in)
Torque(7.4V): 15.0 kg-cm (208.3 oz/in)
Torque(8.4V): 16.5 kg-cm (229.1 oz/in)
Speed: 0.072 sec (6.0V) │ 0.060 sec (7.4V) │
Speed: 0.050 sec (8.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 52.0 g (1.83 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Brushless Motor
Gear Type：Titanium & Steel
Operating Temperature: -20℃~60℃
Working frequence：1520μs / 333hz
Size：41.0 x 20.0 x 26.0 mm ( 1.61 x 0.79 x 1.02 in)
