CYEA10802 Cayote Crest 8 EVO 1/8 200A Sensored Brushless ESC w/Bluetooth
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | CYEA10802 |

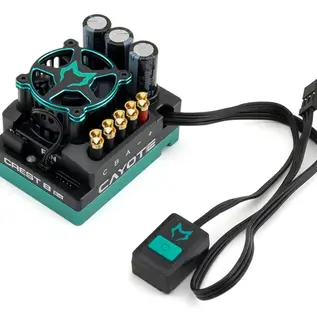

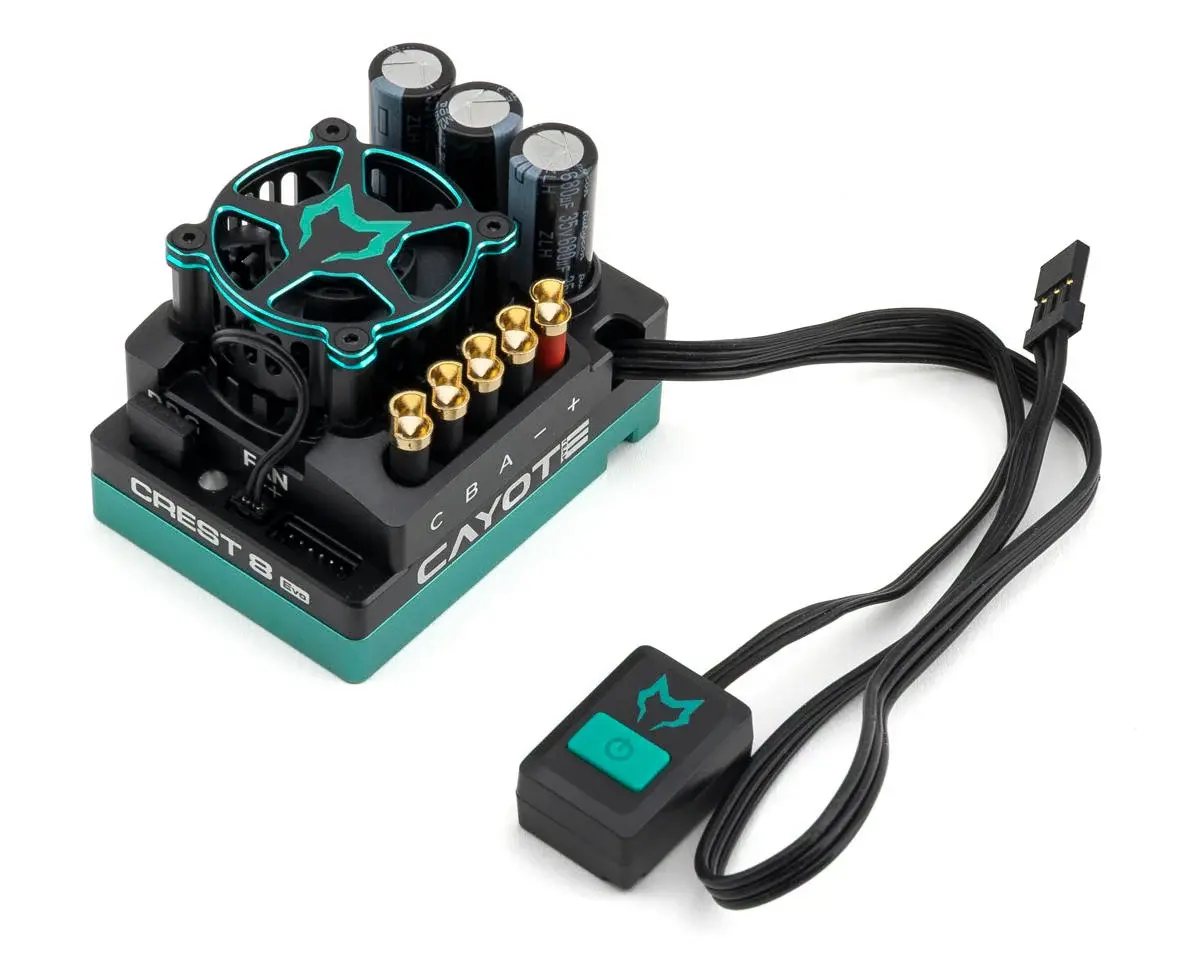

CYEA10802 Cayote Crest 8 EVO 1/8 200A Sensored Brushless ESC w/Bluetooth
The Cayote Crest 8 Evo 1/8 200A Sensored Brushless ESC is engineered for high-performance RC applications, delivering precise power control, reliability, and up to 10% more peak power for an extra edge on the track. Built with reverse polarity protection, it safeguards your system from wiring errors while maintaining consistent performance. With advanced cooling technology, customizable settings, and an included glitch buster to smooth out voltage fluctuations, the Crest 8 Evo adapts seamlessly to any racing condition. Whether you're chasing podium finishes or pushing through rugged terrain, this ESC provides the control, protection, and durability demanded by serious competitors.
Featuring a super large 48° boost and turbo timing, the Crest 8 Evo ESC maximizes power output while optimizing motor efficiency. This advanced timing system enhances acceleration and top speed, making it ideal for competitive racing. The fine-tuned performance ensures smoother throttle response and increased stability during high-speed runs.
"With offline data recording, users can track ESC performance and analyze key metrics to improve their driving strategy. This function allows racers to make precise adjustments based on real-time data, optimizing power output and battery usage. The ESC's built-in Bluetooth enables seamless wireless monitoring and tuning. Users can review recorded data via the Cayote Team app or the Xlink Multifunction LCD Program Box (CYECPB01 - sold separately)* to fine-tune their setup for consistent and reliable results."
Equipped with over thirty-seven adjustable parameters, the Crest 8 Evo ESC offers extensive tuning options to match various racing styles. Multiple protection functions, such as low voltage and motor overheat protection safeguards your electronics from damage. The built-in Reverse polarity protection system ensures you don't pop it before the first race, making it a reliable choice for stressful racing conditions.
| Suggested Application | 1/8 Buggies, Truggies & Trucks |
|---|---|
| Motor Type | Brushless - Sensored/Sensorless |
| Input Voltage | 2-4S LiPo (7.4-14.8V) |
| Continuous Current | 200A |
| Peak Current | 1080A |
| Dimensions (LxWxH) | 2.24x1.64x1.57in (56.8x41.6x40mm) |
| Weight | 4.3oz (122g) |
| Motor Limits | 4268/4274 3000kV Maximum with 4S Lipo |
| BEC Voltage | 6.0/7.4V |
| BEC Continuous Current | 8A |
| BEC Peak Current | 12A |
| Motor Connector | Solder |
| Battery Connector | Solder |
| Motor Wire | 10AWG |
| Battery Wire | 13AWG |
| Throttle Wire | - |
| Programmable | Yes, with Cayote Xlink Program Box or Cayote Team App |
