| Part Number: |
CSE060-0059-00 |
| Quantity In Stock: |
1 |

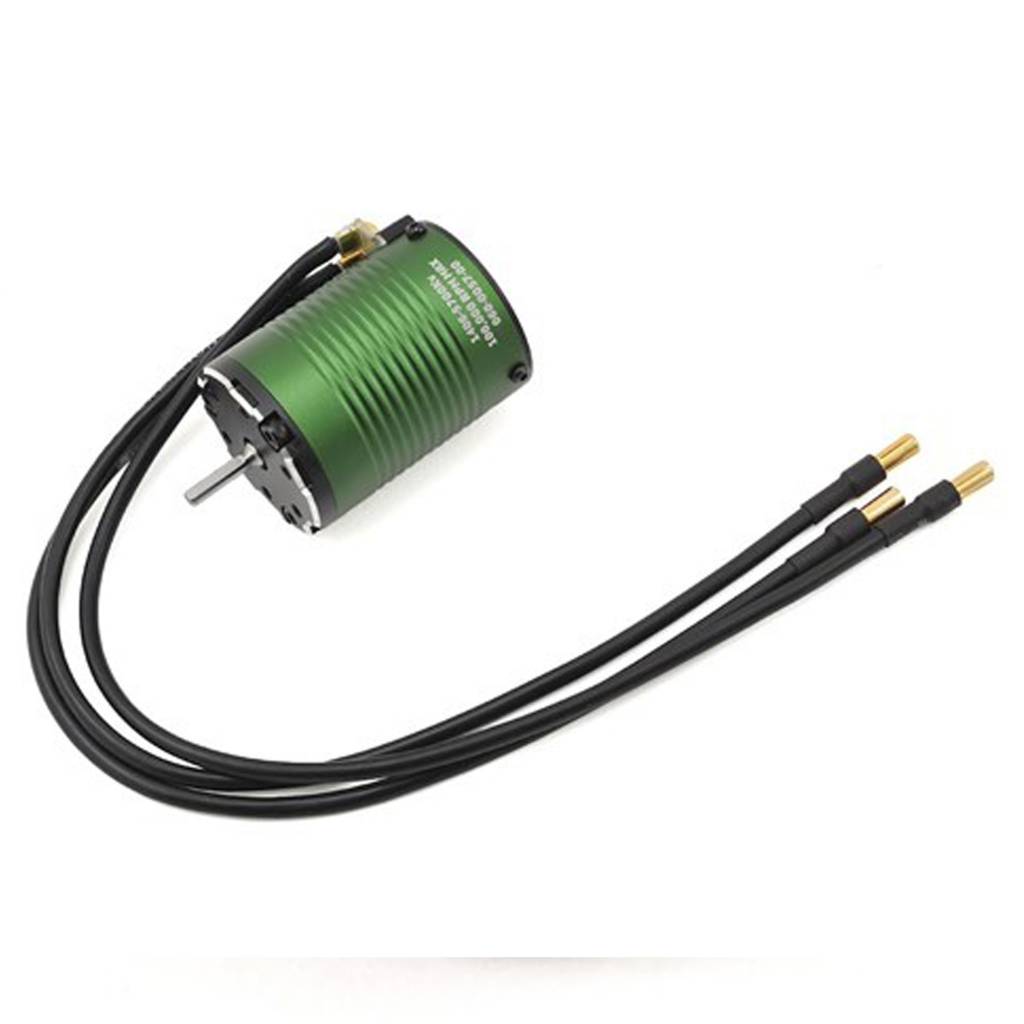

CSE060-0059-00 1406 Sensored 4-Pole Brushless Motor (7700kV)
THE DESIGN: KEEPING IT COOL
- Our IMPROVED 4-POLE 12-SLOT design boasts exceptional EFFICIENCY and produces LESS HEAT.
- QUIETSENSE™ technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield™ in conjunction with secondary Sense Magnets delivers even HIGHER PRECISION and MORE EFFICIENT startups.
- Our OPTIMIZED design eliminates the need for mechanical timing adjustments. Our sensor alignment method delivers uniform timing and torque in both directions, automatically.
- REBUILDABLE design allows users to replace front end bell/bearing assembly or rotor/shaft assembly.
- ROAR standard sensor port and labeled connections.
- Updated modern and sleek design; looks as cool as it performs.
| Technical Specs |
| Input Voltage Range: |
2S LiPo |
| Kv: |
7700 |
| Max. RPM: |
100,000 |
| Size: |
Length: 49.5mm
Diameter: 36mm |
| Weight (w/wires): |
189g / 6.7oz |
| Shaft Size: |
Length: 15mm
Diameter: 1/8" (3.17mm) |
| Mounting Hole Specifications: |
M3 @ 25mm |
| Cooling Fan: |
Optional, coming soon! |
| Connectors: |
4mm male Castle Bullet Connectors |
| Items Needed for Operation: |
Compatible Electronic Speed Control (ESC) |
| Application Guidelines: |
Ideal for 1/10th scale on-road cars for 2s use. Lighter off-road 1/10th stadium trucks and buggies with conservative gearing.
NOT for use in 2WD or 4WD short course trucks.
Check the gearing chart at the bottom of the page under Resources for more details. |
| Recommended ESC(s): |
Mamba Max Pro, Mamba Monster X, Mamba X |
| Max. Recommended Vehicle Weight: |
Up to 4lbs |
| Tech Notes: |
Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.
Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
|
