4268-1700 Rocket 1/8 1700Kv 6S Short RPM Sensored Brushless Motor (Surpass Hobby USA)

4268-1700 Rocket 1/8 1700Kv 6S Short RPM Sensored Brushless Motor

Part Number: SP-042680-01-1700
Quantity In Stock: 1

SHIPS FROM USA!

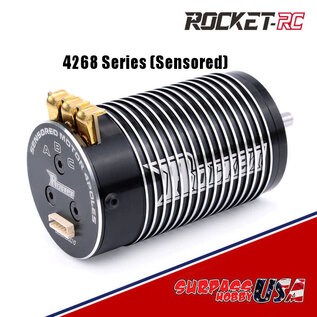

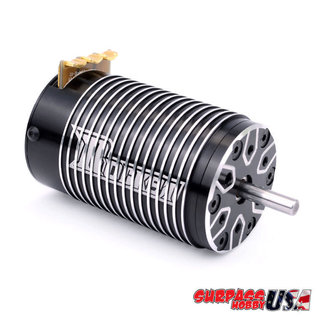

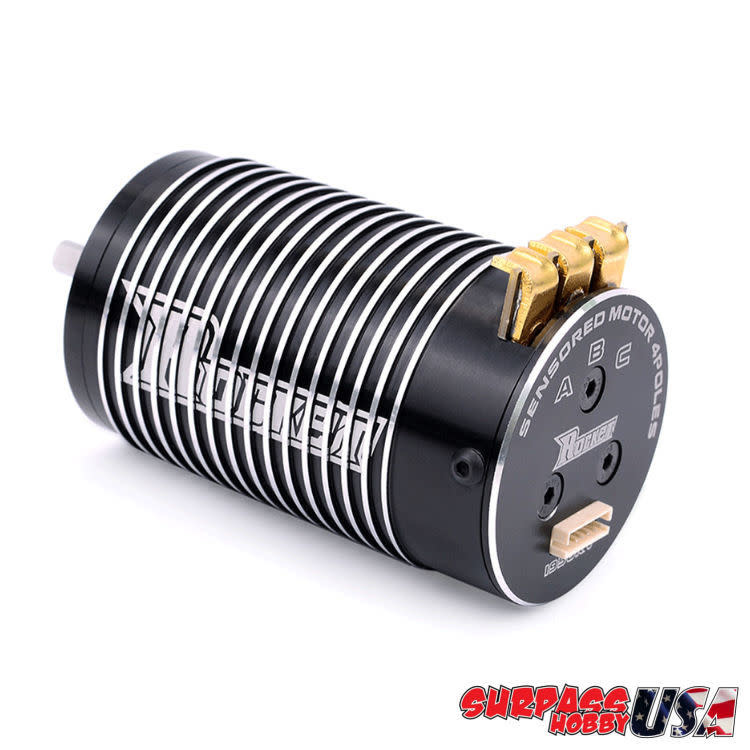

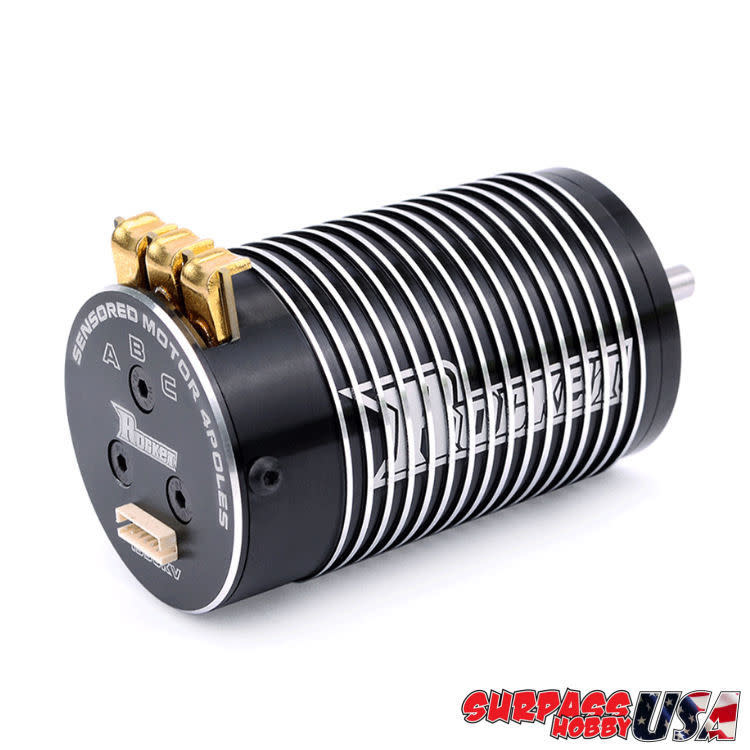

4268 Rocket 1/8 1700Kv Short RPM Sensored Brushless Motor


Rocket 4268
High Performance Brushless Sensored Motor, Short Can Design More RPM

Specifications:
  • Excellent for 1/8 GT On-Road Racing, and 1/8 Buggies
  • 4268 Sensored Brushless Motor

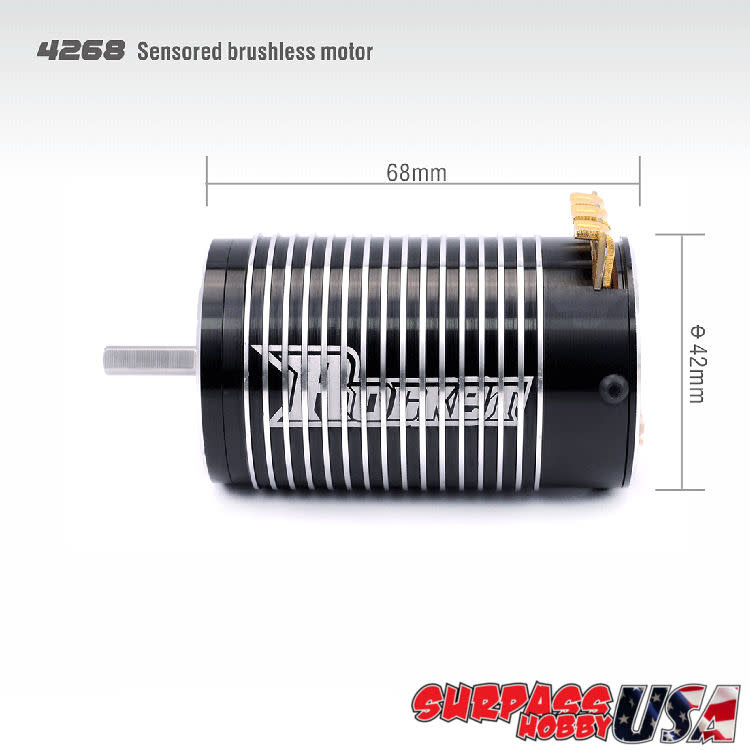

  • Can Dia: 42mm (with Heatsink Fins)
  • Can Length: 68mm
  • 5mm Motor Shaft
  • Weight: 340g avg.
  • 1700Kv avg.
  • Max Voltage: 27 Volts
  • Max 6 Cell Lipo

Features:
  • Sensored Brushless Motor for 1/8 Competition
  • Fixed Timing
  • 4 Pole 12 Slot Hi-Torque Motor Design
  • CNC Machine 6061 T6 Billet Aluminum Heatsink Can Design
  • High Purity Copper Windings Maximizes Efficiency
  • High RPM ABEC 5 Oversized Bearings
  • Universal Fit, Fits all 1/8 On-Road and Off-Road Vehicles. Multi Mounting System for M3 and M4 Motor Screws

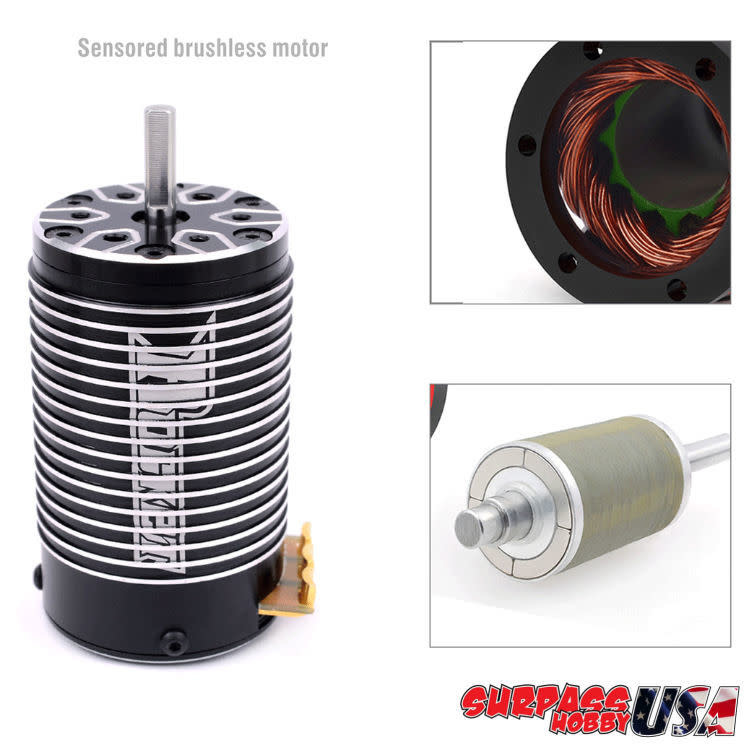

  • Precision Balanced Rotor for Smooth Operation and Maximum RPM
  • Stator - Super Thin (0.2mm) Laminations
  • Precision Engineered for Maximum Energy Conversion
  • IFMAR, ROAR, BRCA and EFRA Design Compliance
Includes:
  • Includes a 150mm Super Flexible Flat Sensor Wire

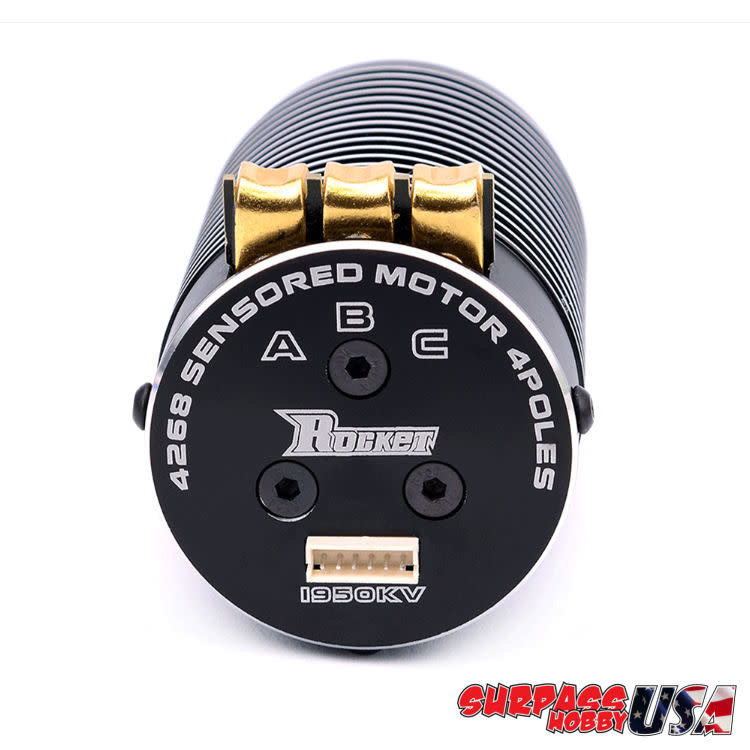

* Images represent the design and features of the 4268 Rocket Motor, but not the actual Kv markings of the motor.
