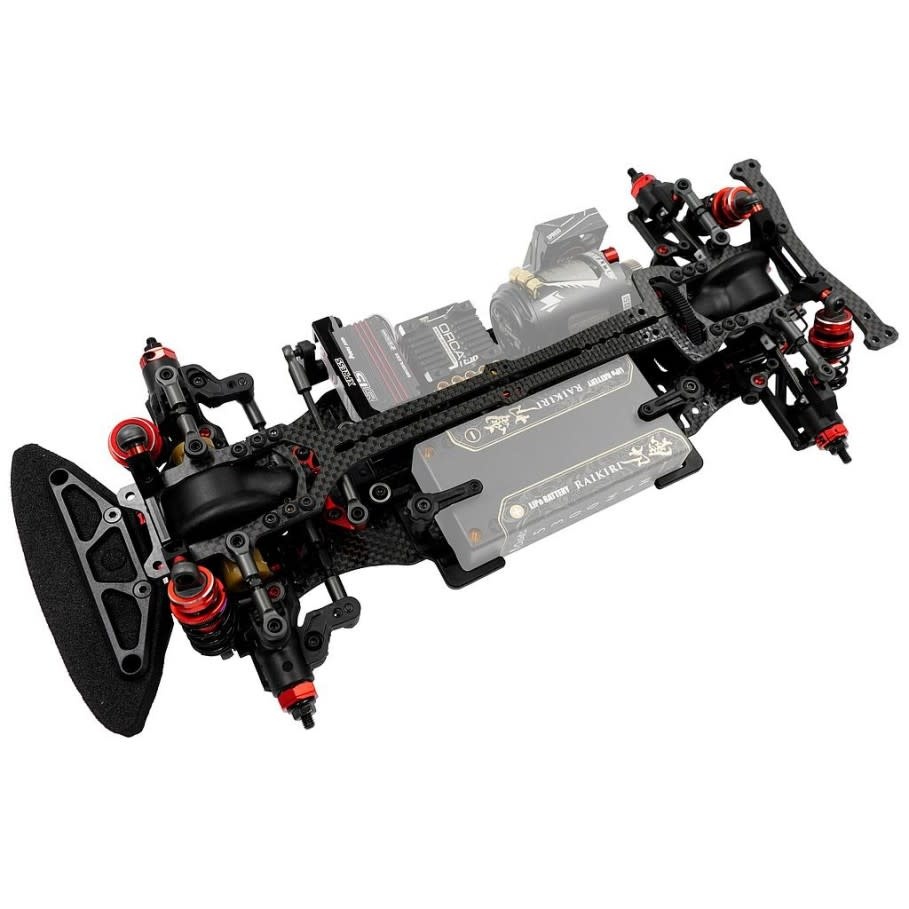

XP-90033 Xpress Arrow AM1 1/10 Mini Competition 4WD Shaft Drive Touring Car Kit (Xpress)

XP-90033 Xpress Arrow AM1 1/10 Mini Competition 4WD Shaft Drive Touring Car Kit

Description:

Arrow AM1, the M-Chassis version of the full size 1/10 touring Arrow AT1. Sporting all the designs that made the Arrow AT1 a competitive chassis and turned into a M-Chassis platform

Feature:

• Internal Gear Ratio: 2.353

• 4WD Shaft Drive Floating Gear Box System

• Sealed Transmission Gear Box

• Front Spool & Rear Gear Differential Unit

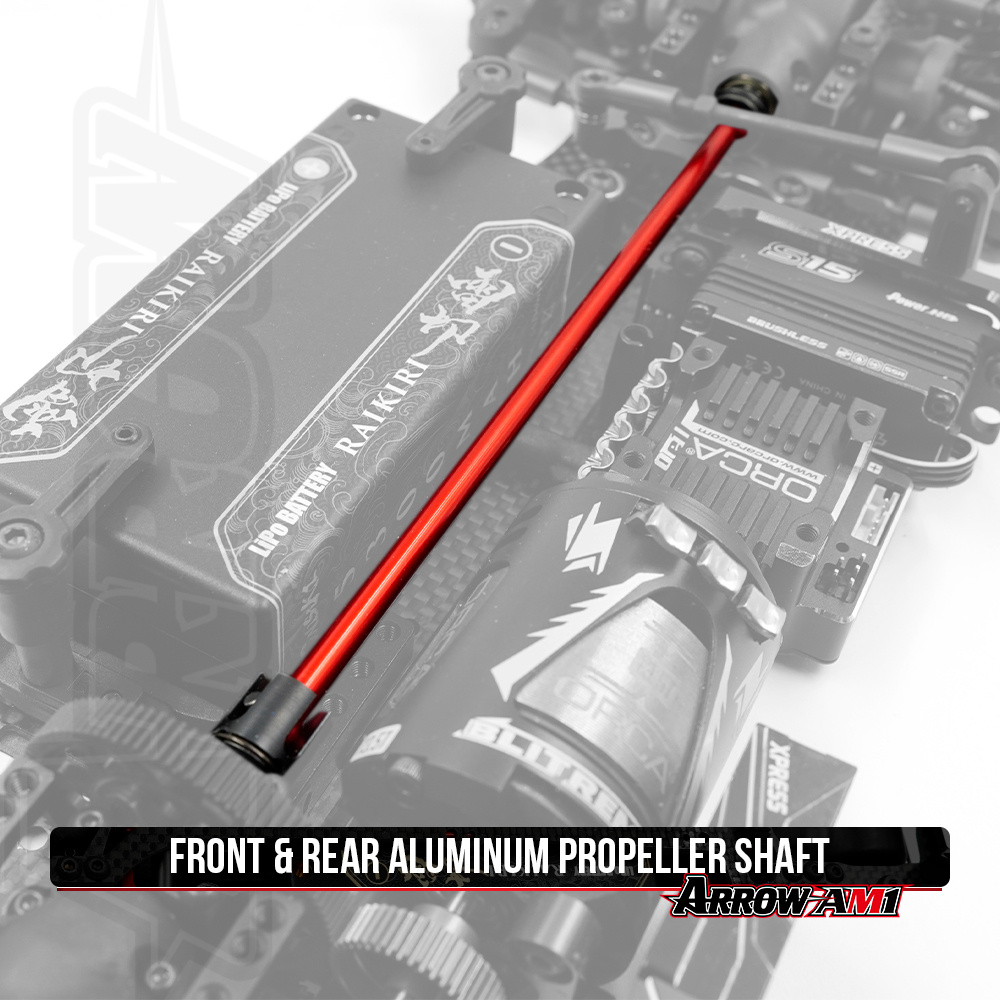

• Front & Rear Aluminum Propeller Shaft

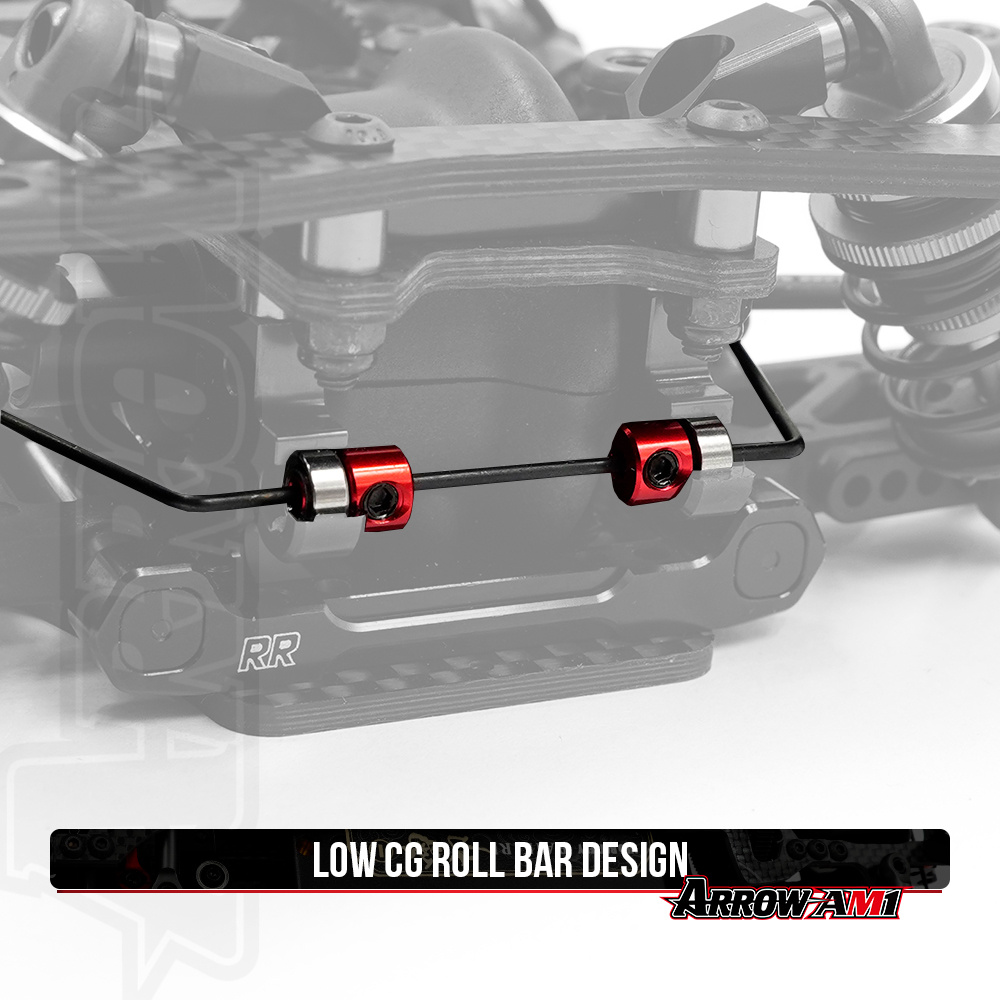

• Low CG Roll Bar Design

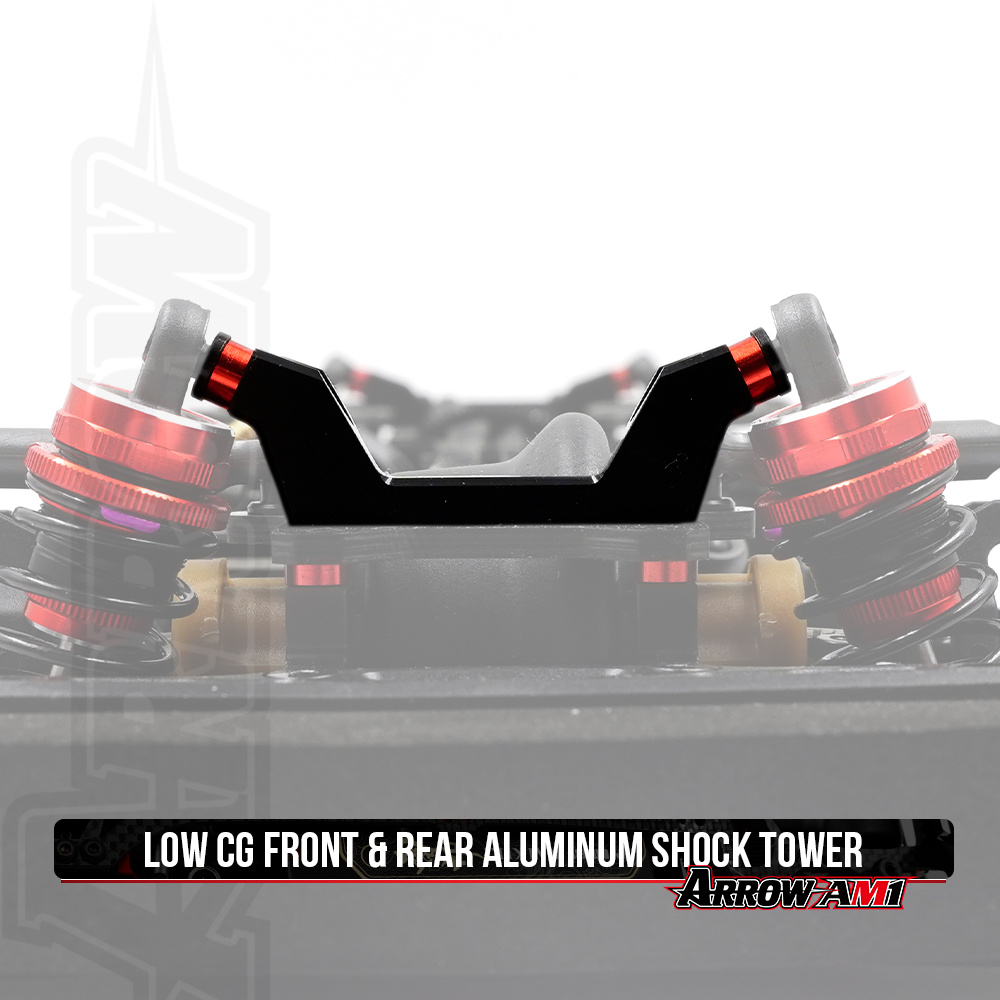

• Low CG Front & Rear Aluminum Shock Tower

• Low Profile Long Travel Aluminum Short Shocks

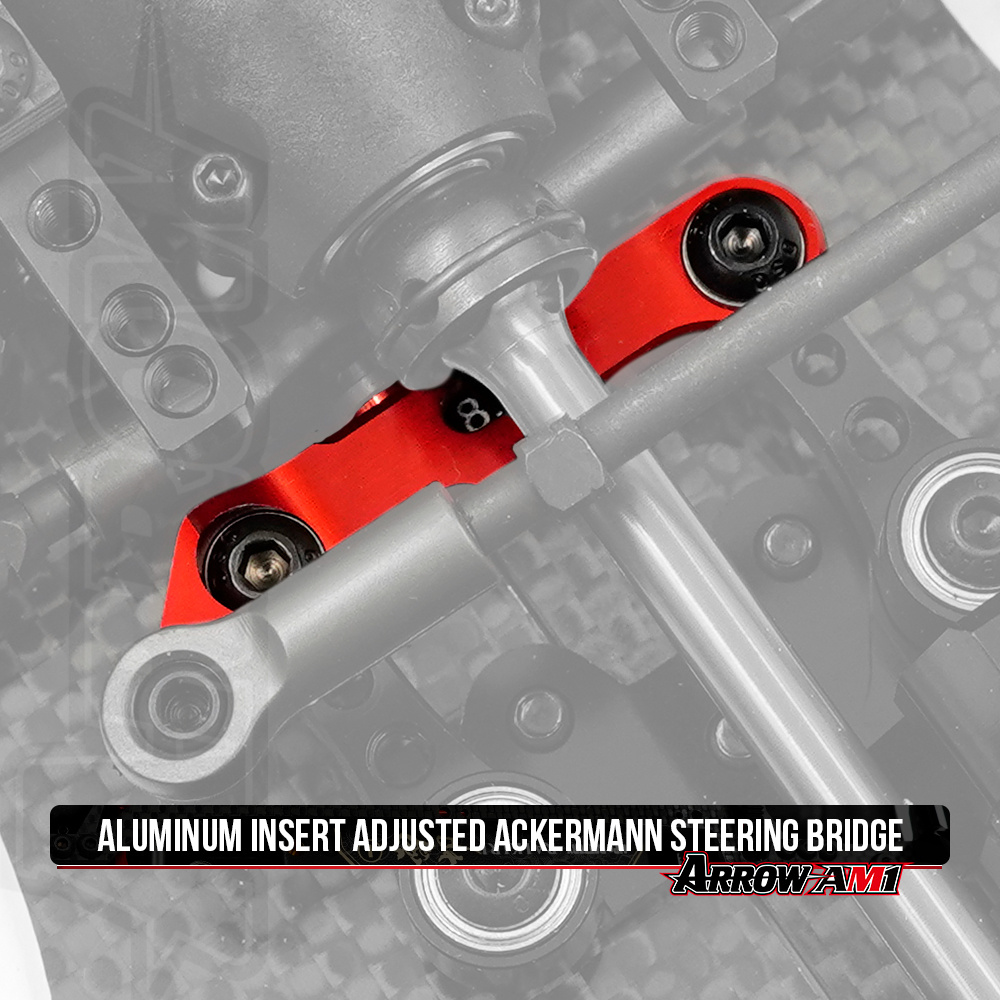

• Aluminum Insert Adjusted Ackermann Steering Bridge

• Front Spring Steel Double Joint Universal Shaft

• Full Low Friction Drive Gears

• Full Aluminum Suspension Mount

• 2.25mm Graphite Main Chassis

• 2.0mm Graphite Top Deck

• Full Turnbuckle Linkages

• Full Ball Bearing Set

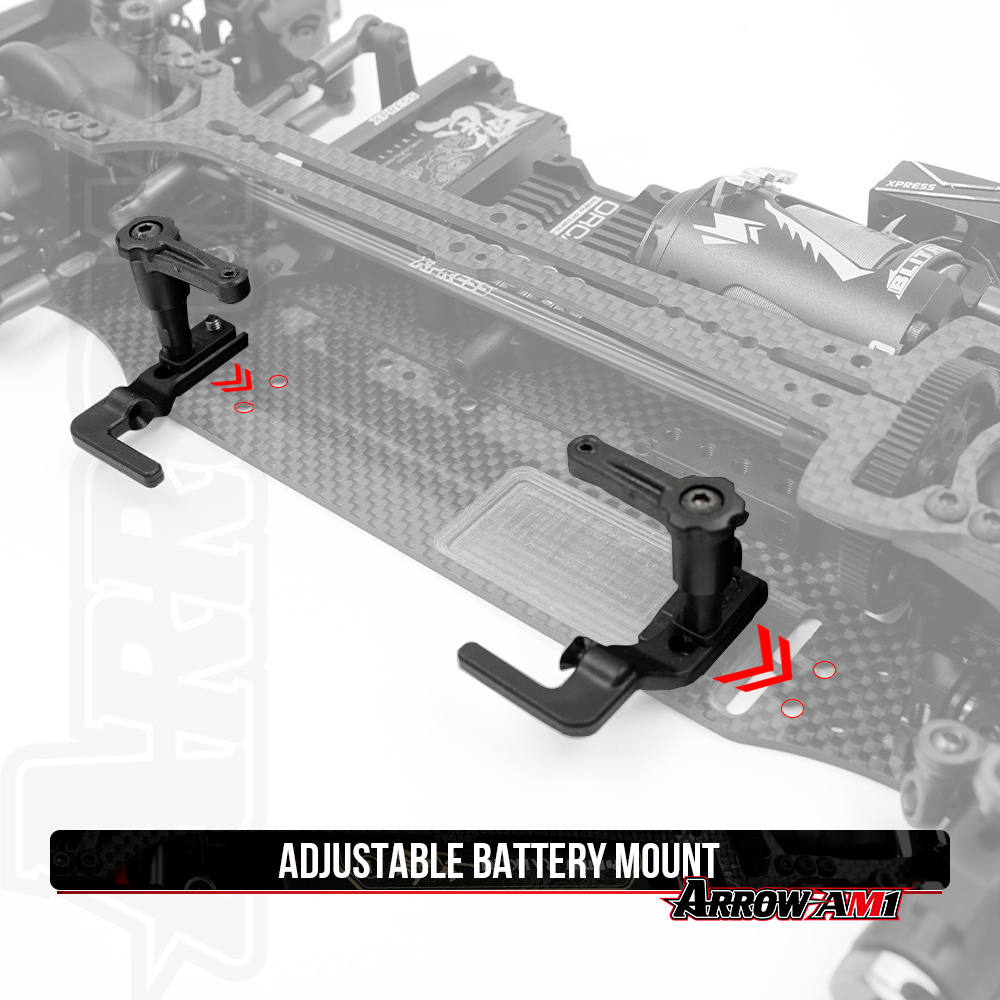

• Adjustable Battery Position

Specification:

• Type: Competition Grade 1:10 On-road 4WD

• Length: 315mm

• Wheelbase: 225mm

• Track Width: F160mm / R160mm (Approx.)

Required:

• Radio system (transmitter and receiver)

• Steering servo

• Motor

• Pinion gear (64p)

• Battery pack

• Speed controller

• Charger

• Bodyshell

• Wheels, Tires, Inserts
