UCR3065-7 2022 ICEMAN Chassis Conversion kit for Associated B6.2/B6.3 (GFRP Apollo Transmission) w/ Kickup, Brick Batt, Std Rear Tower, (Undercover RC)

UCR3065-7 2022 ICEMAN Chassis Conversion kit for Associated B6.2/B6.3 (GFRP Apollo Transmission) w/ Kickup, Brick Batt, Std Rear Tower,

Introducing the new IceMan! This kit is new for the 2022 season. We have taken what we've learned over this past season and put it into this chassis kit. This kit is designed to be used in conjunction with a B6-B6.3 buggy, as it uses its suspension and drive train. This makes it easy to find readily available replacement and aftermarket parts.

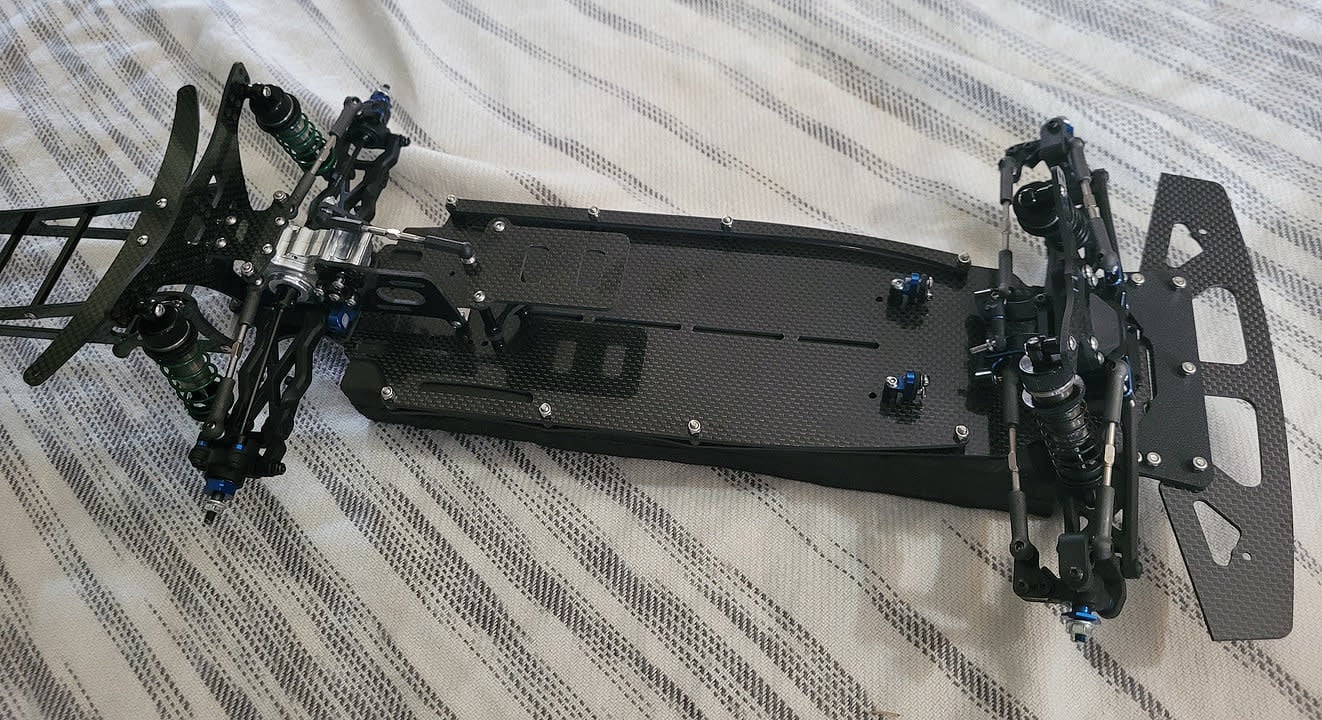

We kept the tried and true 3mm thick 7k weave glossy finish carbonfiber plate for the base in which to work from. You'll notice a little different profile shape and less cutouts for better cross sectional strength. We changed the top rails, making them wider to accept a shorty pack sideways and allowing it to be moved right up behind the servo. I've added spur gear cutouts to give you more clearance that allows the use of a larger spur. The carbonfiber bumper also comes standard in our kit as well. I've also removed the traditional transmission waterfall and the chassis cross brace to give ample room for more gear combinations. As you can see in the pictures, I've made a kit to install the GFRP Apollo transmission into the chassis as well, I am offering this option on The IceMan chassis as well. Its a very simple install and includes the necessary carbonfiber towers and braces. The installation kit also accepts the Custom Works 2.6 transmission as well. This makes the chassis have 7 different possible transmission combo's! That's unheard of and a first for Undercover!

Here is what is needed to complete the standard B6.3 build-

ASC90029 or ASC90030 B6.3 Buggy

57-1036 Five Seven Designs body post kit

GFRP Apollo Transmission

TRA5186 Traxxas wheelie bar wheels

You will also need body, wheels, tires, electronics.

These are additional parts you will need if you opt to install the GFRP Apollo transmission-

2x CSW2224 Custom Works Top Block or

2x 57-1139 Five Seven Tower Block

GFR-1187 GFRP Transmission Case

GFR-1182 GFRP Top Shaft

Or from Five Seven Designs, these parts work with the transmission

57-1172 Idler Shaft

57-1173 Top Shaft

57-1169 Slipper Eliminator

And will need 4-40 hardware, i.e. 4-40 x 3/8, 4-40 x 1/4, 4-40 x 1/2 button and taper head screws.
