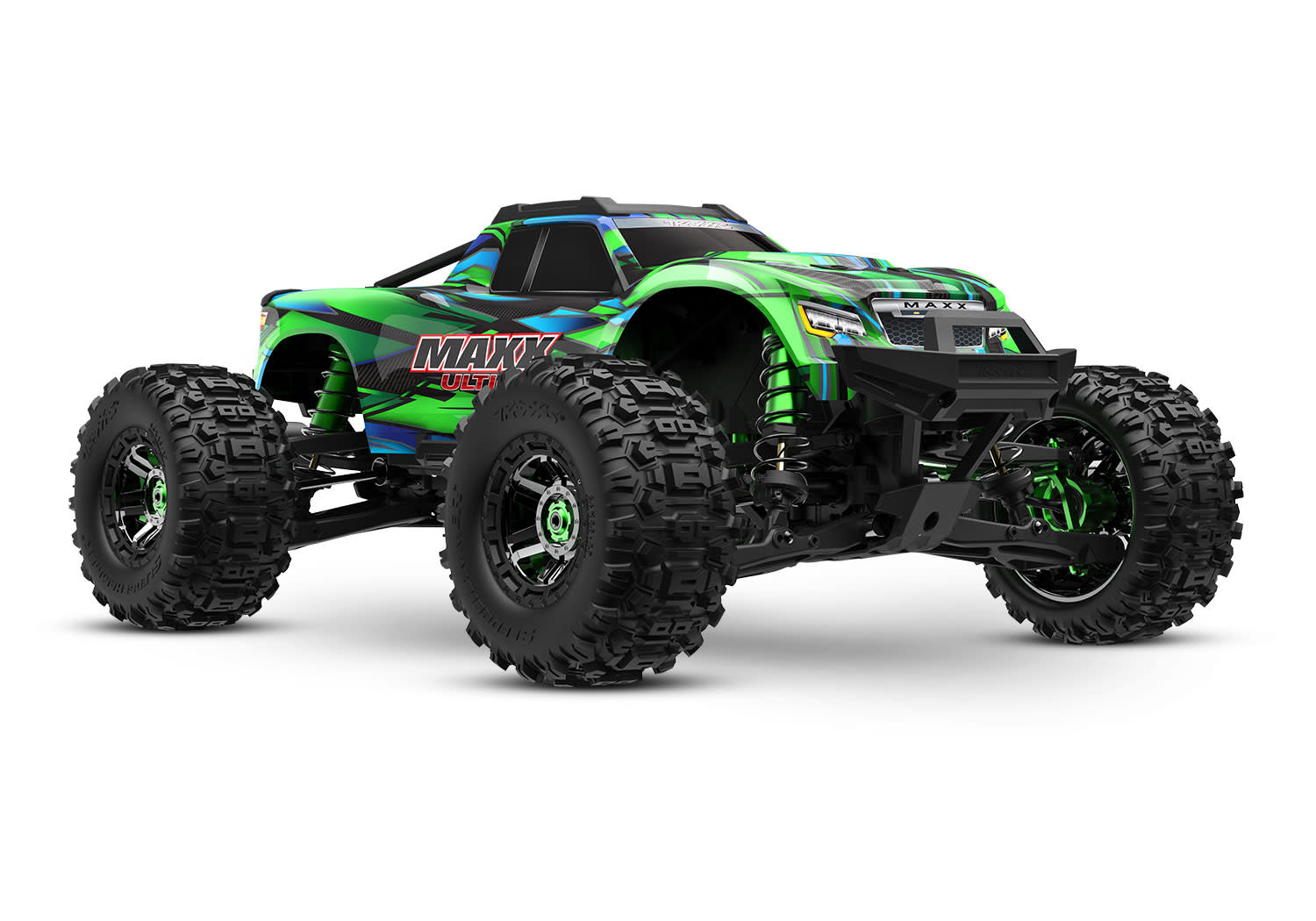

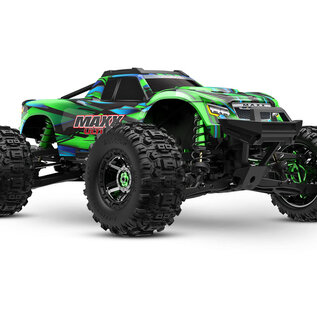

TRA89087-4-GRN Maxx Ultimate Green
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | TRA89087-4-GRN |
TRA89087-4-GRN Maxx Ultimate Green
The Traxxas® Maxx® Ultimate 1/10 4WD Brushless RTR Monster Truck delivers an extreme driving experience with unmatched durability and performance. Designed for serious off-road enthusiasts, it combines high-strength materials with advanced electronics for maximum control. From crushing obstacles to tearing through rough terrain, the Maxx Ultimate redefines what a 1/10 scale monster truck can do. Every detail is engineered to handle high speeds, aggressive driving, and tough conditions.
The Maxx Ultimate features a suite of 6061-T6 aluminum components that strengthen the chassis, suspension, and steering systems. Aluminum C-hubs, steering blocks, and rear hub carriers improve rigidity while maintaining precise suspension geometry. The GT-Maxx® shocks feature TiN-coated shafts and adjustable aluminum spring retainers, providing ultra-plush damping and reliable performance over rough terrain. Steel CV driveshafts, modular composite chassis design, and reinforced pivot points ensure the truck can handle the extreme power and torque of high-speed runs.
Equipped with the Velineon® 540XL brushless motor and VXL-4s™ waterproof ESC, the Maxx Ultimate reaches speeds over 55+ mph with optional 4S LiPo power. Traxxas Stability Management® (TSM) helps prevent spinouts and maintain control in all conditions. The TQi™ 2.4 GHz transmitter with a factory-installed wireless module allows real-time telemetry via the Traxxas Link™ app. The high-torque 2085RL steering servo with an aluminum double-shear horn delivers precise, responsive steering even under the stress of massive Sledgehammer tires.
The Maxx Ultimate's driveline is engineered for maximum strength and efficiency, featuring full-time shaft-driven 4WD, steel constant-velocity driveshafts, and a torque-biasing center drive with an aluminum housing. Sealed, silicone-filled differentials with heavy-duty gears distribute power evenly for precise handling and durability. A Cush Drive™ with a steel spur gear absorbs shocks from hard landings and aggressive throttle inputs, while the aluminum motor cradle and transmission cover lock everything into perfect alignment. Together, these upgrades ensure the Maxx Ultimate can withstand brutal power and terrain without compromise.
| Name: | Maxx Ultimate |
|---|---|
| Type: | Monster Truck |
| Top Speed: | 60+ mph with 4s LiPo battery and optional gearing |
| Skill Level: | 4 |
| Scale: | 1/10 |
| Weight: | 10.20 pounds (4.63 kg) |
| Length: | 22.50 inches (572 mm) |
| Width: | 15.95 inches (405 mm) |
| Track: | 15.95 inches (405 mm) |
| Height: | 9.12 inches (232 mm) |
| Wheelbase: | 13.85 inches (352 mm) |
|---|---|
| Center Ground Clearance: | 2.6 inches (67 mm) |
| Driveline: | Shaft-driven 4WD |
| Transmission: | Single speed |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
| Gear Ratio (Internal): | 12.37:1 |
| Gear Pitch: | 1.0 metric pitch |
| Steering Servo: | 2085RL metal gear ultra-high-torque (650 oz-in) |
| Radio System: | TQi™ 2.4 GHz 2-channel transmitter with wireless module |
| Battery Compartment Specs: | 186 mm X 48 mm X 43 mm |
| Name: | Velineon® 540XL |
|---|---|
| Motor Type: | 2400 Kv sensorless brushless |
| Weight: | 317 g (11.18 oz) |
| Length: | 3.58 inches (91 mm) |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 5 mm |
| Connector Type: | 6.5 mm bullet connectors |
| Name: | Velineon® VXL-4s |
|---|---|
| ESC Type: | Brushless |
| Case Size: | 72 mm L x 59 mm W x 49 mm H |
| Weight: | 7.09 ounces (201 grams) |
| Motor Connectors: | 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
