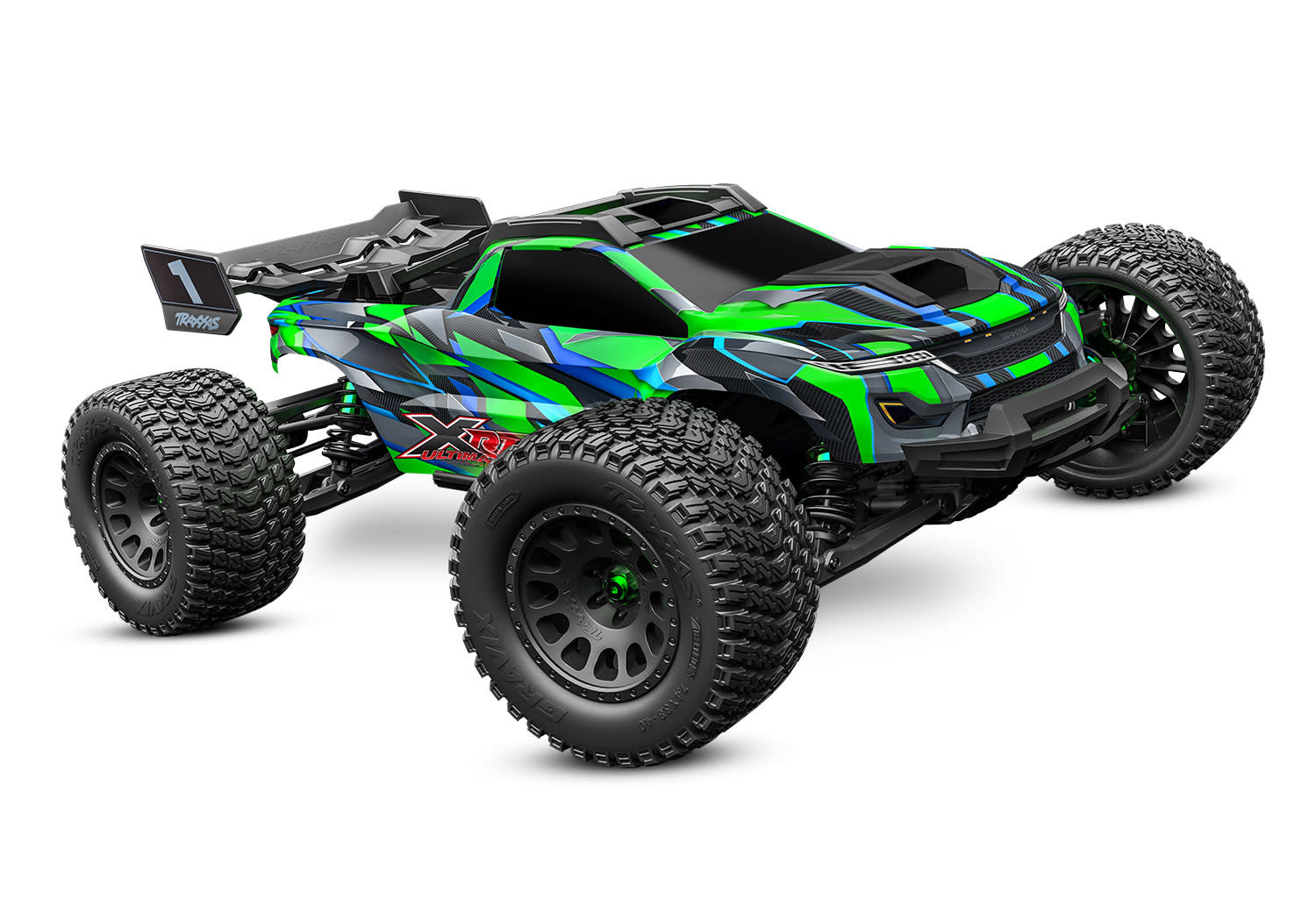

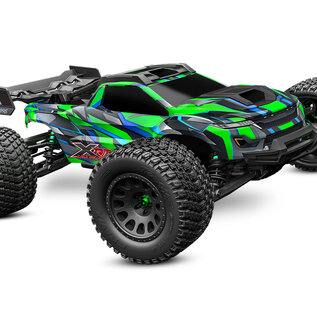

TRA78097-4 GRNX XRT Ultimate 4x4 8S Brushless Monster Truck
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | TRA78097-4 GRNX |
TRA78097-4 GRNX XRT Ultimate 4x4 8S Brushless Monster Truck
| Model Name: | XRT Ultimate |
|---|---|
| Model Type: | Monster Truck |
| Top Speed: | 60+ mph with dual 4s LiPo batteries and optional gearing (sold separately) |
| Skill Level: | 5 |
| Scale: | X-Truck™ |
| Weight: | 21.55 pounds (9.79 kg) |
| Length: | 31.41 inches (798 mm) |
| Width: | 23.43 inches (595 mm) |
| Front Track: | 23.43 inches (595 mm) |
| Track: | 23.43 inches (595 mm) |
| Height: | 10.15 inches (258 mm) |
| Wheelbase: | 18.9 inches (480 mm) |
|---|---|
| Center Ground Clearance: | 1.93 inches (49 mm) |
| Drivetrain: | Shaft-driven 4WD |
| Transmission: | Single speed |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
| Gear Pitch: | 1.0 metric pitch |
| Servo: | 2085RL metal gear ultra-high-torque waterproof |
| Radio System: | TQi™ 2.4 GHz 2-channel transmitter with wireless module |
| Battery Compartment Specs: | 185 mm X 51 mm X 44 mm |
| Motor Name: | Velineon® 1200XL |
|---|---|
| Motor Type: | 1275 Kv sensorless brushless |
| Motor Weight: | 23.44 ounces (665 g) |
| Motor Length: | 4.32 inches (110 mm) |
| Motor Diameter: | 1.88 inches (48 mm) |
| Motor Shaft Size: | 5 mm |
| Motor Connector Type: | 6.5 mm bullet connectors |
| ESC Name: | Velineon® VXL-8s |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| ESC Weight: | 7.60 ounces (215.5 g) |
| Motor Connectors: | 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
| ESC Power Wire: | 10 gauge Maxx® Cable |
