| Part Number: |
TRA77097-4 GRNX |

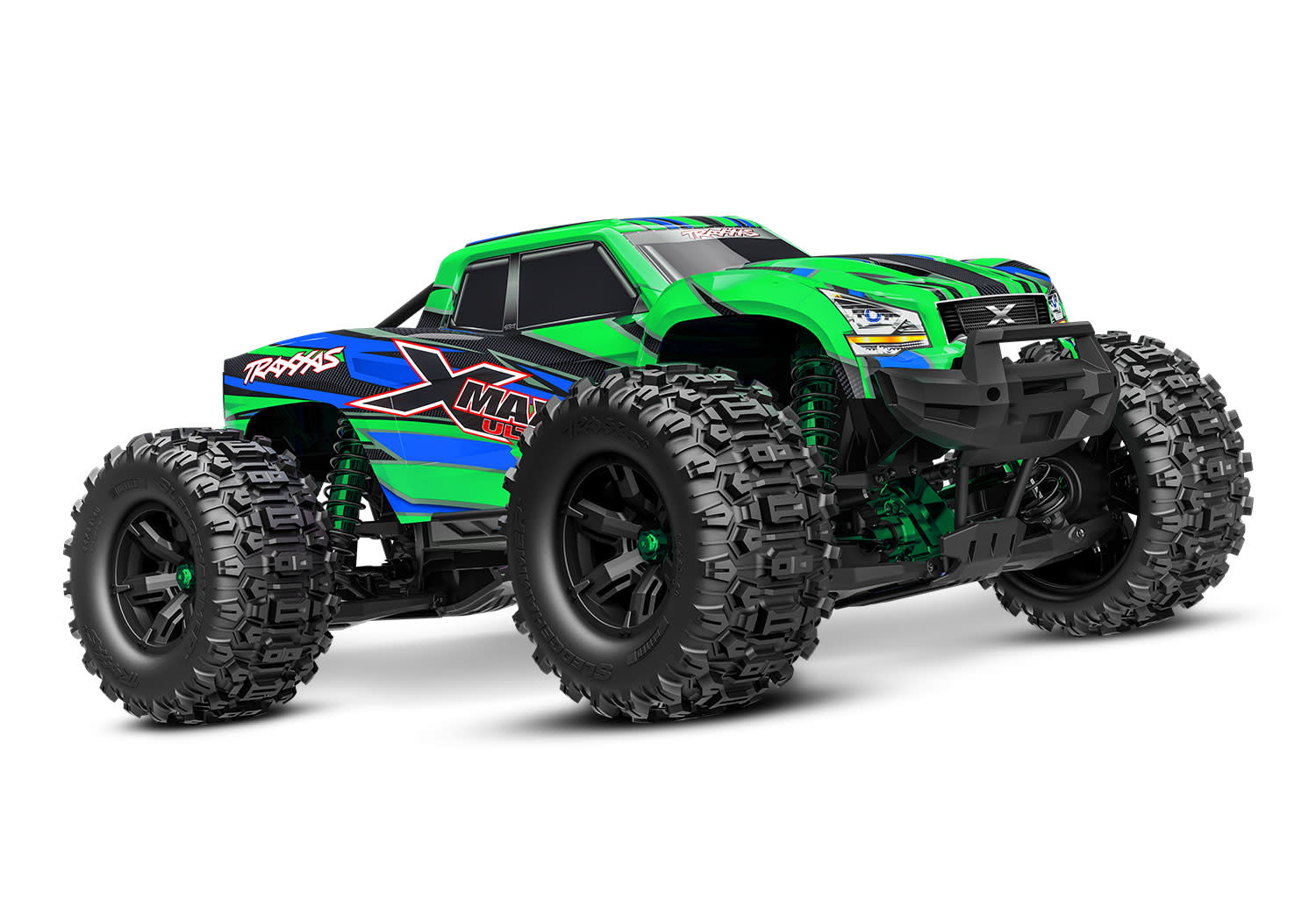

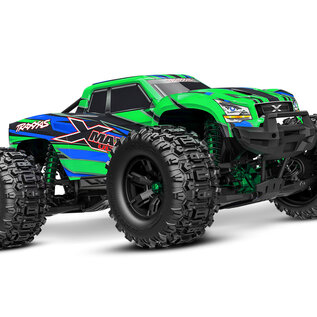

TRA77097-4 GRNX X-Maxx Ultimate
MODEL SPECS
| Model Name: |
X-Maxx Ultimate |
| Model Type: |
Monster Truck |
| Top Speed: |
50+ mph with two 4s LiPo batteries and optional speed gear (sold separately) |
| Skill Level: |
6 |
| Scale: |
X-Truck® |
| Weight: |
22.20 pounds (9.5 kg) |
| Length: |
30.67 inches (779 mm) |
| Width: |
21.3 inches (540 mm) |
| Track: |
21.3 inches (540 mm) |
| Height: |
13.99 inches (355 mm) |
| Wheelbase: |
18.92 inches (480 mm) |
| Center Ground Clearance: |
4.2 inches (107 mm) |
| Drivetrain: |
Shaft-driven 4WD |
| Transmission: |
Single speed |
| Differential Type: |
Sealed, hardened steel bevel, limited slip |
| Gear Ratio (Internal): |
8.11 (stock, out-of-box) |
| Gear Pitch: |
1.0 metric pitch (Mod 1) |
| Steering Servo: |
2085RL metal gear ultra-high-torque waterproof |
| Radio System: |
TQi™ 2.4 GHz 2-channel transmitter with wireless module |
| Battery Compartment Specs: |
197 mm X 52 mm X 44 mm |
MOTOR SPECS
| Motor Name: |
Velineon® 1200XL |
| Motor Type: |
1275 Kv sensorless brushless |
| Motor Weight: |
23.44 ounces (665 g) |
| Motor Length: |
4.32 inches (110 mm) |
| Motor Diameter: |
1.88 inches (48 mm) |
| Motor Shaft Size: |
5 mm |
| Motor Connector Type: |
6.5 mm bullet connectors |
ESC SPECS
| ESC Name: |
Velineon® VXL-8s™ |
| ESC Type: |
Brushless |
| ESC Case Size: |
2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| ESC Weight: |
7.60 ounces (215.5 g) |
| Motor Connectors: |
6.5 mm bullet connectors |
| Battery Connectors: |
Traxxas High-Current Connectors |
| ESC Power Wire: |
10 gauge Maxx® Cable |
