TRA77097-4 BLUEX X-Maxx Ultimate
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | TRA77097-4 BLUEX |
TRA77097-4 BLUEX X-Maxx Ultimate

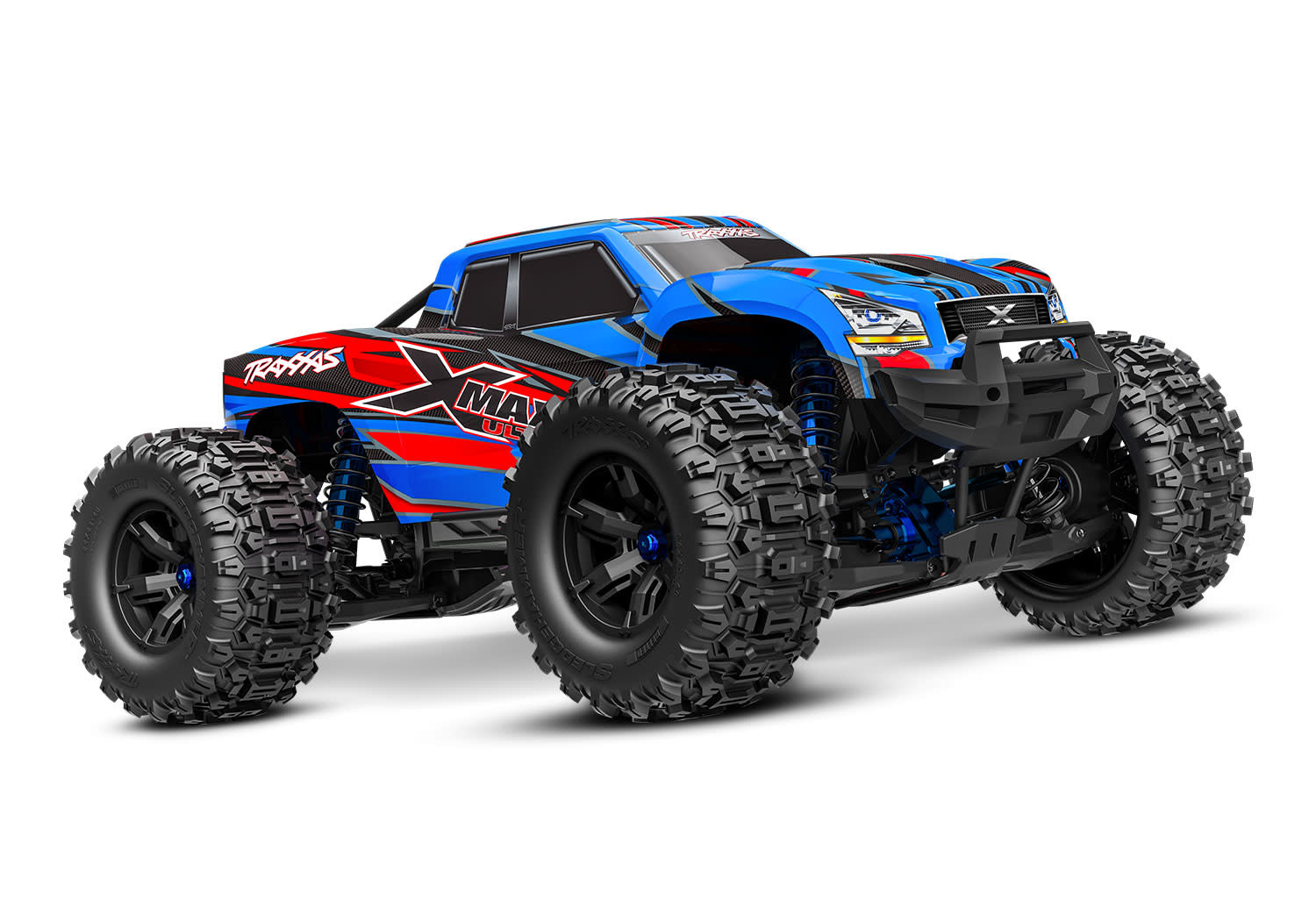

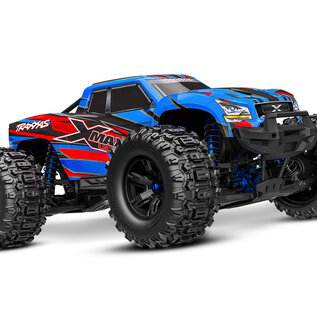

The Traxxas X-Maxx Ultimate 8S is a high-performance, Ready-to-Race® monster truck built to dominate any terrain. It features the powerful Velineon® 1200XL brushless motor paired with a VXL-8s waterproof electronic speed control (ESC), delivering speeds over 50+ MPH when equipped with optional gearing and two 4s LiPo batteries. The advanced ESC includes built-in cooling fans, machined heat sinks, and heavy-duty wiring, ensuring long-lasting performance. Traxxas Stability Management® (TSM) helps maintain control during high-speed runs, while the TQi™ 2.4GHz radio system with wireless connectivity and telemetry support offers precise handling and tuning versatility.

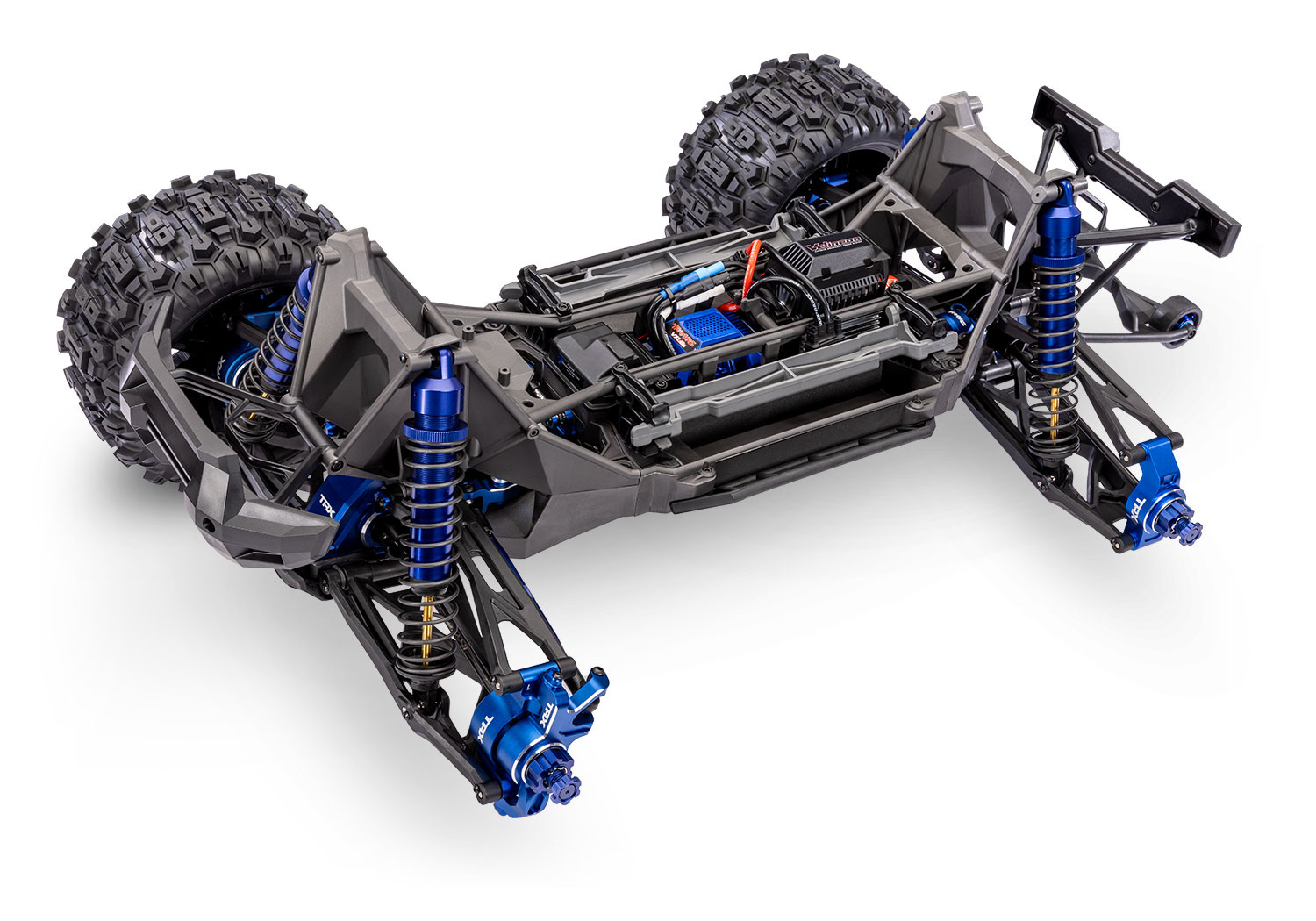

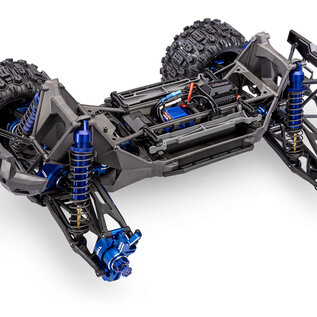

Constructed with 6061-T6 aluminum components, including C-hubs, steering blocks, motor mounts, and differential housings, the X-Maxx Ultimate is engineered for strength and durability. It's 8s capable drivetrain includes hardened steel gears, CV driveshafts, splined aluminum center driveshafts, and sealed differentials filled with silicone fluid for smooth power distribution. A Torque-Biasing Center Drive™ helps absorb shocks and maintain traction under extreme loads. The fixed motor mounting system ensures precise gear mesh without manual adjustment, while the composite chassis design interlocks for added rigidity and protection from dirt and debris.
With GTX™ aluminum shocks, double-shear suspension points, and 7075-T6 toe links, the X-Maxx Ultimate provides unmatched suspension travel and durability. Steel pins, sealed bearings, and a rugged steering system with a 2085RL high-torque metal gear servo deliver sharp handling and reliability. The innovative clipless body mount system enables quick, one-handed removal using a pivoting rear latch, eliminating the need for body clips while reinforcing structural strength. Integrated nerf bars and energy-absorbing bumpers add further protection for aggressive driving.
The X-Maxx Ultimate comes fully assembled and includes the TQi radio system, pre-installed telemetry sensors, a ProGraphix® clipless body, and maintenance tools. Buyers will need to supply two 4s LiPo batteries and a compatible charger, along with four AA batteries for the transmitter. Built to impress both in performance and design, the X-Maxx Ultimate is a top-tier choice for RC enthusiasts who want rugged durability, blazing speed, and superior control in one unstoppable package.
| Name: | X-Maxx Ultimate |
|---|---|
| Type: | Monster Truck |
| Top Speed: | 50+ mph with two 4S LiPo batteries and optional speed gear (sold separately) |
| Skill Level: | 6 |
| Scale: | X-Truck® |
| Weight: | 22.20 pounds (9.5 kg) |
| Length: | 30.67 inches (779 mm) |
| Width: | 21.3 inches (540 mm) |
| Track: | 21.3 inches (540 mm) |
| Height: | 13.99 inches (355 mm) |
| Name: | Velineon® 1200XL |
|---|---|
| Type: | 1275 Kv sensorless brushless |
| Weight: | 23.44 ounces (665 g) |
| Length: | 4.32 inches (110 mm) |
| Diameter: | 1.88 inches (48 mm) |
| Shaft Size: | 5 mm |
| Connector Type: | 6.5 mm bullet connectors |
| Name: | Velineon® VXL-8s™ |
|---|---|
| Type: | Brushless |
| Case Size: | 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| Weight: | 7.60 ounces (215.5 g) |
| Motor Connectors: | 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
| Power Wire: | 10 gauge Maxx® Cable |
