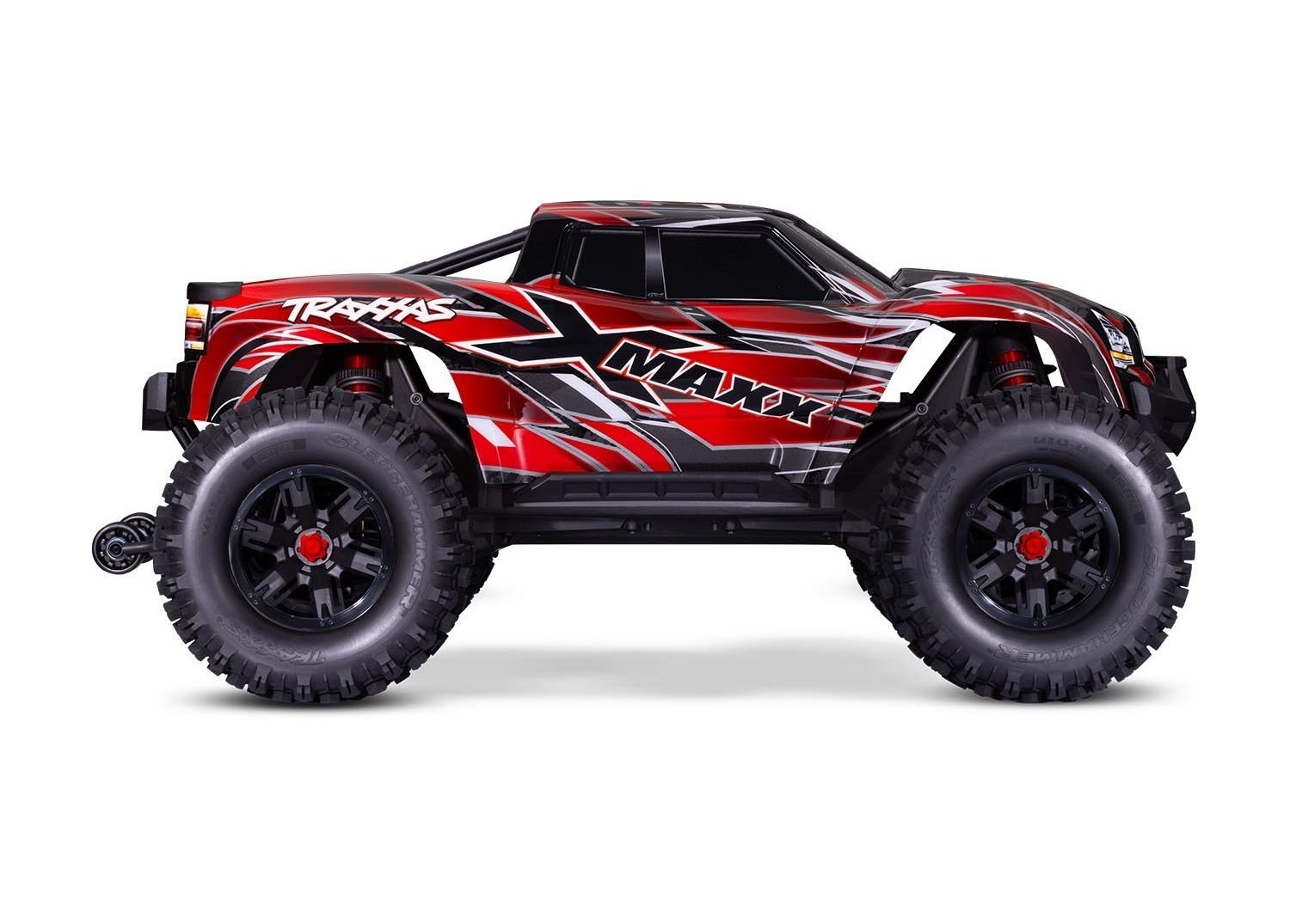

TRA77096-4 Red X-Maxx 8s Belted 4x4 8S Brushless Monster Truck (Traxxas)

Home / Tags / 48p / TRA77096-4 Red X-Maxx 8s Belted 4x4 8S Brushless Monster Truck

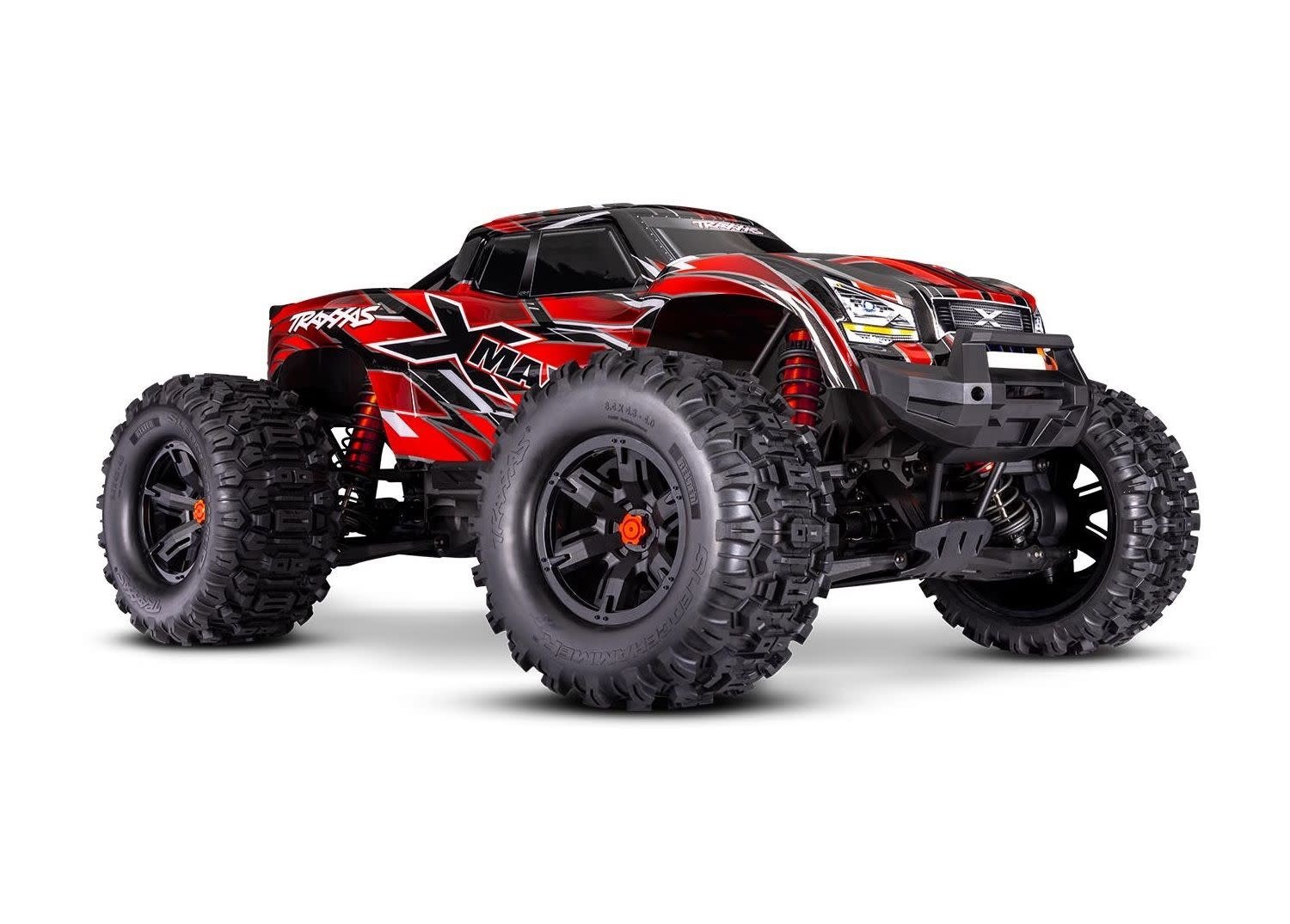

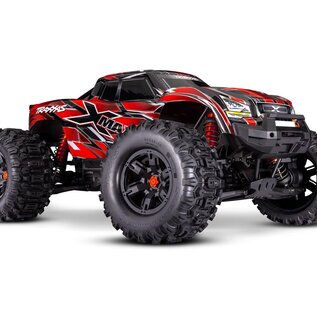

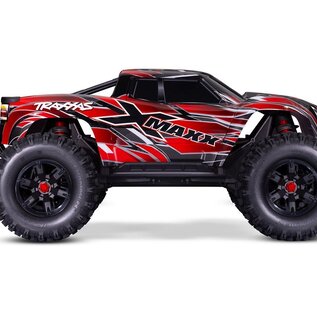

TRA77096-4 Red X-Maxx 8s Belted Truck 4x4 8S Brushless Powered, Extreme Size Monster Truck

IN STORE PICK-UP ONLY!!!

8s MONSTER TRUCK SUPREMACY

Now With Belted Sledgehammer Tires!

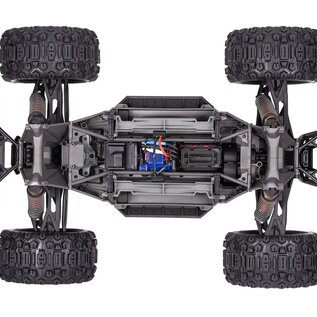

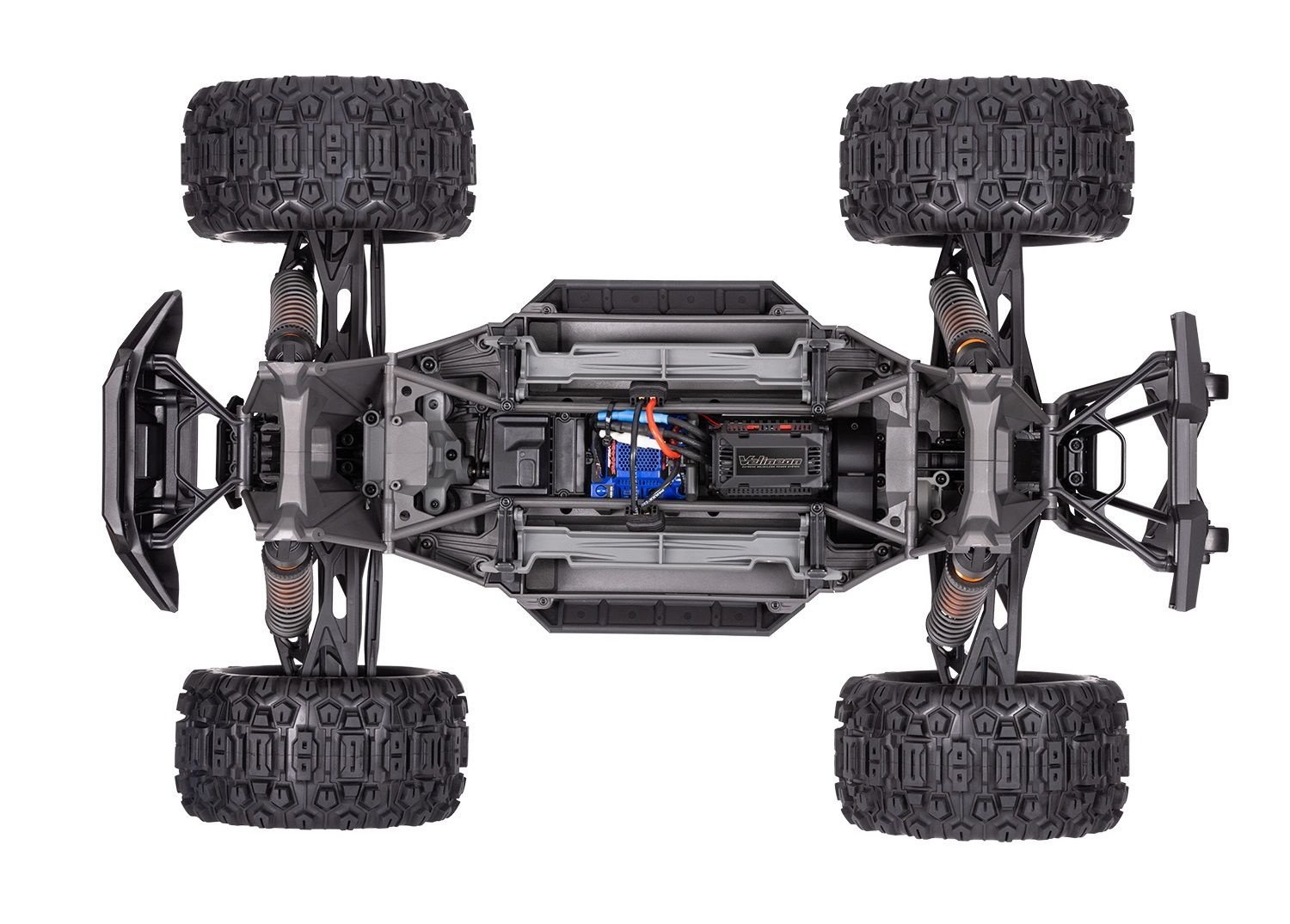

X-Maxx 8s Belted (77096-4) Chassis Top View

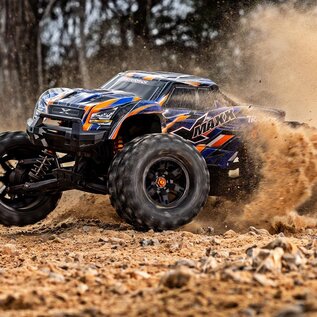

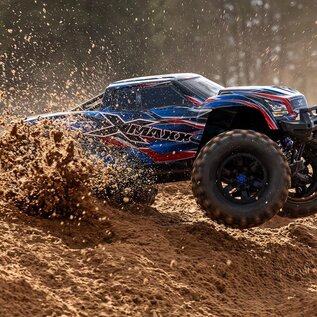

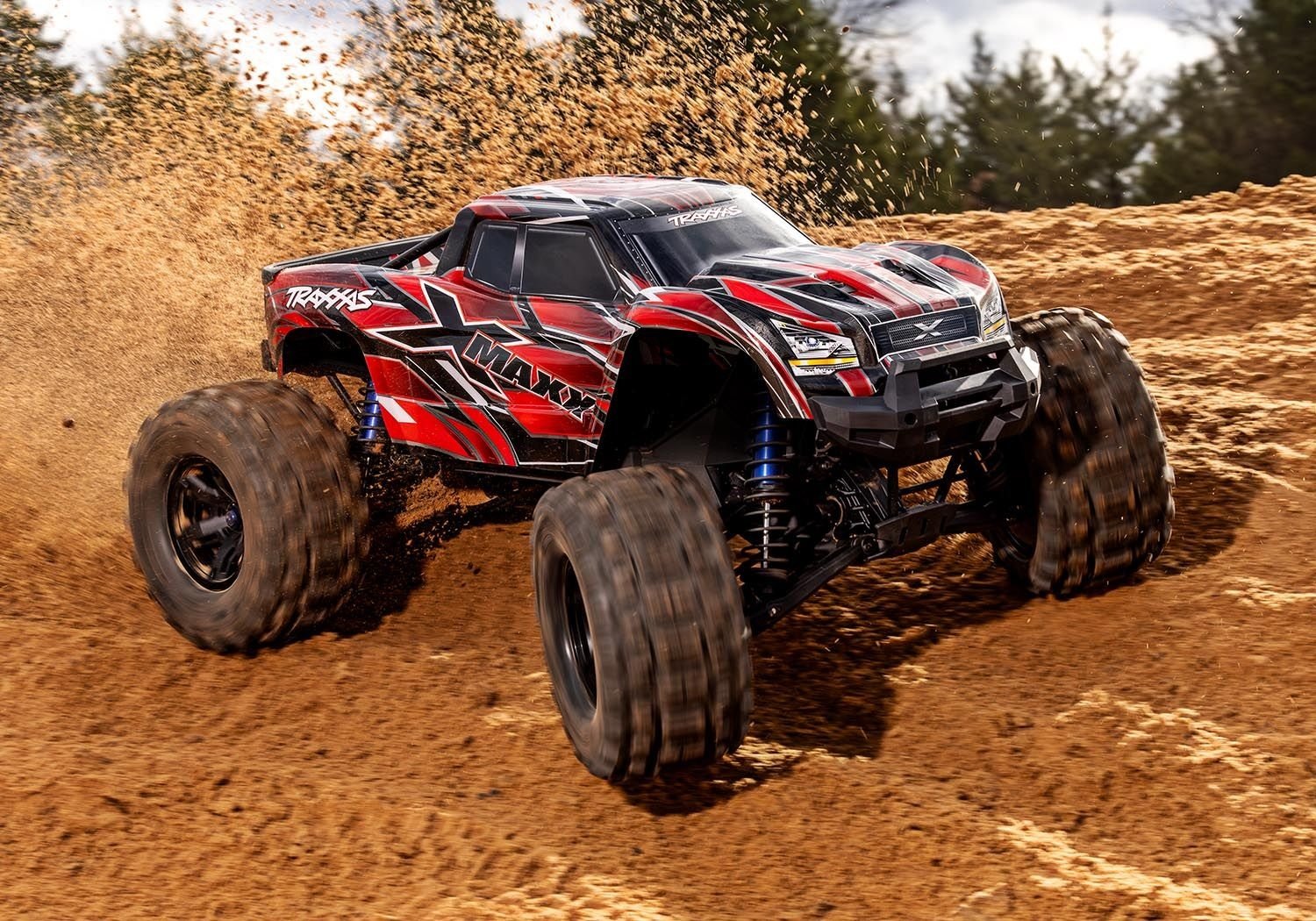

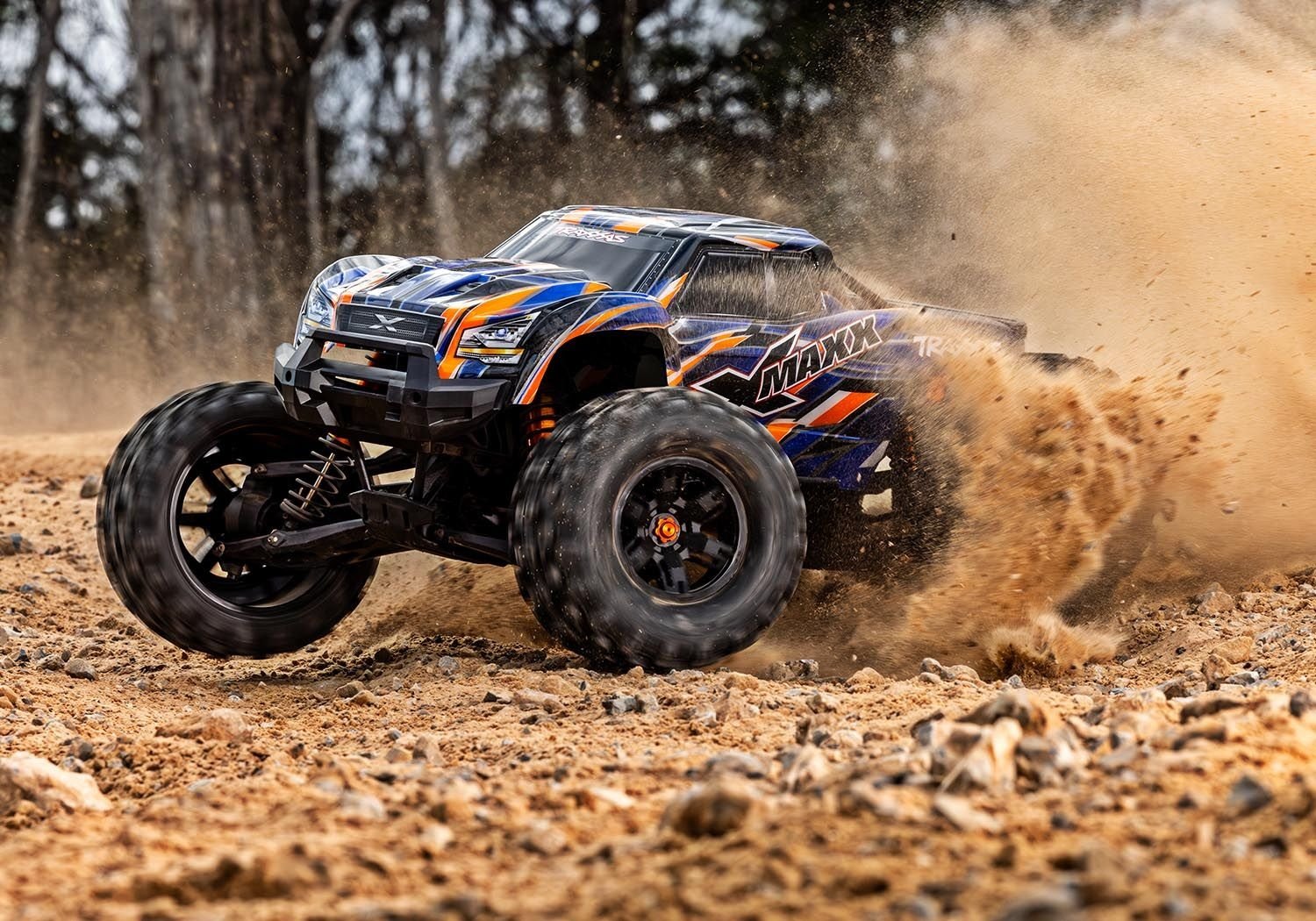

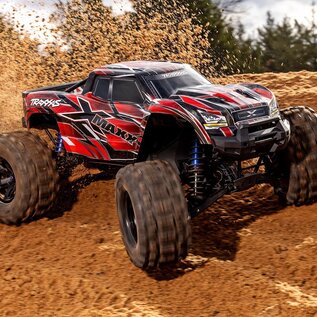

Unrelenting 4X4 power, mammoth size, and award-winning innovation make X-Maxx the ultimate monster truck. With 30+ volts of extreme 8s power, X-Maxx defies physics, unleashing jaw-dropping acceleration and 50+ mph speed. Belted Sledgehammer^® tires conquer the most extreme terrain while providing unrivaled high-speed stability. Built to take brutal punishment in stride, X-Maxx is the definition of Traxxas Tough^™.

~ Battery and Charger Sold Separately ~

Add the Battery/Charger Completer Pack (2997) for the Ultimate Combo.

See the complete lineup of Traxxas iD batteries and chargers available for this model.

MODEL 77096-4: Fully assembled and Ready-To-Race^® with TQi^™ 2.4 GHz radio system with Traxxas Stability Management, VXL-8s^™ Brushless Power System, belted Sledgehammer^® tires, and ProGraphix^® painted body.

* Requires two 4s LiPo batteries (2890X, sold separately) and included optional gears.

VXL-8s™ Waterproof Electronic Speed Control
- 8s LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
Velineon^® 1200XL Brushless Motor
- “Big Block” brushless motor
- 4-pole 1275 kV
- 5 mm output shaft
- Aluminum slip-on heat sink
- Dual motor cooling fans
50+ MPH with Two 4s LiPo Batteries and Included Optional Spur Gear
Traxxas Stability Management^® (TSM)
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
TQi™ 2.4 GHz High Output Radio System
- Traxxas Link™ enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- BEC Voltage and Motor Temperature Sensor installed
Clipless Body Mount System
- Quick one-hand installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips

Drivetrain
- Full-time shaft-driven 4-wheel drive
- All-metal gears and CVDs
- Overdrive gearing pre-installed
- Torque-Biasing Center Drive™ absorbs shocks and distributes power
- 24 mm splined wheel hexes
- Wheel hexes retained with a clip
- 17 mm hex on outside of wheel
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Splined outdrives attached with external thru-bolt method
- Heavy-duty Cush Drive™ with steel spur gear
- Fully machined aluminum stub axles
- Splined aluminum center driveshaft
Heavy-Duty Fixed Motor Mount
- Precision, preset gear mesh adjustments
- No manual gear mesh adjustments are required
- Motor retention separate from gear mesh

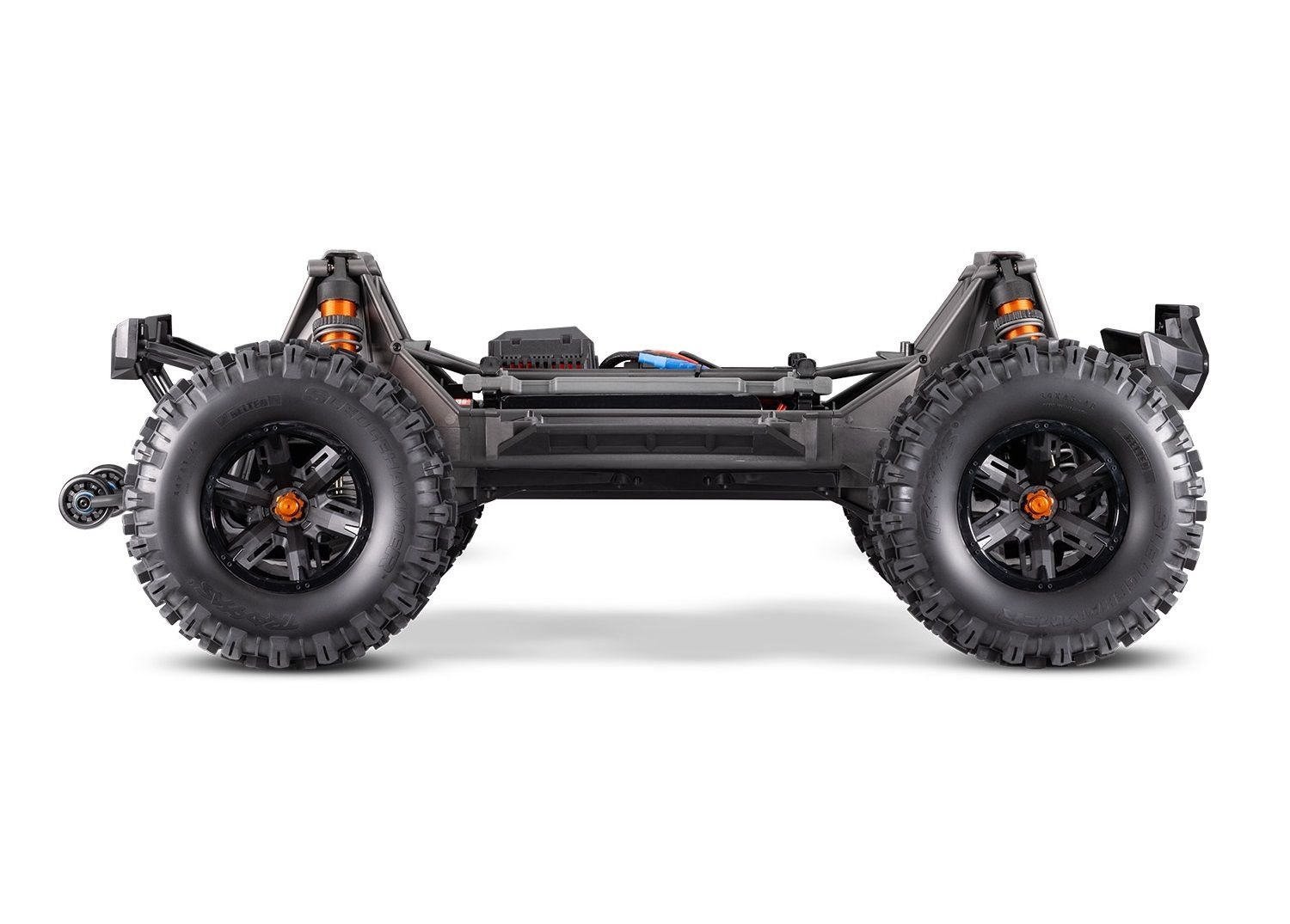

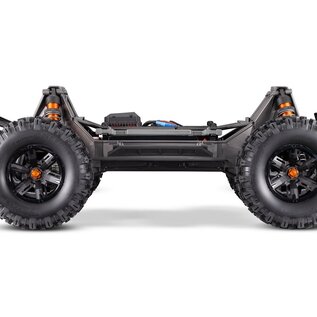

Heavy-Duty Modular Composite Chassis

Interlocking front and rear bulkheads
Motor mounts to rear bulkhead to eliminate gear crunching flex
Easy to service and access components
Driveline is sealed in the chassis to keep out dirt and grit

Clipless Battery Retention System
- No body clips or hook and loop straps
- Battery hold-downs pivot for easy access
- Adjustable for battery size
- More secure than conventional retention systems
- Integrated into chassis top brace for improved battery tray and chassis stiffness
Bumpers
- Front energy absorbing rubber impact bumper
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance

Heavy-Duty Steering Bell Cranks and Servo Saver
- High-output steering servo
- Wired directly into the RX box, no external wires seen on chassis
- New mounting system to fully support case
- Double-shear, bearing supported servo horn
Suspension
- Engineered to optimize suspension travel and steering angles
- All critical suspension points have double shear strength
- High strength steel suspension pins used throughout
- Suspension pins retainers won’t come loose or “back-out”
- 4 mm machined pivot balls
- C-hub and steering block geometry maximizes steering angle
- Adjustable roll center
- Fixed, high-strength camber and toe links
- Steel upper and lower tie bars
- Full contact sealed bearings used in exposed locations
Large-Scale GTX Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- 5.2 mm damper shaft
- Lower seal cartridge includes integrated wiper seal combination
- Adjustable upper spring retainer
- Plastic shock caps with pivot balls
- Fixed shock locations
- Lower spring perches bolted on
Wheels/Tires
- Massive 8.4″ Sledgehammer^® belted tires
  - Virtually eliminates ballooning at high speeds
  - Open tread block design
  - 2-piece foam insert
  - High-strength glue and bead design
- Large, dual-diameter wheels

VXL-8s™ Waterproof Electronic Speed Control
- 8s LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
Velineon^® 1200XL Brushless Motor
- “Big Block” brushless motor
- 4-pole 1275 kV
- 5 mm output shaft
- Aluminum slip-on heat sink
- Dual motor cooling fans
50+ MPH with Two 4s LiPo Batteries and Included Optional Spur Gear
