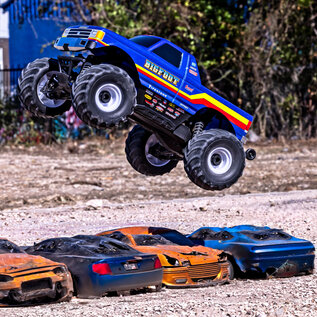

TRA67134-4 BIGFOOT 1/10 4X4 BL-2s RTR (Traxxas)

TRA67134-4 BIGFOOT 1/10 4X4 BL-2s RTR

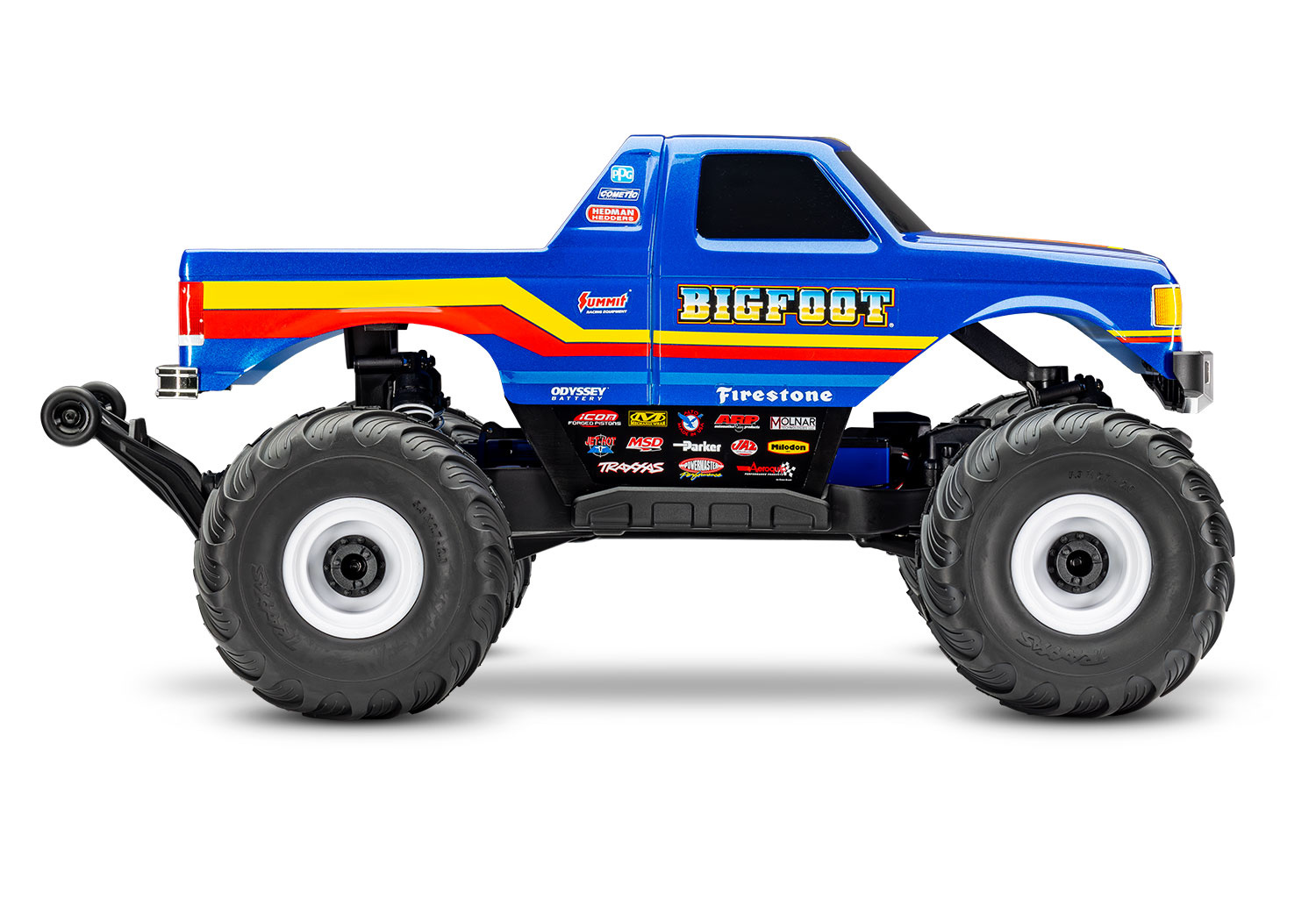

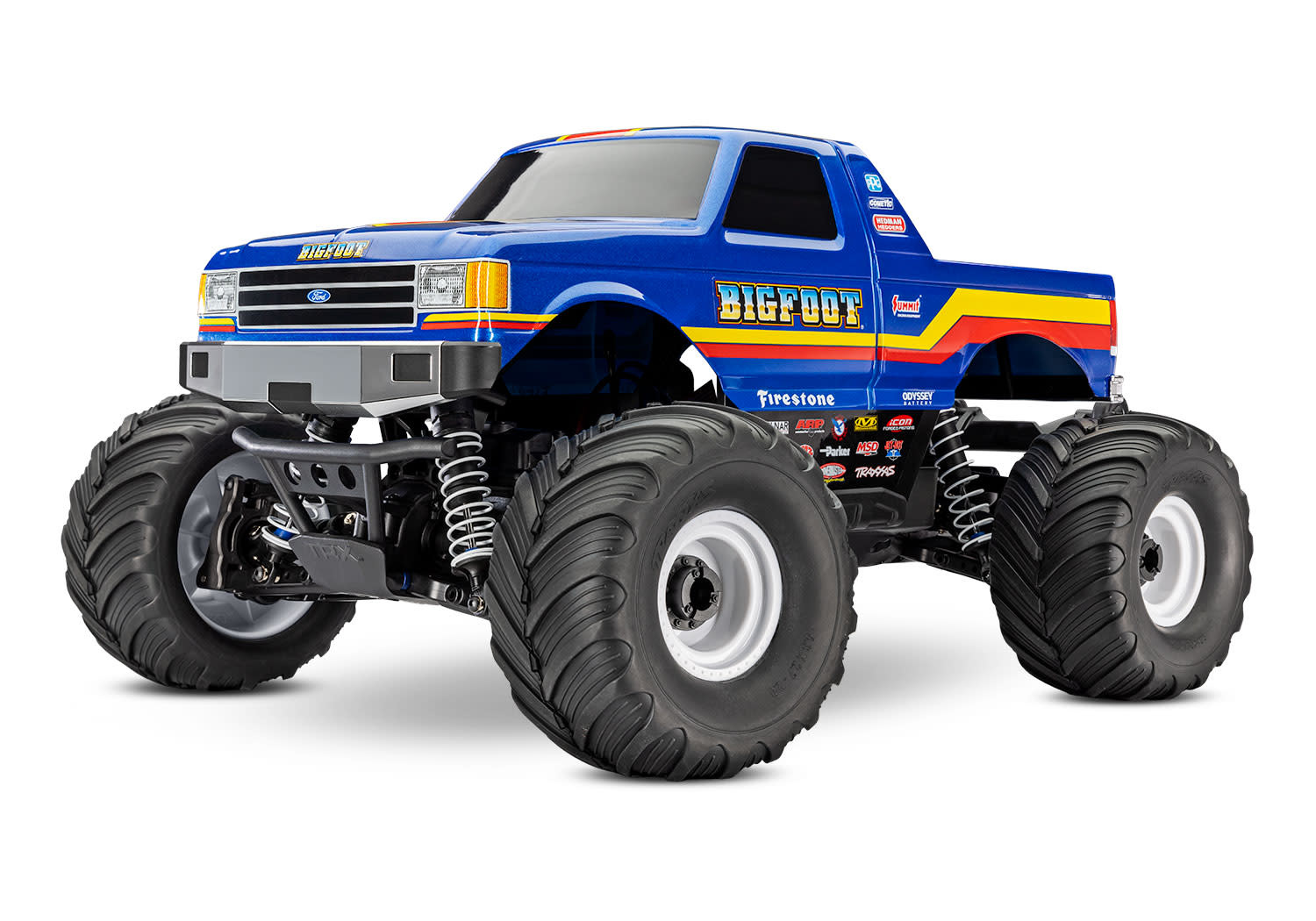

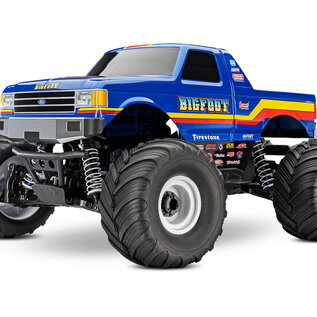

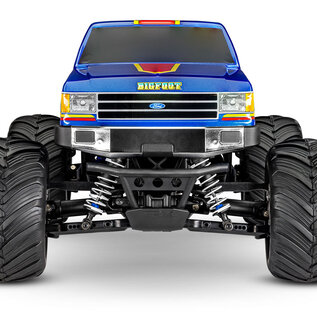

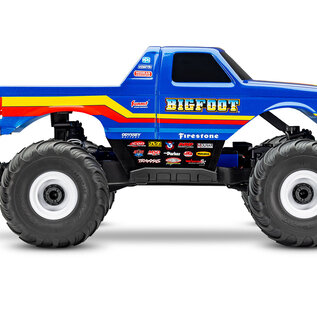

MODEL 67134-4: BIGFOOT^® 4X4: 1/10 scale 4X4 brushless monster truck, fully-assembled, waterproof electronics, Ready-To-Race^®, with TQ™ 2.4 GHz 2-channel radio system, BL-2s™ brushless power system, and clipless BIGFOOT No. 8 replica body. Requires: battery and charger.

What’s In The Box:

• BIGFOOT 4X4 with BL-2s ESC and 3300 Kv motor
• Quick Start Guide
• TQ 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries

  BIGFOOT 4X4 requires a single 7.2 or 8.4-volt NiMH or 7.4-volt LiPo battery

• Charger

  Traxxas EZ-Peak^® charger (2970) is recommended for easy and fast charging performance

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter

FEATURES:

• Licensed BIGFOOT No. 8 Clipless Body
• Brilliant blue metallic officially licensed Ford^® F-150^® body
• Chrome front and rear bumpers
• Holds tight for intense action
• Quick and easy removal
• BL-2s™ Waterproof Electronic Speed Control
• Heat sink accepts accessory cooling fan (3340)
• Three Programmable Drive Profiles
• Sport Mode - Forward / Brake / Reverse
• Race Mode - Forward / Brake
• Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set^® one-button setup
• Built-in two-stage low-voltage detection for LiPo batteries
• NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
• LiPo battery packs: 2 cells (7.4 volts)

• 3300 Kv Brushless Motor
• Integrated cooling fan
• Low-maintenance design
• Efficient ball bearings
• 3300 Kv
• TQ™ 2.4 GHz Transmitter
• Full-size 2-channel transmitter
• All-day comfort with precise long-range control
• Extreme Heavy-Duty Upgrade Kit Installed
• Strengthened C-hubs, axle carriers, and steering blocks
• Maxx-duty driveshafts
• Oversize diameter
• 6 mm axles
• Steel wheel hexes

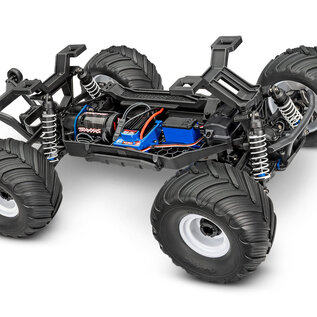

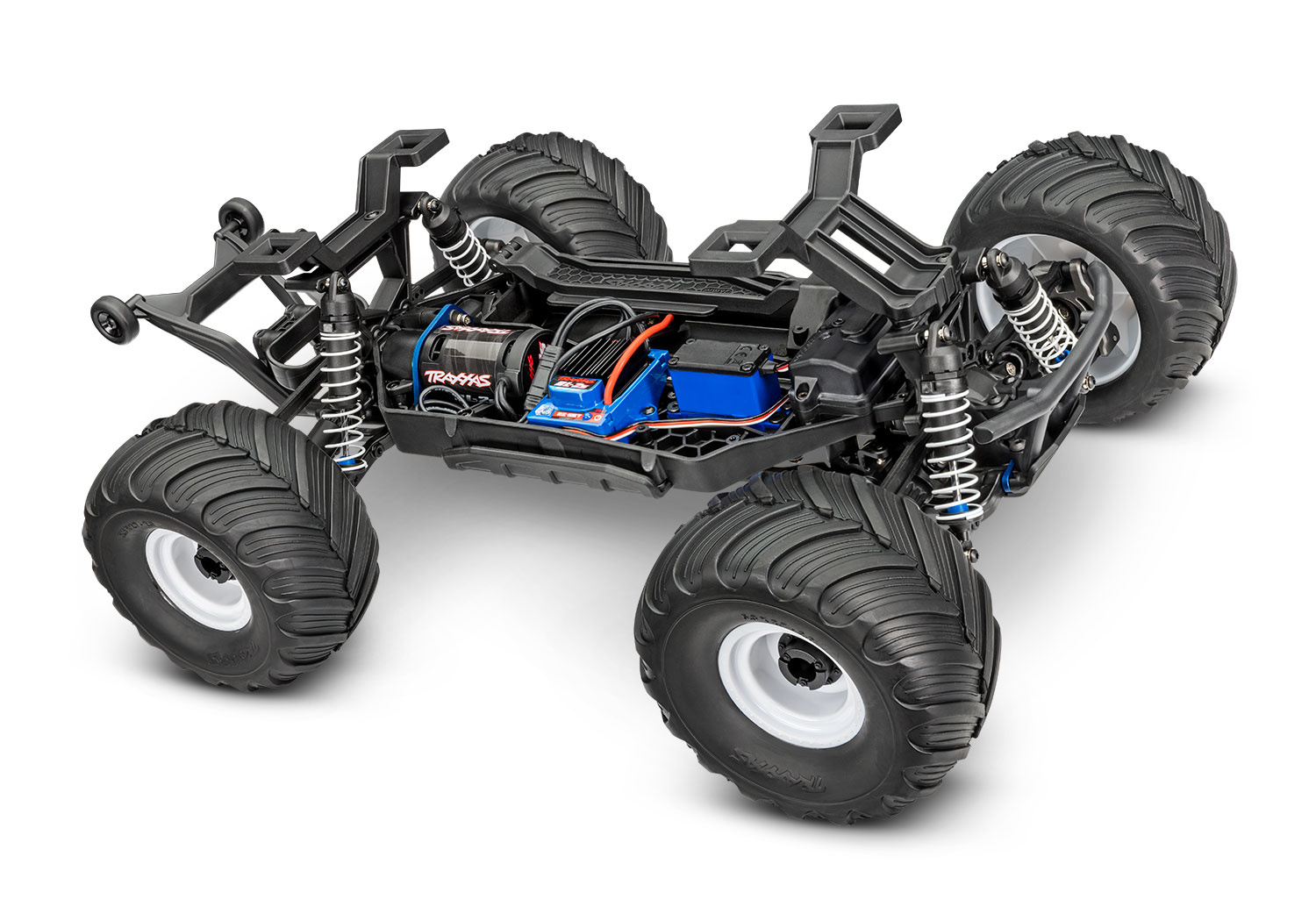

• Chassis
• Modular composite tub design
• Secure battery hold-down latch
• High angle bumpers
• 4-position adjustable wheelie bar

• Suspension
• HD-composite suspension arms
• Oil-filled Ultra Shocks
• White powder-coated springs
• Steering
• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver
• Driveline
• Full-time shaft-driven four-wheel drive
• Sealed steel gear front and rear differentials
• Large 32-pitch steel spur gear
• Wheels and Tires
• Dual-profile white monster truck wheels
• Replica military-style axle hubs
• Pre-glued high profile Terra Groove shaved monster truck tires with foam inserts
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

MOTOR SPECS

Motor Name:	BL-2s 3300 kV
Motor Type:	Sensorless brushless
Motor Weight:	7.51 ounces (213 g)
Motor Length:	3.15 inches (80 mm)
Motor Diameter:	1.42 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Traxxas Quick Connect Motor Plug



ESC SPECS

ESC Name:	BL-2s Electronic Speed Control
ESC Type:	Brushless
ESC Case Size:	1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
ESC Weight:	3.07 ounces (87 g)
Motor Connectors:	Traxxas Quick Connect Motor Plug
Battery Connectors:	Traxxas High-Current Connector
