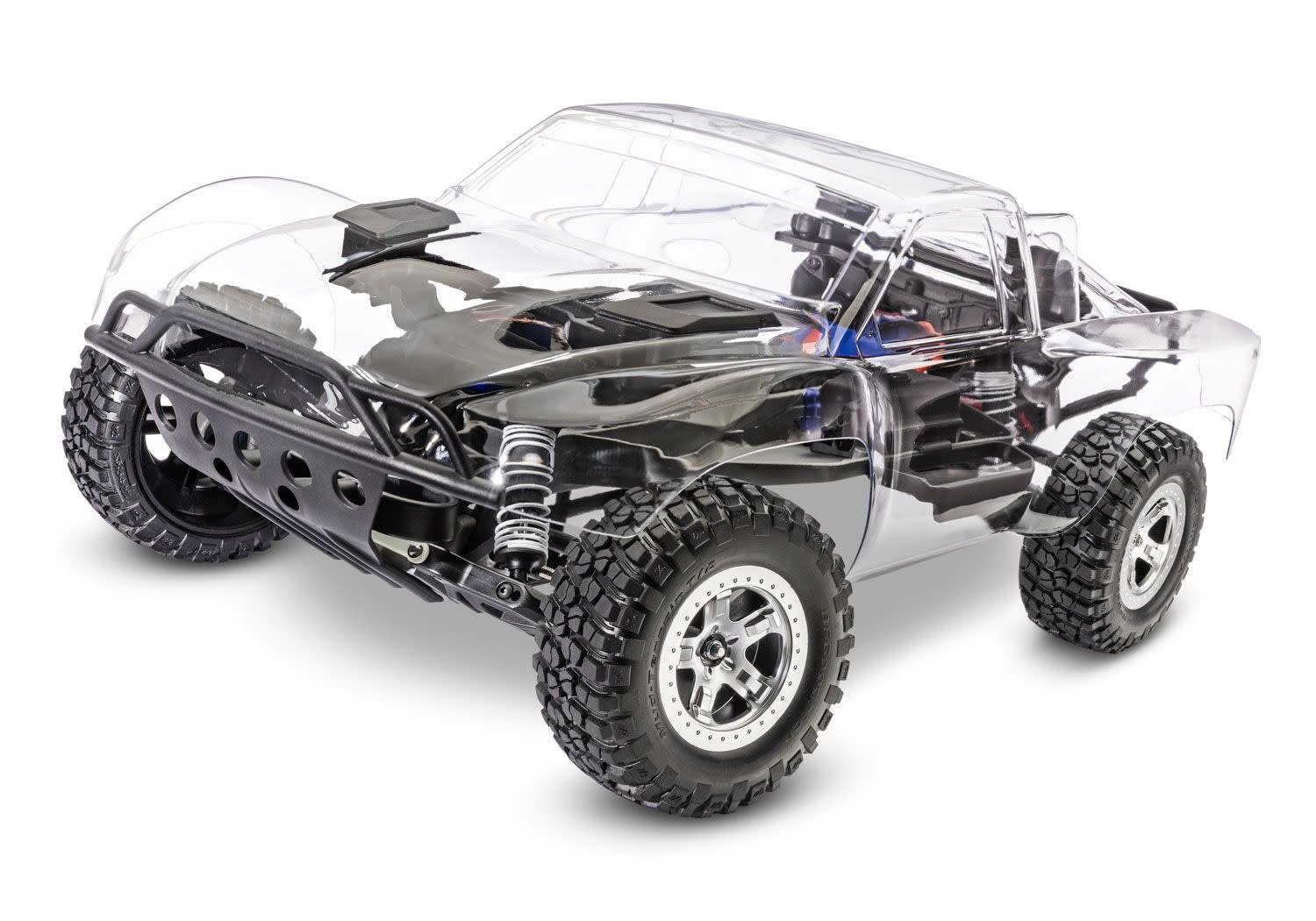

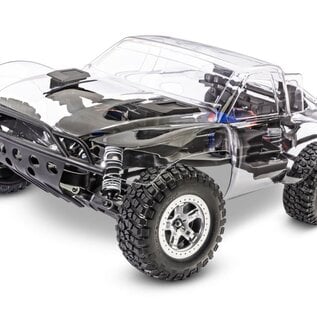

TRA58214-4 Slash 2WD Unassembled Kit
- Clear Clipless Short Course Body
- Includes window masking, decals, and custom masking decals
- Tough front and rear tube-style bumpers
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips
- Waterproof XL-5™ Electronic Speed Control
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
- Titan® 550 Motor
- Powerful Titan 12T 550 modified motor with internal cooling fan
- Oversized armature for big torque and increased power handling
- Virtually maintenance-free operation
- Molded wire retainer keeps motor wires secure
- Extreme Heavy Duty Parts Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- HD suspension arms
- Extreme heavy duty driveshafts
- Extra material for improved strength
- TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- O-ring sealed watertight receiver box keeps the receiver dry
- Easy Access Battery Compartment
- Adjustable battery hold down
- Accepts 6- and 7-cell flat packs and 7-cell hump packs
- Accepts many 2S LiPo battery configurations
- Transmission and Driveline
- Velineon®-ready Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access
- Heavy-duty telescoping U-joint driveshafts and yokes
- Tough Fiber-Composite Monocoque Chassis
- Long 13.2″ wheelbase for increased stability
- Over 3.5″ ground clearance
- Steering
- Digital High-torque waterproof Traxxas 2075 steering servo
- High-performance bellcrank system minimizes bump steer
- Suspension
- Adjustable steel turnbuckles
- Captured rod ends won't pop off
- Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- Race-tuned progressive rate white powder-coated springs
- Wheels and Tires
- Pre-glued BFGoodrich® Mud Terrain™ T/A® tires with performance foam inserts
- 2″ outer diameter, 3″ inner diameter dual-profile SCT wheels
- Includes Full-Color Step-By-Step Assembly Manual
- Rubber-Sealed Ball Bearings
- Precision Hex Hardware
- Battery and Charger Sold Separately
MODEL SPECS
| Name: |
Slash 2WD XL-5 HD Kit |
| Type: |
Short Course Truck |
| Speed: |
30+ mph with 7-cell NiMH battery |
| Skill Level: |
1 |
| Scale: |
1/10 |
| Weight: |
4.81 pounds (2.18 kg) |
| Length: |
22.8 inches (578 mm) |
| Width: |
11.65 inches (296 mm) |
| Front Track: |
11.65 inches (296 mm) |
| Rear Track: |
11.65 inches (296 mm) |
| Height: |
7.60 inches (193 mm) |
| Wheelbase: |
13.2 inches (335 mm) |
| Center Ground Clearance: |
3.5 inches (89 mm) |
| Driveline: |
2WD |
| Transmission: |
Magnum 272™ |
| Differential Type: |
Planetary steel gear |
| Gear Ratio (Internal): |
2.72 (final drive: 9.05) |
| Gear Pitch: |
48 pitch |
| Steering Servo: |
2075 digital high-torque waterproof |
| Radio System: |
2.4 GHz 2-channel radio |
| Battery Compartment Specs: |
165 mm X 49.5 mm X 23 mm, 25 mm |
MOTOR SPECS
| Name: |
Titan® 12T 550 |
| Type: |
High-speed brushed motor |
| Weight: |
8.47 ounces (240 g) |
| Length: |
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: |
1.41 inches (36 mm) |
| Shaft Size: |
3 mm |
| Connector Type: |
Bullet |
