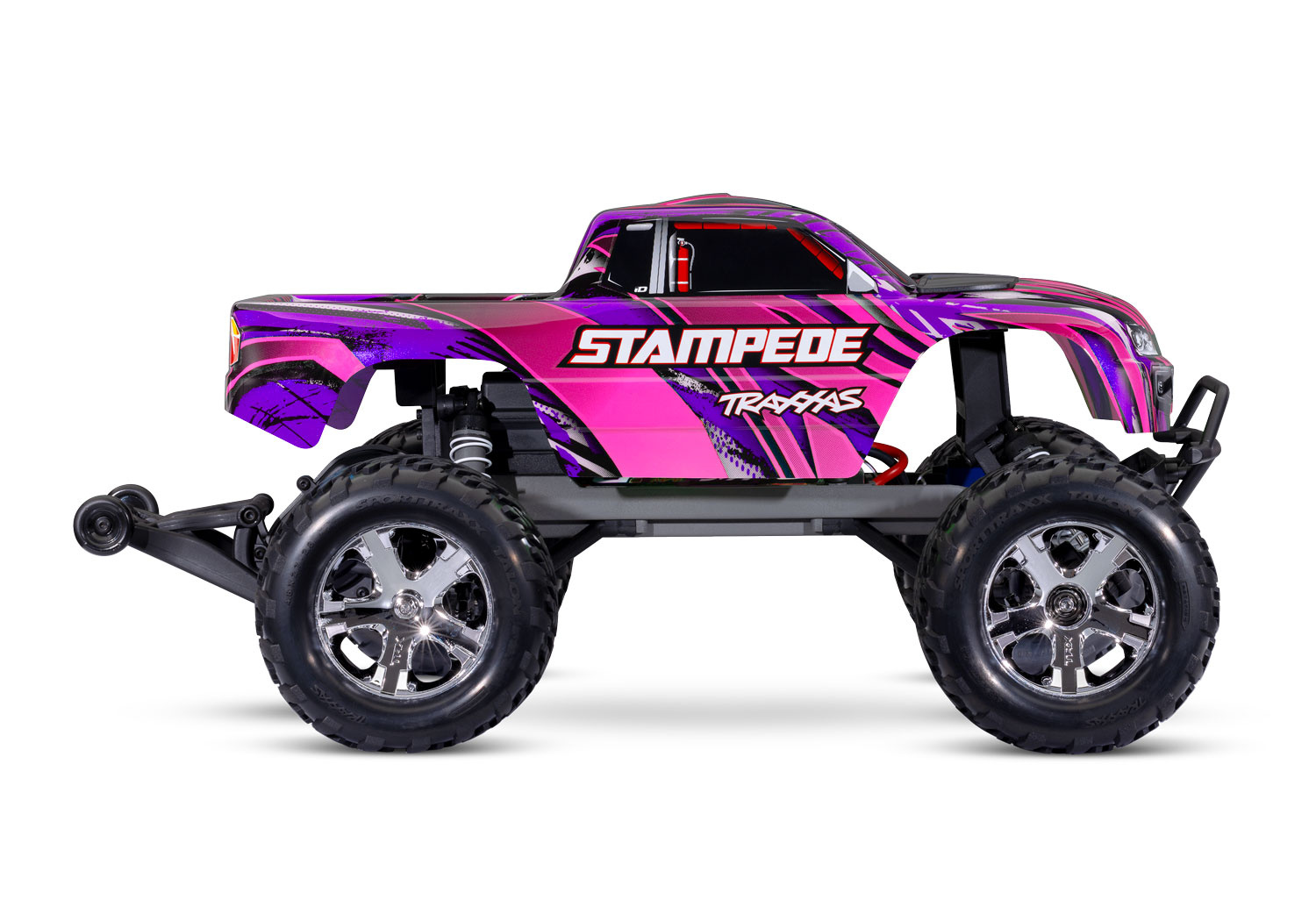

Rock-Crushing Torque—Brutally Tough!

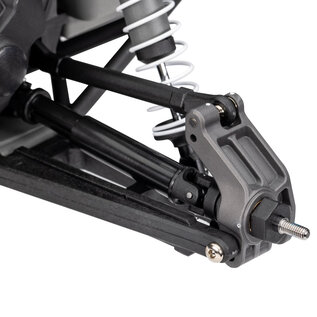

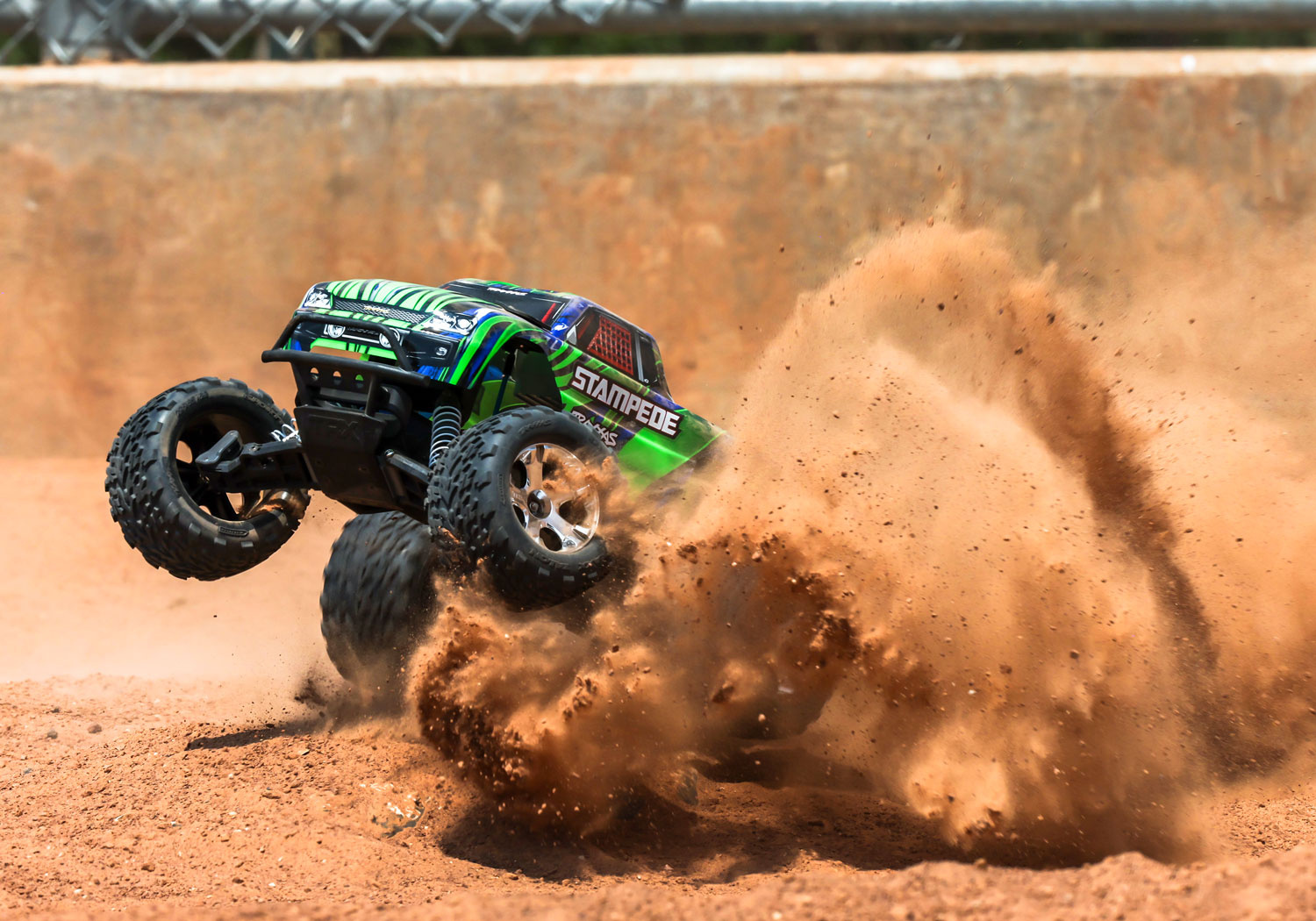

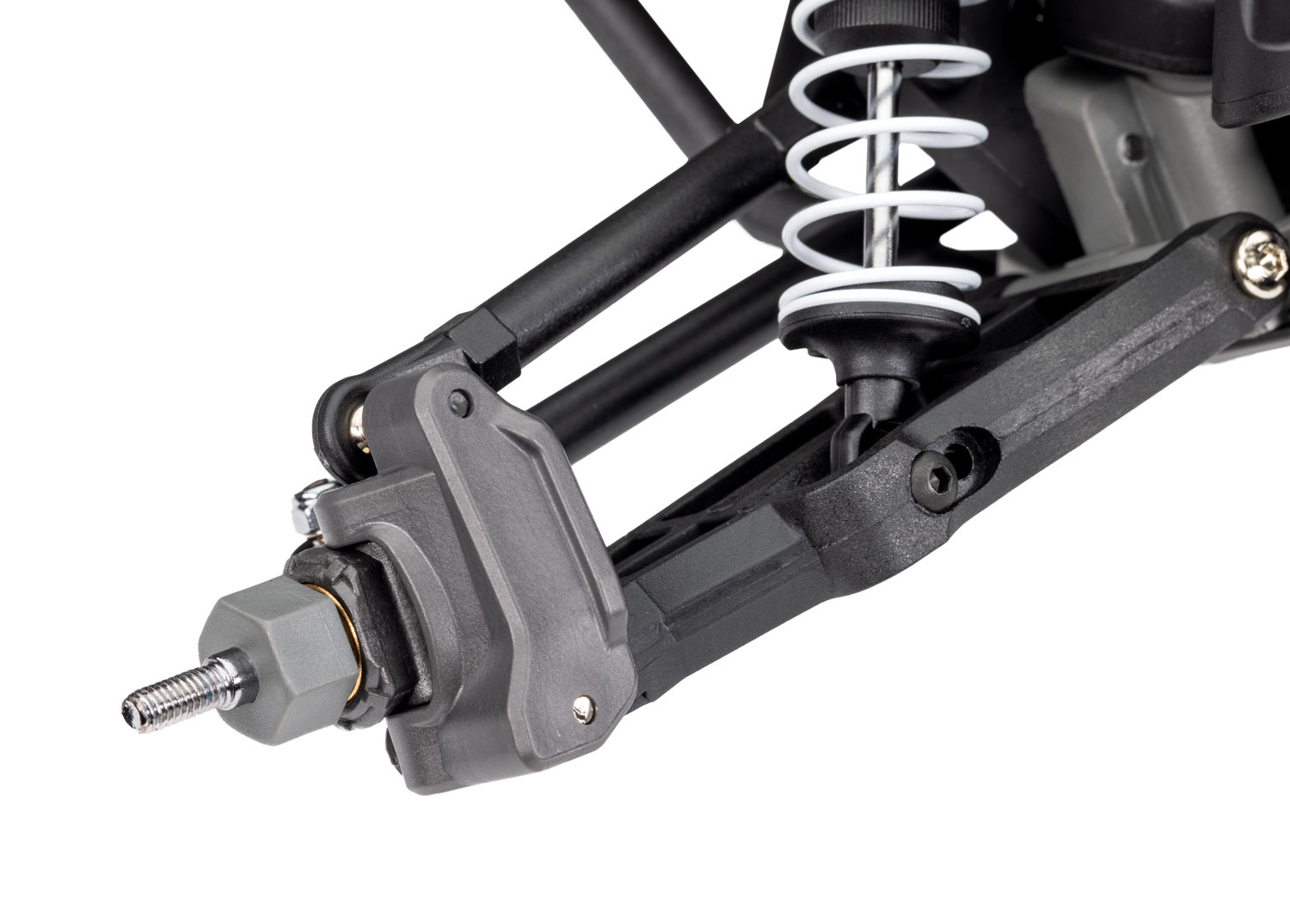

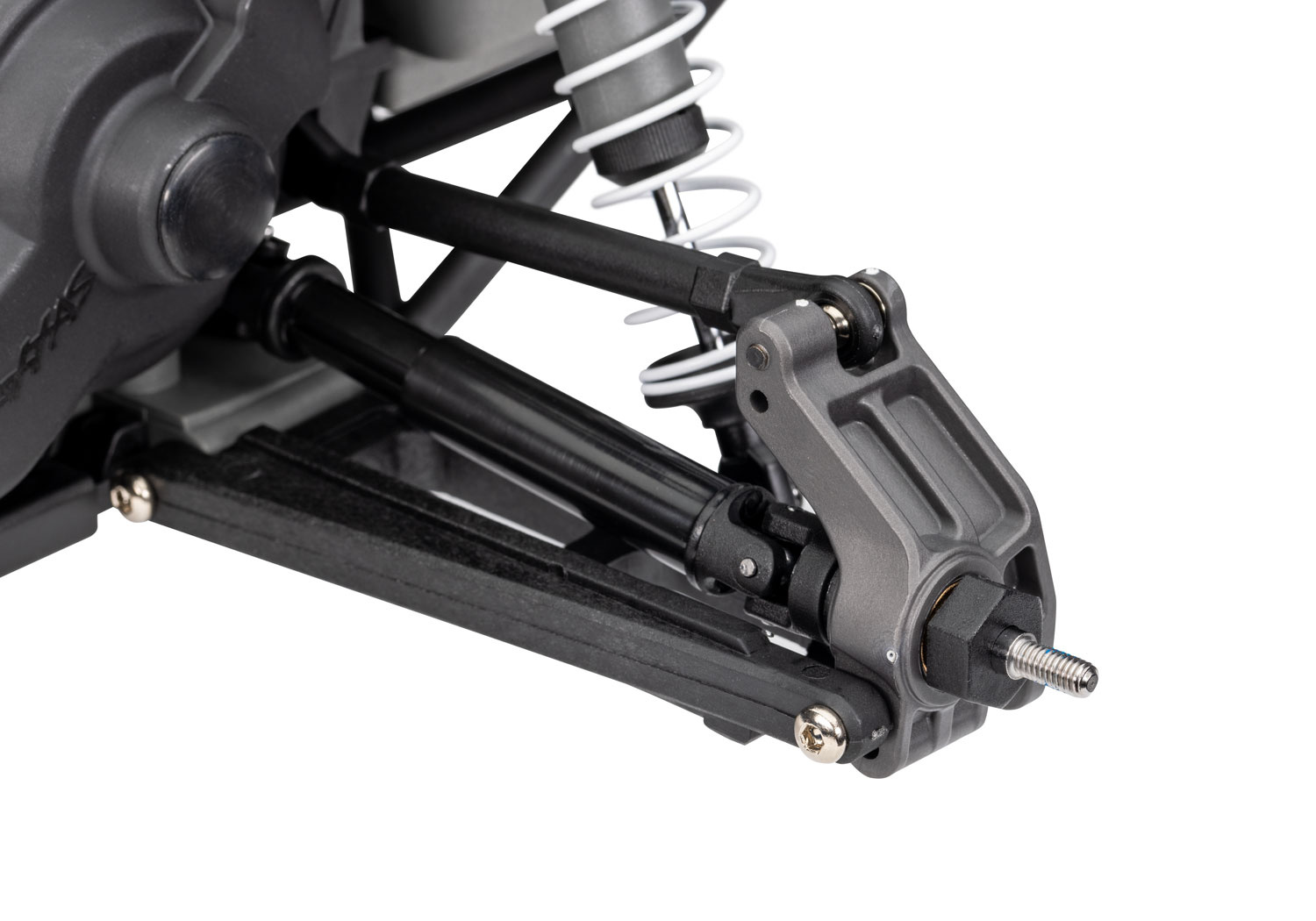

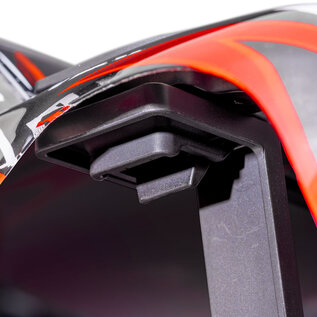

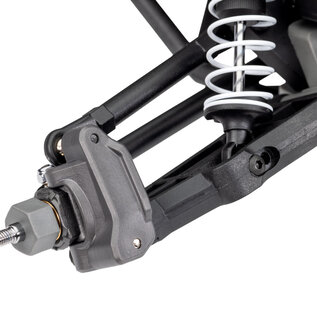

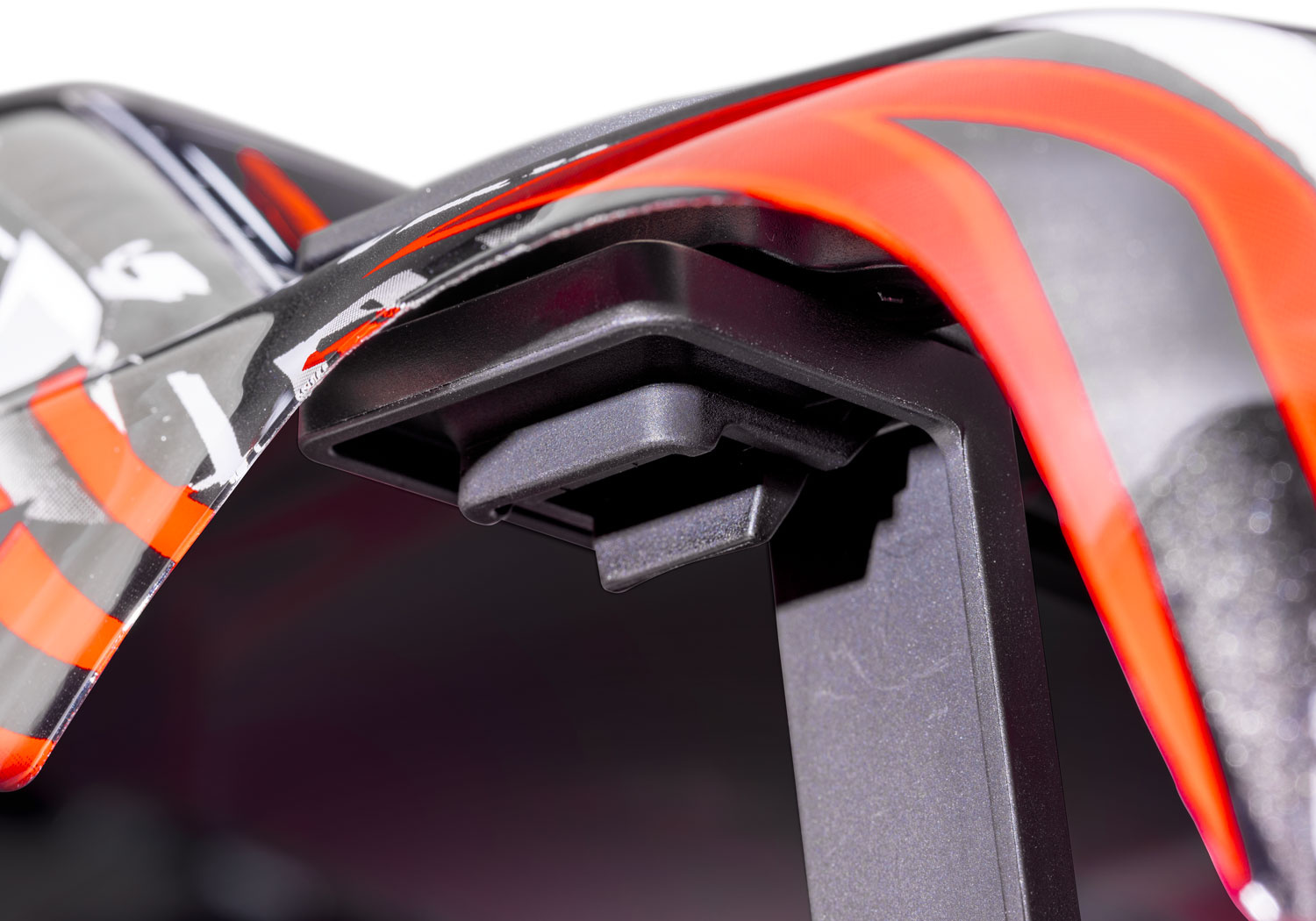

The Stampede^® name has always been synonymous with off-road fun. New factory-installed Extreme Heavy Duty suspension components make Stampede tougher than ever, and a new clipless body maximizes convenience. With a top speed of 30+ mph and drive-over-anything ground clearance, Stampede rips through grass and powers over curbs. Pour on the throttle and Stampede raises the front wheels skyward for dirt-roosting wheelies and high-power jumps. Fully waterproof electronics give Stampede an all-access pass to make even the wildest all-weather adventures possible.

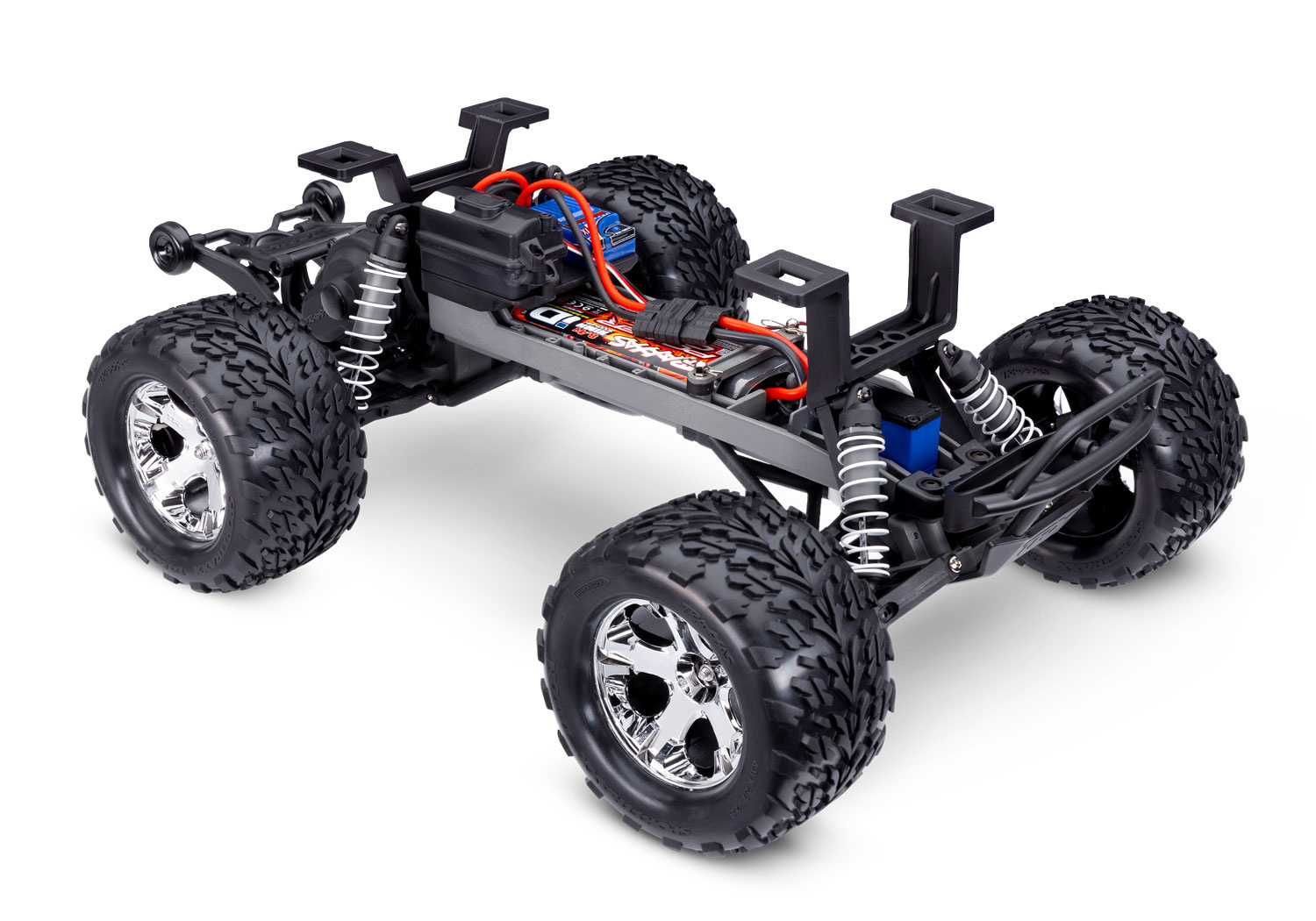

MODEL SPECS



Name:	Stampede 2WD HD w/USB-C		Wheelbase:	10.63 inches (270 mm)
Type:	Monster Truck		Center Ground Clearance:	4 inches (102 mm)

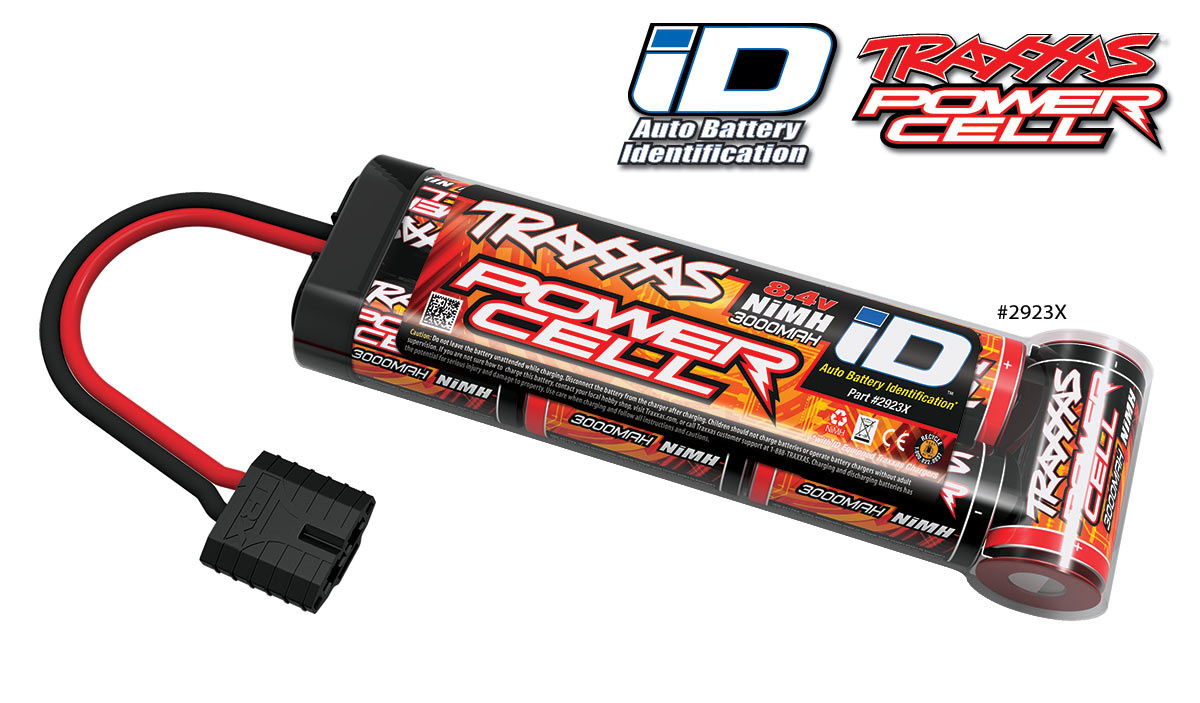

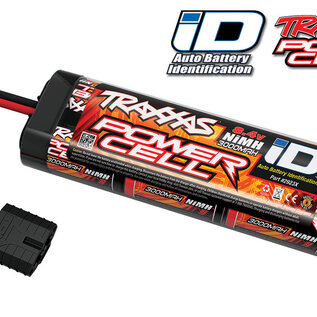

Speed:	30+ mph with 7-cell battery		Driveline:	2WD
Skill Level:	1		Transmission:	Magnum 272™
Scale:	1/10		Differential Type:	Planetary steel gear
Weight:	4.08 pounds (1.85 kg)		Gear Ratio (Internal):	2.72 (final drive: 12.34)
Length:	16.25 inches (413 mm)		Gear Pitch:	48 pitch
Width:	12.75 inches (324 mm)		Steering Servo:	2056 high-torque waterproof
Front Track:	12.75 inches (324 mm)		Radio System:	TQ™ 2.4 GHz 2-channel radio
Rear Track:	12.75 inches (324 mm)		Battery Compartment Specs:	164 mm X 46 mm X 26 mm
Height:	9.5 inches (241 mm)



MOTOR SPECS

Name:	Titan 12T 550
Type:	High-speed brushed motor
Weight:	8.47 ounces (240 g)
Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Diameter:	1.41 inches (36 mm)
Shaft Size:	3 mm
Connector:	Bullet



ESC SPECS





Name:	Waterproof XL-5™ ESC with low-voltage detection
Type:	Brushed
Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
Weight:	2.44 ounces (69 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High-Current Connector
Power Wire:	14 gauge
