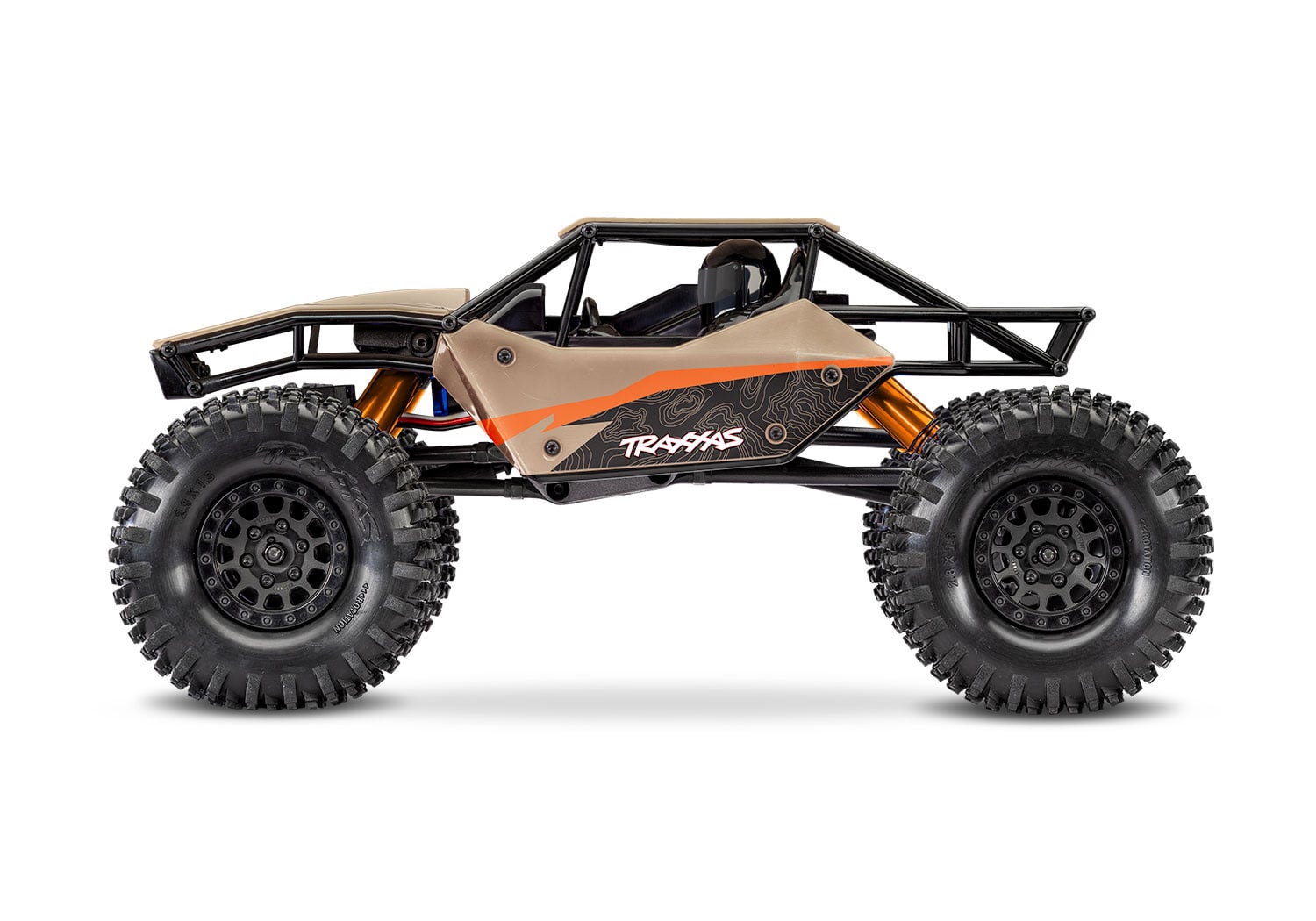

TRA120074-1-TAN Traxxas 1:18 TXC-4M Extreme Crawler (TAN) (Traxxas)

TRA120074-1-TAN Traxxas 1:18 TXC-4M Extreme Crawler (TAN)

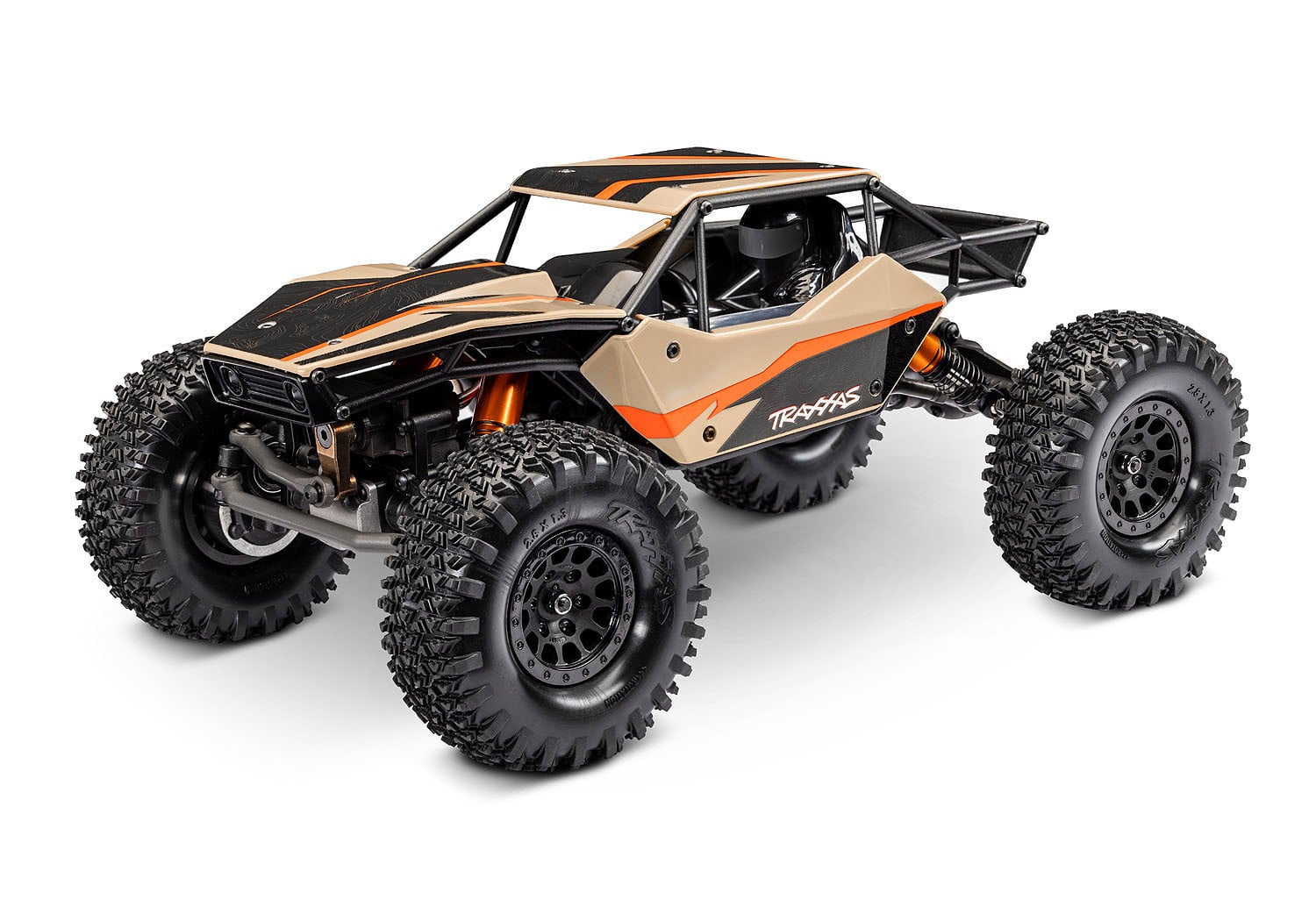

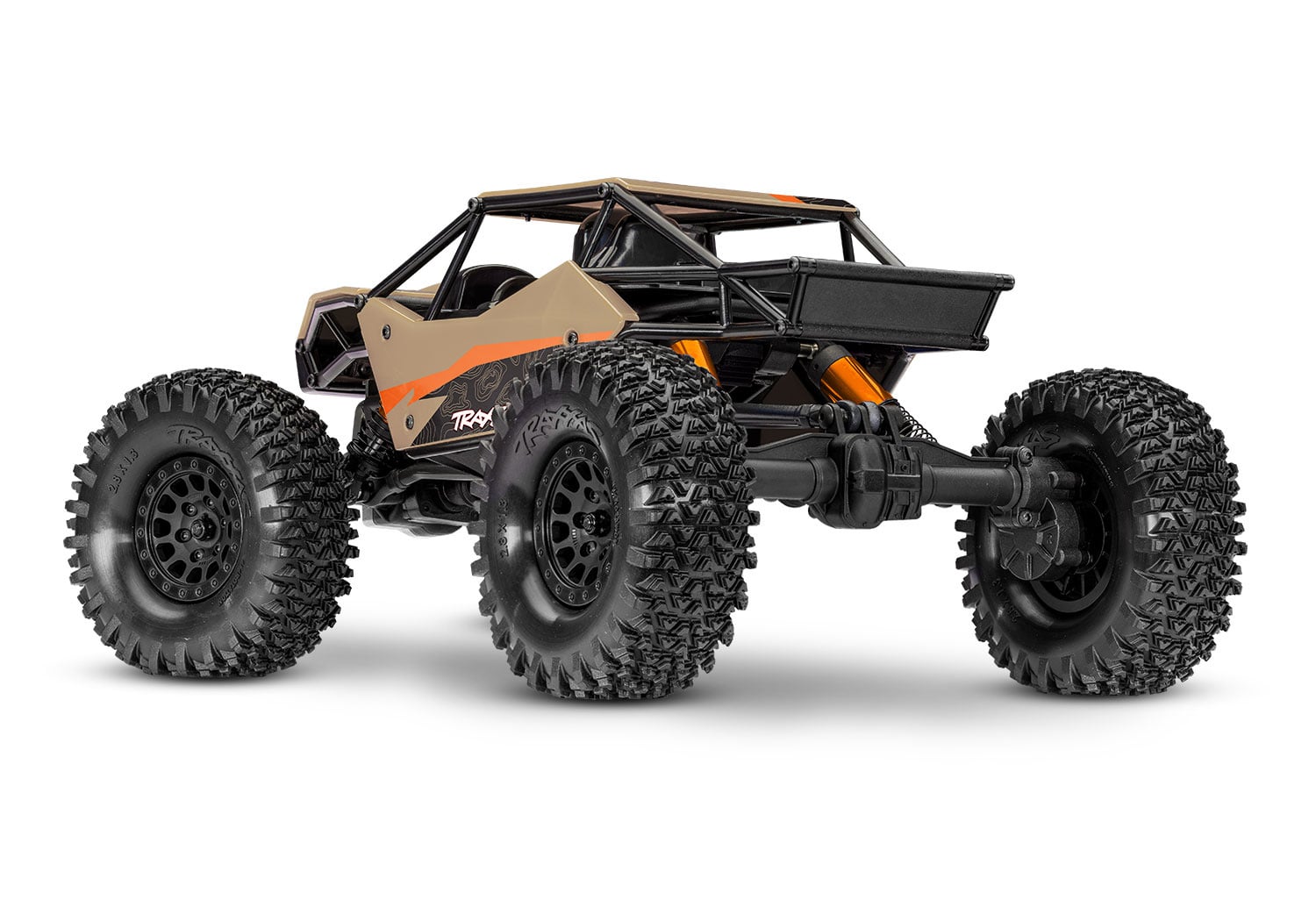

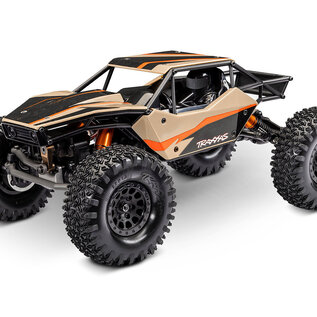

MODEL 120074-1: TXC-4M™ Extreme Crawler: 1/18 scale 3s brushless 4X4 crawler, fully-assembled, Ready-To-Drive^®, with TQ™ Compact 2.4 GHz 2-channel transmitter, 3s brushless power system, and waterproof electronics.

• TXC-4M Ready-To-Drive crawler
• Clipless tube-frame body
• 3s brushless power system
• TQ Compact 2.4 GHz transmitter
• 11.1 volt 250 mAh 3-cell LiPo battery
• USB quick charger with iD^®
• High-quality maintenance tools

• AA Alkaline Batteries - Four AA alkaline batteries for the transmitter
• USB-A Power Source - 2-amp, 5+ volts recommended minimum

FEATURES:

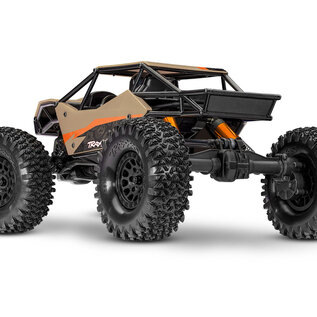

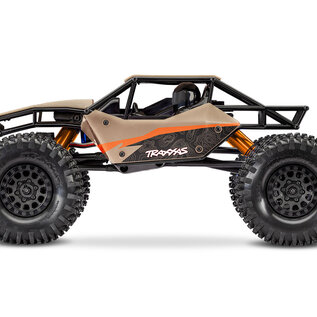

• Clipless Tube-Frame Body
  • Lightweight tube frame
  • Replaceable body panels
    • Accessory panels available (sold separately)
  • Interior with driver figure
  • Simple clipless latch in the rear
  • Bosses for accessory light kits (sold separately)
• 3s Brushless Electronic Speed Control
  • Field Oriented Control (FOC)
    • Delivers precise throttle control
  • LiPo overvoltage protection
  • Two-stage low-voltage detection
  • Fully waterproof for all-weather fun
  • Three drive profiles
    • Sport Mode — forward / brake / reverse
    • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
  • 6-volt BEC
• 3s Brushless Outrunner Motor
  • More torque and low speed control than conventional designs
  • 3350 Kv
  • Laser-etched motor can
  • Pre-installed pinion gear
• 2.4 GHz Radio System

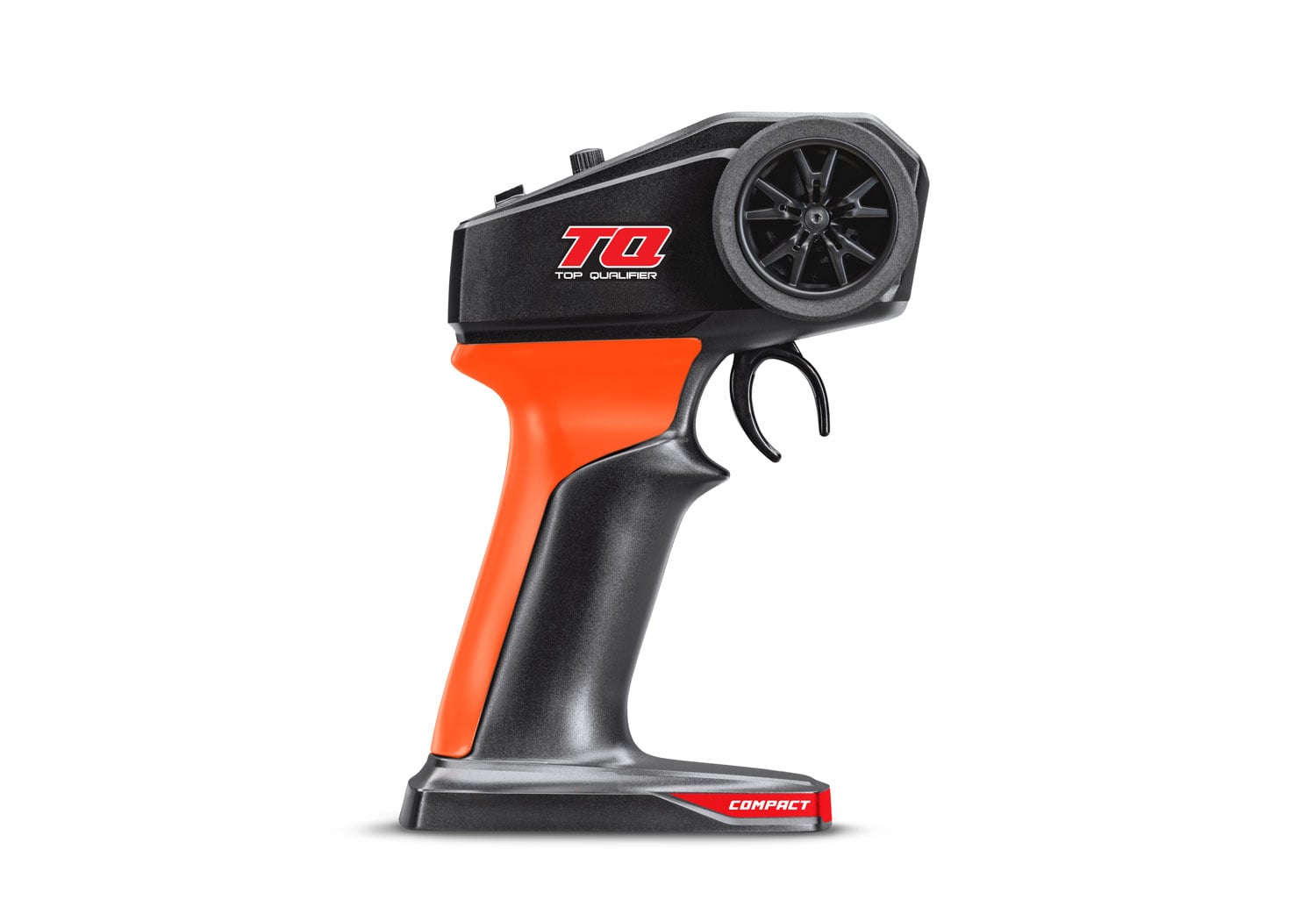

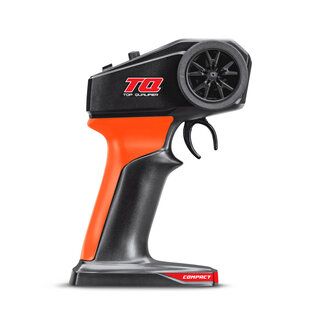

  • TQ Compact 2-channel transmitter
    • Removable color-matched grip adapter
    • High-output signal delivers outstanding range
  • Compact receiver with dual servo and LED channels

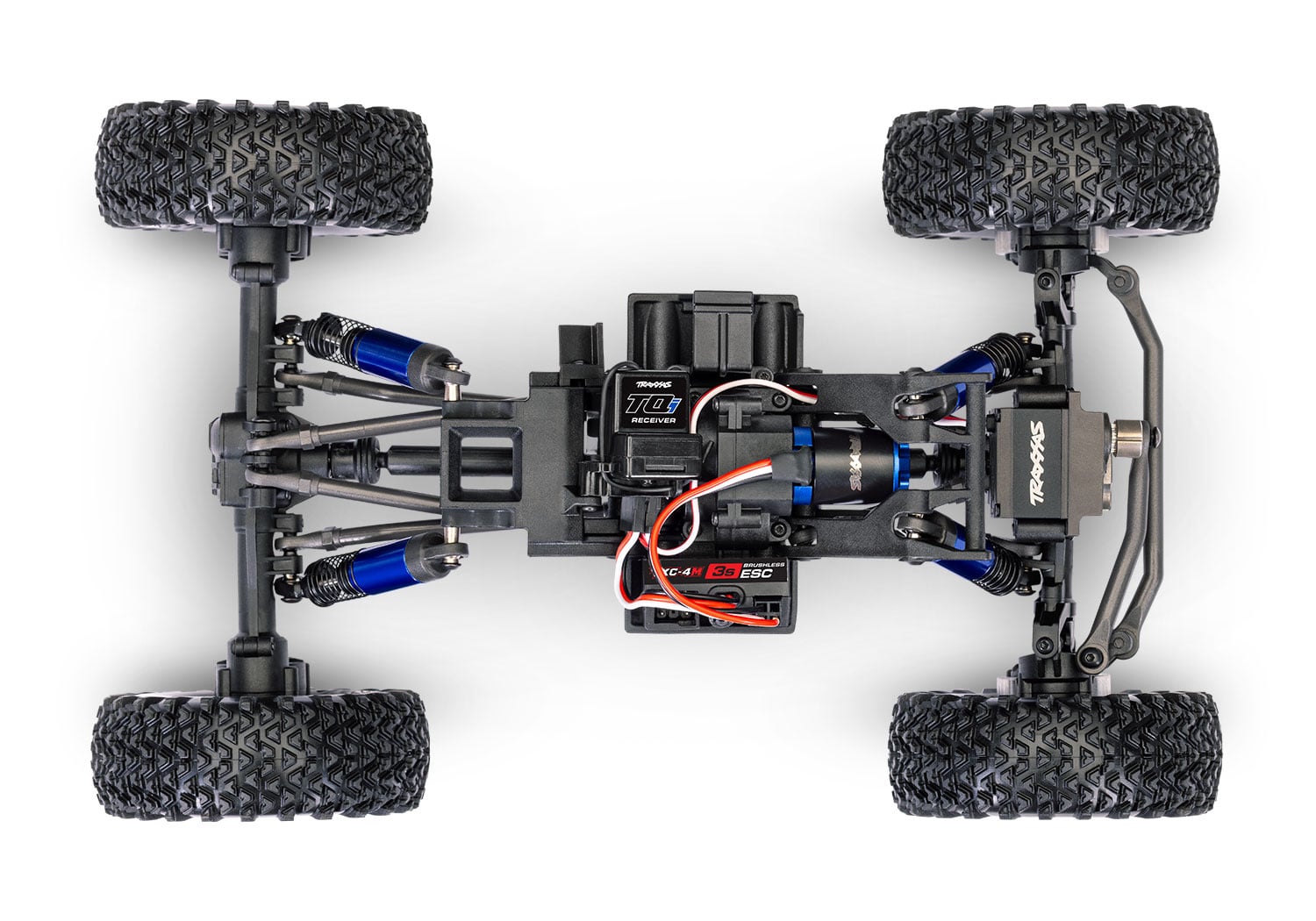

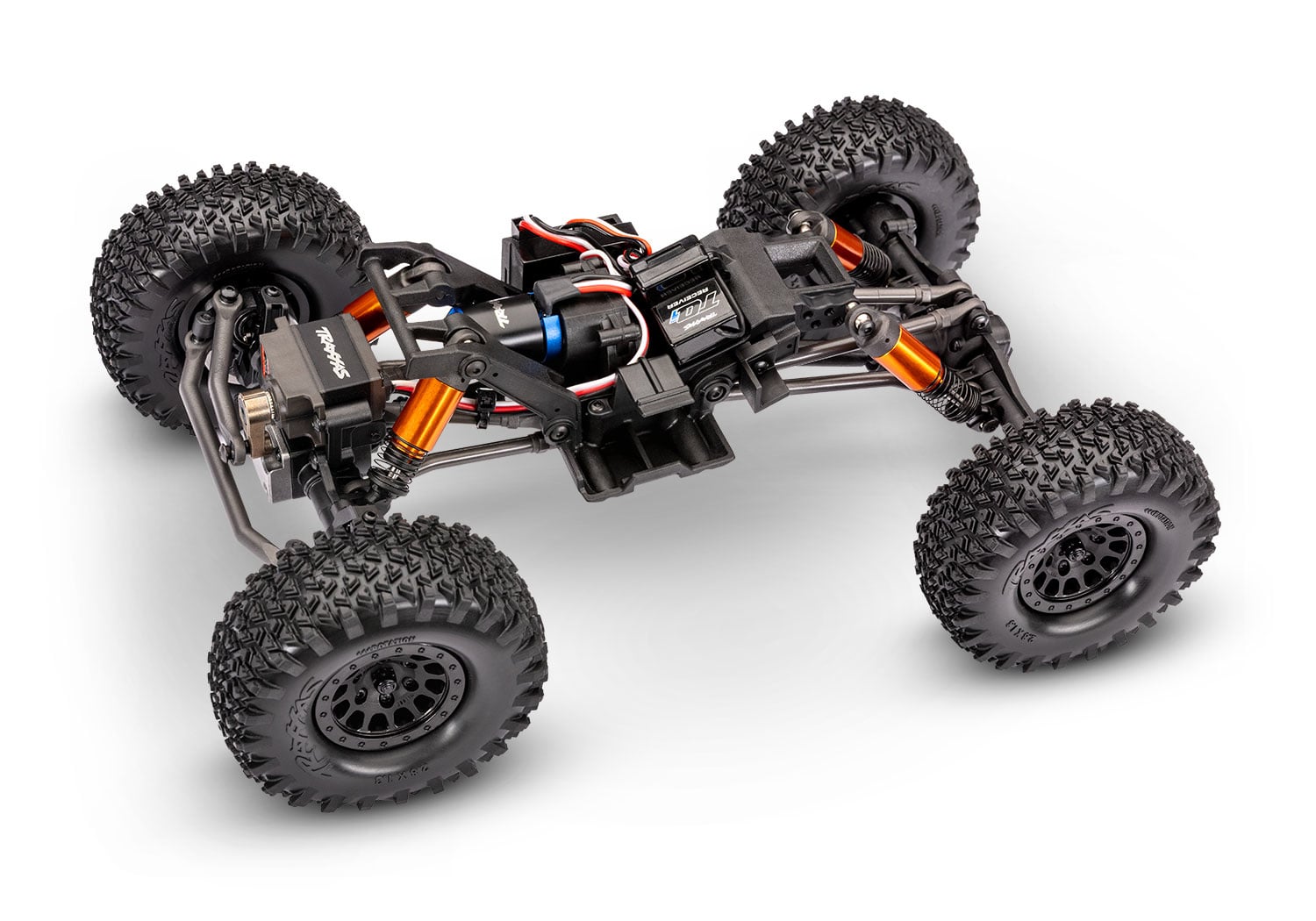

• Molded Monocoque Chassis
  • Single piece composite design
    • More torsional rigidity than conventional ladder frames
    • Reduces weight
  • Battery and ESC held low in the chassis
    • Mounted on opposite sides for better weight distribution
  • Integrated rock light mounding and wire routing
• Driveline
  • Full-time shaft-driven 4-wheel drive
  • Locked axles with steel-spool gears
    • Steel axle shafts and U-joints
    • 25% overdrive front axle
  • Heavy-duty CV center driveshafts
  • Single speed transmission
    • All metal gears
    • Full ball bearings
• Portal Axles
  • Increases center ground clearance
  • Reduces torque twist
  • All metal gears
  • Full ball bearings
• Suspension
  • Lay-down shock design
  • Triangulated 4 link front and rear
  • High-clearance lower links

• Steering
  • Superior 60° steering angle
  • Waterproof high-torque 2265 servo
    • Full metal gears
    • 75 oz-in torque
    • Aluminum center section
  • Horizonal servo mounting
  • High-throw metal servo horn
  • High-clearance drag link
  • Direct steering (no servo saver)

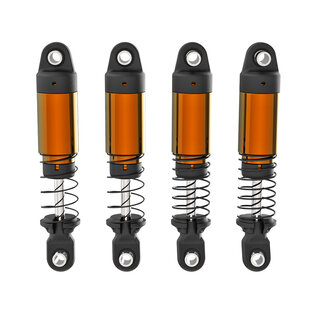

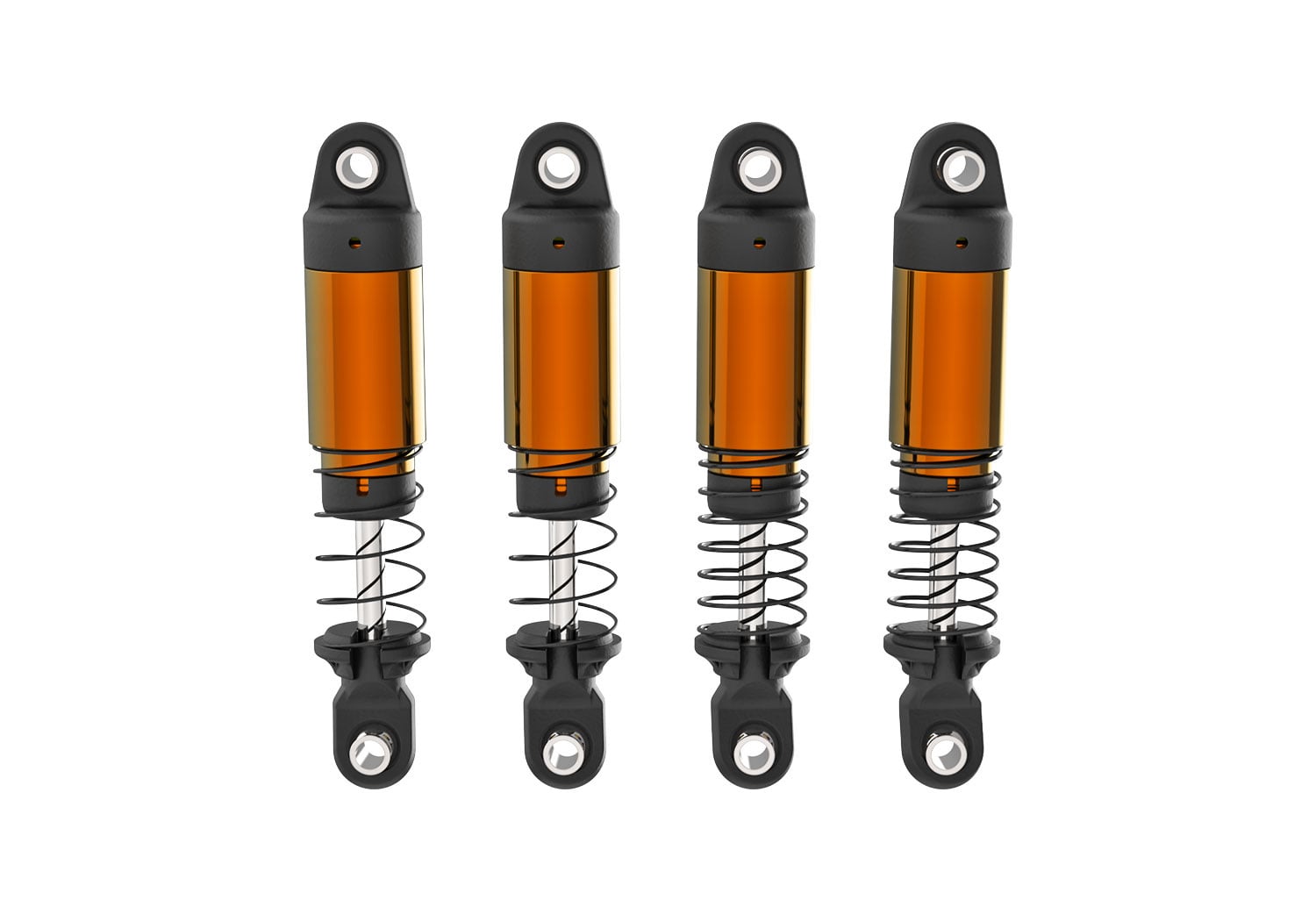

• Oil-Filled Aluminum GTM Pro Shocks
  • Aluminum bodies in bright anodized colors
  • Realistic body-over-shock appearance
  • O-ring sealed with smooth controlled damping
  • Easily refreshed with available rebuild kits
• Wheels and Tires
  • 1.3” Licensed Method Race Wheels^®
    • 3-piece Beadlock design
    • 7 mm wheel hex
  • 1.3” x 2.8” Stone Claw™ tires
    • High-grip rubber compound
    • Aggressive stepped block tread design
    • Wide directional sipes
• Battery and Charger Included
  • 3 -cell LiPo battery with iD^®
    • 11.1 volts
    • 250 mAh capacity
  • USB-powered charger
  • iD technology for faster, safer charging
• Sealed Ball Bearings
• Durable Hex Hardware

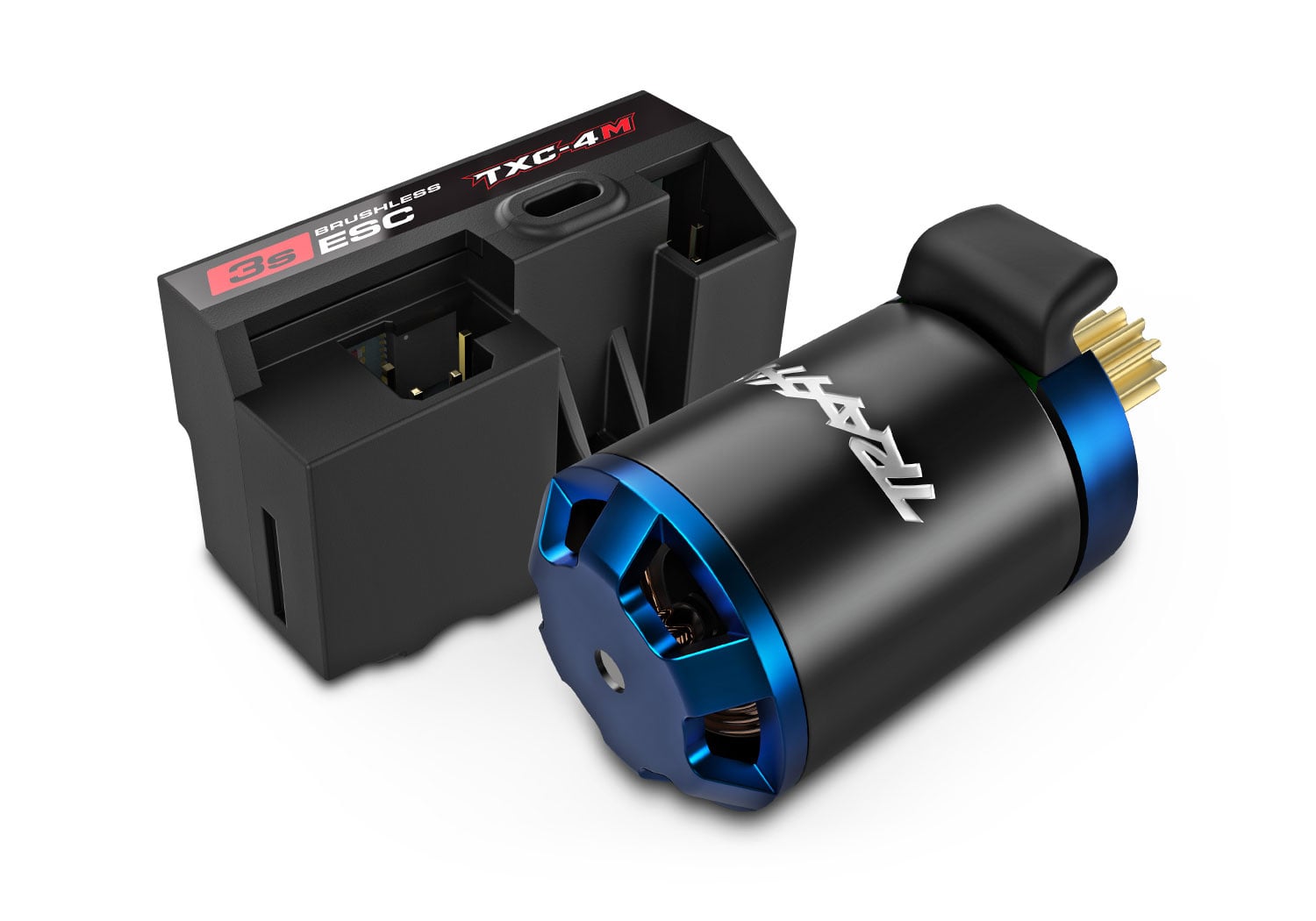

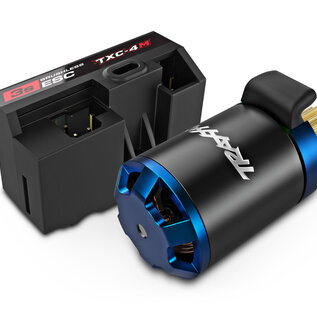

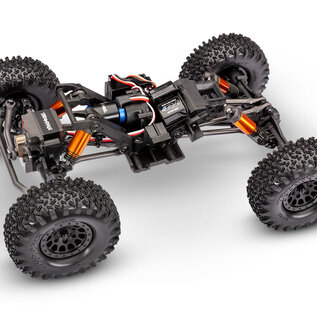

3s Brushless Power



An extreme crawler needs an extreme power system and TXC-4M delivers with 11.1 volts of brushless 3s LiPo power. 3s power allows TXC-4M to run a high-reduction driveline for ultra-precise throttle control and exceptional torque with crawling speeds so low the rig appears motionless.

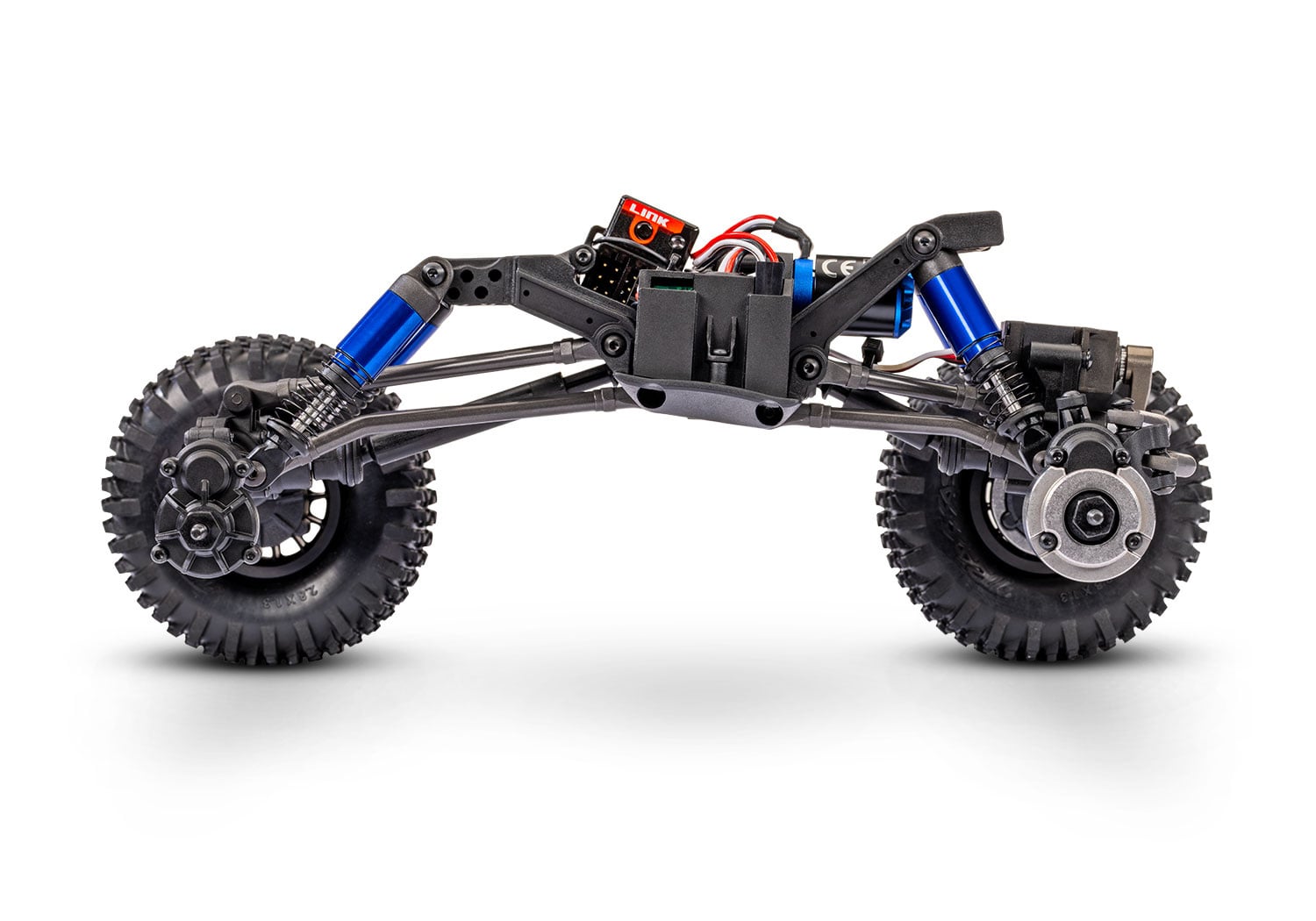

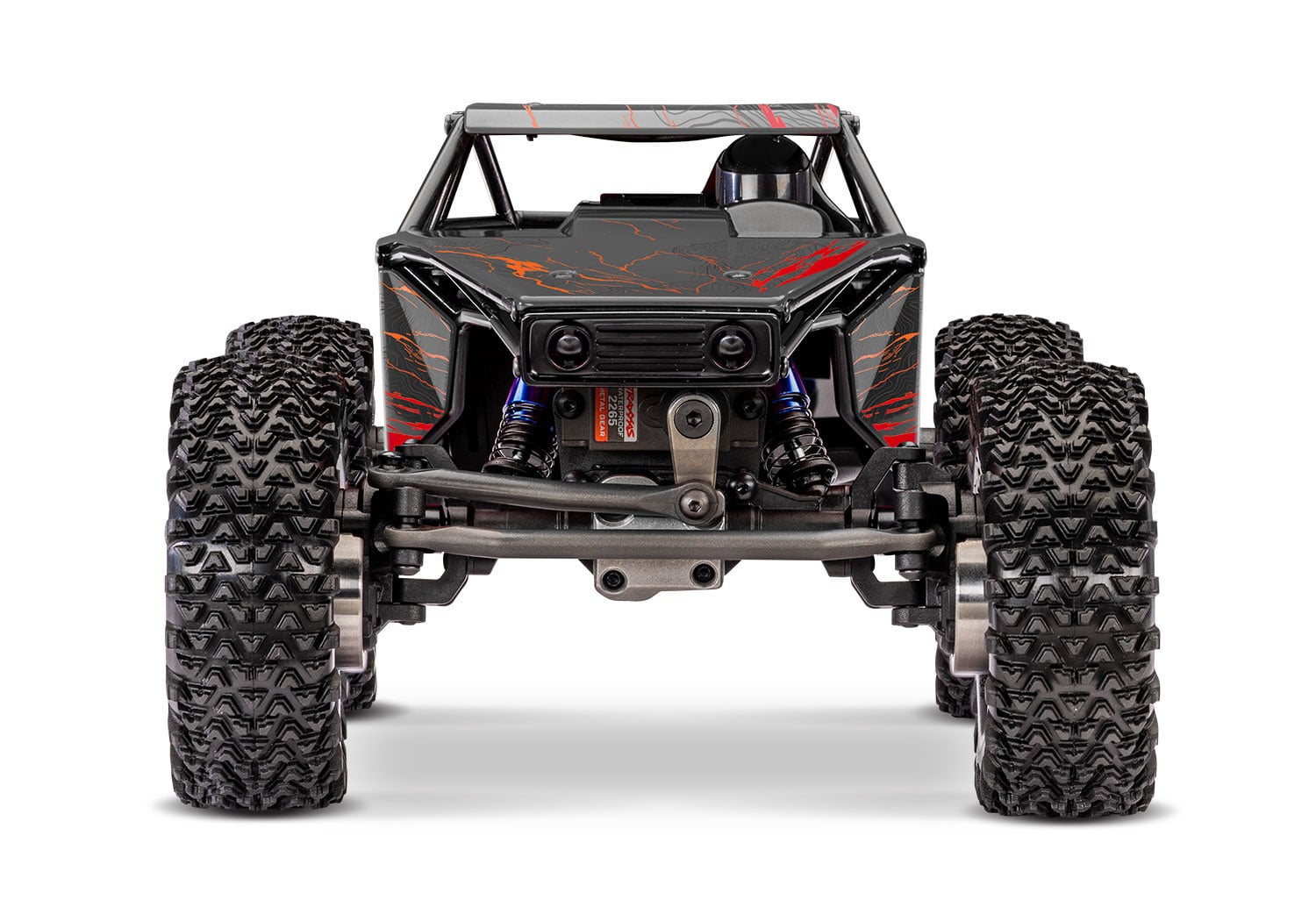

Portal Axles



Portal axles lift TXC-4M at the wheels, giving it more ground clearance under the center pumpkins. Portal axles also limit torque twist by transferring gear reduction to the wheels and away from the differentials. With less torque twist, TXC-4M is more stable and less likely to twist itself off the rocks.

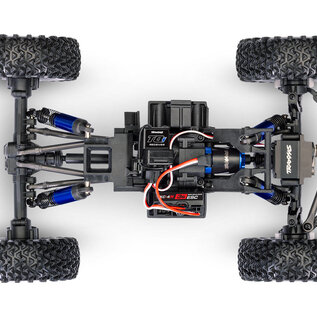

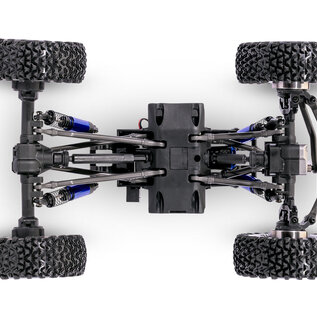

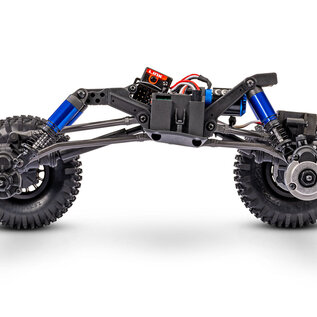

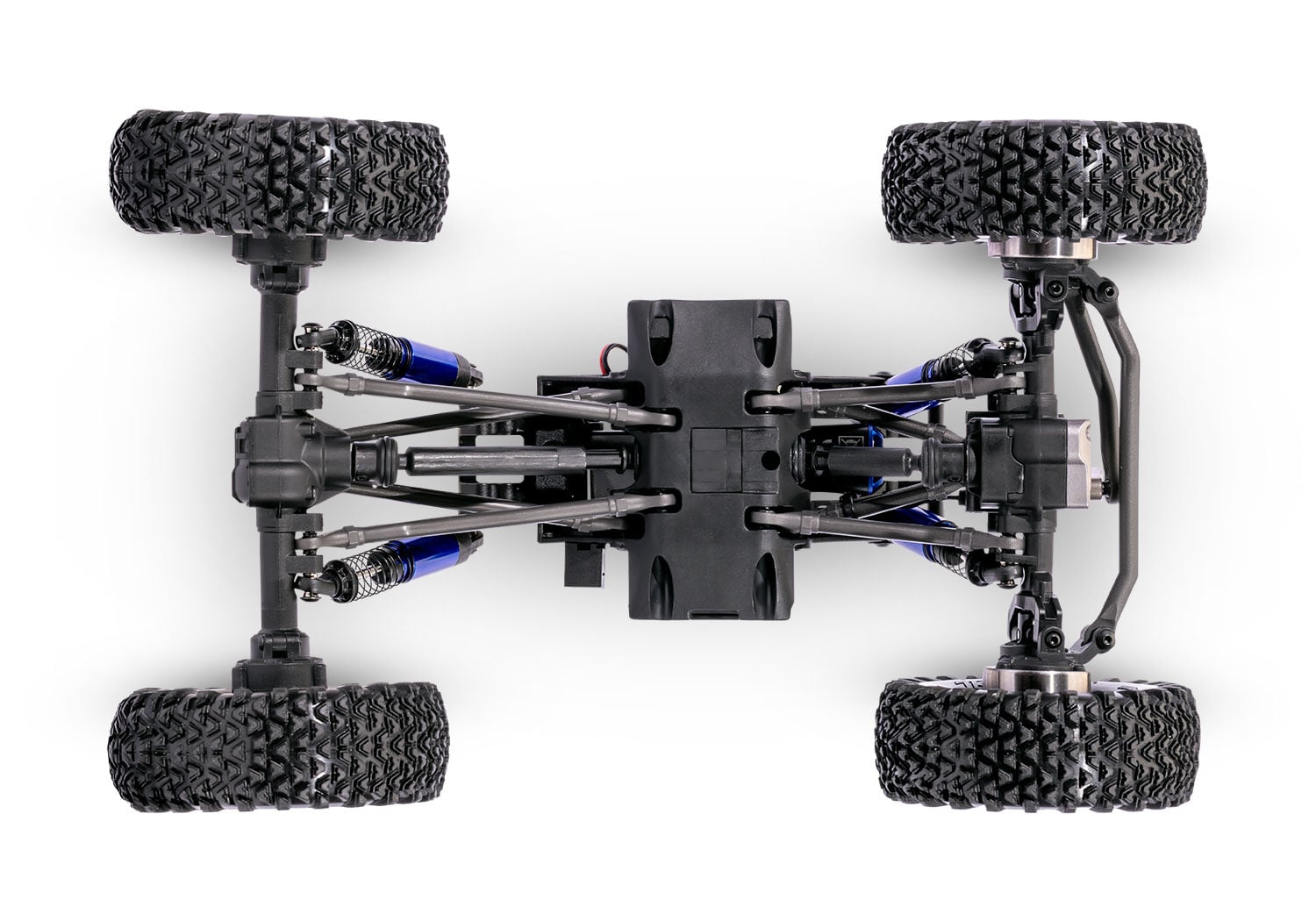

Rigid Monocoque Chassis



TXC-4M is purpose-built to deliver the ultimate crawling experience, due in part to its all-new chassis. TXC-4M’s monocoque chassis is both significantly lighter and more rigid than a traditional ladder frame. With no chassis flex, TXC-4M tracks straight and true even under extreme articulation.





Stone Claw Tires



Huge 1.3” x 2.8” Stone Claw™ beadlock tires get TXC-4M up and over obstacles easily with an aggressive stepped-block tread design that maximizes biting edges. Molded in soft-compound rubber, Stone Claw tires grab onto rocks with unrivaled traction, outperforming even the best aftermarket tires.





Competition-Grade Steering



TXC-4M delivers competition-grade steering performance with an exceptional 60° steering angle, tight turning radius, and laterally mounted 2265 metal-gear servo with 75 oz-in of torque. High-clearance steering and drag links allow TXC-4M to tackle the toughest lines without getting hung up on the rocks.

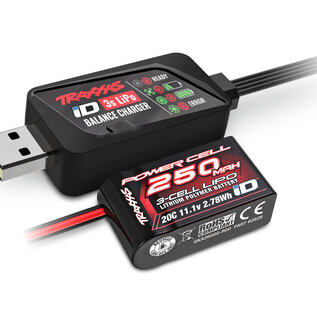

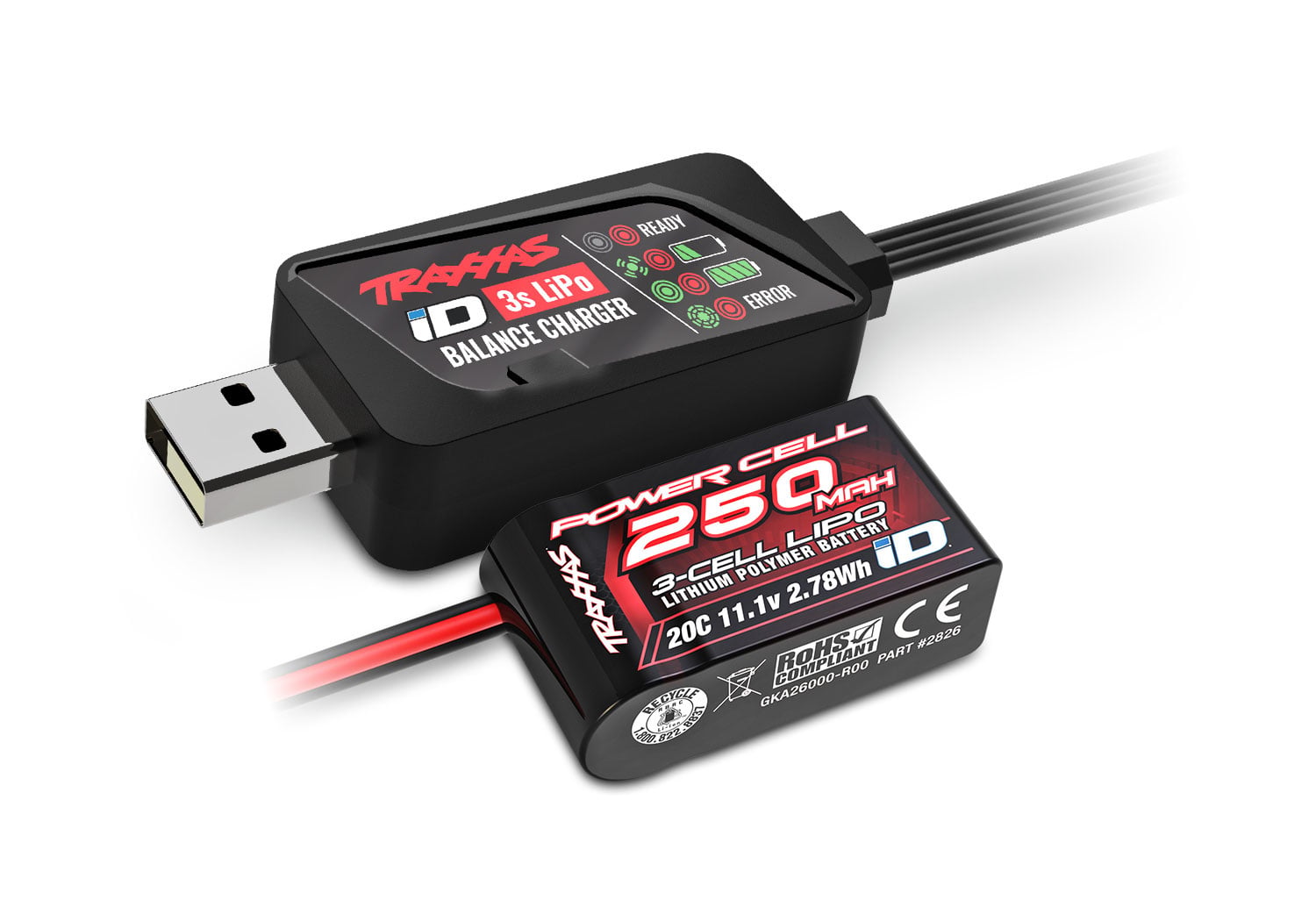

3s Battery and Charger Included



TXC-4M includes a powerful 3-cell LiPo battery and fast USB charger. The compact battery puts out 11.1 volts of power for nearly limitless rock-climbing torque and high-rpm trail driving. The iD™ equipped charger balances the battery perfectly every time with no complicated settings to memorize.
