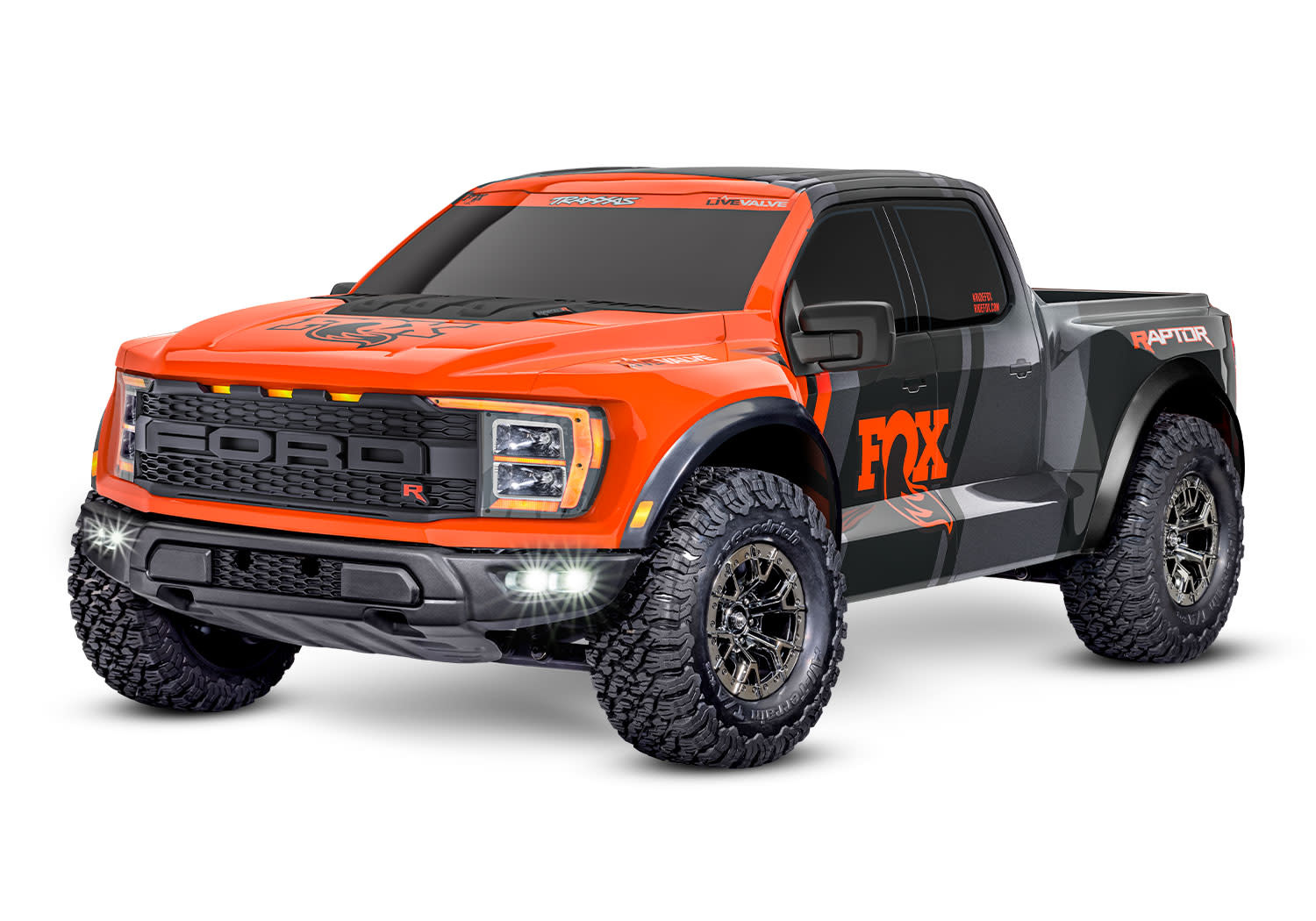

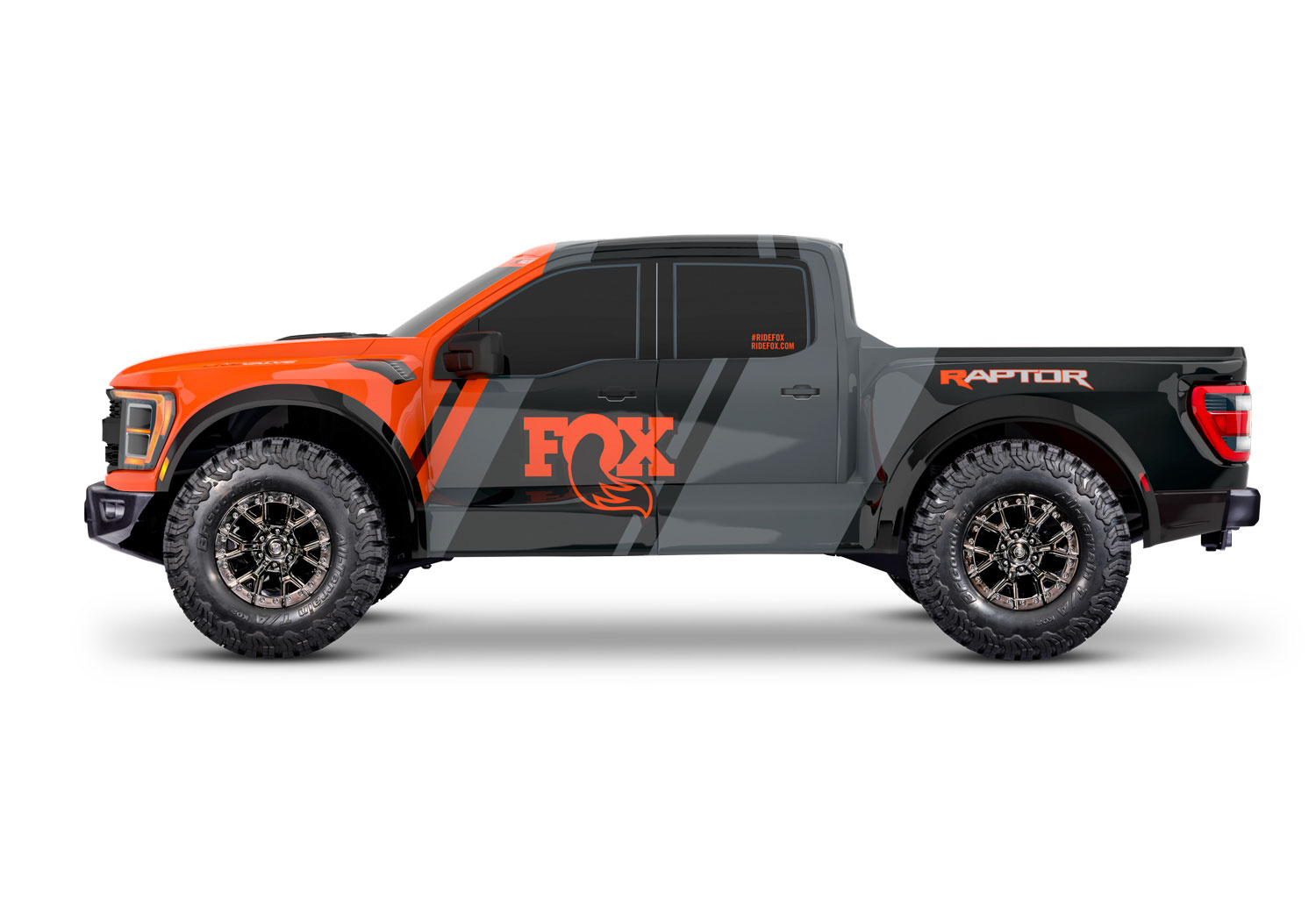

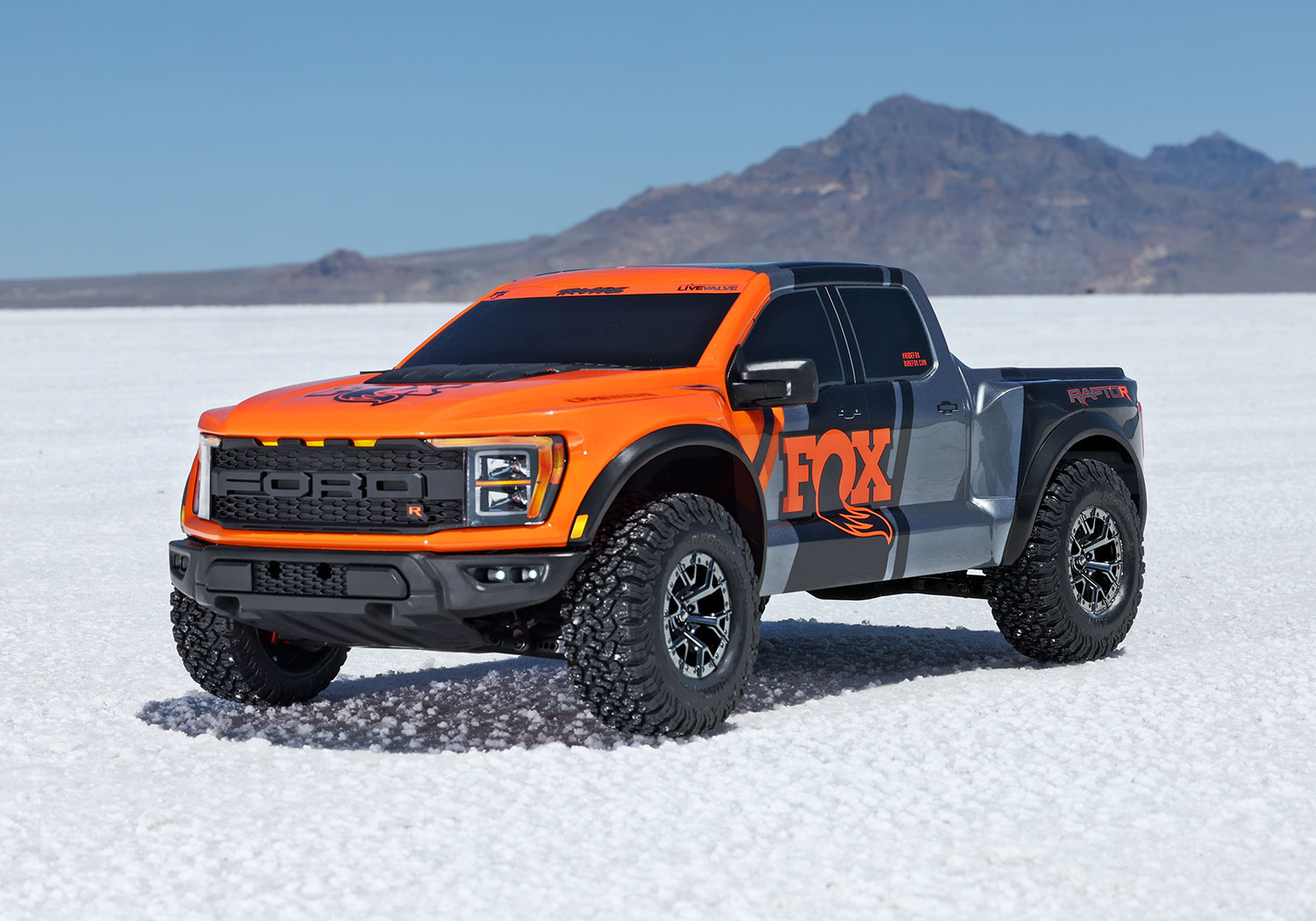

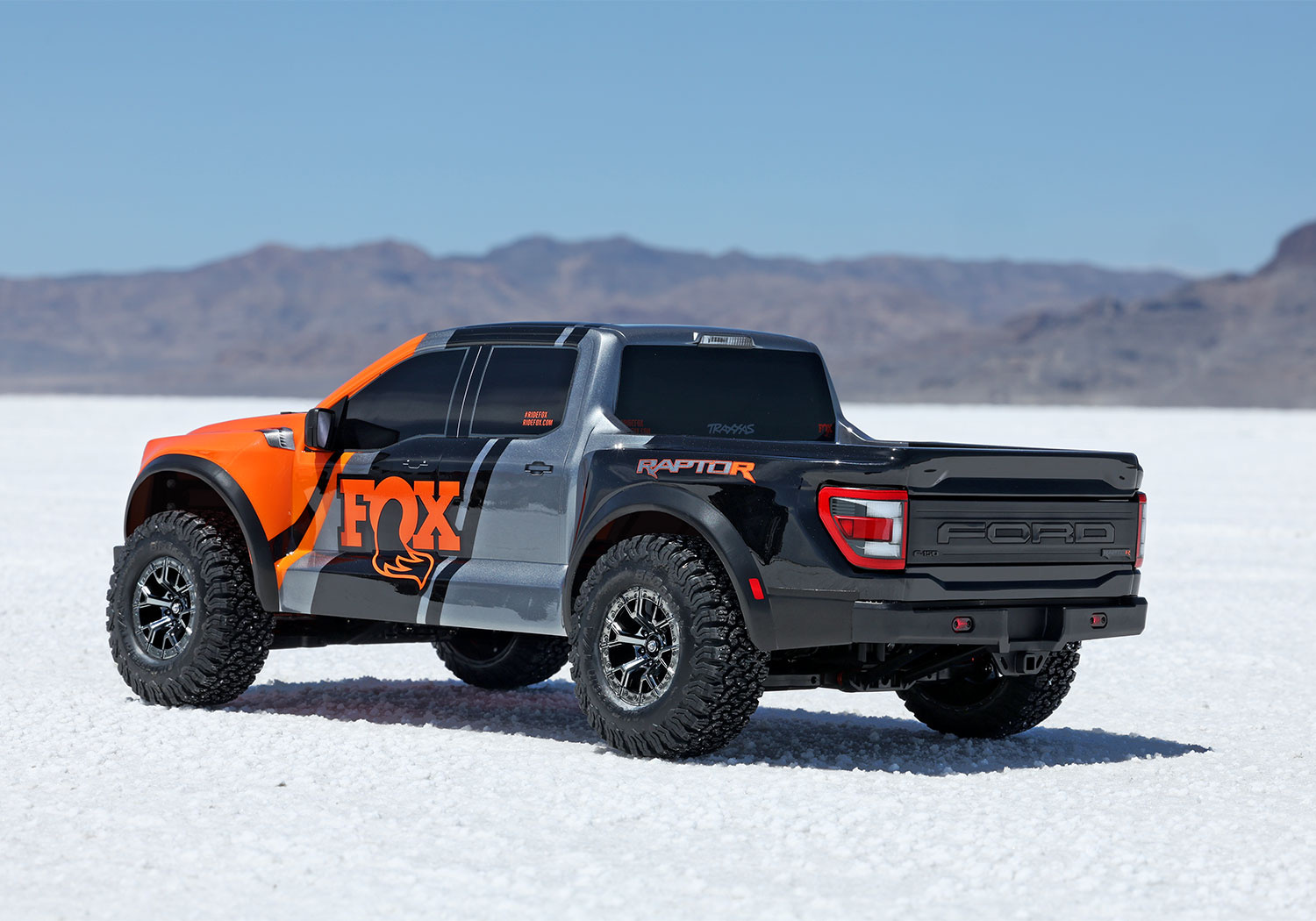

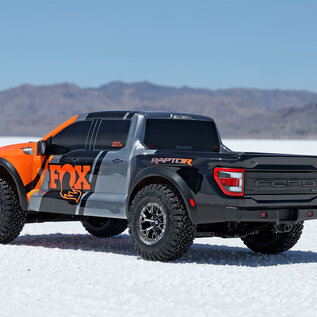

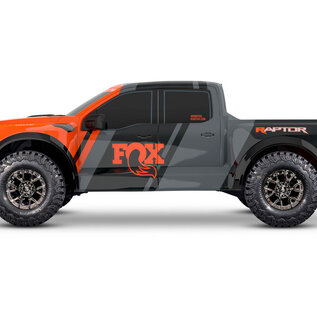

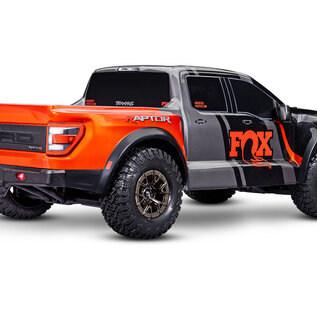

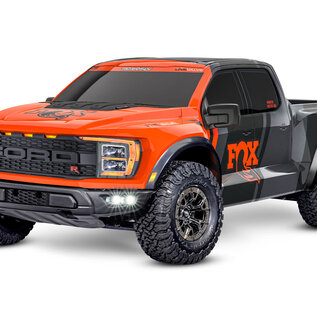

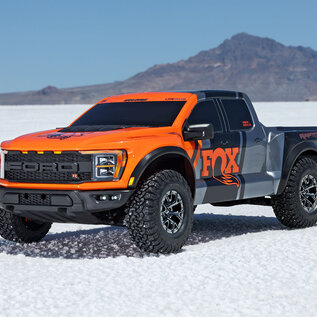

TRA101177-4 FOX2 Ford Raptor R 4X4 Ultimate (Traxxas)

TRA101177-4 FOX2 Ford Raptor R 4X4 Ultimate

Model Type: Short Course Truck
Model Speed: 60+ mph with 4s LiPo (sold separately)
Model Skill Level: 2
Scale: 1/10
Weight: 6.62 pounds (3.00 kg)
Length: 24.98 inches (637 mm)
Width: 11.63 inches (289 mm)
Front Track: 11.63 inches (289 mm)
Height: 8.91 inches (226 mm)
Rear Track: 11.63 inches (289 mm)

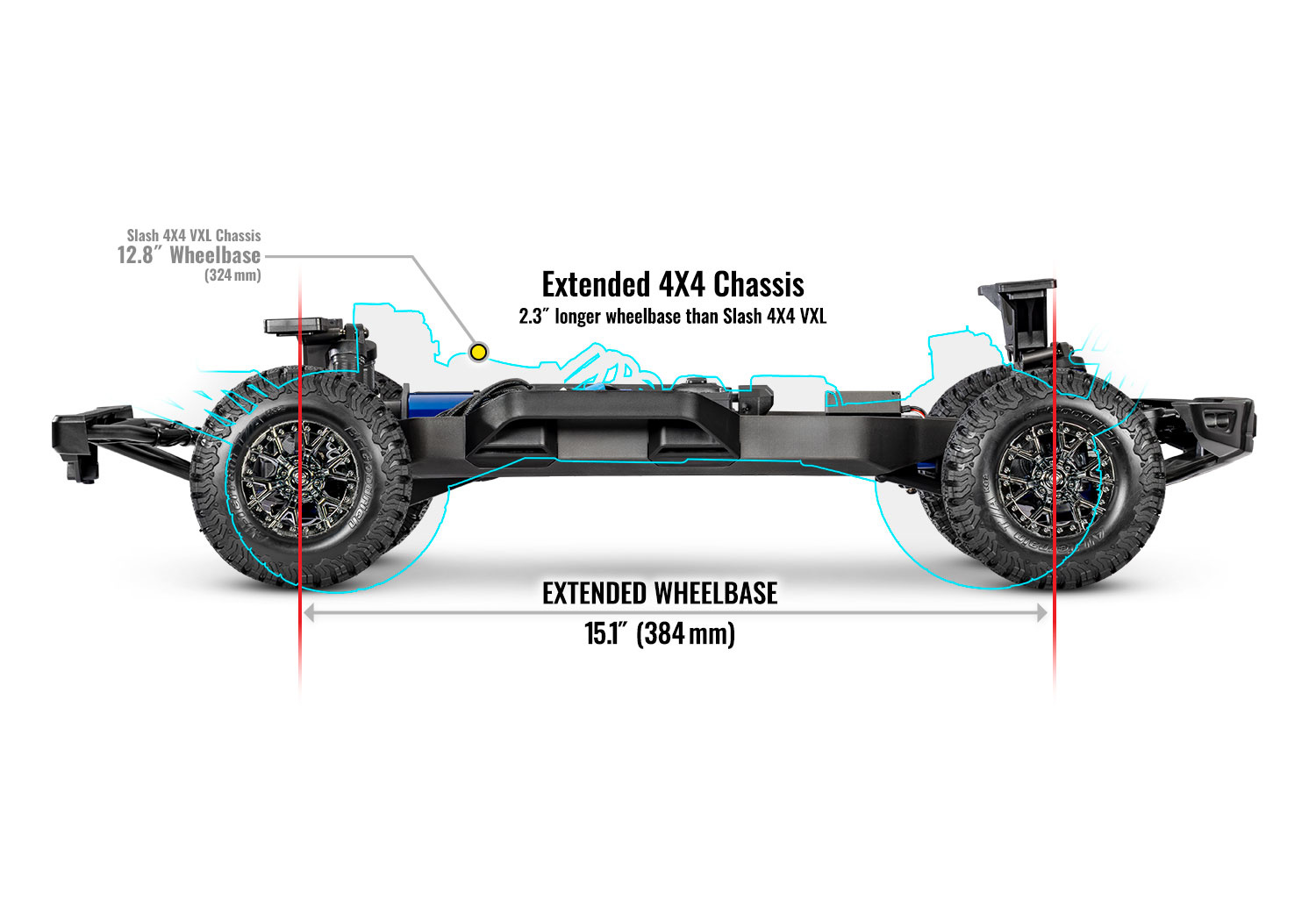

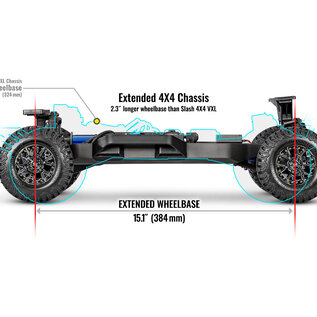

Wheelbase: 15.11 inches (384 mm)
Center Ground Clearance: 2.05 inches (52 mm)

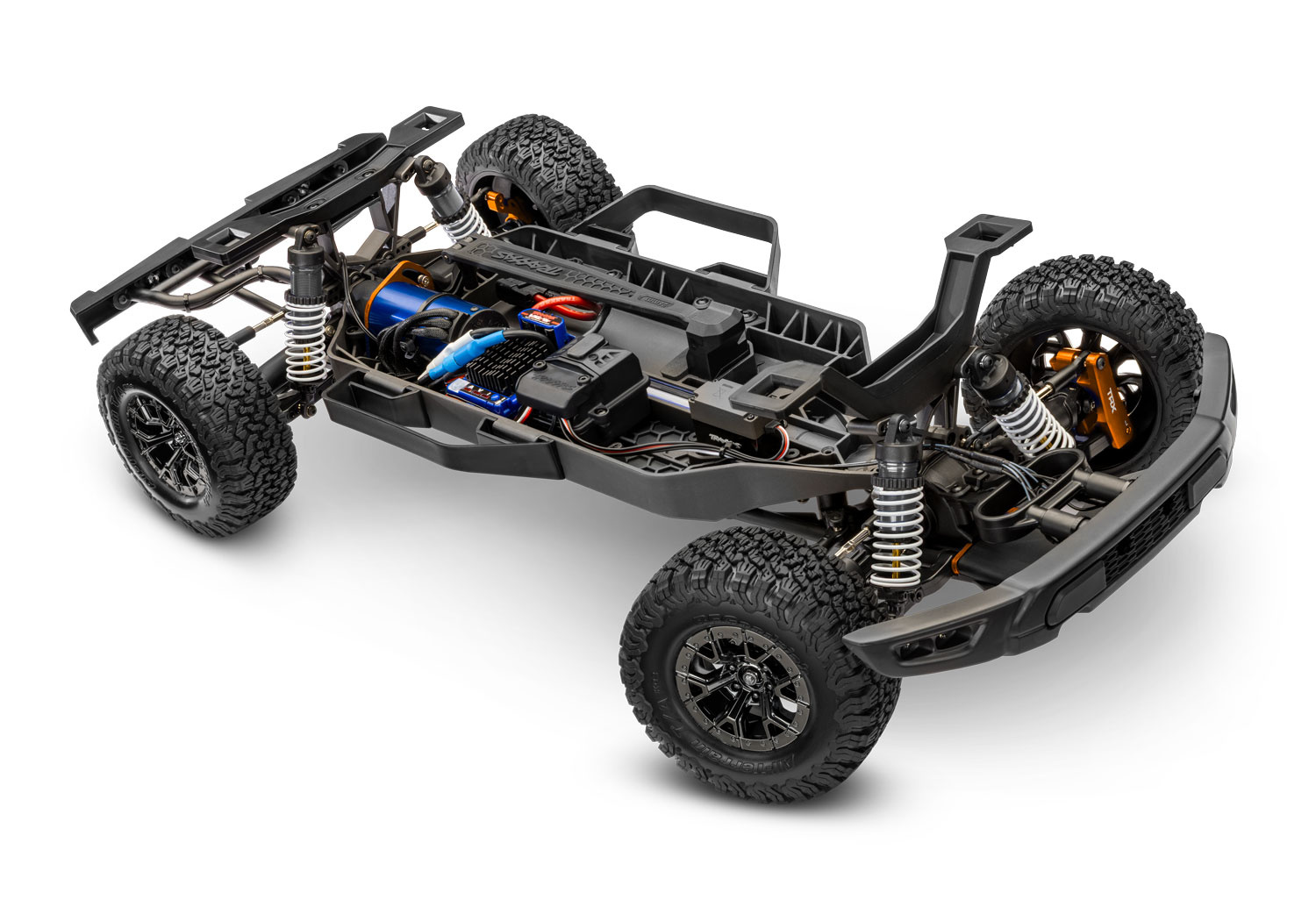

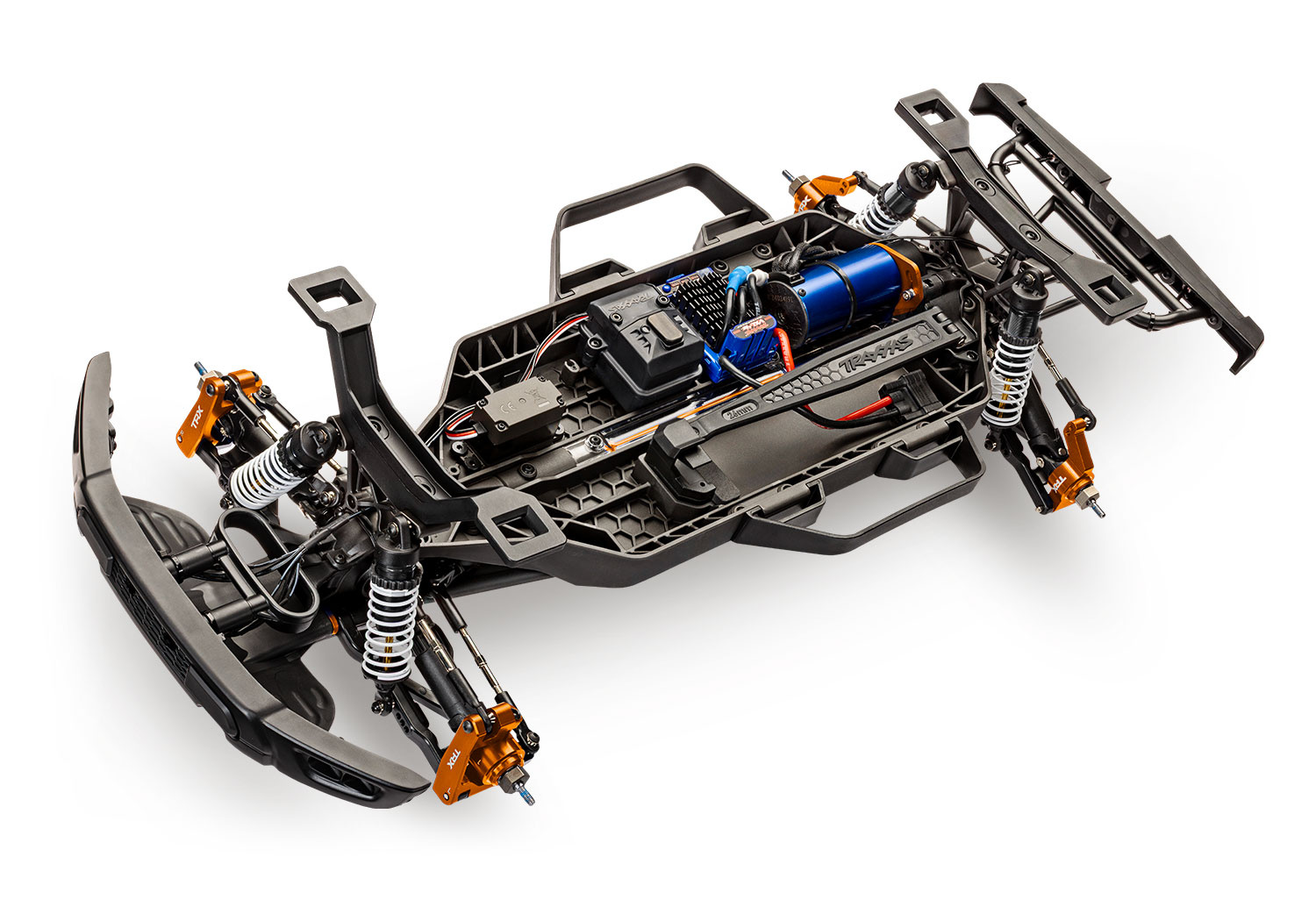

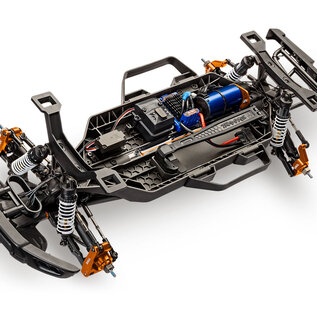

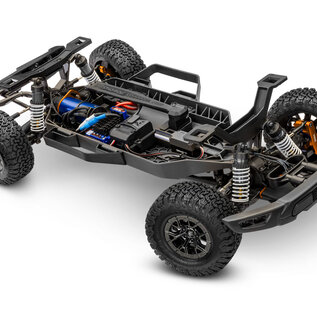

Drive System: Shaft-driven 4WD w/ Torque-Biasing Center Drive
Differentials: Hardened steel bevel, sealed, limited slip
Gear Pitch: 32 pitch
Servo: 2275 high-torque waterproof
Radio System: TQi™ 2.4 GHz 2-channel radio with wireless module
Battery Compartment Specs: 165 mm X 50 mm X 23/26 mm

Motor Type: 540XL 2400 Kv sensorless brushless
Weight: 11.18 ounces (317 g)
Length: 3.58 inches (91 mm)
Diameter: 1.41 inches (36 mm)
Shaft Size: 5 mm
Connector Type: Traxxas 6.5 mm bullet connectors

Input Voltage (cells): 2s-4s LiPo (7.4 V - 16.8 V)
Case Size: 2.40″ (61 mm) x 2.09″ (53 mm) x 1.42″ (36 mm)
Weight: 4.20 ounces (119 g)
BEC Voltage: Selectable 6.0 or 7.4 volts
Motor Connectors: Traxxas 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Thermal Protection: Two-stage thermal shutdown
Ports: RX input, auxiliary fan connector

What’s In The Box:

Raptor R with Velineon VXL-4s ESC and 2400 Kv motor

Quick Start Guide

TQi 2.4 GHz radio system w/ wireless module

High quality maintenance tools

What You’ll Need:

Batteries

Raptor R requires a single 2s, 3s, or 4s LiPo battery with iD^®.

Charger

Traxxas EZ-Peak^® Live charger (2971) is recommended for easy and fast charging performance.

AA Alkaline Batteries

Four AA alkaline batteries for the transmitter.

Features:

Clipless Body Mounting

• • Holds tight for intense action
  • Quick and easy removal
  • Smooth appearance with no body posts or clips

Color-Matched Aluminum Suspension Parts

• • 6061-T6 aluminum C-hubs
  • 6061-T6 aluminum steering blocks
  • 6061-T6 aluminum rear hub carriers

TQi™ 2.4 GHz Radio System with Wireless Module

• • Factory-installed telemetry sensors
  • TQi 2-channel high-power transmitter
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Programmable multi-function knob
  • 5-channel micro receiver (6533) with fail-safe security
  • Patented waterproof receiver box with easy-access plug

Traxxas Stability Management (TSM)®

• • Improves straight line acceleration and braking on low-traction surfaces
  • Maintains steering composure to allow throttle-on powerslides
  • Never dulls throttle or slows the truck
  • Adjusts from off to 100% assistance from the transmitter
