TQW2214 PlugNPlay Switched Balance Extension for iChargers

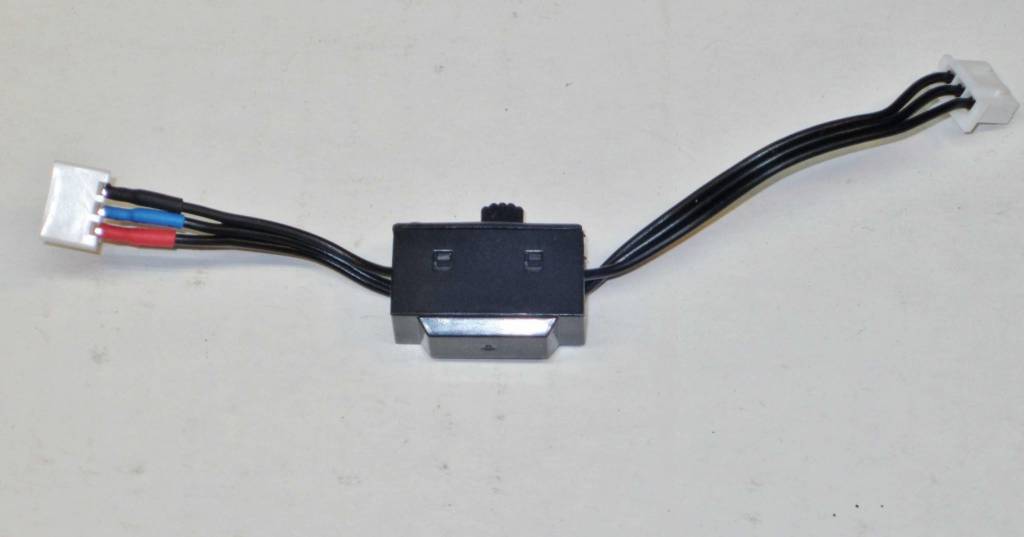

The #2214 PLUG n PLAY SWITCHED balance extension for iChargers (4010,308 & 406) has a switch to change the sensing wires from 1S to 2S.

For use with our #2620 complete charge cable assy. The #2214 switch extension is inserted between the charge cable’s balance plug and the RIGHT SIDE of iCharger’s balance port.

• 1S – move the switch towards the charger (position 1), use only the positive/negative leads for a 1S battery and you’re setup for 1S charging.
• 2S – move the switch towards you (position 2), use the positive/negative leads AND the balance lead and you’re setup for 2S charging.
