TLR04012 Team Losi Racing 8IGHT-X/E 2.0 Combo Nitro/Electric 1/8 4x4 Off-Road Buggy Kit
Losi 8IGHT-X/E 2.0 Combo - Build the Perfect Nitro or Electric Buggy
The Losi 8IGHT-X/E 2.0 Combo Nitro/Electric 1/8 4x4 Off-Road Buggy Kit, builds off the successful Losi 8IGHT-X platform and provides you with the option to choose the perfect power plant. All chassis components needed to build either an electric buggy or a nitro buggy are included with this combo kit. The updates to the chassis include drivetrain, suspension geometry, and chassis layouts. Get the 8IGHT-X/E 2.0 and achieve the next level of Losi performance.
Losi equipped this chassis with many adjustable features allowing you to fine tune the chassis to the driving surface. These adjustments include: rear hubs, square pill inserts, steering rack, wing mount, caster blocks and more. This allows the 8IGHT-X/E 2.0 to be driven harder and with more pace and is a fantastic vehicle right out of the box for all levels of hobby enthusiasts.

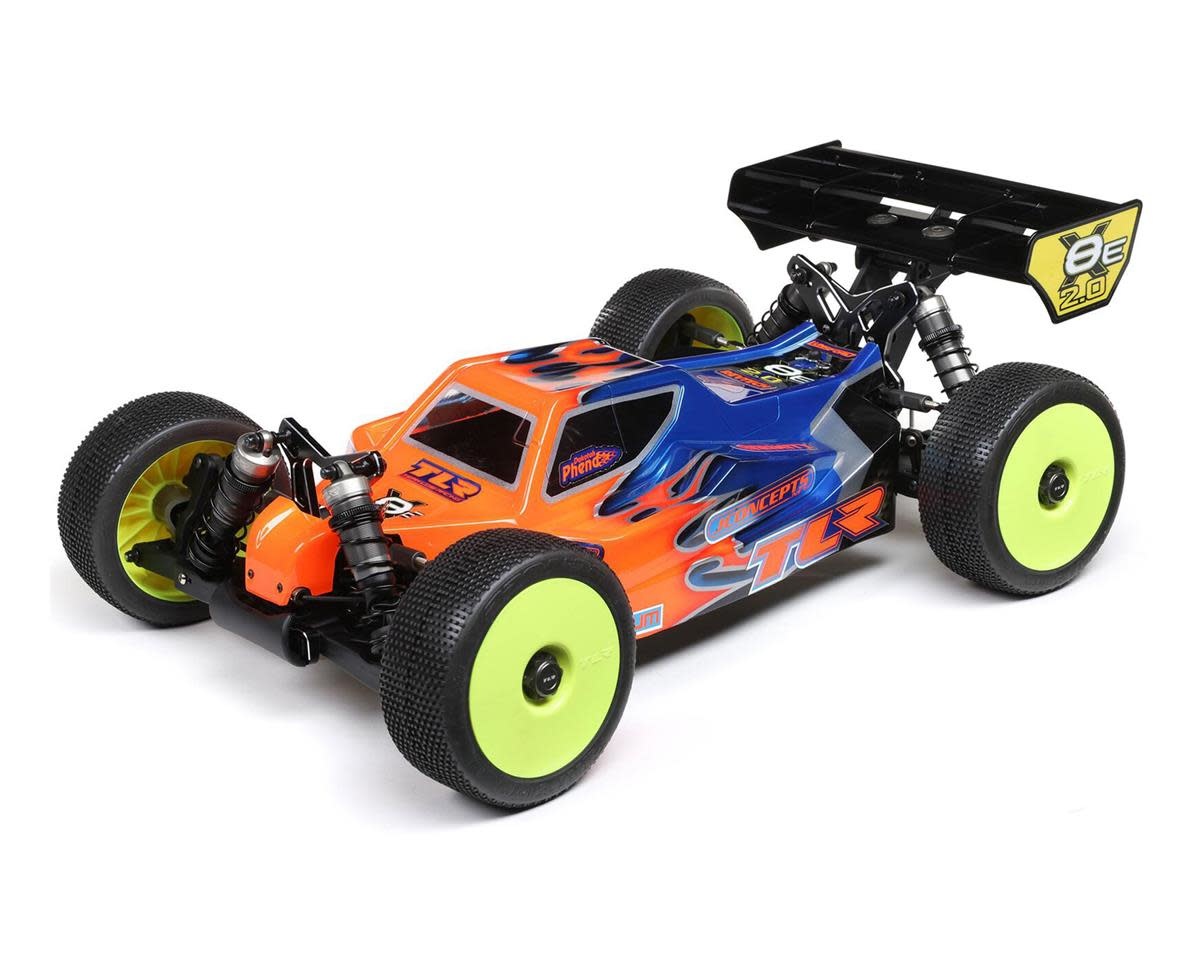

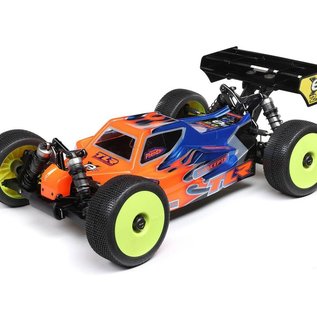

NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
TLR 8IGHT-X / E 2.0
Features:
Nitro and Electric Ready
7075 3mm Aluminum Chassis
Updated Front Spindles
Adjustable Rear Hubs
Square Insert Pills and Narrower Rear Pivots
Center Differential Setup offers higher rigidity and is lighter
Brake Setup provides consistent force and feel
Tunable Front and Rear Shock Towers
Cab Forward Style Body
Front and Rear Universals for smoother turns
Aluminum Wheel Hexes
Radio Tray updated for better balance
Optimized Shocks
Stronger Insert/Truss Suspension Arms
Updated Gear Differential
Updated Suspension Geometry
Larger Pinion Bearing
Adjustable Caster Blocks
Sway Bar System for consistent suspension
Updated Chassis Side Guards for more protection
Bleeder Shock Caps
Better Differential Access
Specifications:
Scale: 1/8
Drivetrain: 4WD
Power Type: Electric/Glow
Length: 18.9" (480 mm)
Wheelbase: 12.7" (323 mm)
Front Track: 12.1 in (308mm)
Rear Track: 12.0 in (306mm)
Height: 6.69" (170 mm)
Ground Clearance: 1.1 in (27mm)
Weight: Varies based on configuration
Wheel Hex Size: 17mm
Gear Pitch: MOD1
Pinion: 13T
Spur Gear: 47T
Internal Gear Ratio: 3.23:1
Final Drive Ratio: 11.68:1
Fuel Tank Capacity: 125CC (4.2oz) - Nitro Only
Completion Level: Kit
Approximate Assembly Time: 3-5 Hours
Includes:
(1) Complete Losi 8ight-X/E 1/8 4WD Kit
Needed to Complete:
(1) Transmitter and Receiver
(1) Steering Servo
(1) Compatible Battery Charger
(1) Tire Glue
(4) Tires
Polycarbonate Paint
Tools (Please reference the manual for more details)
