SPMXSEMC23 Firma 80A Sensored/Sensorless Smart Outrunner Motor / ESC 2-in-1 Combo: 1700Kv (Spektrum)

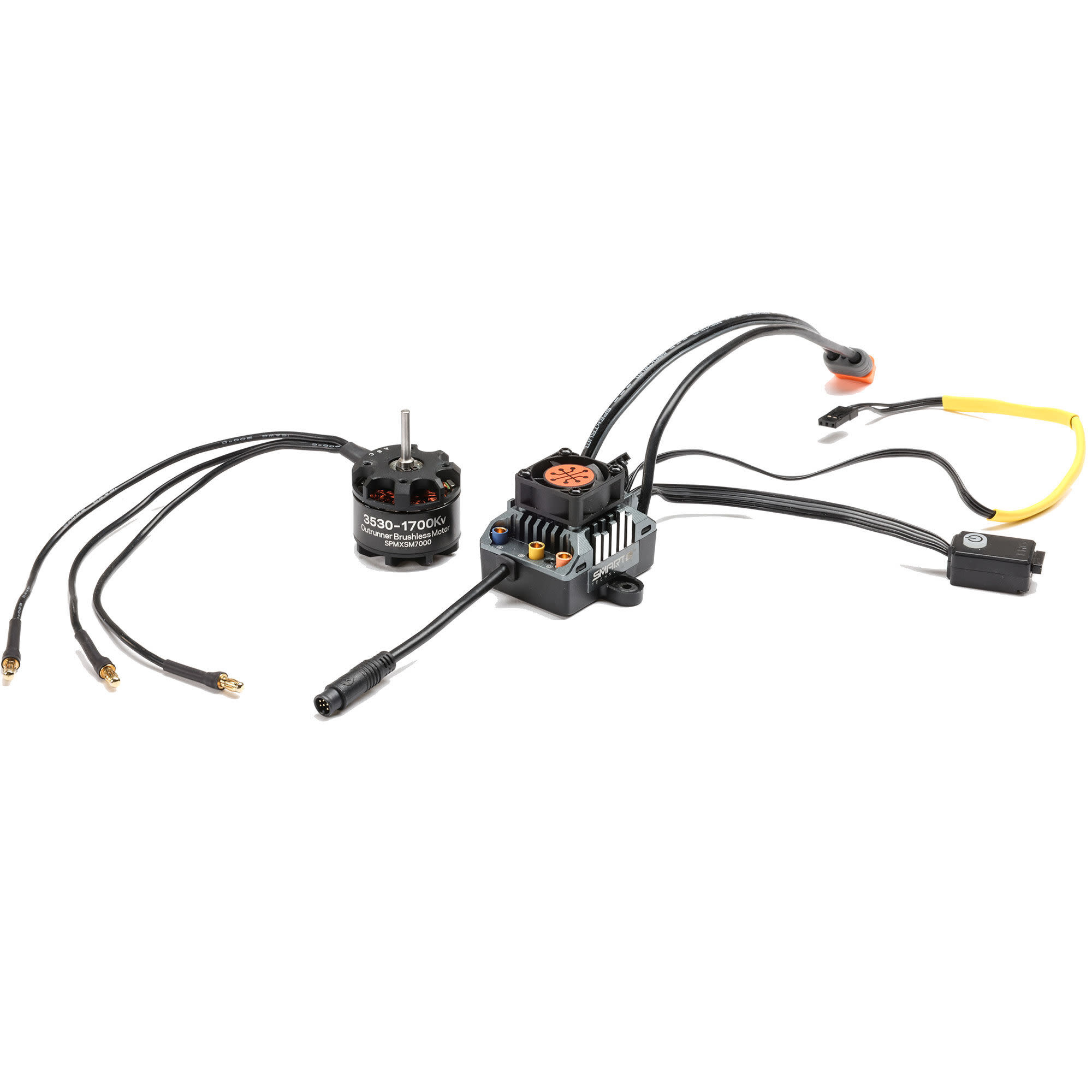

Spektrum Firma 80A Sensored/Sensorless Smart Outrunner Motor / ESC 2-in-1 Combo Overview

The Spektrum™ 1/10th Scale Smart Sensored-Sensorless ESC + Motor Combo is a great choice for 1/10th scale crawlers and models running on 2S – 4S LiPo power. This 1700Kv motor features a low cog 12-pole, 14-magnet rotor design, CNC machined aluminum housing, insulated high-purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for durability and smooth rotation. This combo is specifically developed to provide ultra-smooth, low speed control, performance, and high reliability. The motor is preinstalled with 3.5mm gold-plated bullet connectors for easy installation, and perfectly matched for the included Firma 80A Smart ESC. This waterproof, 80A Sensored/sensorless ESC drives your 1/10th scale crawler or scaler through almost any conditions imaginable, with ultra-smooth control, performance, and reliability — while feeding real-time telemetry straight to your Spektrum™ transmitter! This ESC includes the ability to disable drag brake from compatible SPM transmitters.

Spektrum Firma 80A Brushless Sensored Smart ESC, Outrunner (SPMXSE2060S) Features

• Smart All-In-One Telemetry
• Enable/Disable Drag Brake From Compatible Spektrum Transmitters
• Fast, Powerful 32-Bit ARM M4 Processor
• Multiple Programming Options
• Multi-Point Protection
• Waterproof (See Instructions For Details)

Spektrum Firma 3530-1700Kv 12-Pole Outrunner Brushless Motor, 3.175mm (SPMXSM7000) Features

• 2-4S LiPo Power Compatible
• 12-pole Outrunner
• 3.175mm Output Shaft
• Pre-installed 3.5mm Gold-plated Bullet Connectors

Specifications

Amperage

80A

Auto Cutoff

Yes

BEC Voltage

6V/7.4V at 6A

Connector Type

3.5mm Bullet, IC3

ESC Type

Sensored Brushless

Forward

Yes

Input Voltage

2-4S LiPo

LiPo Compatibility

2S, 4S, 3S

Low-Voltage Cutoff Programmable

Yes

Maximum Burst Current

360A

Motor Limit

4S less than 2000Kv, 3S up to 2500Kv

Number of Poles

12

Overload Protection

Yes

Reverse

Yes

RPM/Volt (Kv)

1700Kv

Shaft Diameter

3.175" (81 mm)

Shaft Length

18.5" (470 mm)

Technology

Smart
