SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo - Michael's RC Hobbies

SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo (Spektrum)

SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo

$99.99 Excl. tax

*AFFIRM Finance Offer Available on Total Purchases of $149 or More

Delivery time: Ships within 24hrs
Part Number: SPMXSEM0502
Quantity In Stock: 2

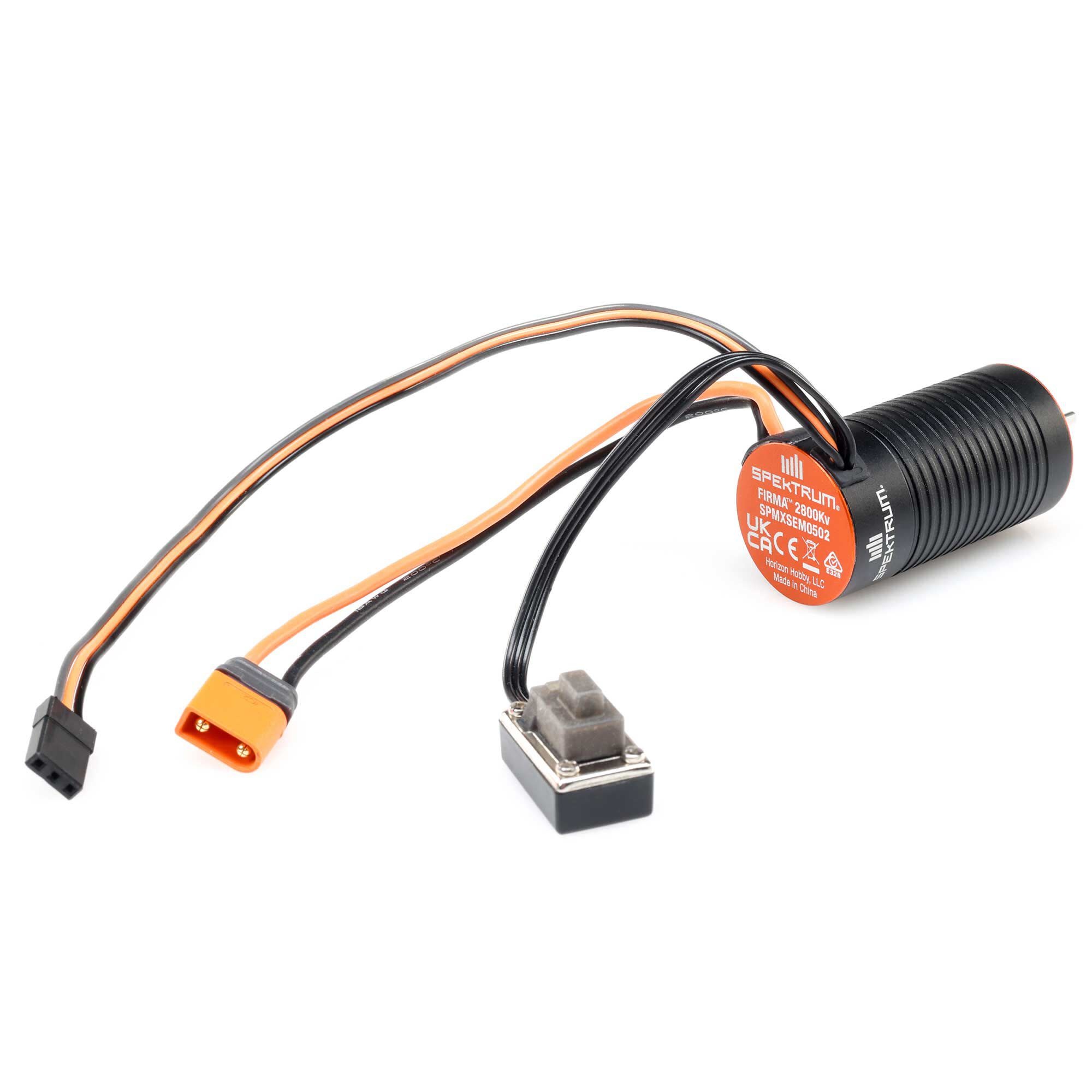

SPMXSEM0502 Firma Sensored Brushless Motor ESC / 2800Kv 2-in-1 Combo



The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and Motor 2-in-1 Combo is waterproof* and designed specifically for the Axial UTB18 Capra 4WS, 1/18 4WD. It features a high-precision magnetic encoder and rotor position sensor that provides an excellent one-to-one control feel when driving at any speed and at any angle. This advancement in sensored motor control allows the ESC to match the throttle input to the motor’s RPM with unmatched precision.

This ESC and motor 2-in-1 combo is an excellent choice to upgrade your Axial UTB18 Capra 4WS, 1/18 4WD running 2S or 3S LiPo power. This combo is the perfect system whether you are adventuring on trails or entering in competition.

*See instructions for details.



Features

  • Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection

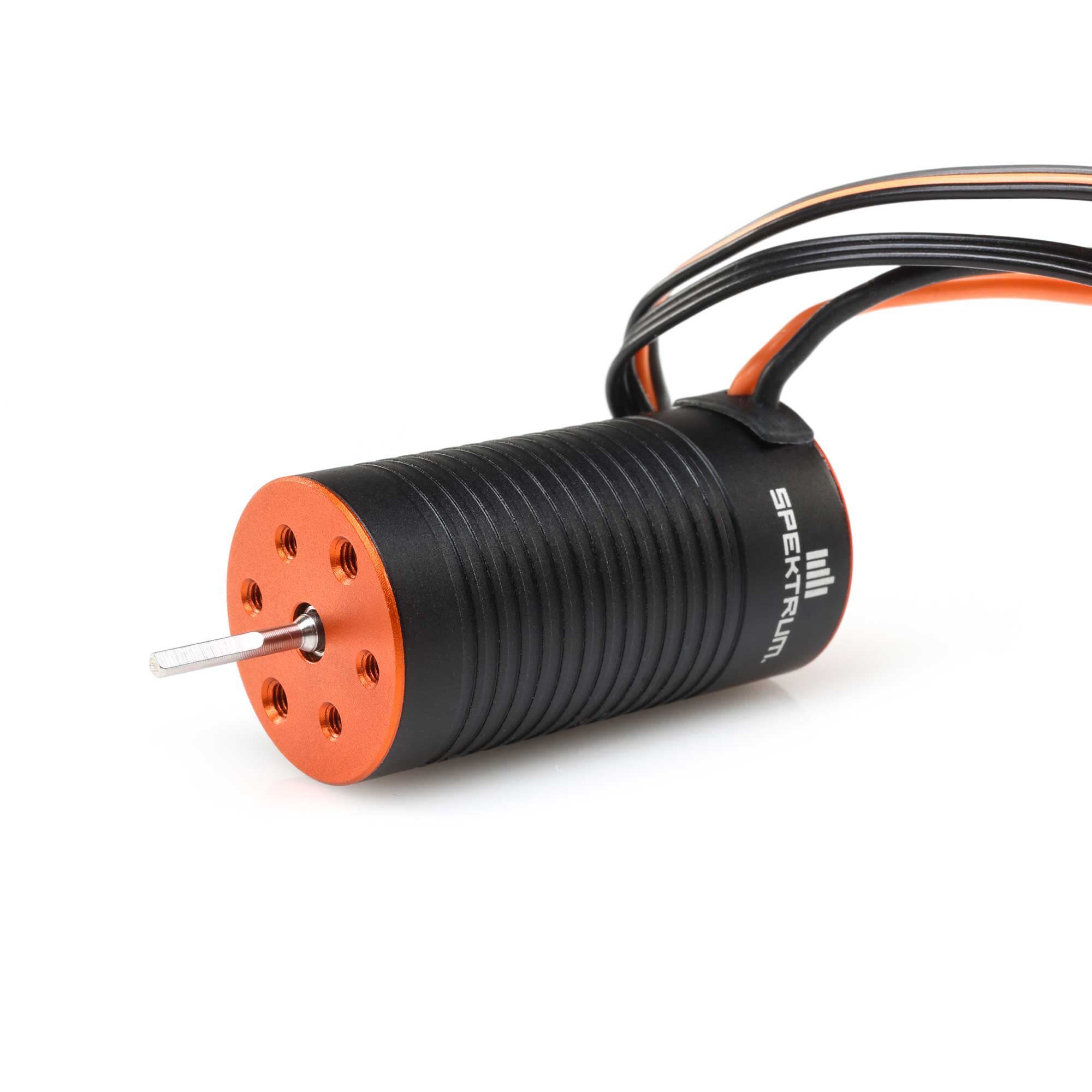

  • Includes high-performance Spektrum Firma 2800Kv Sensored Brushless Motor
  • Waterproof* (See instructions for details)
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Aluminum construction helps with heat dissipation
  • Adjustable high-power BEC



Specifications

  • Application 1/16-1/18 Rock Crawler
  • BEC Continous Current 4A
  • BEC Voltage 6V/7.4V Adjustable
  • Connector Type IC2
  • LiPo Compatibility 2S, 3S
  • Maximum Continuous Current 30A /80A
  • Motor Size Motor Diameter: 24 mm Length: 45.8 mm
  • Motor Type Brushless
  • Number of Cells 2-3S LiPo, 6-9 Cells NiMH
  • Number of Poles 4
  • Product Application Crawling
  • Product Height 2" (51 mm)
  • Product Length 4.2" (107 mm)
  • Product Weight 2.7oz
  • Product Width 3" (76 mm)
  • RPM/Volt (Kv) 2800Kv
  • Sensored Yes
  • Shaft Diameter 2.3" (58 mm)
  • Shaft Length 0.54" (13.7 mm)
0 stars based on 0 reviews
