Product Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming:
    • Button programming
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • High-power BEC (4 amps at 6V)
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty

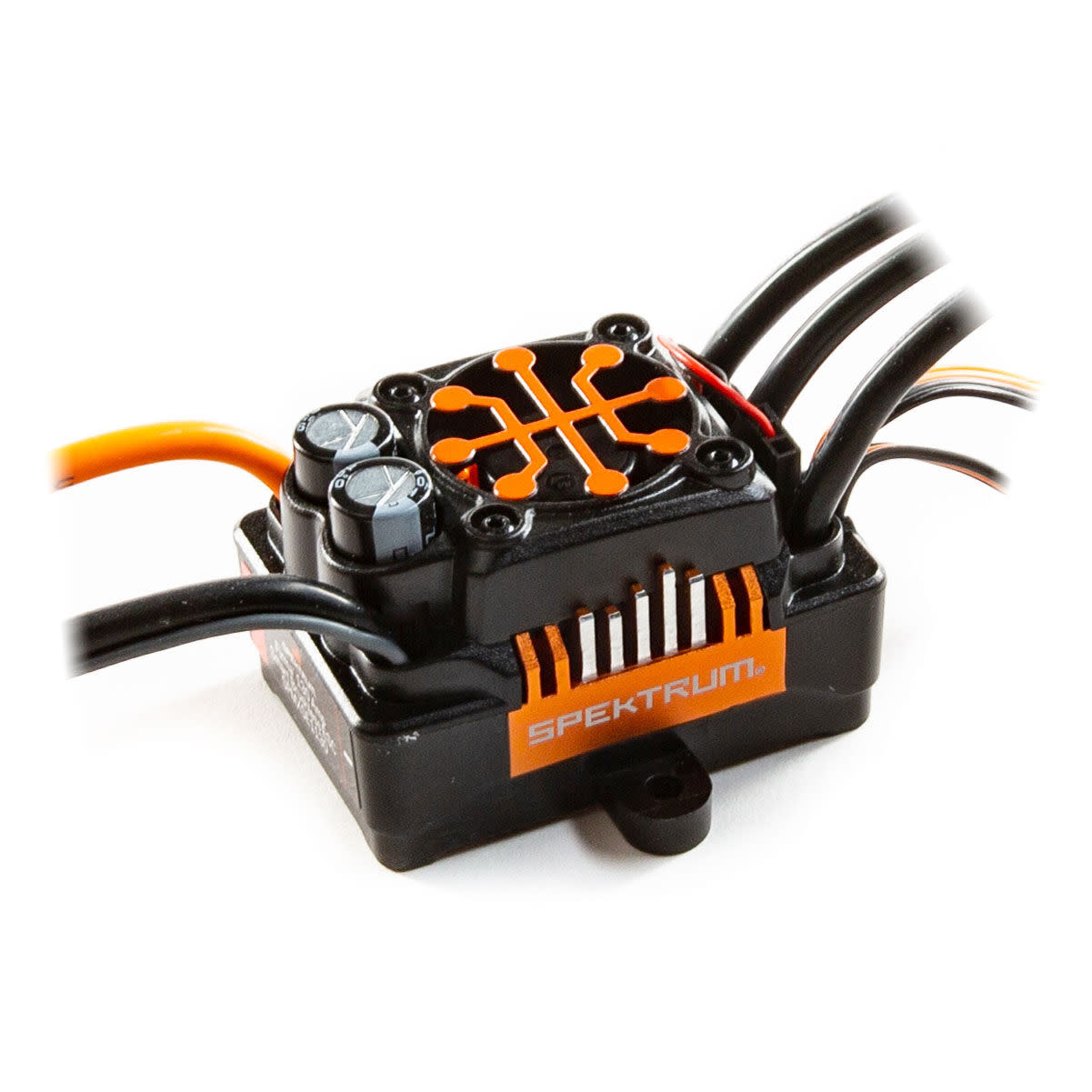

Product Overview

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Needed to Complete
  • Spektrum™ Surface Receiver
  • Spektrum Smart Technology LiPo Battery
  • Spektrum Transmitter
What's in the Box?
  • (1) Spektrum™ Firma™ Smart ESC
  • (1) Spektrum Smart sticker sheet
  • (1) Product Manual

    Specifications

    Amperage  120A or larger
    Application
    Air
    Auto Cutoff
    Yes
    Battery Input Lead
    IC5
    BEC
    Yes
    BEC Continous Current
    8
    BEC Type
    Linear
    BEC Voltage
    6V
    Brakes
    Yes
    Connector Type
    IC5
    ESC Type
    Brushless
    Forward
    Yes
    Input Voltage
    2S - 4S LiPo
    Low-Voltage Cutoff Programmable
    Yes
    Max Input Voltage
    14.8V
    Maximum Burst Current
    760A
    Maximum Continuous Current
    130A
    Motor Output Lead
    4mm
    Output Connector
    4mm Bullet
    Product Application
    Air
    Product Height
    1.5" (38mm)
    Product Length
    2.2" (57mm)
    Product Weight
    4.4oz (126g)
    Product Width
    1.4" (37mm)
    Programming Options
    Button, Programming Box, Smartlink App, On Screen Text Gen
    Reverse
    Yes
    Technology
    Smart
