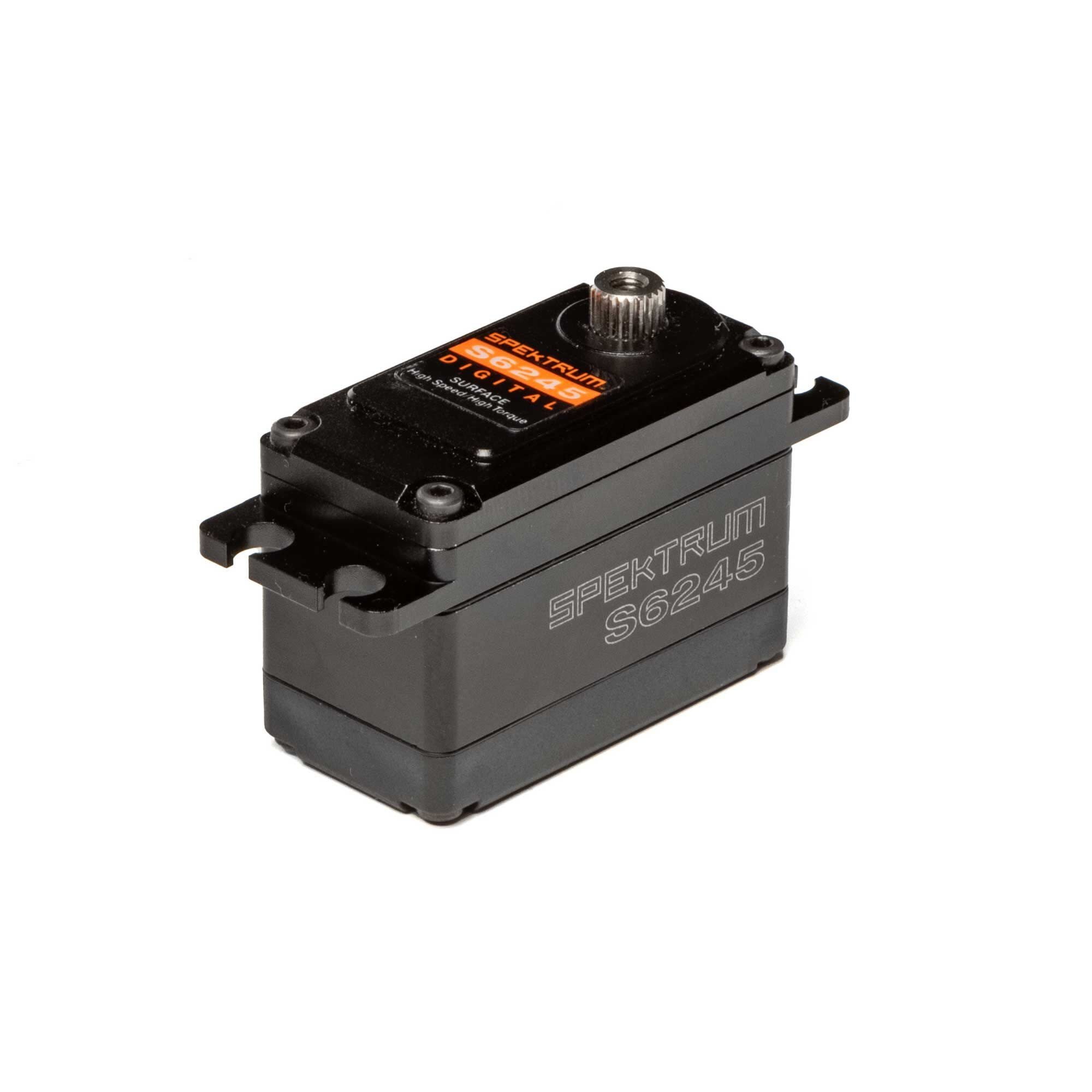

SPMSS6245 S6245 High Speed/Torque Servo
Features
- Stylish stealth black and silver anodized aluminum case*
- Aluminum case provides great heat dissipation
- High Voltage HV compatible (7.4V/2S Max)*
- Improved torque and speed*
- Removable wire harness with different lengths available
- Improved gear design for added durability*
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Includes 2 inch extension for easy minimum wire installs
- Robust aluminum mounting tabs
- NMB dual main output shaft bearings
- 23T output shaft
- Waterproof
- 1-Year Limited Warranty
*Compared to S6240 Racing Servo
Overview
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th scale vehicle application. The S6245 takes the race winning S6240 servo and upgrades it with a sleek, all aluminum, black anodized finish. The low profile design allows for space saving installation, making it the perfect servo for 1/10 racing buggies and trucks, bashers looking to upgrade their RTR vehicle, or for crawlers that need that extra speed and torque to push through demanding terrain.
- Application
- Surface
- Bearing
- Dual
- Bushing Or Bearing
- Bearing
- Connector Wire Length
- 2.0 in (51mm)
- Gear Type
- Metal
- Material
- Metal
- Maximum Servo Torque
- 206 oz-in (14.8kg-cm) @ 6V, 266 oz-in (19.2 kg-cm) @ 7.4V
- Part Type
- Electronics
- Product Application
- Surface
- Product Height
- 1.18 in (30mm)
- Product Length
- 1.61 in (41mm)
- Product Weight
- 2.2oz (62.37g)
- Product Width
- 0.82 in (20.8mm)
- Programmable
- No
- Servo Operating Voltage
- 6.0 - 7.4V (HV)
- Servo Size Category
- Low Profile
- Servo Type
- Digital
- Type
- 6245 1/10
