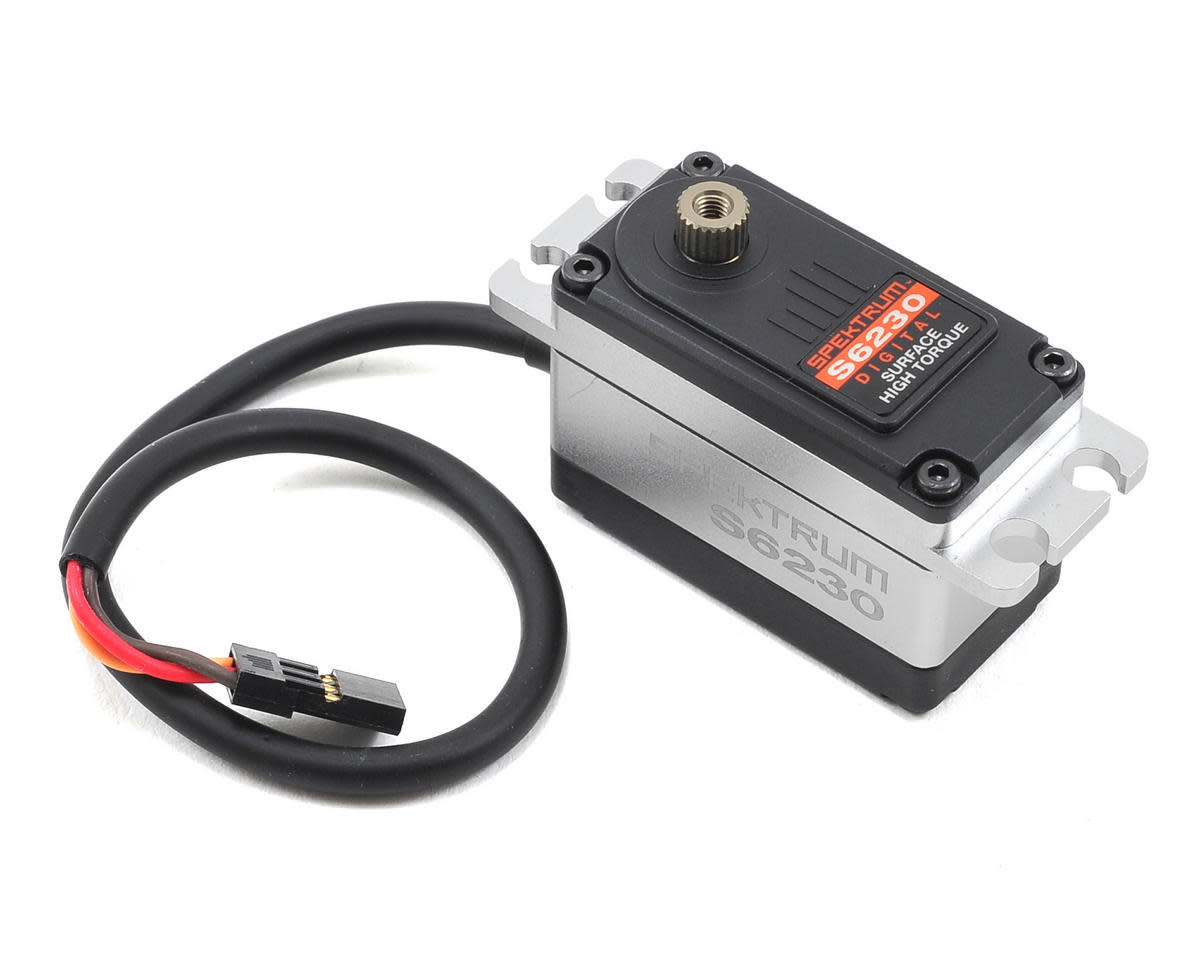

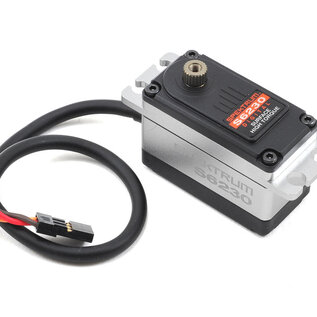

SPMSS6230 S6230 Standard Digital High Torque Metal Gear Surface Servo (Spektrum)

SPMSS6230 S6230 Standard Digital High Torque Metal Gear Surface Servo

Spektrum S6230 servo offers a high-torque solution in a compact form factor for 1/10 class vehicles. For select 2wd and 4wd buggy platforms, a shorty style servo is preferred to allow for extra real-estate to mount electronics in the chassis. Additionally rock crawlers, monster trucks, and touring cars can benefit from this servos smaller than average size.

Key Features:

• Removable wire harness with different lengths available
• 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
• Aluminum case for good heat dissipation
• Aluminum mounting tabs
• NMB dual main bearings
• 23T output shaft

Specifications:

• Size Category: Specialty
• Type: Digital
• Application: 1/10 Buggy, Truck, On-Road
• Torque: 311 oz-in (22.4kg-cm) @ 6.0V
• Speed: 0.14 sec/60 deg @ 6.0V, at no load
• Length: 1.61 in (41mm)
• Width: 0.82 in (20.8mm)
• Height: 1.18 in (30mm)
• Weight: 2.1 oz (59.5g)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Motor Type: Coreless
• Connector Type: Z-connector, removable
• Gear Type: Metal
• Gear Material: Steel, Aluminum
• Current Draw Idle: 9.8 mA @ 6.0V
• Current Draw Stall: 4900mA @ 6.0V
• Voltage: 6.0V
