SPMSA6380 A6380 Standard Digital HV HT HS Metal Gear Aircraft Servo
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | SPMSA6380 |
| Quantity In Stock: | 2 |

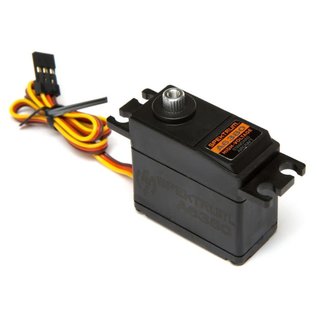

SPMSA6380 A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo
The Spektrum™ A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.
| Application: | Aircraft |
| Bearing: | Dual |
| Bushing Or Bearing: | Bearing |
| Connector Type: | Universal |
| Connector Wire Length: | 11.8 in (299.7mm) |
| Gear Type: | Metal |
| Height: | 1.47 in (37mm) |
| Length: | 1.52 in (39mm) |
| Motor Type: | Coreless |
| Programmable: | No |
| Servo Operating Voltage: | 6.0 - 8.4V (HV) |
| Servo Size Category: | Standard |
| Servo Type: | Digital |
| Speed: | 0.17 sec/60 deg @ 6.0V, 0.13 sec/60 deg @ 8.4V |
| Torque: | 102 oz-in (7.3 kg-cm) @ 6.0V, 160 oz-in (11.5 kg-cm) @ 8.4V |
| Weight: | 1.5 oz (42.5 g) |
| Width: | 0.74 in (19mm) |
| Wire Gauge: | 22 AWG |
