SP-015250-01-4500 Rocket-RC 1/28 Mini-Z SPEC 4500Kv Sensored Brushless Motors 1525 Series (Black)

Part Number: SP-015250-01-4500

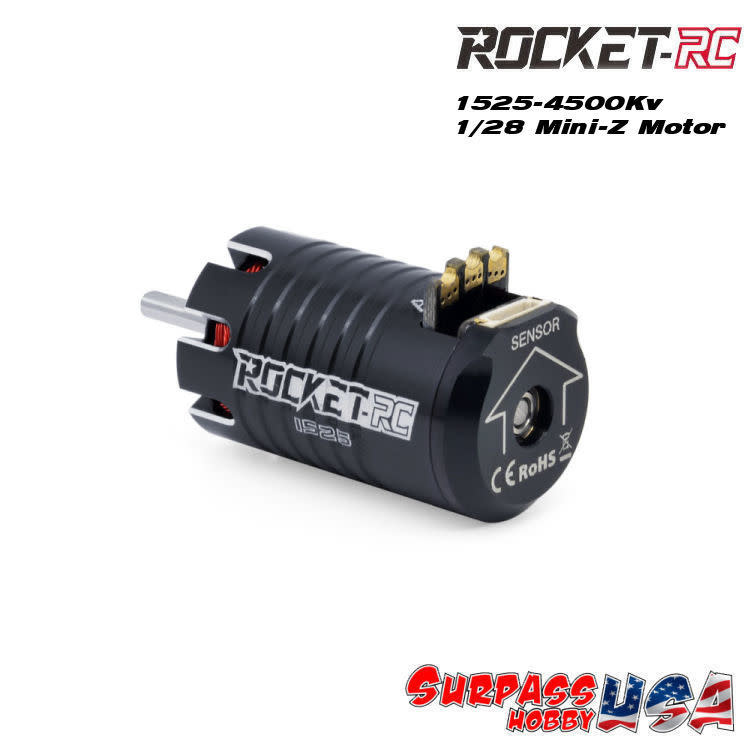

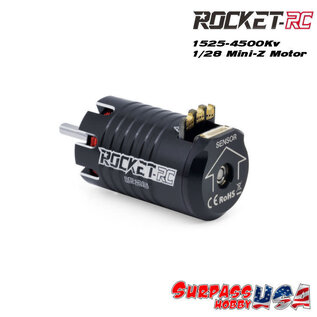

Rocket-RC 1/28 Mini-Z Sensored Brushless Motors 1525 Series (Black)

Excellent Option Part for Kyosho Mini-Z, Atomic, GL Racing, MWX Performance, G-Force, and Reflex Racing

Features:

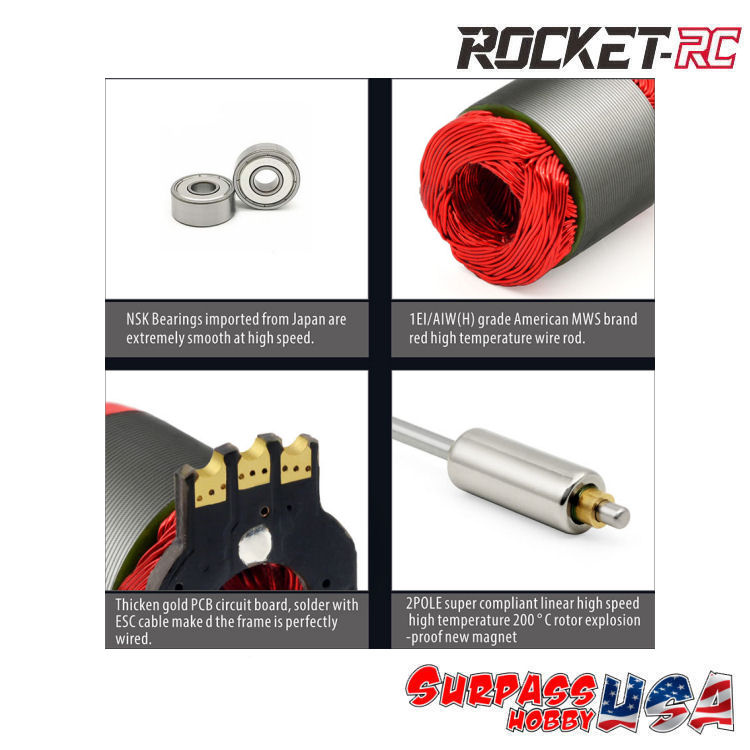

  • Aluminum alloy front end integrated casing design, high-speed operation, stable and reliable
  • 2-Pole linear high-speed, high temperature stable Rotor
  • NSK Japanese bearings for smooth high speed runs.
  • 8 Motor Mounting holes for M2.0 Screws
  • Unique sensored and sensorless dual compatible startup mode
  • Industry standard sensor port (5pin - 0.8 Terminal) is connected with sensor cable

Specifications:
  • Series: 1525 (Designed for 1/28 & 1/24 Cars)
  • Color: Black
  • Kv: 4500
  • Watt: 80
  • Max RPM: 60,000
  • Maximum voltage: 2 Cell LiPo | 8.0v-8.4v
  • Max amps: 4500Kv (9A)
  • Rotor poles: 2
  • Diameter: 15mm
  • Length: 25mm
  • Mounting Screws: 2mm
  • Shaft: 2.0mm
  • Shaft length: 10mm
  • Connector: Solder Tabs
  • Weight: 17g

* Images represent the design and features of the Rocket-RC 1525 Series, select the actual Kv you would like to purchase.
