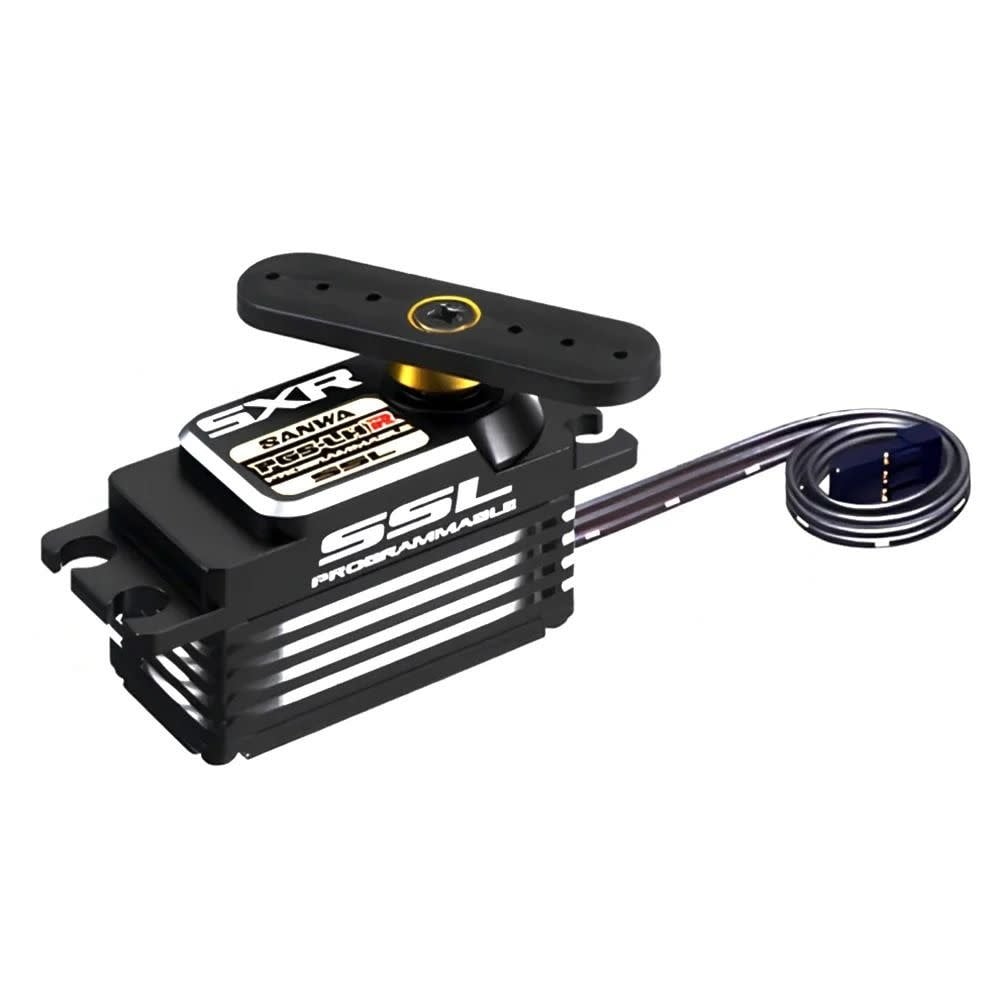

SNW107A54781A PGS-LHR Low Profile SXR Response (0.06s/9.6kg/7.4V)
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | SNW107A54781A |
SNW107A54781A PGS-LHR Low Profile SXR Response (0.06s/9.6kg/7.4V)
●Compatible with SXR response mode
●Compatible with SSL
●SSL-COMPATIBLE PROGRAMMABLE SERVO
●Specialized for 1/10 Electric Touring
(Can used for 1/10 Electric Off-Road)
●PGS-LHR Special Program preinstalled
●Specialized Gear ratio for 1/10 Electric Scale
●Full Aluminium Cases
●Full Metal Gears
●Blushless motor
●Compatible with MULTI SETTING GEAR
*Appearance difference of PGS-LHⅡand PGS-LHR is only nameplate.
| Speed |
0.060 sec / 60° (7.4 V) |
Torque |
9.6 kg・cm (7.4 V) |
| Dimensions |
40.5 x 20.5 x 26.0 mm |
Weight |
53.0 g |
Note
●Programmable Servo to be compatible with SSL & Telemetry at Launch
●Setting Adjustment by wireless from Radio
●Setting Adjustment to connect Servo with Setting Gear
●Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.
# Initial Setting on Setting Gear is necessary.
★Setting Items
●SSL-CH (SSL Channel Setting) ●STRETC (Stretcher Adjustment) ●BOOST (BOOST Adjustment)
●D-Band (Dead Band Adjustment) ●MV-MID (Middle Torque Adjustment)
●MV-END (Later Torque Adjustment) ●BREAK (Break Adjustment)
◎MV-HOLD (Power Adjustment at whole area) ◎MV-FRQ (Feeling Adjustment at whole area)
◎MAX-PW (MAX Duty Adjustment)
※ Setting Gear is necessary for ◎setting.
