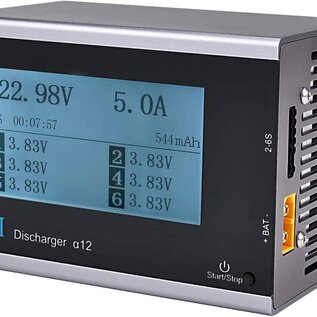

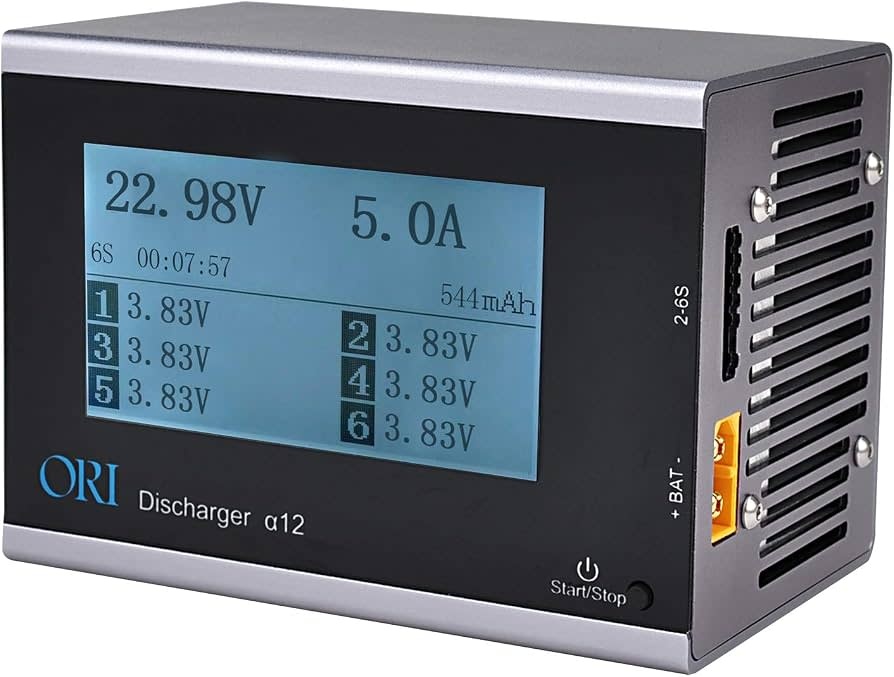

SMCA12 Ori a12 LiPo Storage Discharger 120 Watts | 2-6s 27 Volts Max w/ XT60 Plug (SMC)

SMCA12 Ori a12 LiPo Storage Discharger 120 Watts | 2-6s 27 Volts Max w/ XT60 Plug

$69.99 Excl. tax

*AFFIRM Finance Offer Available on Total Purchases of $149 or More

Delivery time: Ships within 24hrs

Part Number:	SMCA12
Quantity In Stock:	6

SMCA12 Ori a12 LiPo Storage Discharger 120 Watts | 2-6s 27 Volts Max w/ XT60 Plug

About this item

Smart discharge: No need to set and other operations, automatically adjust the current when discharging, auto shutdown after discharging is better to protect the battery and stabilize the voltage.
Fast discharge:The maximum power is up to 120W, which can discharge quickly, support 2S/3S/4S/5S/6S battery, and heat dissipation efficiently.

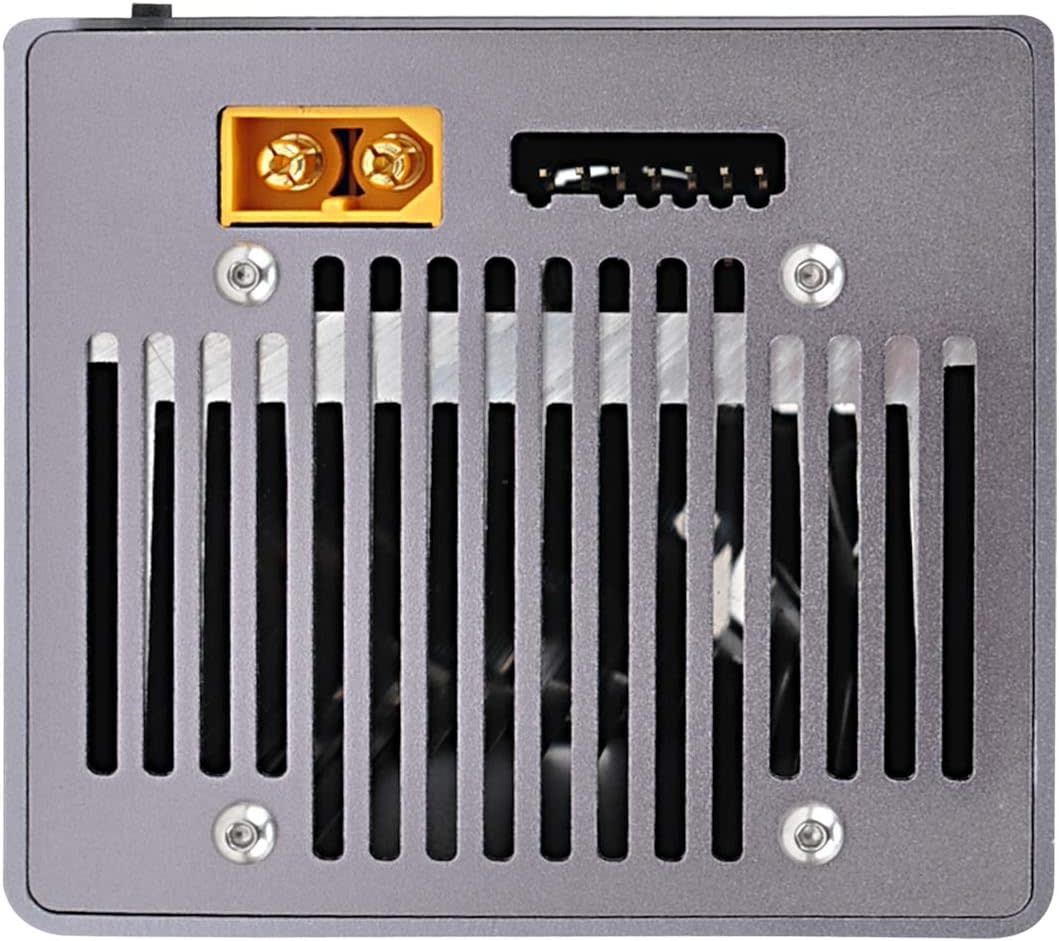

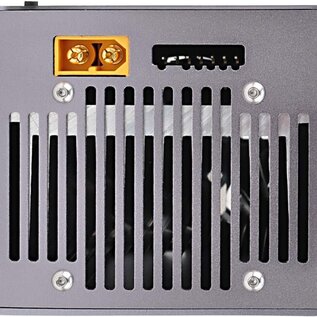

One is equal to two: Which can both discharge intelligently and balance the voltage. The discharger is equipped with XT60 interface to directly connect the battery discharge.

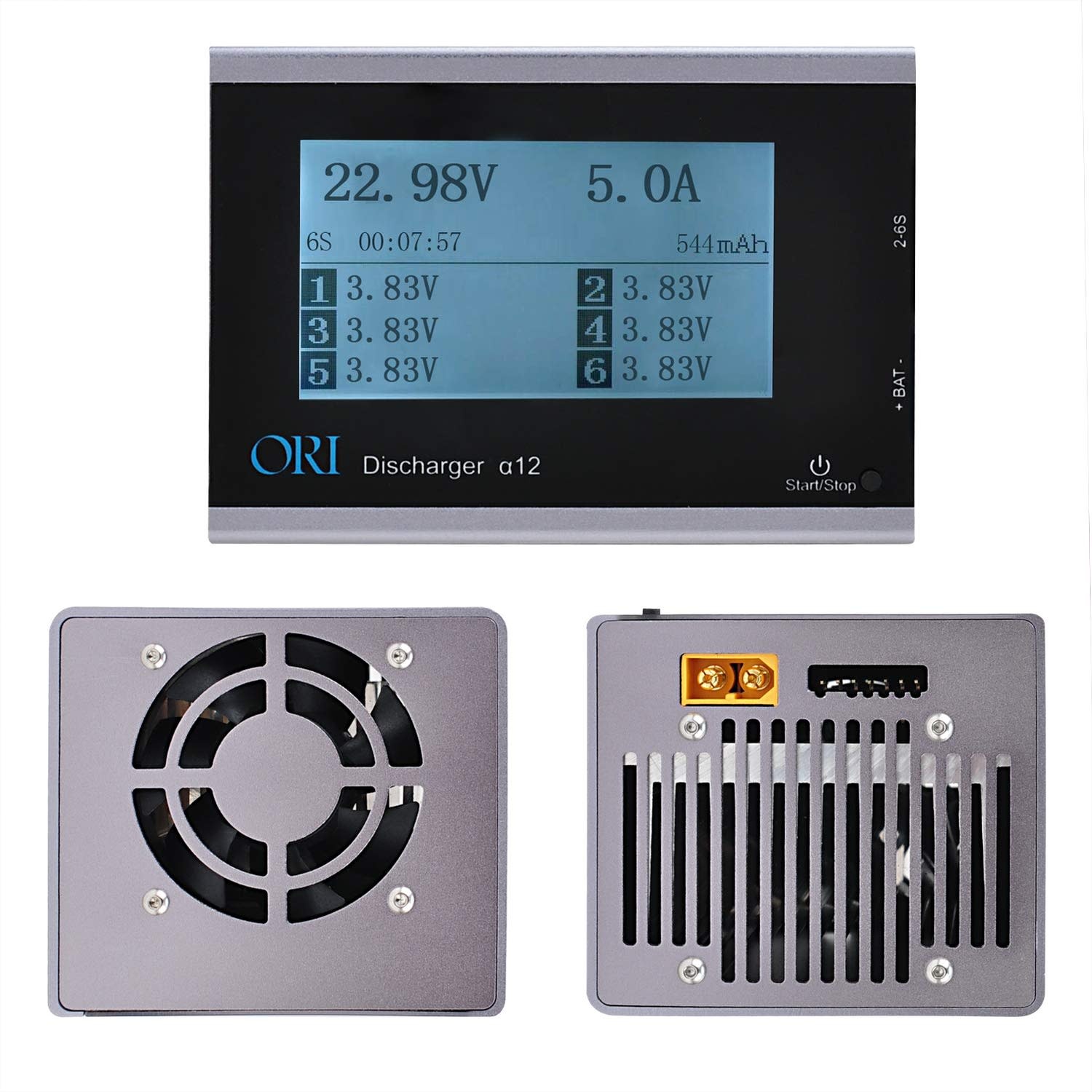

Specification display: Display total voltage, total discharge, discharge current, discharge time, and each battery voltage.
LCD screen:The large 3.2-inch LCD screen shows, the smart identification of which battery is damaged, and the digital flashing on the screen represents the battery is damaged.

Max discharging power	120W
Min input voltage	6V
Max input voltage	27V
Input voltage of each battery	3.8V-4.2V
Support battery type	lipo
Battery voltage abnormal alarm	support
Net Weight	516g

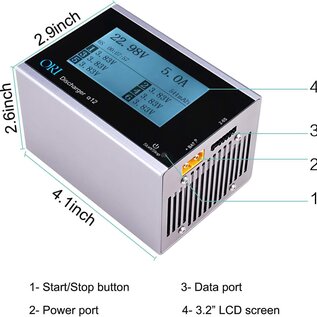

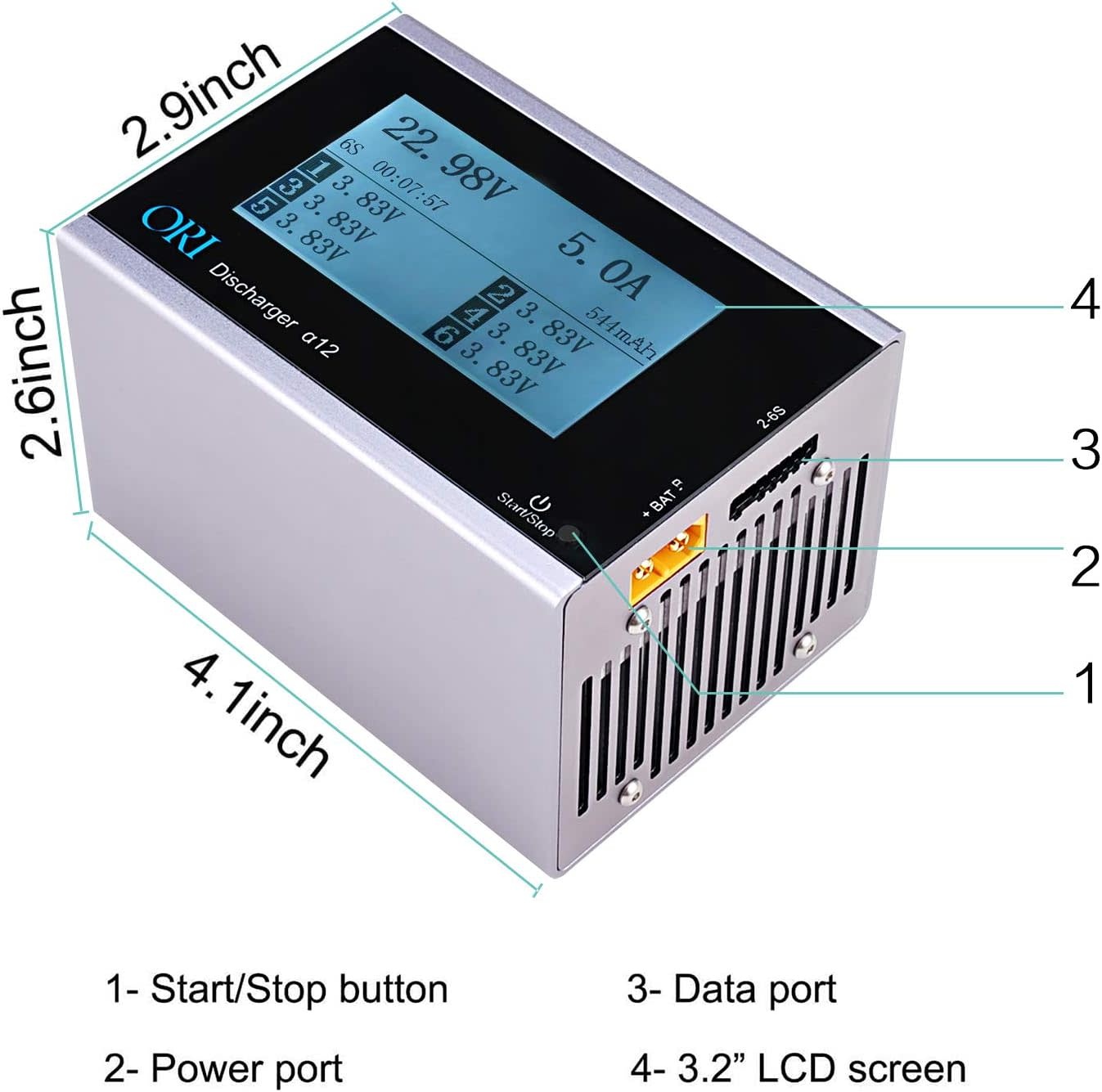

Dimension	1017966mm
Support battery cells	2S-6S
Self-power protection	support
Buzzer Sound Pressure	80dB

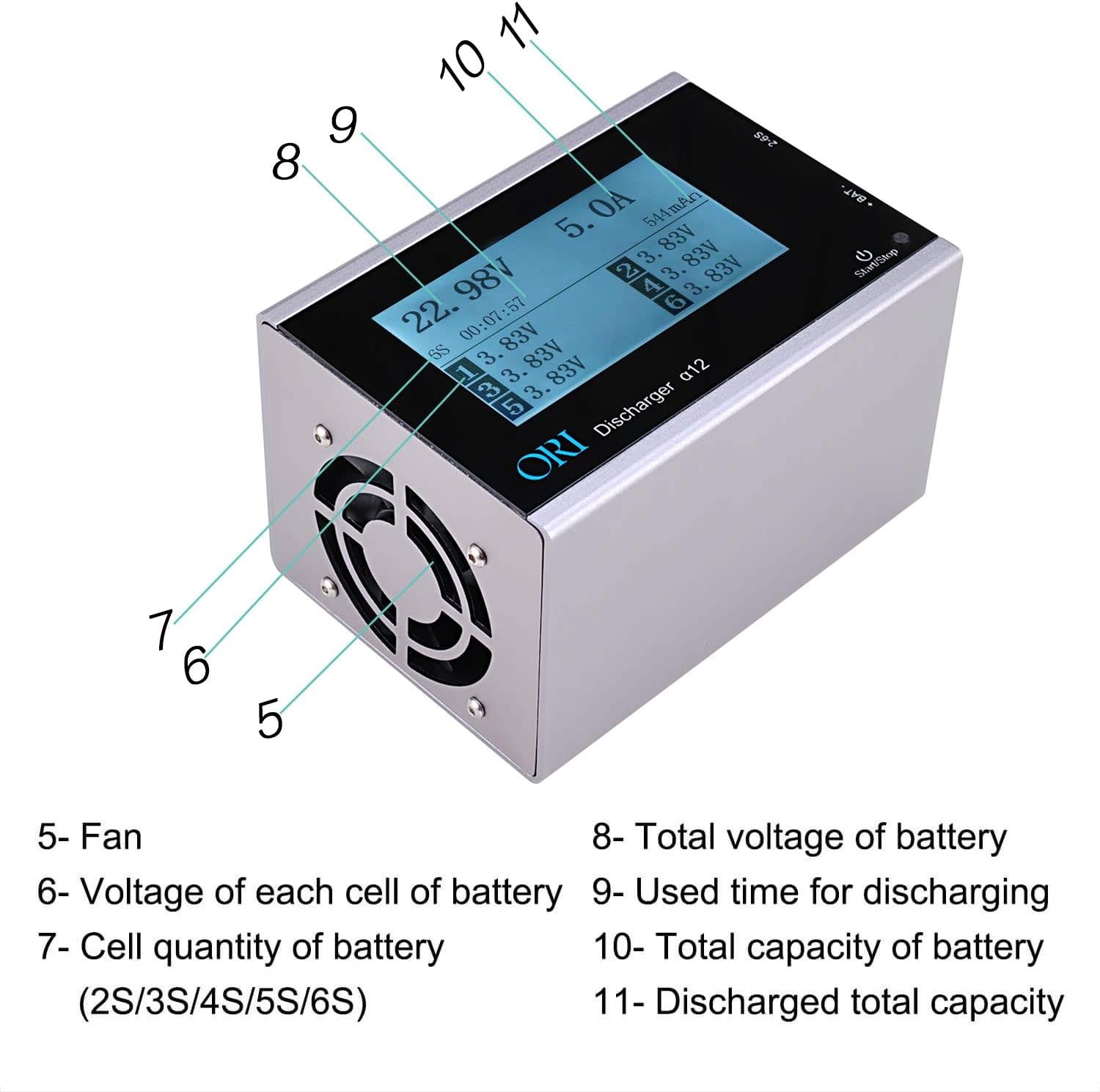

Displays the total voltage, total discharge, discharge current, discharge time and voltage of each battery.

Intelligent discharger for RC power lithium battery.

Support 2 to 8 series 6-35V battery discharge, up to 120W discharge power.

0.5-6A adjustable discharge current, after the discharge automatically powers off, providing better protection of the battery.

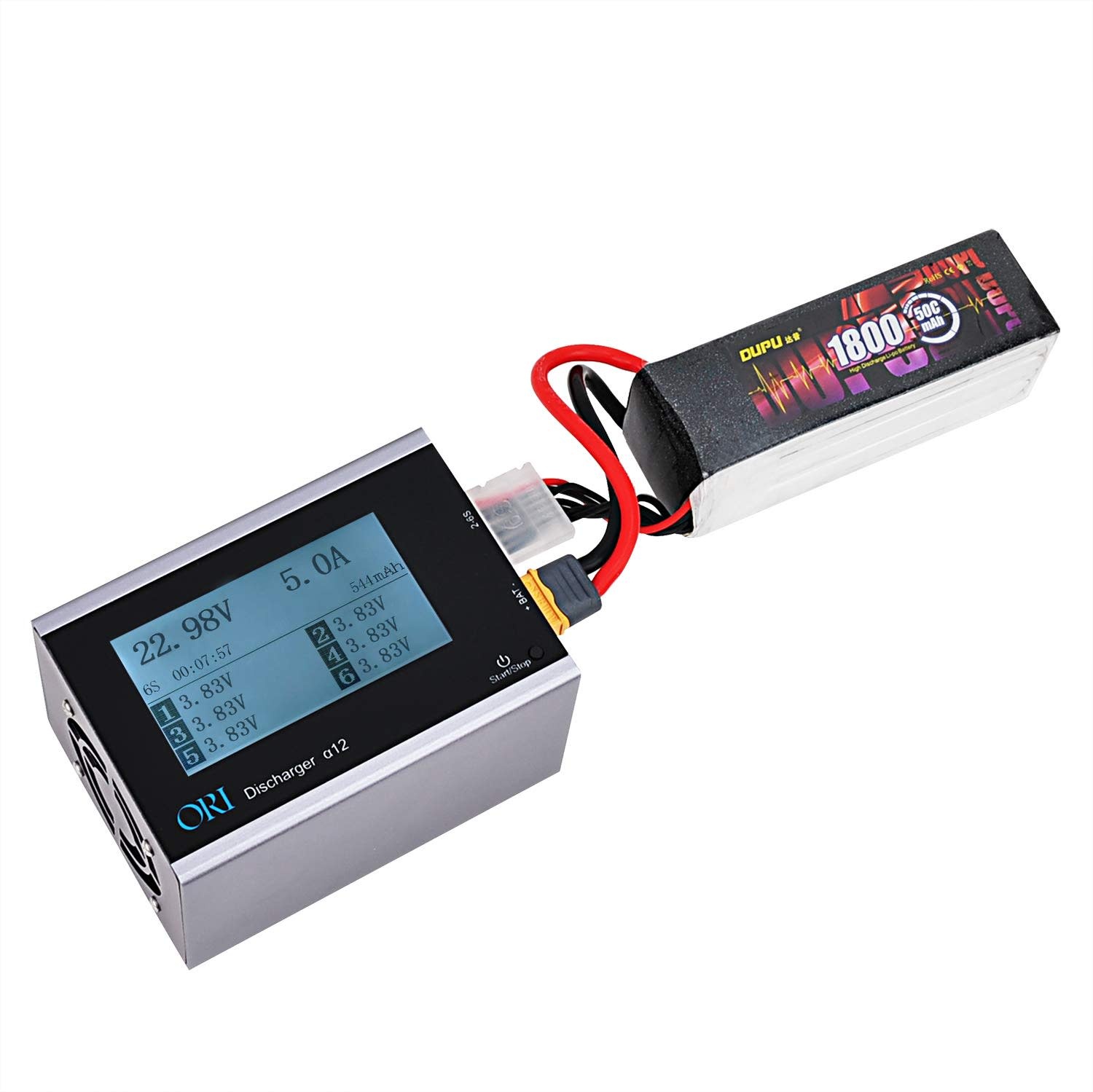

After connecting the main line and the balance line of battery,press the button shortly to switch on the discharger.
Press the button shortly to start discharging,the buzzer will ring 1 time.(If the balance head is not connected or the voltage is not in the normal range,the buzzer will ring 6 times and stop discharging)
When the battery discharges to 3.85v/cell,the buzzer will ring 3 times and the discharge will stop.The screen will display the time of discharge. Press and hold the button for 3 seconds to turn off.If there is no operation,the power will be automatically turned off after 2 minutes.(The default discharge cut-off voltage is 3.85v/cell and balances the voltage of each cell.The error value is within ±0.02v/cell)

(Note: Do not remove the battery directly during the discharge so as to avoid the high temperature and the fan stalling,and damage the product.)
