| Part Number: |
SAVSB-3262SG |
| Quantity In Stock: |
1 |

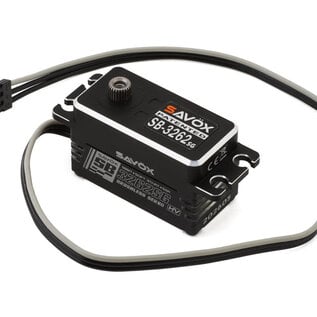

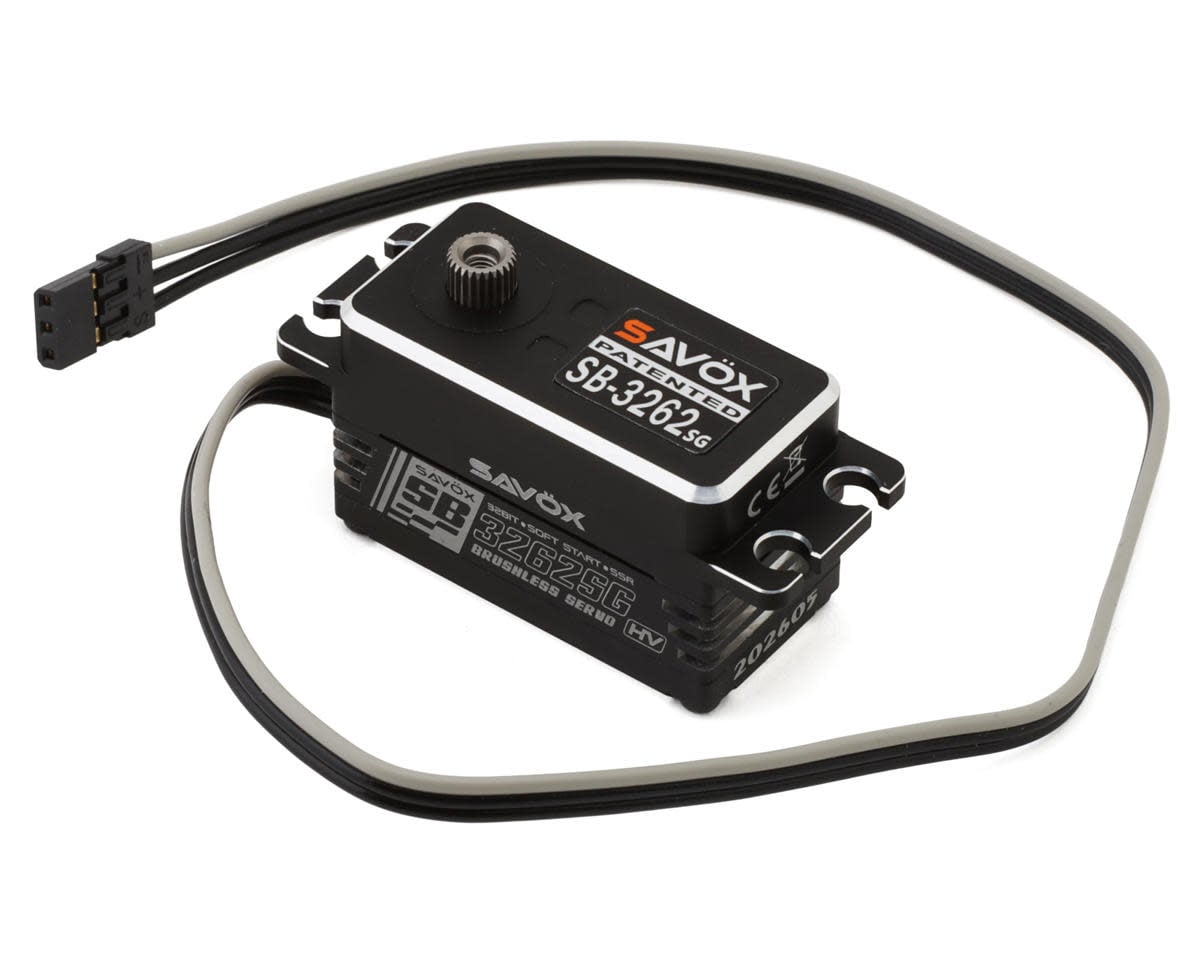

SAVSB-3262SG Digital HV Brushless Steel Gear Servo
The Savox SB-3262SG is a lightweight low-profile digital high-voltage brushless servo designed for demanding RC applications where high torque, fast response and reduced weight are important. With 35.0 kg/cm torque at 8.4V and a speed of 0.065 sec/60° at 8.4V, this servo delivers impressive performance in a compact low-profile format.
The patented lightweight brushless motor provides strong output, high efficiency and cooler operating temperatures compared to conventional motor designs. Combined with digital high-voltage servo technology, the SB-3262SG offers precise positioning, strong holding power and consistent response under load.
The specialized steel gear train is built for strength and long service life, while the full aluminium case provides durability and improved heat dissipation. Thanks to its low-profile design, 25T spline, low weight and water/dust-resistant protection, the SB-3262SG is an excellent choice for weight-conscious racers, 1/10 scale touring cars, buggies, RC cars, aircraft and other demanding applications where power, speed and compact size are essential.
Features:
- Low-profile digital high-voltage brushless servo
- 35.0 kg/cm torque at 8.4V
- Speed 0.065 sec/60° at 8.4V
- Patented lightweight brushless motor for high power and reduced weight
- Digital HV technology for precise and reliable control
- Specialized steel gears for strength and long service life
- Full aluminium case for durability and improved heat dissipation
- Lightweight design, only 53 g
- 2 ball bearings for smooth and stable output support
- Water/dust-resistant protection
- 25T spline output shaft
- Compatible with Sanwa SUR, Sanwa SSR, Futaba UR and Futaba SR
- Ideal for weight-conscious racers, 1/10 scale cars, buggies, touring cars, aircraft and demanding low-profile installations
Technical Specifications:
- Model: SB-3262SG
- Servo Type: Low-profile digital high-voltage servo
- Motor Type: Patented lightweight brushless motor
- Gear Type: Specialized steel gears
- Case Type: Aluminium case
- Operating Voltage: 6.0V – 8.4V
- Torque @ 6.0V: 22.0 kg/cm
- Torque @ 7.4V: 28.0 kg/cm
- Torque @ 8.4V: 35.0 kg/cm
- Speed @ 6.0V: 0.10 sec/60°
- Speed @ 7.4V: 0.08 sec/60°
- Speed @ 8.4V: 0.065 sec/60°
- Quiescent Current: 5 mA
- Rated Current @ 6.0V: 200 mA
- Rated Current @ 7.4V: 220 mA
- Rated Current @ 8.4V: 250 mA
- Blocking Current @ 6.0V: 4500 mA
- Blocking Current @ 7.4V: 5600 mA
- Blocking Current @ 8.4V: 6300 mA
- Protection: Water/dust resistant
- Positioning: VR potentiometer, direct drive
- PCB Board: 32-bit
- Bearings: 2x ball bearings
- Spline: 25T, 6.0 mm
- Dimensions: 40.8 x 20.2 x 25.75 mm
- Weight: 53 g
- Compatibility: Sanwa SUR, Sanwa SSR, Futaba UR, Futaba SR
- Connector: JR universal connector with coloured lead
- Cable Length: 300 ±5 mm
- Operating Temperature: -10°C to 50°C
Packaging Content:
- 1x Savox SB-3262SG digital high-voltage brushless servo
- Standard servo mounting hardware
- Standard servo accessories
