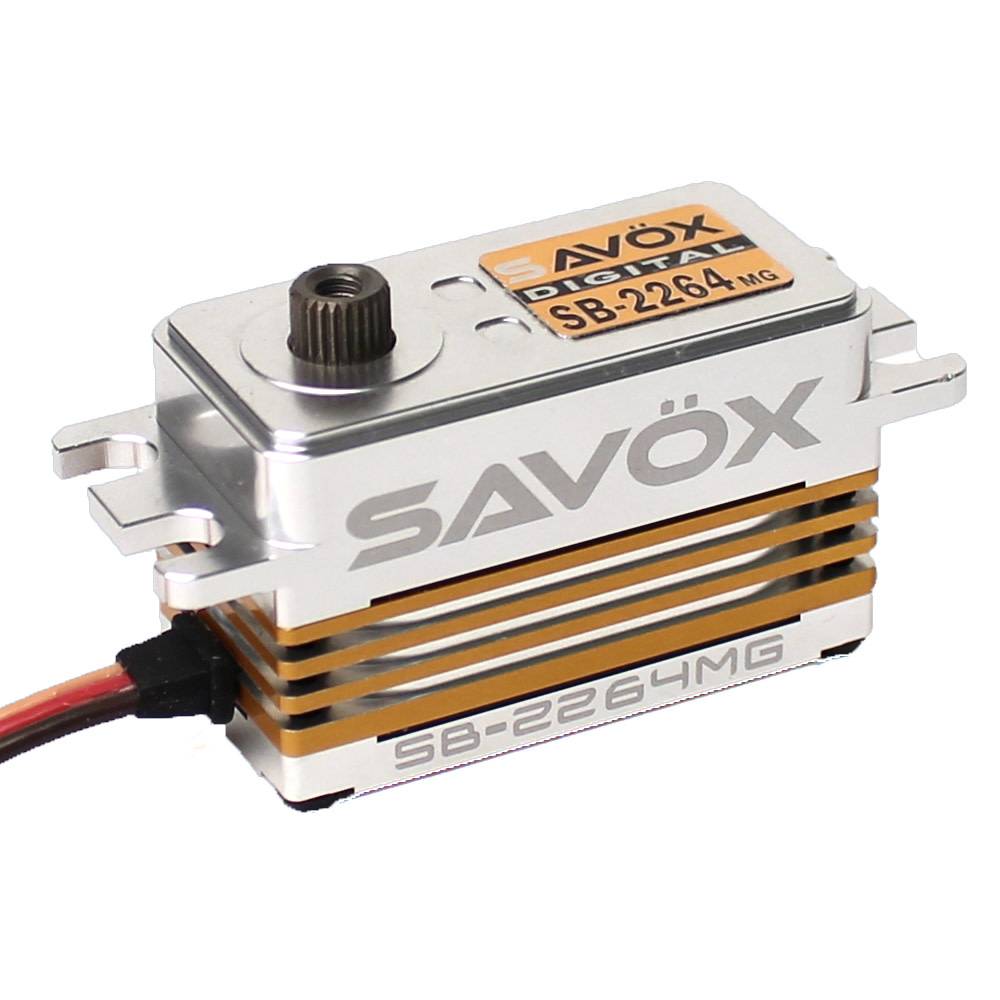

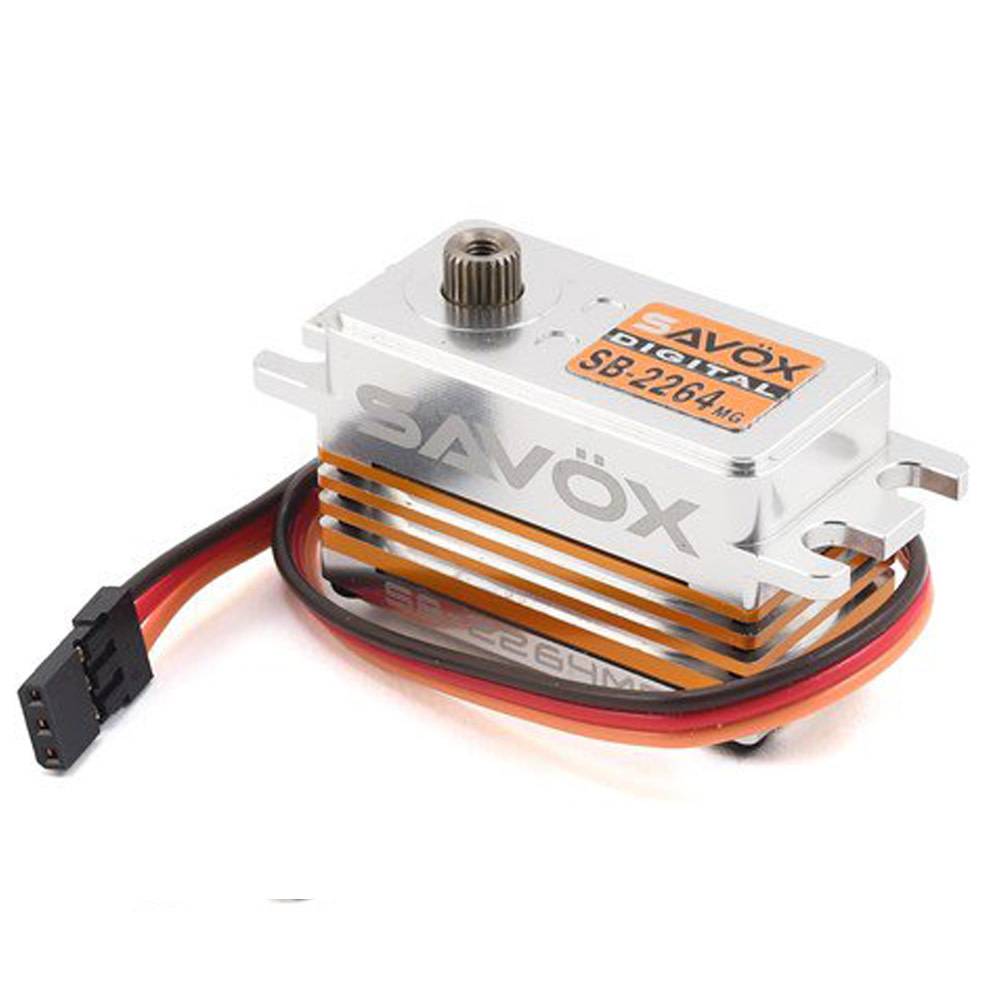

SB2264MG Low Profile High Voltage Brushless Servo .085/208.3 @ 7.4V
The Savox SB-2264MG is a low-profile, high-speed digital servo built for racers who need quick response, reliable durability, and a compact footprint. Featuring a brushless motor, full aluminum case, and metal gears, this servo delivers precise control and dependable performance for 1/10 scale on-road, off-road, and helicopter applications.
Designed with a low-profile form factor, the SB-2264MG is ideal for vehicles where space is limited without sacrificing performance. Its fast transit speed and compact dimensions make it a great choice for competitive applications that demand responsive steering and precise handling.
The high-efficiency brushless motor provides smooth operation, increased reliability, and cooler running temperatures compared to traditional brushed servos. This design helps improve long-term performance while maintaining consistent speed and accuracy during extended use.
A full aluminum case improves strength and heat dissipation while the precision metal geartrain is engineered to withstand the demands of racing and high-performance driving. Together, these components provide a rigid, durable platform for consistent control under load.
| Application | 1/10 |
|---|---|
| Operating Voltage | 6.0-7.4V |
| Operating Temperature | - |
| Operating Speed @ 6.0V | 0.011sec/60° sec |
| Operating Speed @ 7.4V | 0.08sec/60° sec |
| Dynamic Torque @ 6.0V | 166.8oz-in (12.0 kg-cm) |
| Dynamic Torque @ 7.4V | 208.3oz-in (15.0 kg-cm) |
| Motor Type | Brushless |
| Output Shaft | 25T |
| Gears | Steel |
| Weight | 2.0oz (57g) |
| Dimensions | 1.6x0.7x1.0in (40.8x20.2x25.4mm) |
