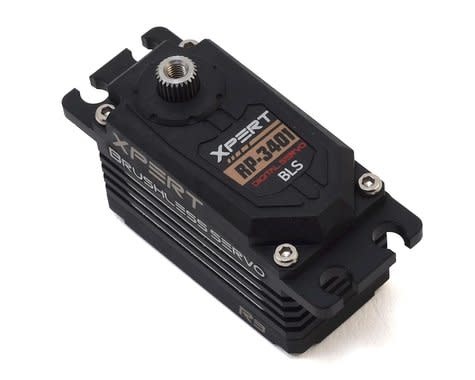

RP-3401 R3 Quick Release High Speed Low Profile Brushless Servo (High Voltage)
Xpert R3 Quick Release High Speed Low Profile Brushless Servo
Features:
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption with 200+ oz-in torque
- Quick release connector for easy wiring
- Plastic upper and lower case with center aluminum design
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- All Aluminum case for the best thermal dissipation and durability.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
- Sanwa SSR mode compatible
Specifications:
- Dimensions: 40.8 x 20.2 x 26.8mm
- Frequency: 200/333 Hz
- Range: 50~400 Hz
- Center Position: 1520us
- Speed:
- @4.8V: .095sec/60°
- @6.0V: .070sec/60°
- @6.6V: .063 sec/60°
- Torque:
- @4.8V: 147.57oz-in /10.63 kg-cm
- @6.0V: 208.20 oz-in/15.00 kg-cm
- @6.6V: 229.02oz-in/ 16.5 kg-cm
