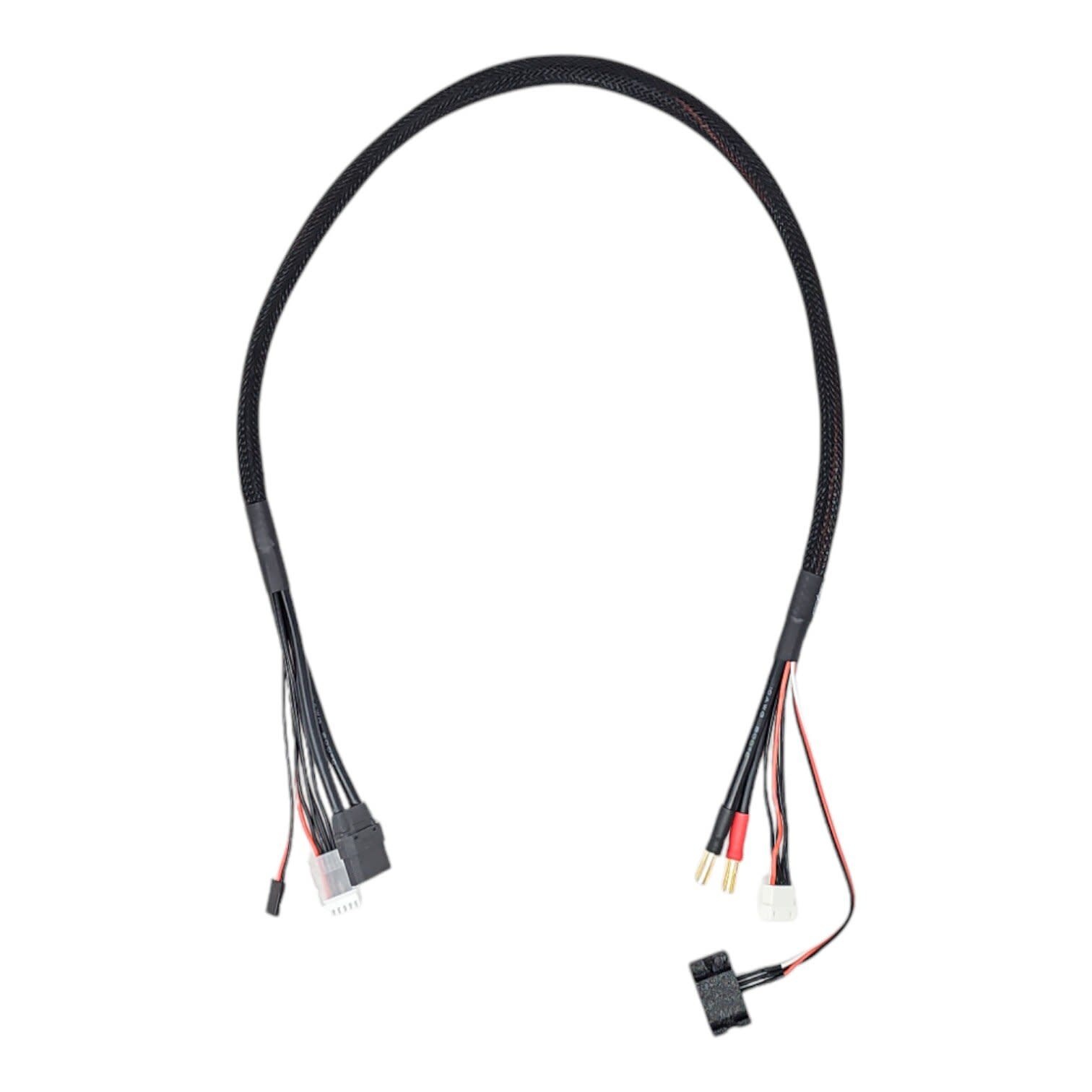

RCD-4S45A-XT90-5MM-TS 4S 45A Charge Cable (XT90 to 5mm) with Temperature Sensor (RC DISCHARGER)

RCD-4S45A-XT90-5MM-TS 4S 45A Charge Cable (XT90 to 5mm) with Temperature Sensor

4S 45A Charge Cable (XT90 to 5mm) with Temperature Sensor

4S 45A Charge Cable performance matters when you push high-amp charging at the track. Therefore, this cable adds smarter protection without slowing you down.

4S Optimized | Integrated Temperature Sensor

High-voltage power with intelligent safety. Moreover, the RC Discharger 4S 45A Charge Cable leads its class with an Integrated Temperature Sensor. Specifically, it targets high-power 4S LiPo and LiHV packs for racing and bashing. As a result, your charger can track pack temperature in real time while you charge hard.

Why it matters for 4S charging

First, high current creates heat fast, especially with tight pit schedules. However, heat often causes puffing, early voltage sag, and short pack life. Therefore, a temperature-aware cable helps you tune charge rates with confidence.

In addition, thicker wire cuts resistance and reduces voltage drop under load. Consequently, your charger spends less time fighting losses and more time delivering usable power.

Why It’s a Must-Have for Your 4S Setup:

• Integrated Temperature Sensor: Above all, this adds a direct safeguard during 4S charging. Additionally, you can watch pack heat through the cable to prevent overheating and refine charge profiles for longer battery life.
• Massive 45A Current Capacity: Notably, the cable handles demanding 4S packs with ease. Consequently, the 45 Amp rating reduces bottlenecks and cuts time at the pit table.
• Heavy-Duty 10AWG Construction: Furthermore, ultra-low resistance 10AWG silicone wire boosts conductivity and limits voltage drop during high load charging.
• Pro-Level Build Quality: Similarly, high-end soldering at every connection helps the cable handle heat and constant use throughout a busy season.
• Secure XT90 & 5mm Connectivity: Next, the rugged XT90 charger connector and precise 5mm bullets deliver a firm, reliable connection.
• Extended 32-Inch Length: Finally, the 32-inch length gives you flexible routing on crowded benches and pit tables.

Performance Specs at a Glance

• Battery Type: Specifically optimized for 4S LiPo / LiHV packs.
• Max Current: Rated for up to 45 Amps.
• Wire: Premium 10AWG high-strand count silicone.
• Safety: Built-in Temperature Probe.
• Connectors: XT90 (Charger side) / 5mm Bullet (Battery side).
• Length: 32 Inches (80cm).

Smart safety tips for better results

For example, start with a conservative charge rate and watch temperature rise. Then, increase current only when temps stay stable. Moreover, keep connectors clean and fully seated to avoid extra heat.

Additionally, review safe handling basics for lithium polymer battery safety and care before charging at high amps. Consequently, you reduce risk and improve consistency.

Power Your Passion

When you use RC Discharger cables, you run gear shaped by racers who live at the track. Ultimately, this setup helps you charge faster, manage heat, and protect your 4S packs for the next run.
