R1-900099 Mi9 Titanium Top Deck/Shock Tower Ultra Low Profile Screw Set (R1wurks)

R1-900099 Mi9 Titanium Top Deck/Shock Tower Ultra Low Profile Screw Set

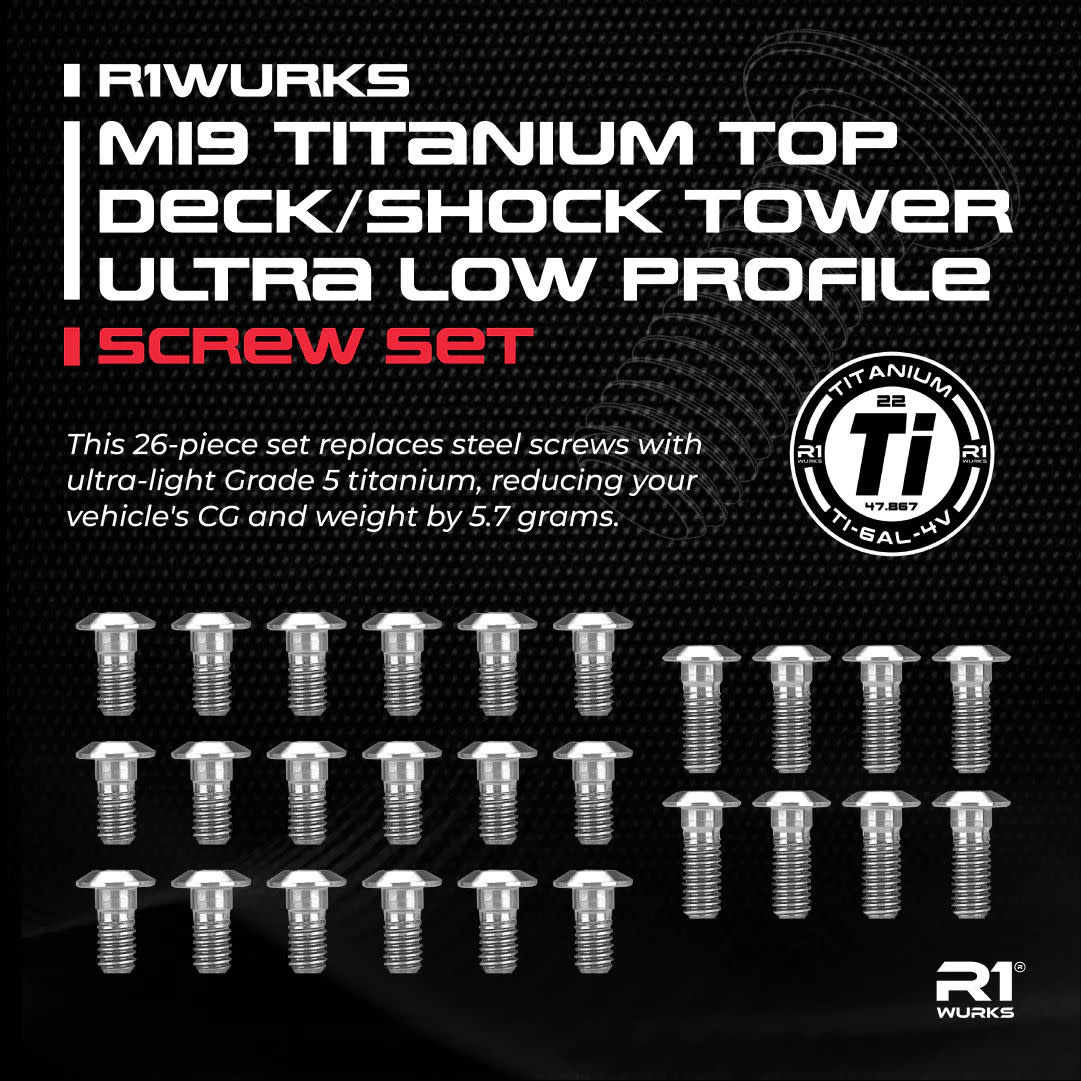

This 26-piece set replaces the upper steel button head screws with ultra lightweight, high quality Grade 5 (6Al-4V) titanium screws. This set will lower the CG of your vehicle with a weight reduction of approximately 5.7grams.

Features and Specifications:

• In-house ultra-high precision swiss machining
• High-strength grade 5 (Ti-6Al-4V) titanium
• Tight tolerance hex broaching
• Cold-formed threads for improved grain structure and increased material hardness
• Ultra lightweight head design
• Reduced center of gravity
• M3x6 weighs 0.032g, approximately 46.51% lighter than the steel equivalent screw
• M3x8 weighs 0.278g, approximately 49.11% lighter than the steel equivalent screw
• This screw set removes approximately 5.744g of weight.

Kit Includes:

M3x6mm ULP (Ultra Low Profile) Button Head Screws (18pcs)

M3x8mm ULP (Ultra Low Profile) Button Head Screws (8pcs)

Where Used:

Please refer to the manufacturer's manual for details on where each screw is used, with corresponding page numbers and steps provided below.

M3x6mm ULP (Ultra Low Profile) Button Head Screws (18pcs)

• x4 Front and rear shock towers – Page 7, Step 6a and Step 6b
• x10 Top Deck Screws – Page 8, Step 6c
• x4 Upper front link mount – Page 10, Step 7b

M3x8mm ULP (Ultra Low Profile) Button Head Screws (8pcs)

• x4 Upper rear link mount – Page 10, Step 7b
• x4 Upper shock mounting – Page 24, Step 21

These screws are precision broached to ensure the tightest fit with hex tools. However, this fit is only as reliable as the tools used. For lasting hex-to-tool engagement, always use sharp, precision tool tips made from high-speed steel.
