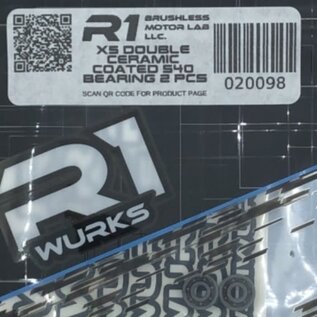

R1-020098 R1 X5 Double Ceramic Coated 540 Bearing Balls (2pcs) (R1wurks)

R1-020098 R1 X5 Double Ceramic Coated 540 Bearing Balls (2pcs)

Part Number: R1-020098
Quantity In Stock: 4

R1-020098 R1 X5 Double Ceramic Coated 540 Bearing Balls (2pcs)



ITEM# 020098





Upgraded 540 motor endbell bearings with 10X Double Ceramic coating & Si3N4 Balls .

Double Ceramic (ceramic coated) 540 Motor Bearing  (R2 ⅛ x ⅜ x 5/32)

Both the inner and outer races are hardened bearing steel, coated with our super slippery proprietary Double Ceramic (ceramic coating), resulting in 10x less friction than the low friction silicon nitride.The balls are Silicon Nitride. (Si3N4)  80% less friction and 40% less weight relative to steel.  This bearing uses a custom molded cage (the part that houses the balls) designed to retain lubrication and minimize vibration at high RPM. This is further optimized by employing a material called PEEK (polyetheretherketone), an ultra hard plastic retaining high tensile strength at temperatures as high as 400℉. This means that the cage won't break down due to the heat created when spinning at high RPM. It also utilizes a shield on one side, further reducing friction while still allowing lubrication retention and protection from debris. Altogether, every single part and surface have been re-designed to create the most precise, fastest, lowest friction bearing we can build. This bearing has significantly less friction even when compared to our full ceramic bearings.

Construction
Full ceramic balls and ceramic coated stainless steel inner and outer races.

Features
Black in color
Increased motor efficiency and RPM
PEEK cage
Silicon Nitride construction

To increase the life of this bearing it is recommended to lubricate the bearing everyday it is used, and also do not clean with any acetone based cleaners. We recommend using isopropyl alcohol to clean.
