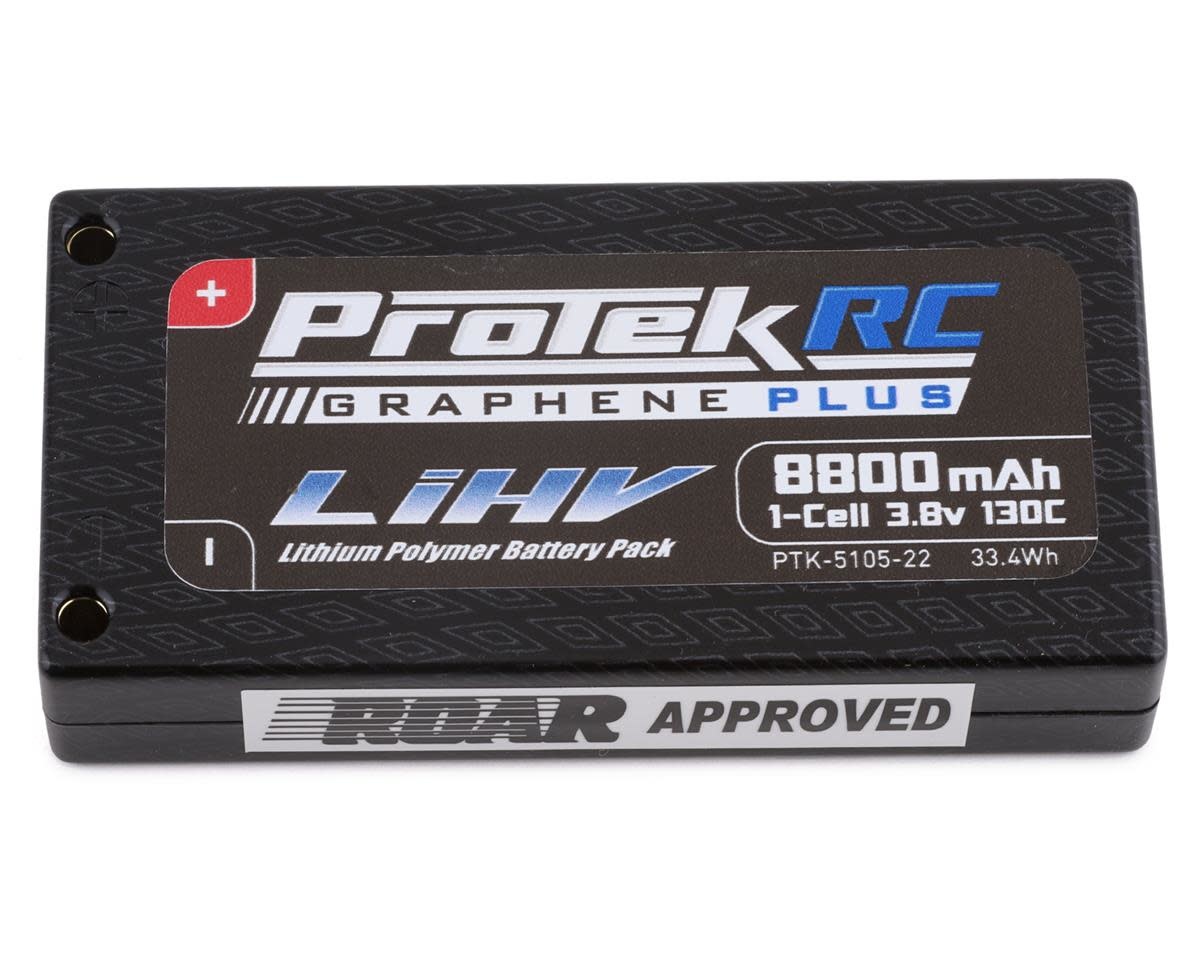

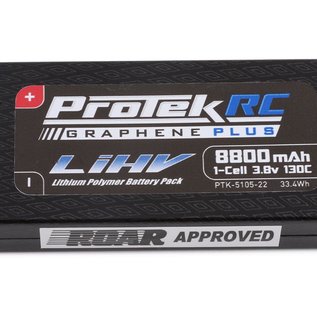

PTK-5105-22 ProTek RC 1S 130C Low IR Si-Graphene + HV LiPo Battery (3.8V/8800mAh) w/4mm Connectors (ROAR Approved) (Protek RC)

PTK-5105-22 ProTek RC 1S 130C Low IR Si-Graphene + HV LiPo Battery (3.8V/8800mAh) w/4mm Connectors (ROAR Approved)

$59.99
$56.99 Excl. tax

*AFFIRM Finance Offer Available on Total Purchases of $149 or More

Delivery time: Ships within 24hrs
Part Number: PTK-5105-22
Quantity In Stock: 3

PTK-5105-22 ProTek RC 1S 130C Low IR Si-Graphene + HV LiPo Battery (3.8V/8800mAh) w/4mm Connectors (ROAR Approved)



The ProTek R/C 1S 130C Graphene + HV 8800mAh LiPo Battery is a great battery option for any racer looking for a lightweight, 1S battery. Weighing 155 grams, the 8800mAh capacity 1S HV offers huge current delivery that provides the punch needed for demanding 1S classes.

When compared to standard LiPo and LiHV, Silicon Graphene cells deliver improved efficiency, lower operating temperatures, lower internal resistance, better run time, increased cycle life and increased voltage - but Graphene + 130C LiPo batteries take that a step further with more power and lower internal resistance when compared to the previous ProTek LiHV Graphene packs!

Lab testing has shown that ProTek R/C Silicon Graphene packs have double the cycle life when charged at 1C rates, and can be charged at higher amp rates, with less risk of damage to the pack. More importantly, the discharge curve is flatter, meaning the cells maintain higher voltage throughout the discharge cycle with no significant drop off. Additionally, when compared to conventional LiPo batteries Silicon Graphene batteries are lighter, providing a higher capacity per gram ratio. With 3.7V nominal voltage, 130C discharge ratings, incredibly high charge rates and ten different models to choose from, ProTek R/C 130C Graphene + packs are perfect for racers and bashers that demand the absolute best.

Features:

  • Lighter and more capacity than standard 1S packs

  • Delivers high current rates necessary for demanding 1S classes

  • Improved power to weight ratio and a lower overall CG

  • Silicone Graphene can handle more abuse and deliver more current than a standard LiPo battery

  • Improved efficiency, lower operating temperatures, and lower internal resistance!

  • Increased run time, increased cycle life and increased voltage!

  • More capacity gram for gram when compared to standard LiPo cells

  • 10C max charge rates - 1C charge rate recommended for longest life

  • 3.8V nominal voltage

  • 4mm bullets included

NOTE: While these batteries are LiHV cells, they can still be charged the same as a standard LiPo with a standard LiPo charger. The overall voltage and capacity will be slightly less than when charged to LiHV specs, but the performance will be better than a standard LiPo thanks to the flat discharge curve, reduced weight and low internal resistance. When charged to 4.2V, these packs will still offer a noticeable advantage when compared to a standard LiPo pack.









Battery Model

1S HV Shorty

ROAR Approved

Yes

Type

Silicon Graphene

Voltage

3.8V nominal

Capacity @7.4V

7900mAh

Capacity @7.6V

8200mAh

Weight

155g

Connector Type

4mm Bullet

Balance Connector

N/A

Number of Cells

1 Cell

Configuration

1S2P

Dimensions (WxLxH)

47x93x18.5mm

Maximum Charge Rate

10C (88A)

Burst Discharge

130C

Watt Hour @7.6V

33.4 Wh



View Manual Icon small Warranty Info Icon small



Includes:

  • (1) ProTek R/C Battery

  • (2) 4mm Bullet Connectors

  • (1) 2mm Balance Bullet Connector
