PTK-165S 165S Standard Digital "Super Speed" Metal Gear Servo
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | PTK-165S |

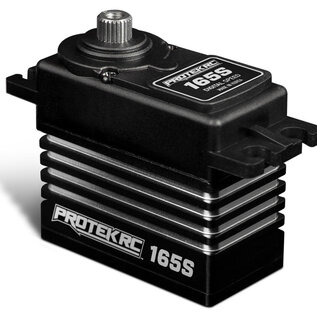

PTK-165S 165S Standard Digital "Super Speed" Metal Gear Servo
Need blazing-fast steering response in a dependable, budget-friendly package? The ProTek R/C 100SS Digital Super Speed Servo delivers quick, precise control, metal-gear durability, and proven ProTek performance for 1/10 scale on-road and off-road vehicles. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
The ProTek R/C 100SS Digital Super Speed Metal Gear Servo delivers quick steering performance with a 0.09-second transit speed and 168 oz-in of torque at 6.0V. Designed for 1/10 scale on-road and off-road vehicles, it provides fast, precise control for racers and enthusiasts.
Building on the trusted ProTek R/C PTK-100SS Digital "High Torque" Servo, the 100SS is a refined upgrade focused on speed, durability, and value. Its full metal gear train, dual ball bearings, cored motor, and aluminum middle case deliver smooth operation and dependable performance.
The 100SS combines ProTek quality with an accessible price point, making it an excellent choice for drivers seeking fast response without overspending. With gold-plated connectors, a 200mm 22awg wire, and Lifetime Gear Warranty backed by AMain Hobbies, it is built for reliable performance run after run.
| Application | 1:10 On-Road & Off-Road |
|---|---|
| Operating Voltage | 4.8V - 6.0V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 4.8V | 0.11/60° sec |
| Operating Speed @ 6.0V | 0.09/60° sec |
| Dynamic Torque @ 4.8V | 134 oz-in (9.6 kg-cm) |
| Dynamic Torque @ 6.0V | 168oz-in (12.1 kg-cm) |
| Motor Type | Cored DC |
| Output Shaft | 25T |
| Gears | Metal w/Lifetime Gear Warranty |
| Weight | 1.93oz (54.9g) |
| Pulse/Frequency | 1520s / 333hz |
| Dimensions | 1.55x1.51x0.78in (39.50x38.6x20mm) |
| Length (Bottom to Mount) | 1.04in (26.6mm) |
