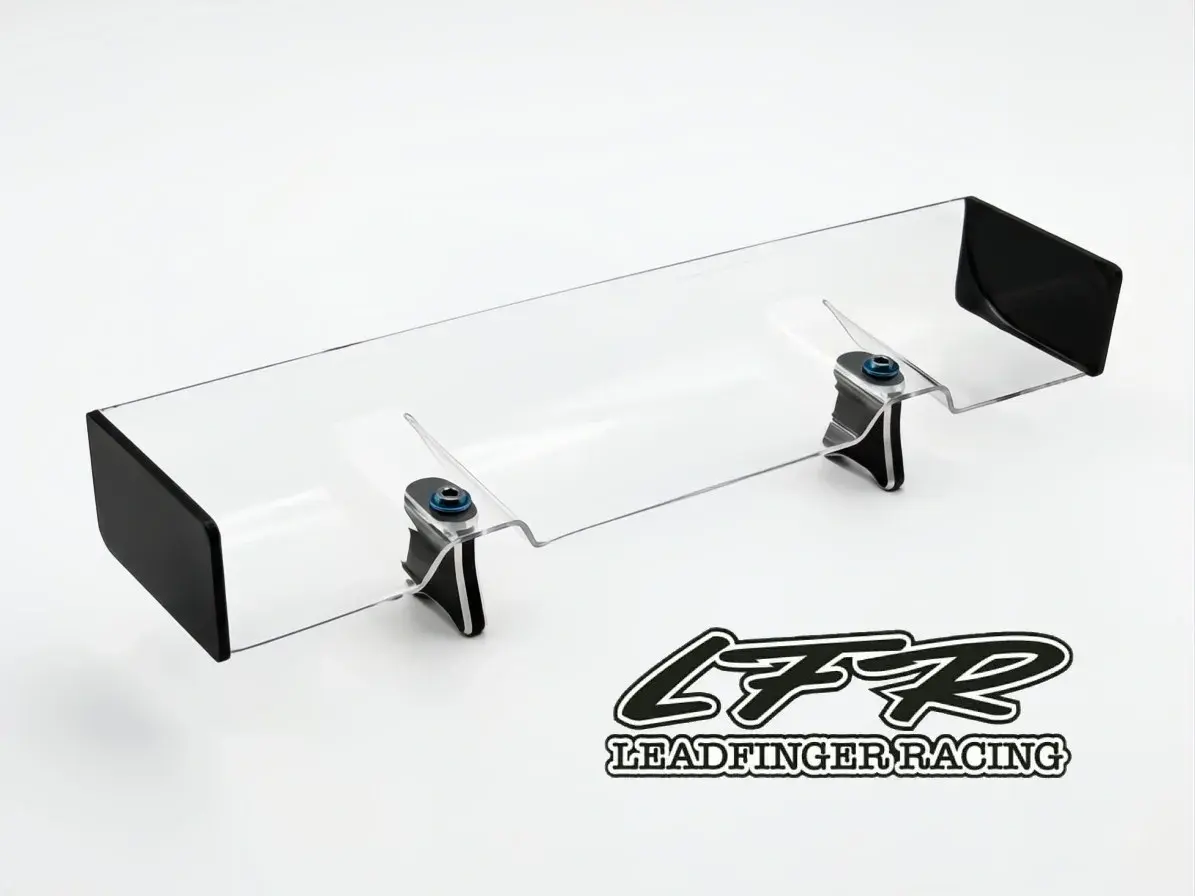

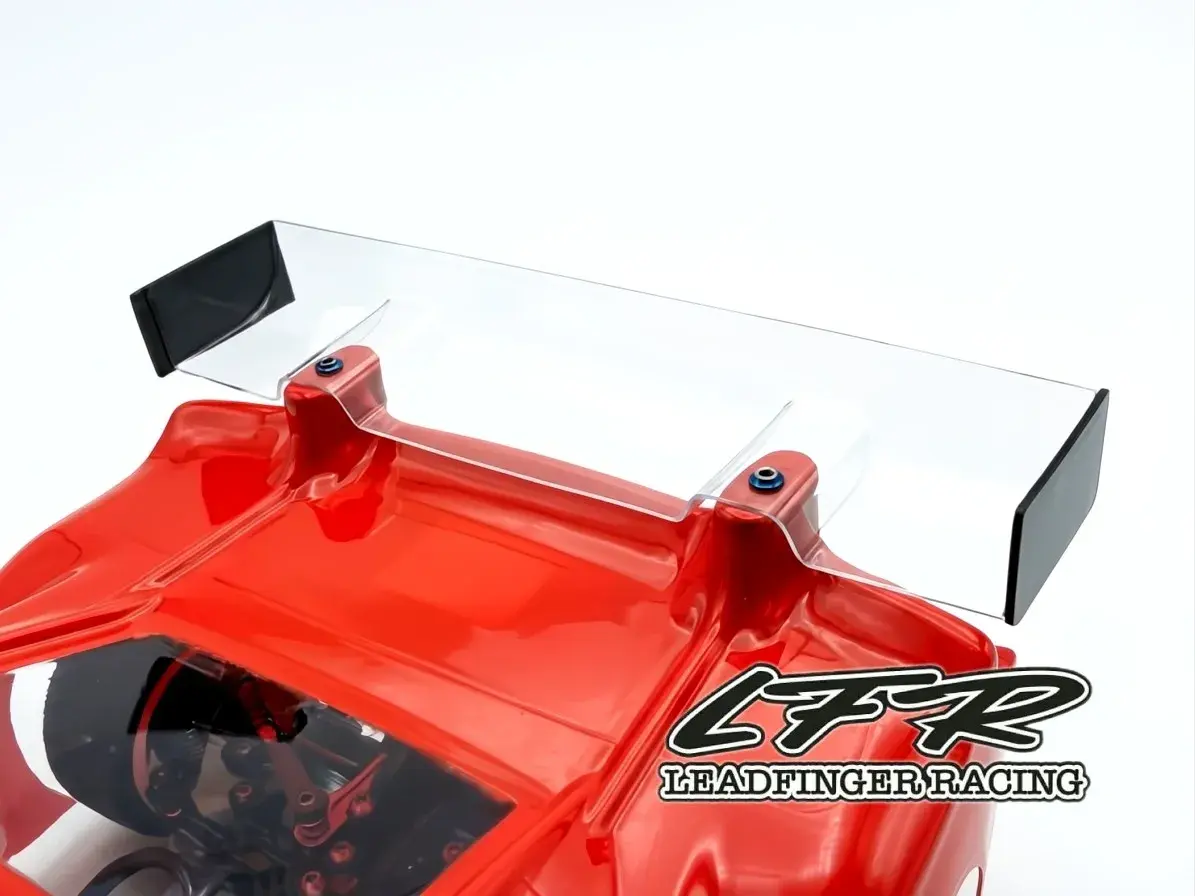

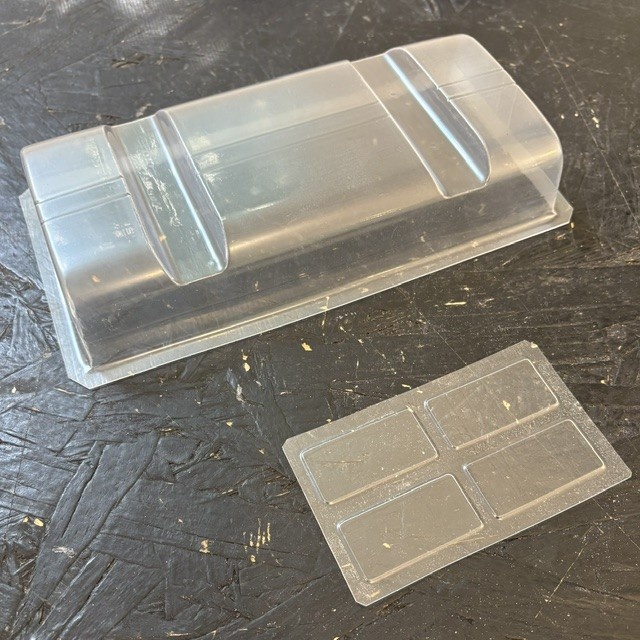

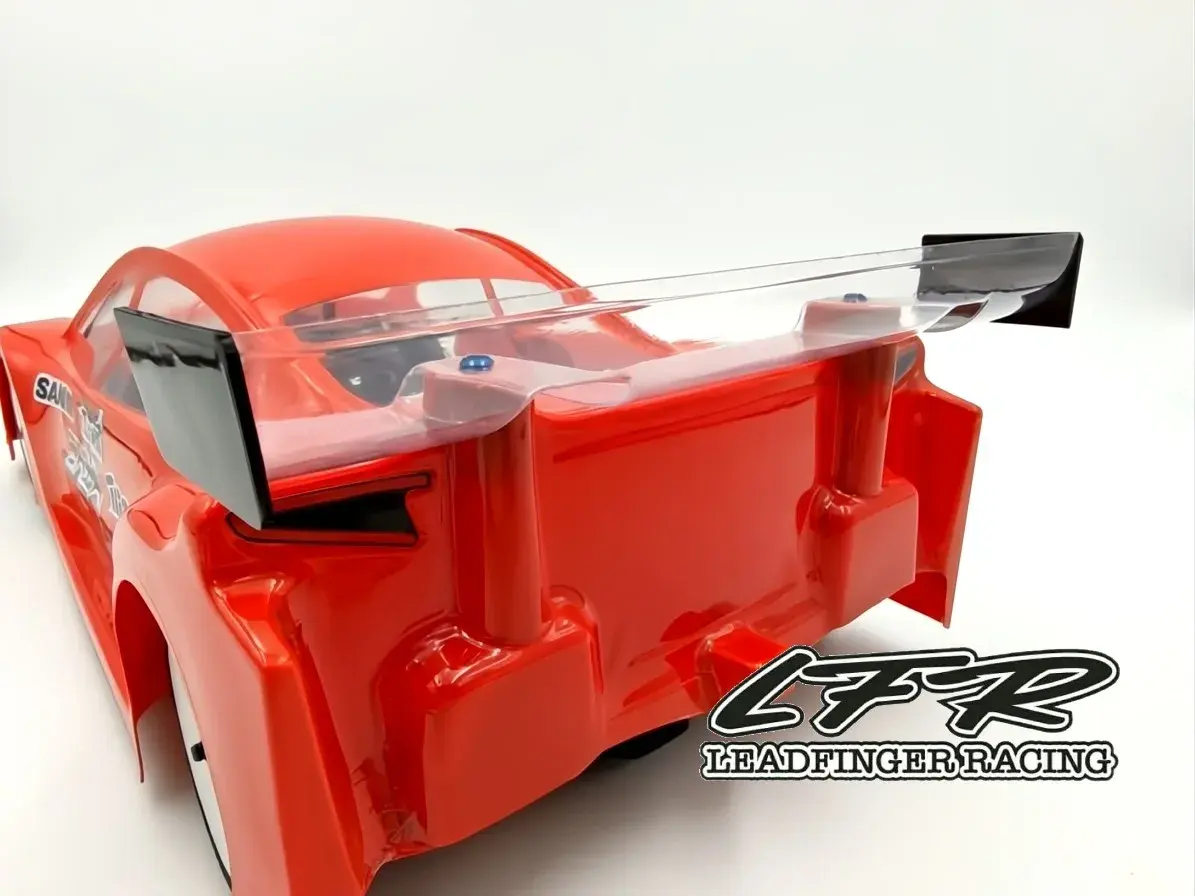

LFRW5076 Leadfinger MaxSpec-20 High Downforce Touring Car Wing for Avalon Vertex (2) (Leadfinger)

LFRW5076 Leadfinger MaxSpec-20 High Downforce Touring Car Wing ( Avalon Vertex ) (2)

Leadfinger Racing Introduces the All-New “MaxSpec-20” High-Downforce Compliance Wing Engineered Specifically for the Avalon Vertex On-Road Body!

Leadfinger Racing developed the MaxSpec-20 to unlock the full performance potential of the Avalon Vertex body without risking a tech failure. Instead of forcing racers to trim away performance, the MaxSpec-20 utilizes a custom-engineered lowered pocket geometry.

Lowered Pocket: Drops the baseline mounting plane 6mm lower on the body’s pedestals, neutralizing the tilt and pulling the trailing edge safely below the roofline.

Extended Pocket Reach (20mm–22mm): The mounting channels are lengthened to 20mm–22mm, cleanly clearing internal body reinforcement ribs for a flush, rigid fit.

Maximum Allowable Downforce: By lowering the baseline deck height, racers can run a true *20mm tall chord profile* while remaining 100% compliant with roofline height restrictions.

Key Features & Specifications

• 100% ROAR/ IFMAR Compliant: Tailored to maximize the full 20mm wing height rule while guaranteeing roofline compliance.
• Performance Profile: Restores maximum allowable rear downforce without roofline overhang.
• 6mm Drop Geometry: Custom offset mounting pockets lower the wing profile to account for pedestal tilt.
• Reinforcement Rib Clearance: Extended 20mm–22mm mounting channels bypass internal body molding contours for a flat, secure fit.
• Premium Heavy-Duty Lite Weight Lexan: Molded from Leadfinger Racing’s signature ultra-durable, high-clarity polycarbonate for maximum aero stability at speed. Sold as a pair (2)

Specifications At A Glance:

Compatibility: Avalon Vertex Touring Car Body
Max Wing Height: Full 20mm Legal Limit
Custom Pocket Specs: 6mm Lowering drop 20mm–22mm Extended Pocket Reach
20×40 mm side dams included
Sanctioning Compliance: ROAR / IFMAR Compliant
Material: Heavy-Duty Lite Weight Clear Polycarbonate
Sold as a pair (2)
Made in the USA by Leadfinger Racing
MaxSpec-20 High Downforce Wing #LFRW5076

#LFRW5076
