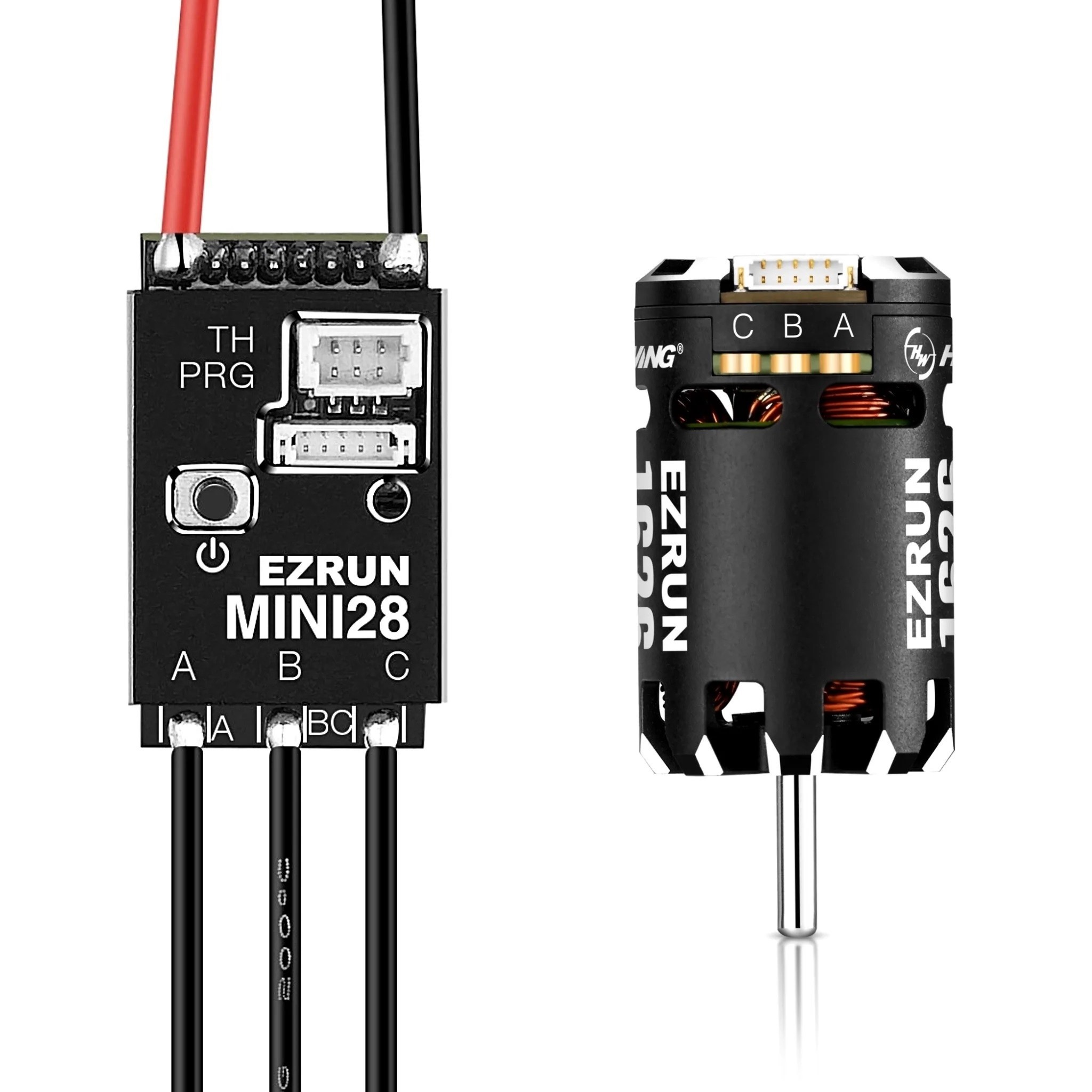

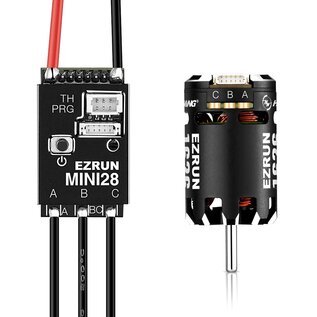

HWI38020367 EZRUN Mini28 ESC and 1626 SD 5000KV Motor Combo
What's in the box?
(1) EZRUN Mini28 ESC
(1) EZRUN 1626 Sensored Motor
(1) Supportive accessories (double side tape, etc)
Features:
- Improved top speed / Precision response / High efficiency with the cool operation
- When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
- Zero cogging, consistent torque, and excellent low-speed response give an amazing feel and driveability
- Modular detachable structure, convenient for daily cleaning and maintenance.
ESC Specifications:
- Part number: 30101300
- Technology: Brushless Sensored
- Waterproof: No
- Cont./Peak Current: 30A/80A
- Input Voltage: 2S Lipo
- BEC Output: 6V/7.4V @Max 3.5A
- Wires & Connectors: Input Wires: 20AWG-55mm *
- Output Wires: 22AWG-80mm *
- Size & Weight: 22.7x14.2x11.8mm | 5g (without wires)
- Applications: Motor: 1626 Size Motors; Vehicle: 1/28th and 1/27th
- ESC Programming: LCD G2 Program Box, OTA Programmer, Throttle Wire
- Firmware Upgrade: Supported
Motor Specifications:
- Model: Ezrun 1626-5000KV
- PN: 30402654
- Pole: 2
- KV: 5000KV
- No-load Current(A): 0.5A
- Input Voltage: 2S
- Diameter/ Length(mm): 16
- Shaft Diameter/ Length (mm): 26
- Applications: 1/28th Mini
- Weight: 18g
