HWI30803202 Quicrun 10BL60 SD G2 ESC & QR3650 SD 17.5T G2 Motor Combo (2S)
*AFFIRM Finance Offer Available on Total Purchases of $149 or More
| Part Number: | HWI30803202 |
| Quantity In Stock: | 1 |
HWI30803202 Quicrun 10BL60 SD G2 ESC & QR3650 SD 17.5T G2 Motor Combo (2S)

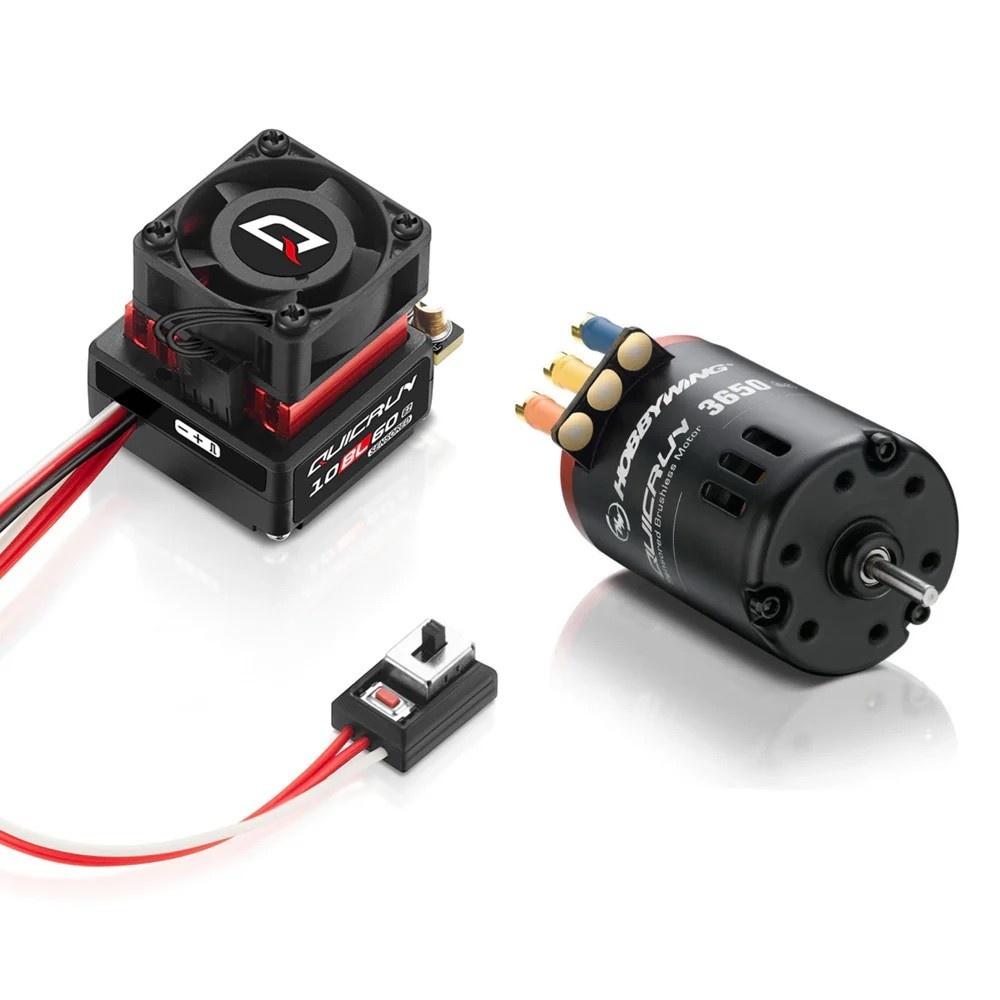

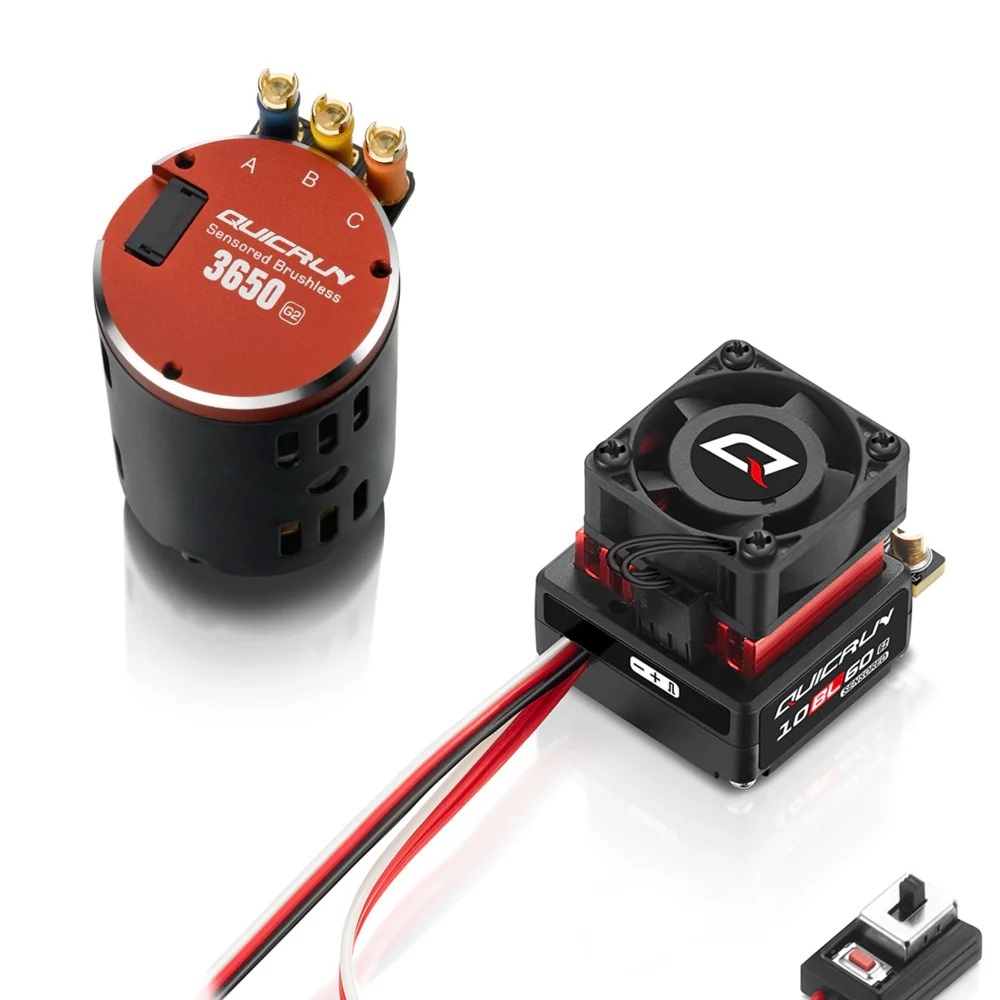

The QuicRun 10BL60 SD G2 Sensored Brushless ESC/QR3650 G2 Motor Combo from Hobbywing is an ideal choice for entry-level and intermediate RC enthusiasts seeking a high-performance, user-friendly solution. Designed with simplicity in mind, this combo eliminates complex setups, allowing users to focus on the thrill of driving. With robust hardware, advanced software, and a range of adjustable parameters, it delivers exceptional reliability and performance. Whether you're upgrading your RC vehicle or starting fresh, this ESC and motor combo offers unmatched value and convenience.
This combo features a powerful built-in BEC, ensuring stable power delivery to your vehicle’s servos and receivers. By providing consistent voltage, the BEC minimizes the need for additional components, streamlining your setup. This built-in feature enhances system efficiency, enabling smooth operation even in demanding conditions.
With Boost and Turbo timing adjustments of up to twenty-four degrees, this ESC delivers an instant surge of speed when needed. Whether you're navigating tight corners or racing on straightaways, these adjustments maximize motor power and responsiveness. This level of tuning offers both performance enthusiasts and competitive racers a distinct edge on the track.
The QuicRun 10BL60 SD G2 offers three versatile programming methods to suit your preferences. You can fine-tune parameters using a multi-function LCD programming box, an LED programming box, or the onboard SET button. These flexible options make it easy to optimize performance and adapt the system to various driving styles and environments.
| Suggested Application | 1/10 Buggy/Touring/Drift |
|---|---|
| Motor Type | Brushless-Sensored |
| Input Voltage | 2S LiPo (7.4V) |
| Continuous Current | 60A |
| Burst Current | 200A |
| Dimensions (LxWxH) | 1.38x1.22x1.21in (35x31x30.8mm) |
| Weight | - |
| BEC Voltage | 6.0-7.4V |
| BEC Continuous Current | - |
| BEC Peak Current | 4A |
| Motor Connector | Solder Type Bullets |
| Battery Connector | - |
| Motor Wire | - |
| Battery Wire | - |
| Throttle Wire | - |
| Programming | Button/Program Box |
| Suggested Application | 1/10 Buggy/Touring/Drift |
|---|---|
| Size | 17.5T (2170kV) |
| Type | Brushless-Sensored |
| Voltage | 2-3S LiPo |
| Adjustable Timing | No |
| Watts | 125w |
| Connector | Solder Type Bullets |
| Dimensions | 1.42x1.69in (36x42.8mm) |
| Shaft Length | 0.59in (15mm) |
| Shaft Diameter | 1/8in (3.17mm) |
| Weight | 6.56oz (186g) |
