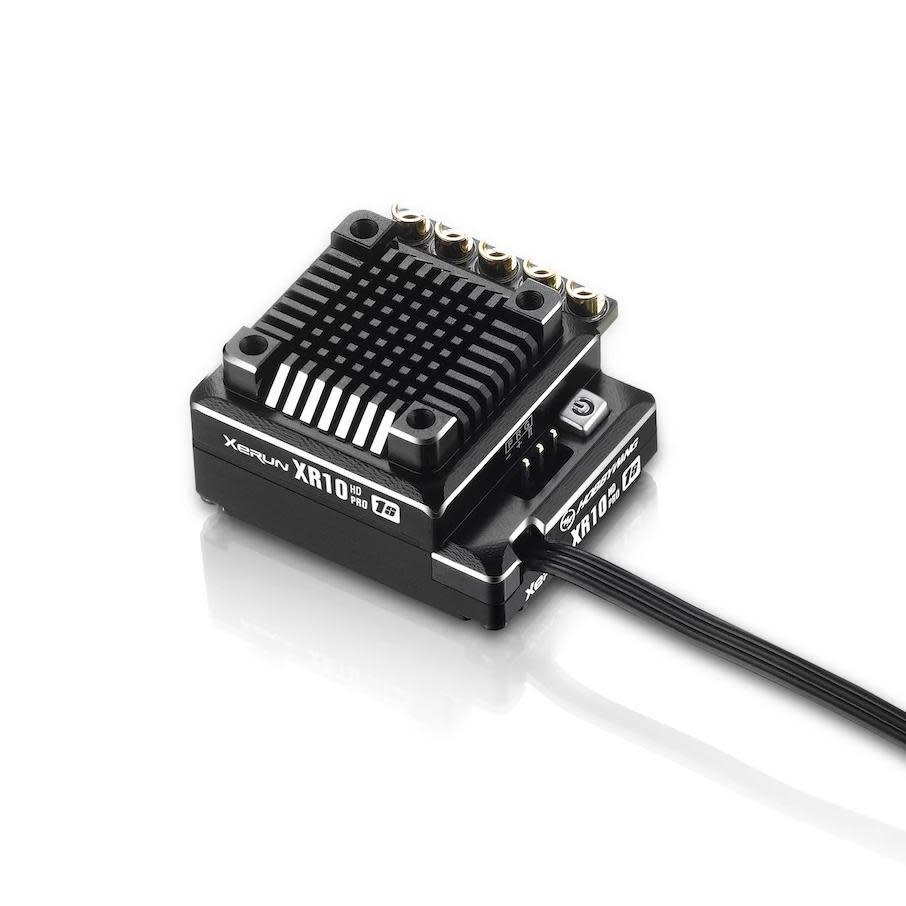

HWI30112609 XR10 PRO 1S HD ESC Series 120amp (Hobbywing)

HWI30112609 XR10 PRO 1S HD ESC Series

$209.99 Excl. tax

*AFFIRM Finance Offer Available on Total Purchases of $149 or More

Delivery time: Ships within 24hrs
Part Number: HWI30112609
Quantity In Stock: 3

HWI30112609 XR10 PRO 1S HD ESC Series



  • Word's Champion's choice, ROAR APPROVED
  • Redesigned new architecture platform
  • 40% smaller in volume* (*6mm shorter,  6mm smaller in width)
  • 24% lighter in weight (12g lighter than the previous generation)
  • Premium MOSFETs (Toshiba MOSFETs)
  • Super BEC. Internal BEC features booster circuitry can output the current/voltage of up to 6A/6V and power various servos without connecting any extra receiver battery.
  • Built-in electronic switch (with a lifespan of over 50000 on/off cycles, dust-proof and shock-resistant design)
  • Built-in capacitor module saves space and weight making the wiring simple and neat.
  • PWM Frequency tuning - guarantees precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).
  • Maximum Cooling performance - Separate Programming/Fan Port
    The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to an LCD program box or WiFi module for ESC programming.
Programming through WiFi
  • Works with LCD program box (PC only) or WiFi Express Module (Apple & PC) - purchase separately
  • Innovative Data-logging function - This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows users to check those data via an LCD program box or WiFi module after each use
XR10 PRO 1S
 XR10 PRO 1S HD
p/n
30112603
 30112609
Application

1/10 - 1/12
Brushless sensored system

Stock Racing

 1/12

Brushless sensored system

Stock / Modified Racing

Cont. 120A 120A
Peak Current 830A 830A
Input 1S LiPo/3-4 Cells NiMH 1S LiPo/3-4 Cells NiMH
BEC output Switch Mode:6V/3A Switch Mode:6V/3A
Programmable Yes Yes
Firmware update Yes Yes
WiFi Module Enabled Enabled
Dim. 37.5x31x15.9mm 37.5x31x31mm
Weight 35.6g
1.26oz
46.7g
1.65oz
What's in the box?
  • ESC
  • 14 Ga & 12Ga Wires (Two Types)
  • RX Wire
  • Bonus accessories (heat sink, etc)
  • User's manual
  • Decal
